◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11504 - FRR-L EURO2 EXC.SPAC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#112774) — 369 parça

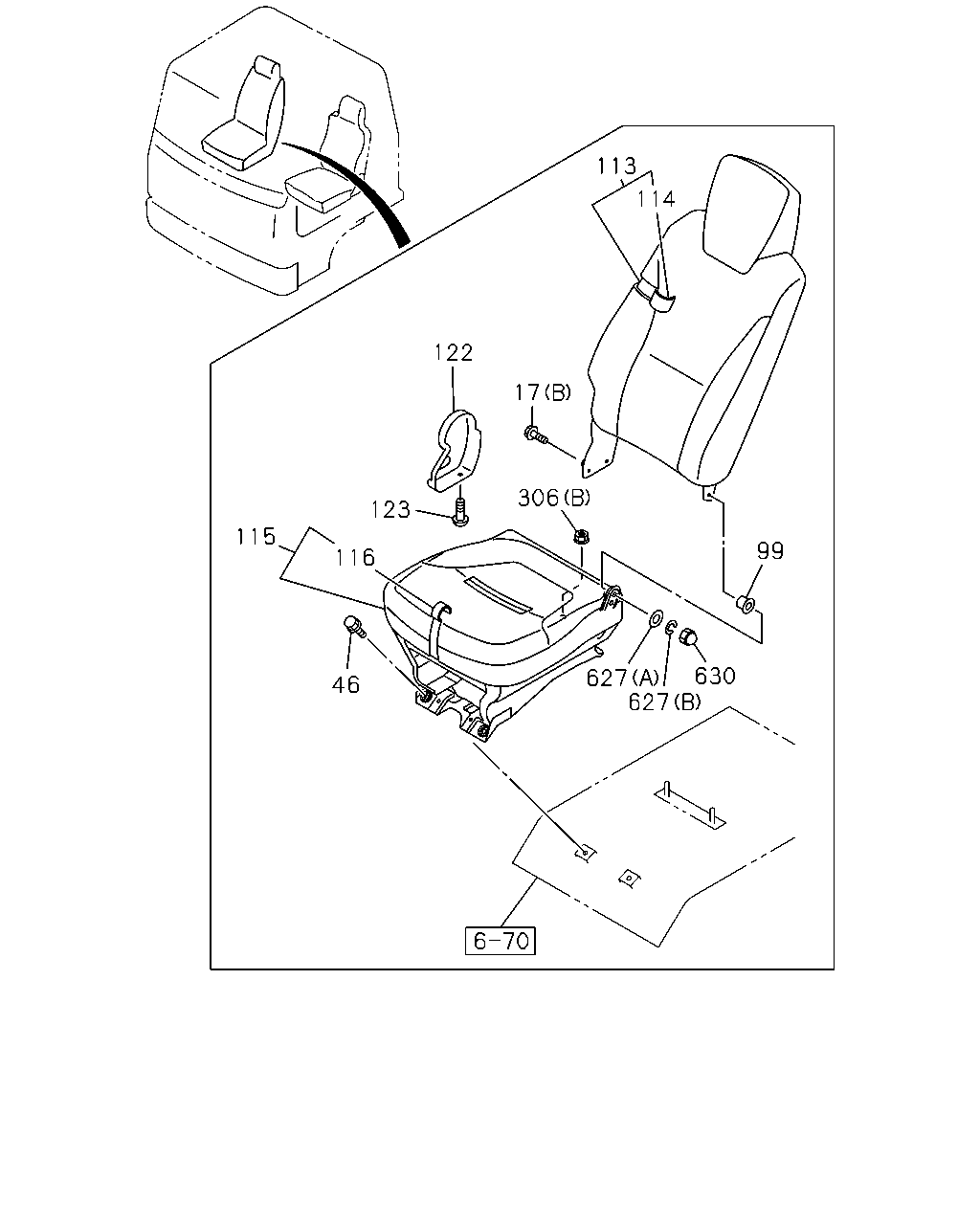

çizim 329275
46 17 99 113 114 115 122 123 116 306 627 627 630
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1302-1506
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1507-1509
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1302-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1302-
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1302-
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-423-0 01 1 1302-
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-041-1 01 1 1302-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-425-0 01 1 1302-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97414-042-0 01 1 1302-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-419-1 01 1 1302-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-039-1 01 1 1302-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-421-0 01 1 1302-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97414-040-0 01 1 1302-
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 1302-
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1502
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1302-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1302-
630 NUT; CAP
M8 		8-98063-225-0 01 1 1302-

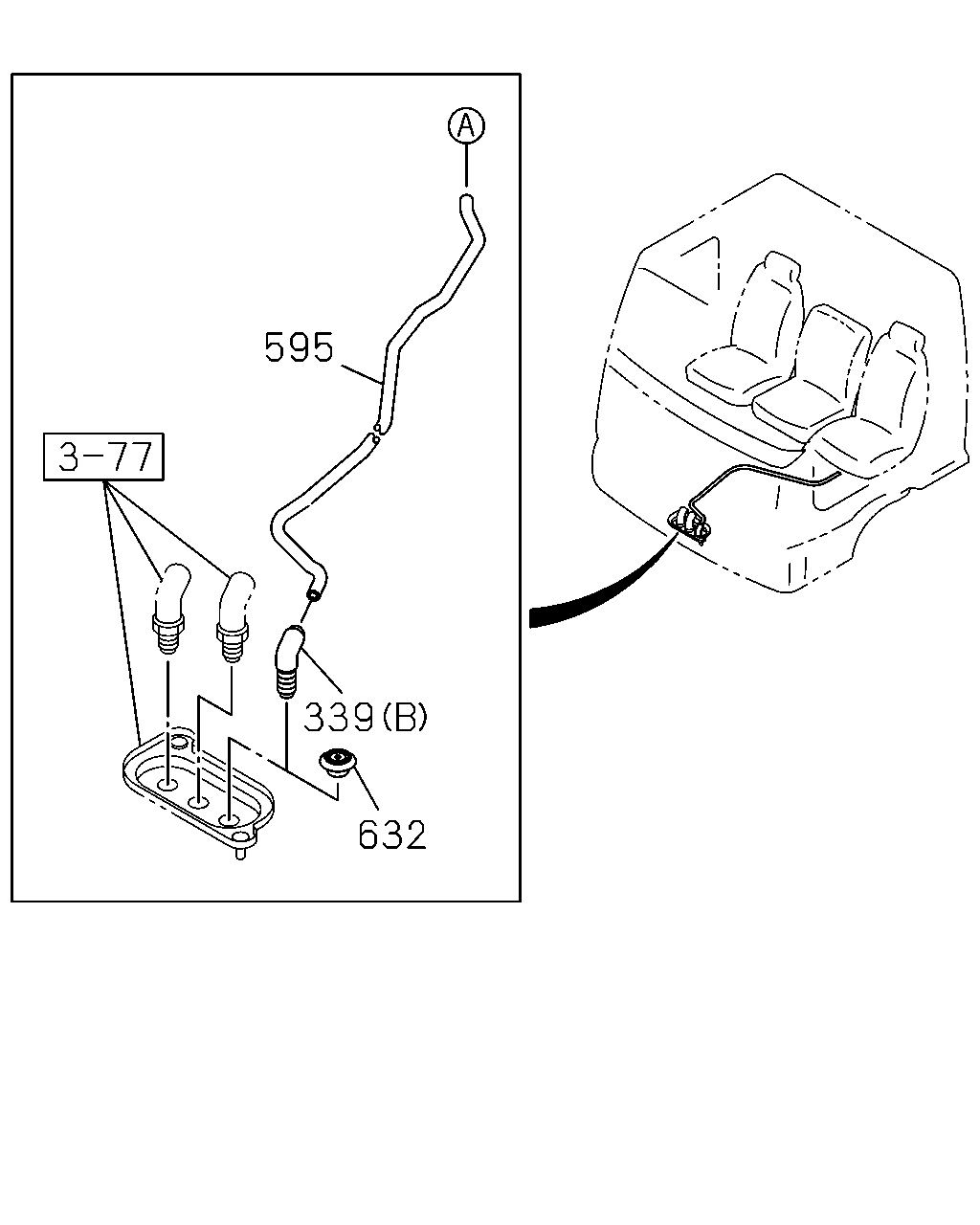

çizim 329277
595 339 632
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1302-1502
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1503-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302-
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> 		8-98067-762-0 01 1 1302-
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1302-

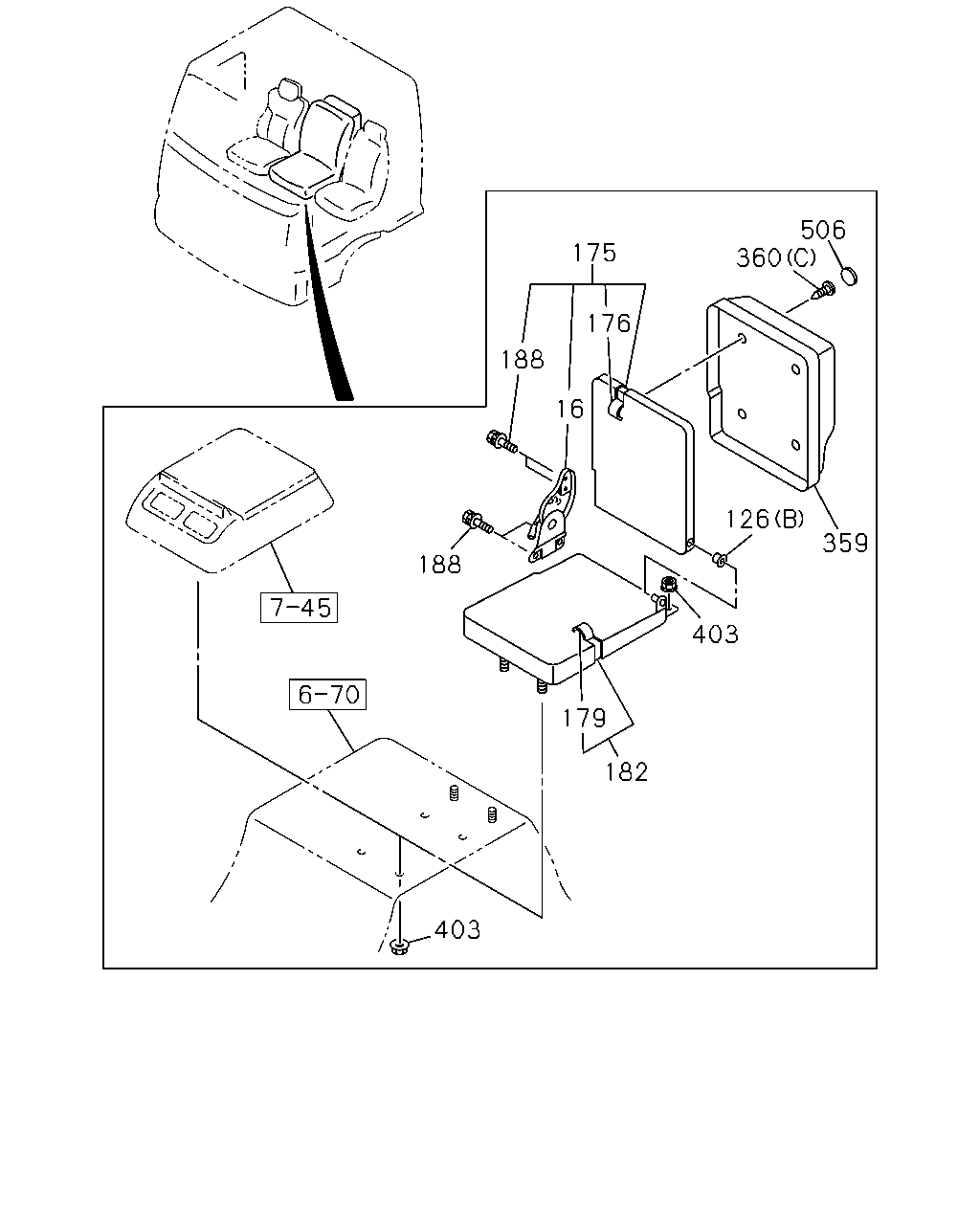

çizim 329463
403 182 403 88 188 175 176 16 179 126 506 360 359
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1302-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1510-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1302-1502
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1503-1506
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1506
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1507-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1302-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 1302-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1302-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 1302-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-433-1 01 1 1302-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97414-690-1 01 1 1302-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-431-3 01 1 1302-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97414-129-3 01 1 1302-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1302-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1302-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1302-

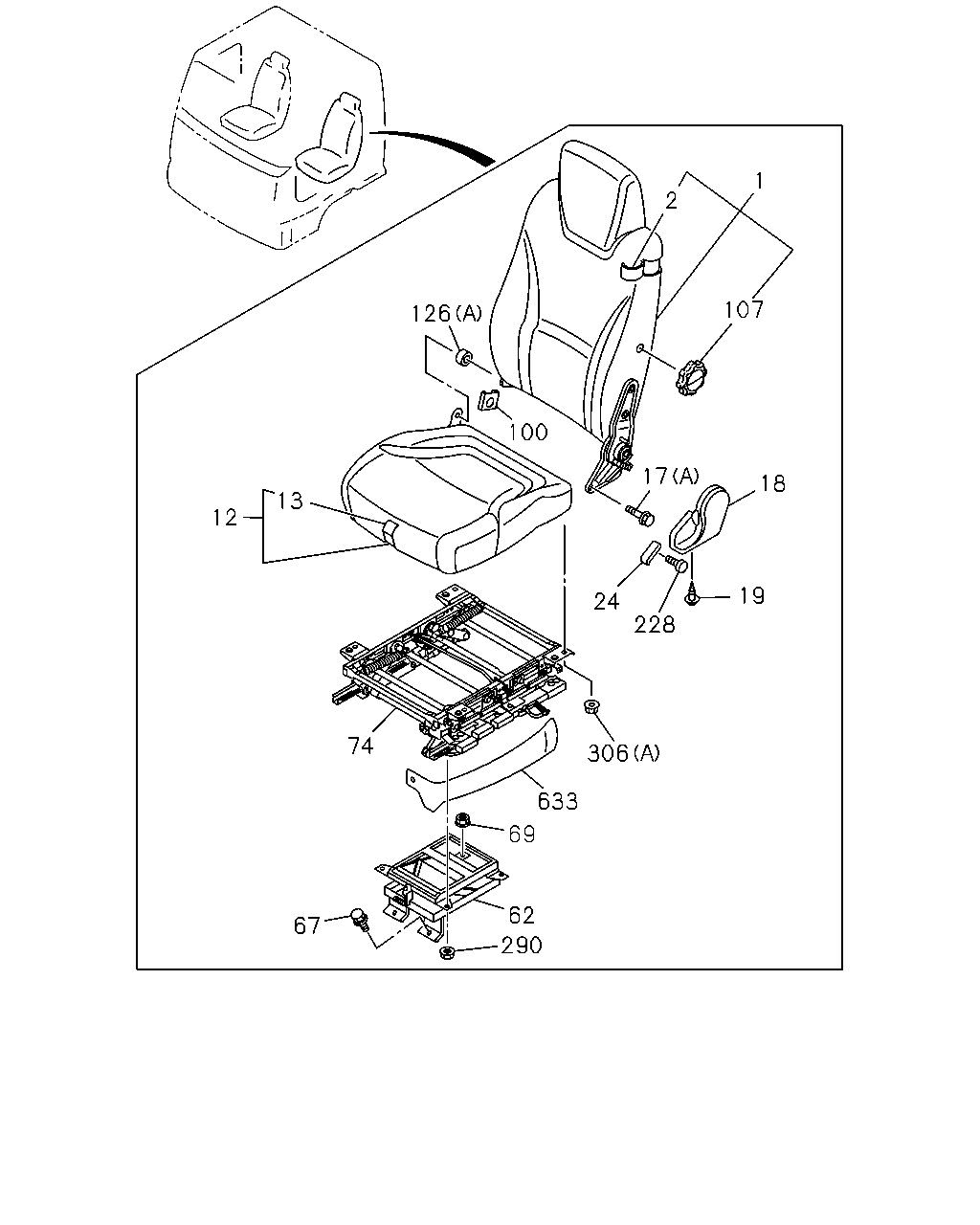

çizim 329486
1 2 107 126 100 17 18 19 228 24 13 12 74 306 633 69 62 67 290
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1510-
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1302-1506
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1302-
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-037-5 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1302-1506
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97414-038-2 01 1 1302-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-2 01 1 1302-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DARK GRAY 		8-97414-035-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97414-036-1 01 1 1302-
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1302-1506
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1507-1509
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1302-
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1302-1506
18 COVER; RECLINING
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-361-0 01 1 1507-1509
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1510-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1302-1506
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1507-1509
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1302-1506
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-362-0 01 1 1507-1509
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-185-8 01 1 1302-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1404-1502
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1503-1506
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-641-0 01 1 1510-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98093-429-0 01 1 1302-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1503-1506
100 COVER; HINGE 8-98203-070-0 01 1 1302-1506
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1507-1509
100 COVER; HINGE 8-98203-070-0 01 1 1510-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1510-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1302-1506
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1506
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1507-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1302-1506
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1507-1509
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1510-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1302-1502
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1503-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1502
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97414-118-0 01 1 1510-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97414-118-0 01 1 1302-1502
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97414-118-0 01 1 1503-1506

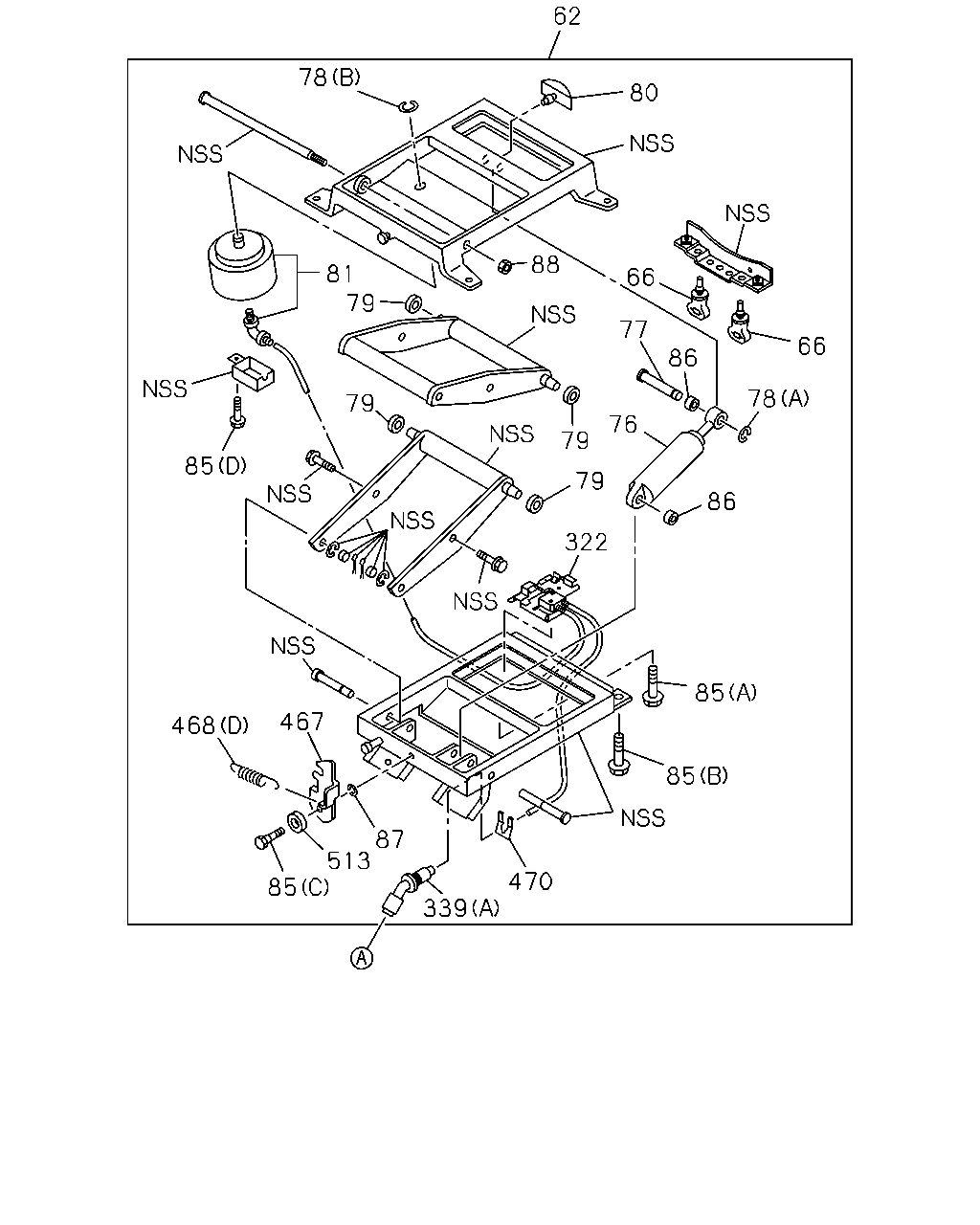

çizim 329615
62 80 66 78 86 85 85 470 339 87 513 85 468 467 85 81 79 88 78 66 77 79 76 79 322 86 79
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-185-8 01 1 1302-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1404-1502
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1503-1506
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1510-
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1302-1502
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1503-1506
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-139-0 01 1 1510-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-139-0 01 1 1302-1502
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1503-1506
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1510-
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1302-1502
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1503-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1302-1502
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1503-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1302-1502
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1503-1506
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1510-
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-159-0 04 1 1302-1403
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1404-1502
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1503-1506
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1510-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1302-1502
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1503-1506
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1510-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-2 01 1 1302-1312
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1401-1502
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1503-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-1502
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1503-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1302-1502
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1503-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1302-1502
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1503-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1302-1312
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-1502
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1503-1506
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510-
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1302-1502
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1503-1506
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1510-
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1302-1502
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1503-1506
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1510-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1302-1502
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1503-1506
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-187-3 01 1 1510-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-187-3 01 1 1302-1502
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-187-3 01 1 1503-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1302-1502
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1503-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1510-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1302-1502
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1503-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1302-1502
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1503-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1302-1502
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1503-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1302-1502
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1503-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1302-1502
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1503-1506
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1510-
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1302-1502
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1503-1506
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1510-
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1302-1502
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1503-1506

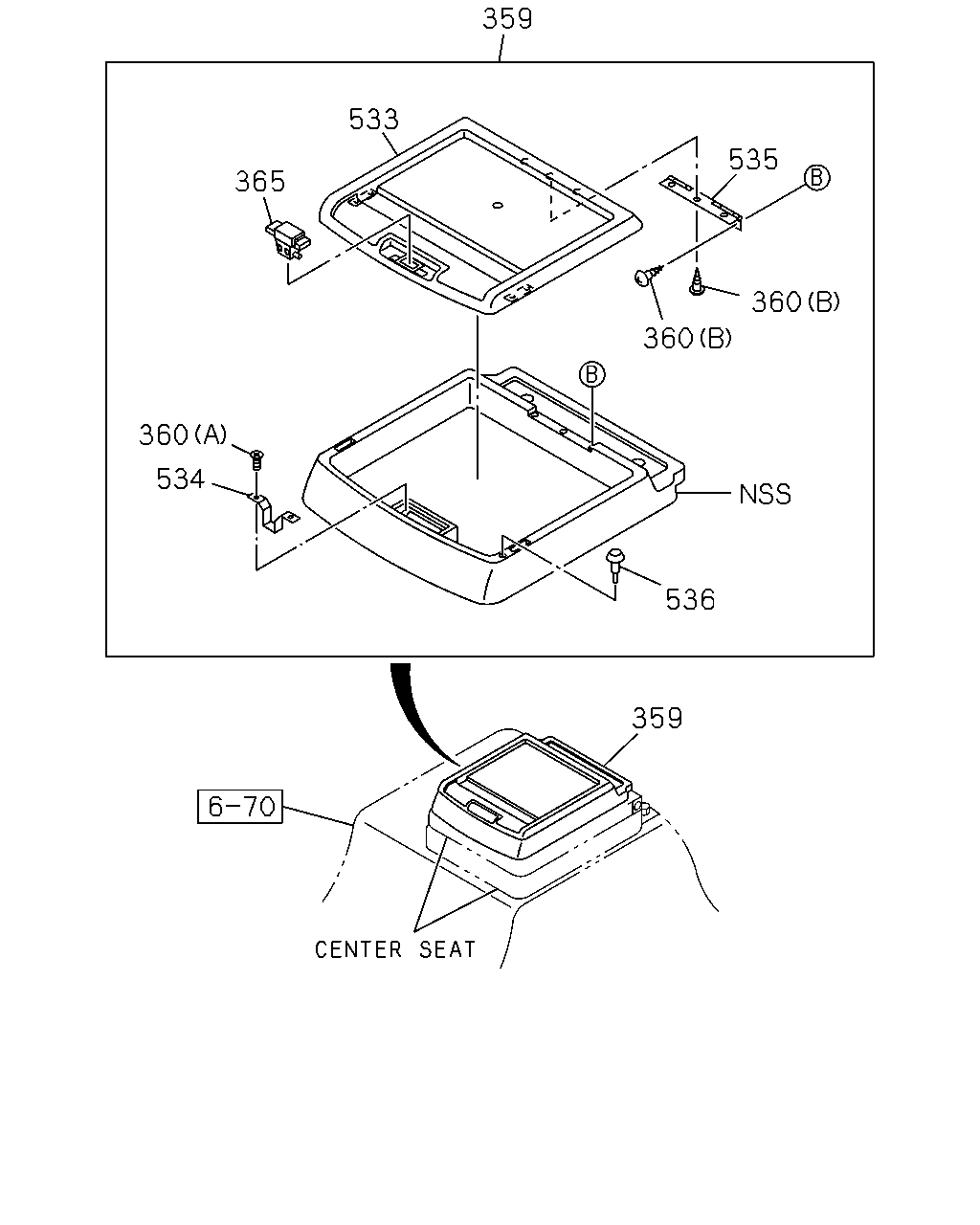

çizim 329616
359 536 534 360 360 360 365 535 533 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1302-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1302-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1302-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1302-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1302-

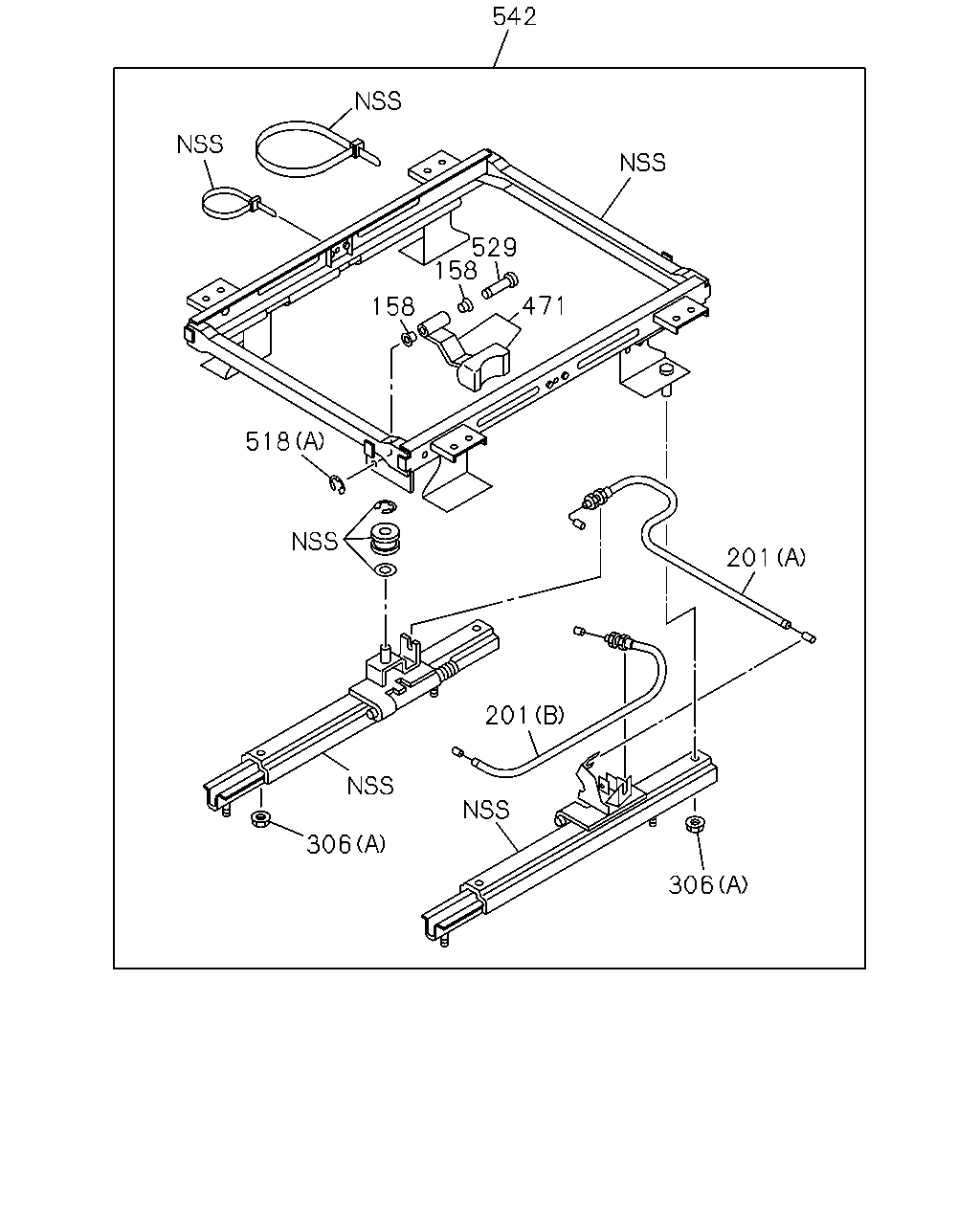

çizim 329678
542 529 158 158 471 518 201 201 306 306
BalonParca AdiParca NoAdetTipApplied Date
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1302-1506
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1507-1509
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1302-1506
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1507-1509
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1302-1506
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1507-1509
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1502
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1302-1506
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1507-1509
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1506
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1507-1509
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1302-1502
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1503-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1502
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1502
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1502
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1506
529 PIN; LINK 1-75518-262-0 01 1 1302-1506
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1507-1509
529 PIN; LINK 1-75518-262-0 01 1 1510-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98092-333-0 01 1 1302-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1503-

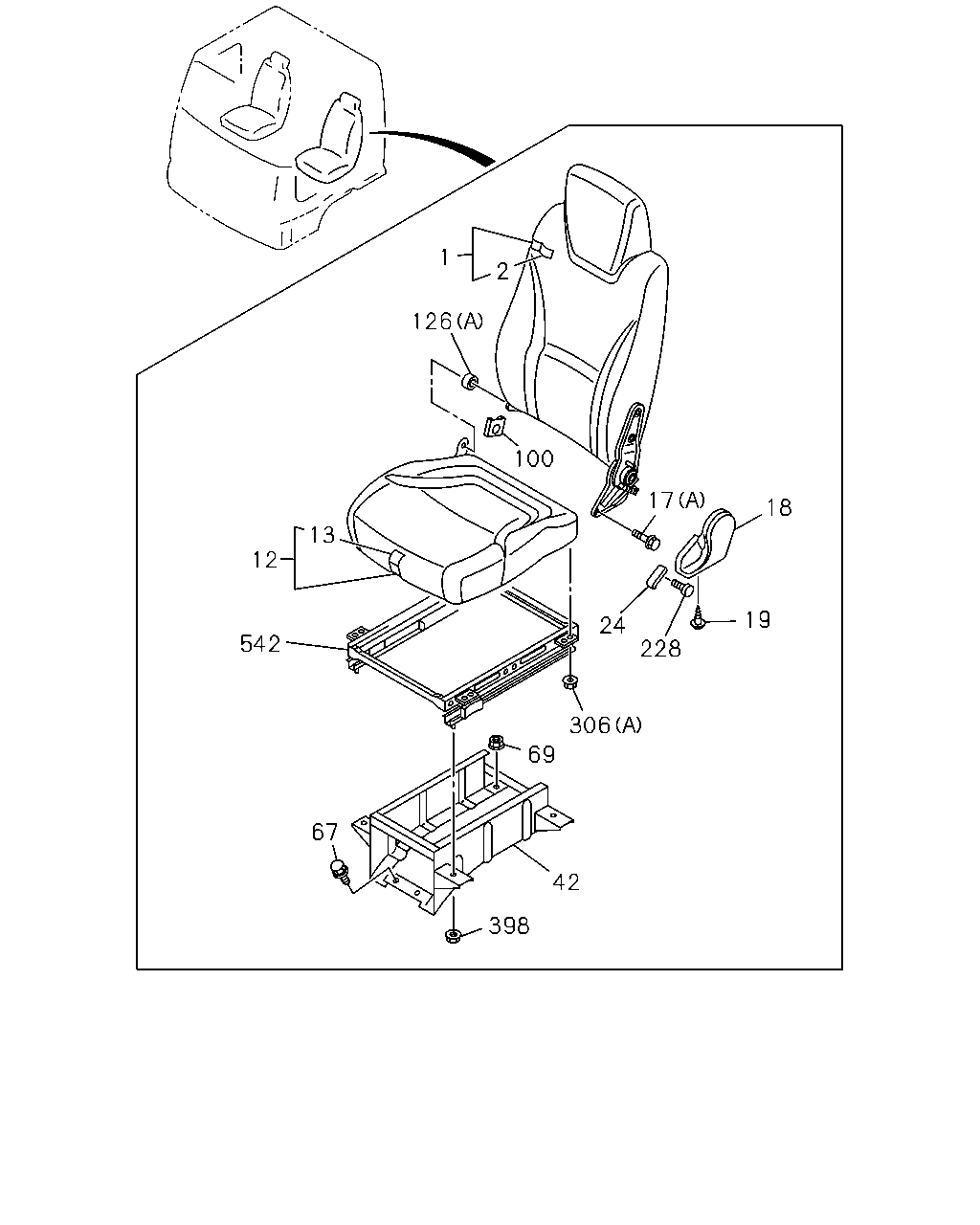

çizim 329714
1 18 19 17 2 126 100 24 228 13 12 542 306 69 42 398 67
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1510-
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1302-1506
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1302-
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-037-5 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1302-1506
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1302-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97414-038-2 01 1 1302-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-2 01 1 1302-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DARK GRAY 		8-97414-035-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-2 01 1 1302-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97414-036-1 01 1 1302-
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1302-1506
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1507-1509
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1302-
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1302-1506
18 COVER; RECLINING
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-361-0 01 1 1507-1509
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1510-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1302-1506
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1507-1509
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1302-1506
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-362-0 01 1 1507-1509
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1510-
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1302-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302-
100 COVER; HINGE 8-98203-070-0 01 1 1302-1506
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1507-1509
100 COVER; HINGE 8-98203-070-0 01 1 1510-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1506
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1507-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1302-1506
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1507-1509
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1502
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1302-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98092-333-0 01 1 1302-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1503-

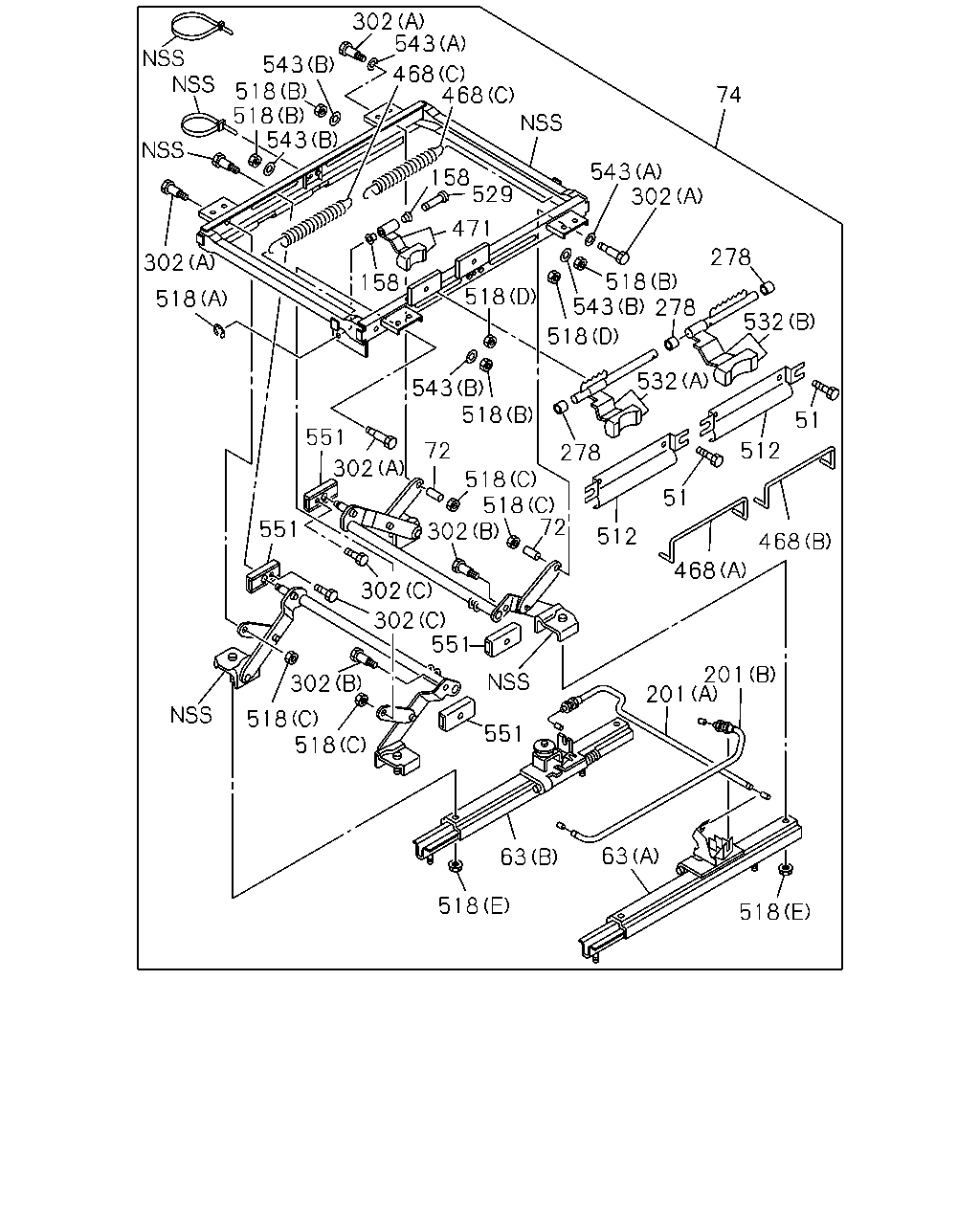

çizim 330443
74 518 518 63 63 201 201 468 468 51 51 532 512 512 551 518 518 551 302 551 302 72 518 302 302 551 518 72 518 543 518 278 532 278 278 302 518 543 543 518 158 471 529 158 468 468 302 543 518 543 543 518 302 302 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1510-
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1302-1502
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1503-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-227-1 01 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-324-0 01 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-227-1 01 1 1302-1502
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-227-1 01 1 1503-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-324-0 01 1 1302-1502
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-324-0 01 1 1503-1506
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1510-
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-334-1 02 1 1302-1502
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1503-1506
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-641-0 01 1 1510-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98093-429-0 01 1 1302-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1503-1506
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1302-1506
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1507-1509
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1302-1506
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1507-1509
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1302-1506
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1507-1509
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1510-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1302-1502
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1503-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1302-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1503-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-270-1 04 1 1302-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1503-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1302-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1503-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1302-1502
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1503-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1302-1502
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1503-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1302-1502
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1503-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1302-1502
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1503-1506
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1302-1506
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1507-1509
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1510-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-245-1 02 1 1510-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-245-1 02 1 1302-1502
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-245-1 02 1 1503-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1506
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1507-1509
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1302-1502
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1503-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1502
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1502
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1502
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1506
529 PIN; LINK 1-75518-262-0 01 1 1302-1506
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1507-1509
529 PIN; LINK 1-75518-262-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-221-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-222-1 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-221-0 01 1 1302-1502
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-221-0 01 1 1503-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-222-1 01 1 1302-1502
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-222-1 01 1 1503-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1510-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1510-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-335-0 02 1 1302-1502
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1302-1502
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1503-1506
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1510-
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1302-1502
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1503-1506
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
