Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#112769) — 657 parça

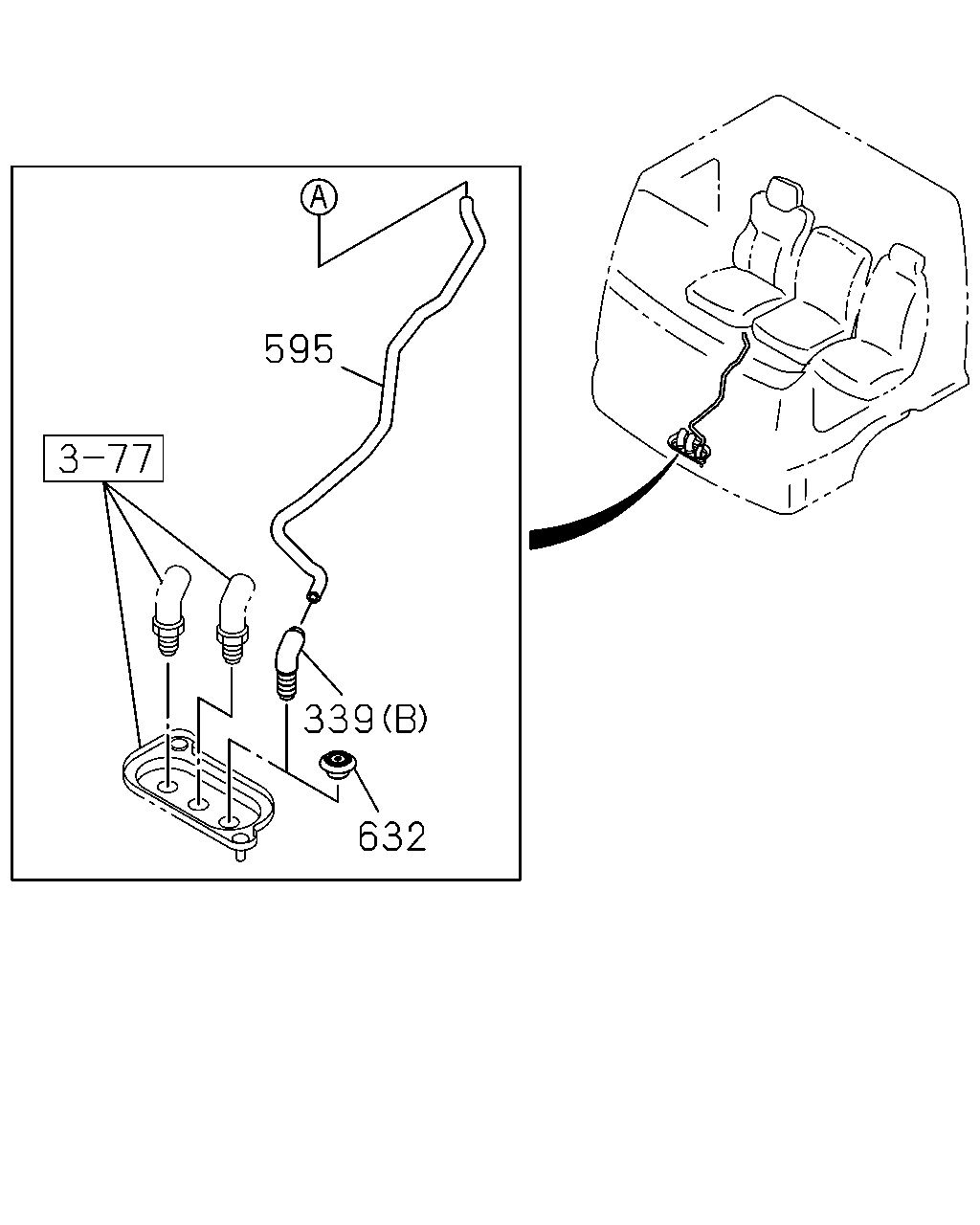

595 339 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10	1-75537-273-1	01	1	1507-1508
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1302-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75538-131-3	01	1	1507-1508
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1302-1510
339	UNION; DRIVER SEAT EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98014-971-0	01	1	1511-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98067-762-0	01	1	1302-1510
595	TUBE; NYLON EXC. RIGID SEAT WO/ARM REST<TAZ>	8-98067-762-0	01	1	1511-
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1302-

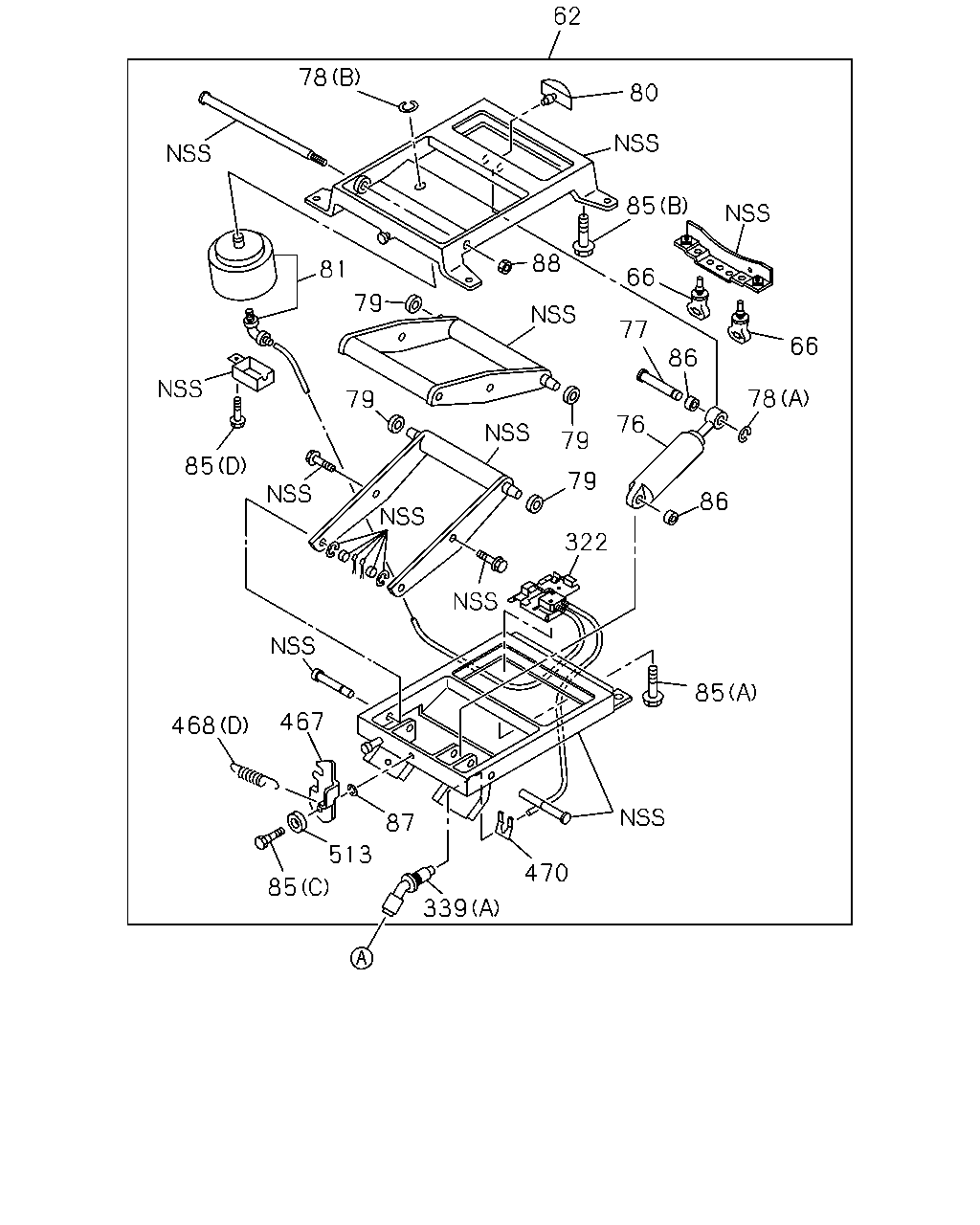

62 80 85 78 81 79 85 79 8 66 77 66 78 86 76 79 79 86 322 85 470 339 87 468 467 513 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	1302-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98261-448-0	01	1	1507-1508
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1302-1506
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75538-145-0	02	1	1507-1508
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	1302-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75538-139-0	01	1	1507-1508
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1510-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1302-1506
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75538-138-2	01	1	1507-1508
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1302-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=8	9-09185-408-0	01	1	1507-1508
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1302-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=15	9-09185-415-0	01	1	1507-1508
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	1302-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-1506
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98261-489-0	04	1	1507-1508
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1302-1506
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-123-0	01	1	1507-1508
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	1302-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98242-816-0	01	1	1507-1508
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1507-1508
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1302-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C)	1-09980-577-1	01	1	1507-1508
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1302-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M6X12	1-75538-208-1	02	1	1507-1508
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1302-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1507-1508
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1302-1506
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1507-1508
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1302-1506
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> ID=8.2	0-91510-508-0	01	1	1507-1508
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10	1-75537-273-1	01	1	1507-1508
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-186-3	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-186-3	01	1	1302-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75538-186-3	01	1	1507-1508
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1302-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75538-131-3	01	1	1507-1508
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1302-1510
339	UNION; DRIVER SEAT EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98014-971-0	01	1	1511-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1510-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1302-1506
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75538-134-0	01	1	1507-1508
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1302-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-206-0	01	1	1507-1508
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1302-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B)	1-75518-207-0	01	1	1507-1508
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1302-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C)	1-75518-208-0	02	1	1507-1508
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1302-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D)	1-75538-132-0	01	1	1507-1508
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1302-1506
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75538-137-0	01	1	1507-1508
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1302-1506
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75538-133-0	01	1	1507-1508

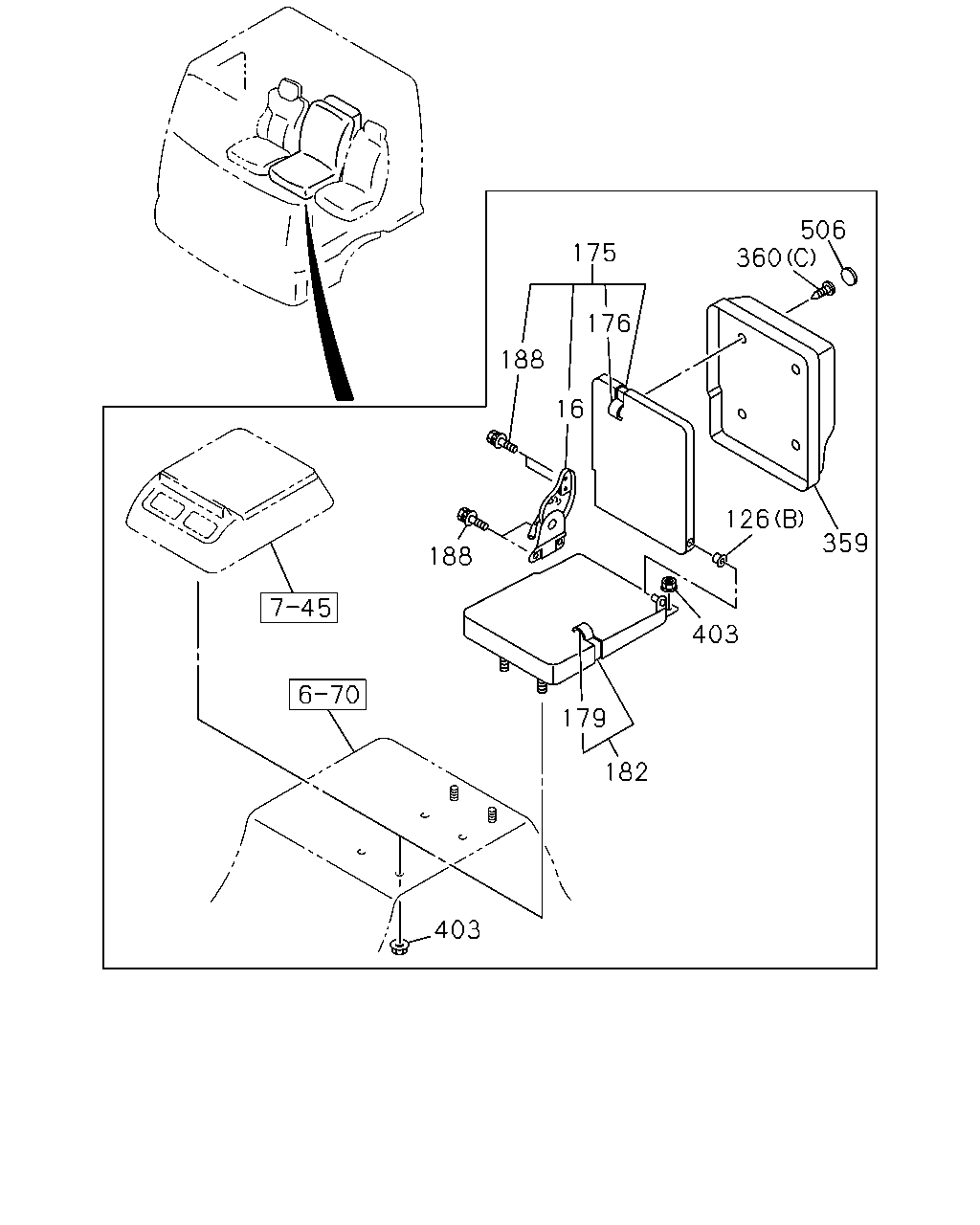

506 360 175 176 188 126 16 359 188 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1302-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10	1-75537-273-1	01	1	1507-1508
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1302-1502
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1302-1502
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1507-1508
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1507-1508
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1509-1509
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1302-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1302-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	1302-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1302-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	1302-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-432-1	01	1	1302-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-974-1	01	1	1302-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-430-3	01	1	1302-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-973-3	01	1	1302-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1302-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1302-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1302-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1302-

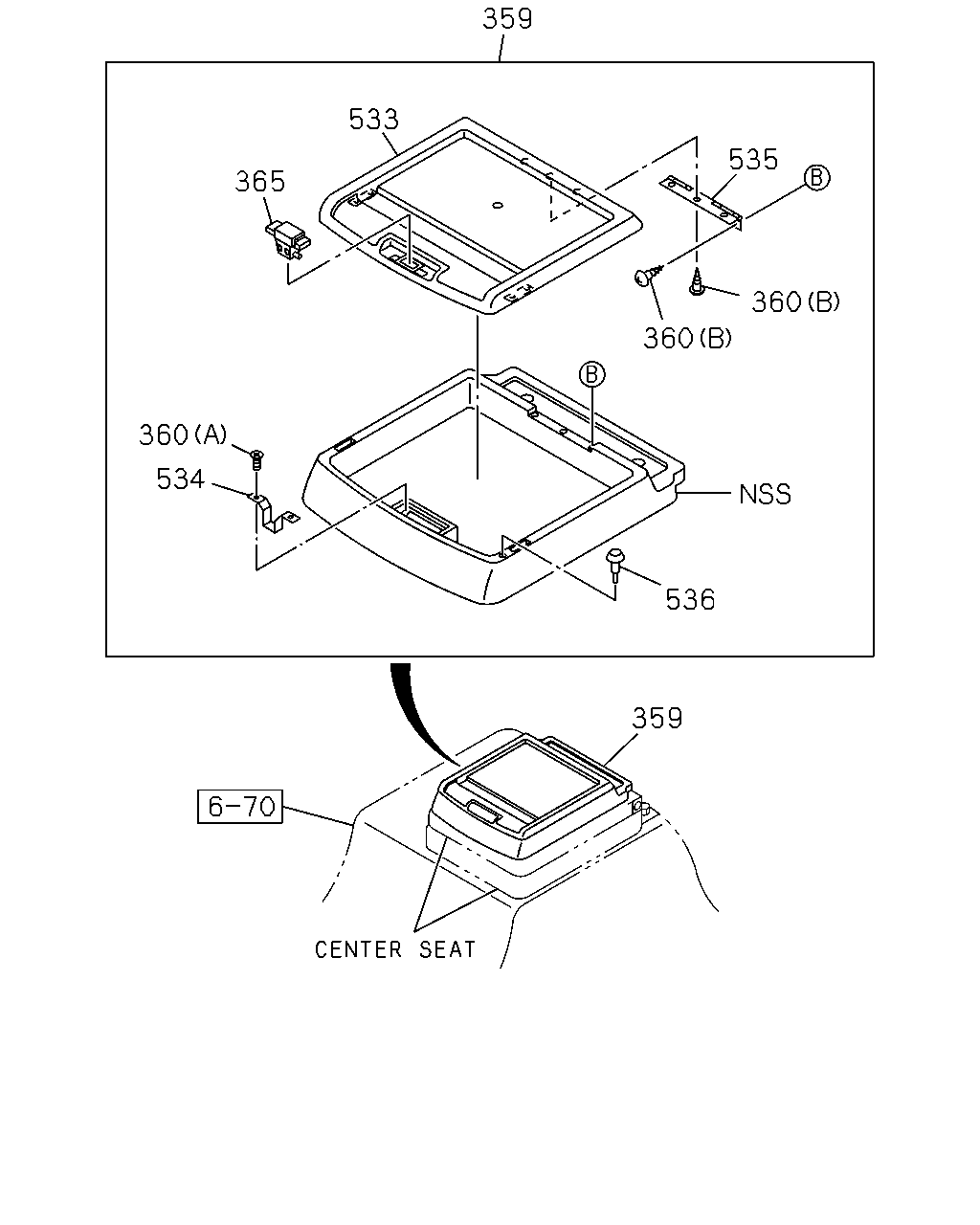

359 536 534 360 360 360 365 535 533 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10	1-75537-273-1	01	1	1507-1508
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1302-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1302-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1302-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1302-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1302-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1302-

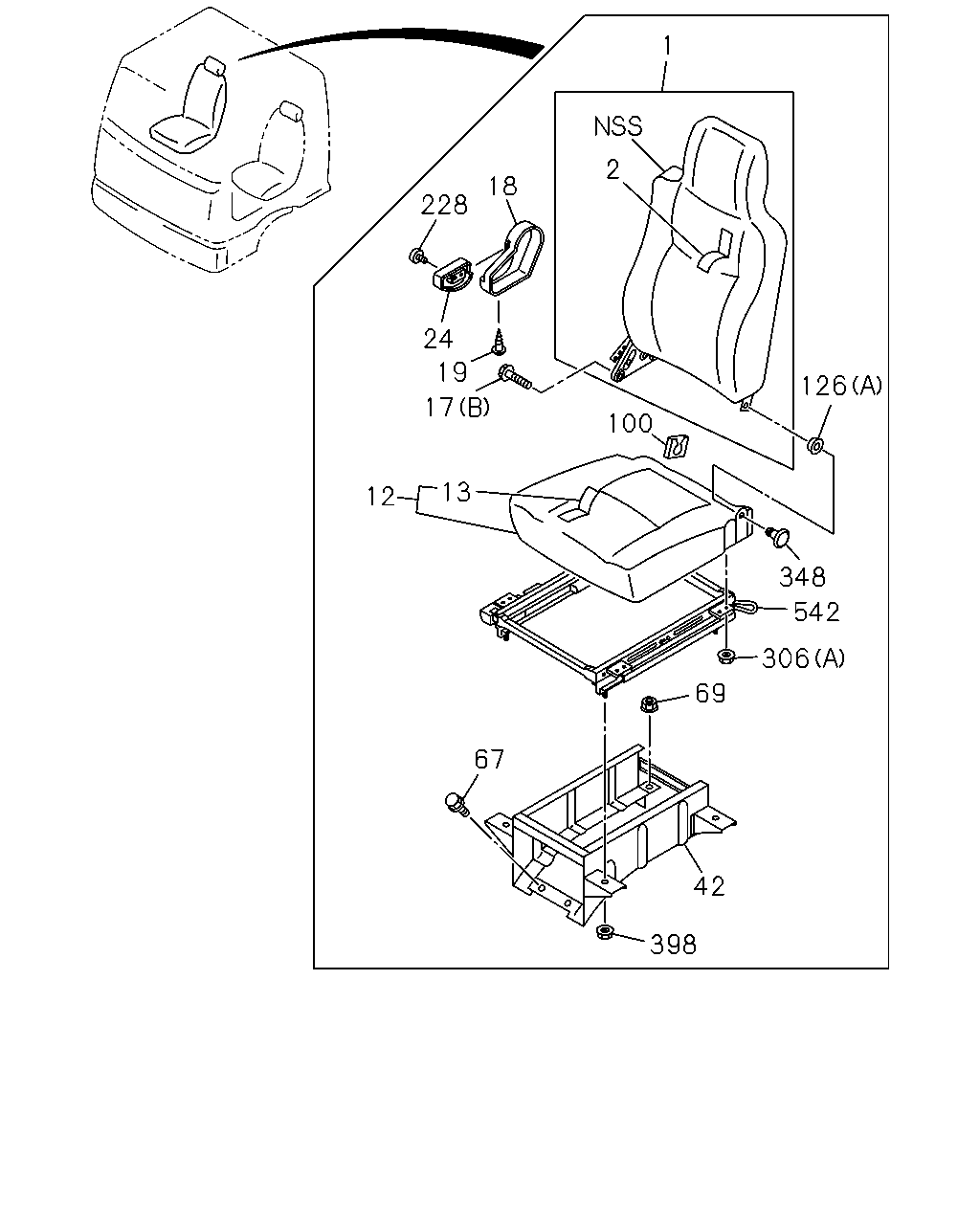

1 2 228 18 24 17 12 13 19 100 126 348 542 306 69 67 42 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97421-407-1	01	1	1302-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97466-622-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-406-1	01	1	1302-1506
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-406-1	01	1	1507-1509
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-406-1	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97409-955-5	01	1	1302-1502
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97409-955-5	01	1	1503-1509
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97421-412-0	01	1	1302-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-411-0	01	1	1302-1506
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-411-0	01	1	1507-1509
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-411-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-910-2	01	1	1302-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-910-2	01	1	1503-1509
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-123-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-608-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97421-398-2	01	1	1302-1512

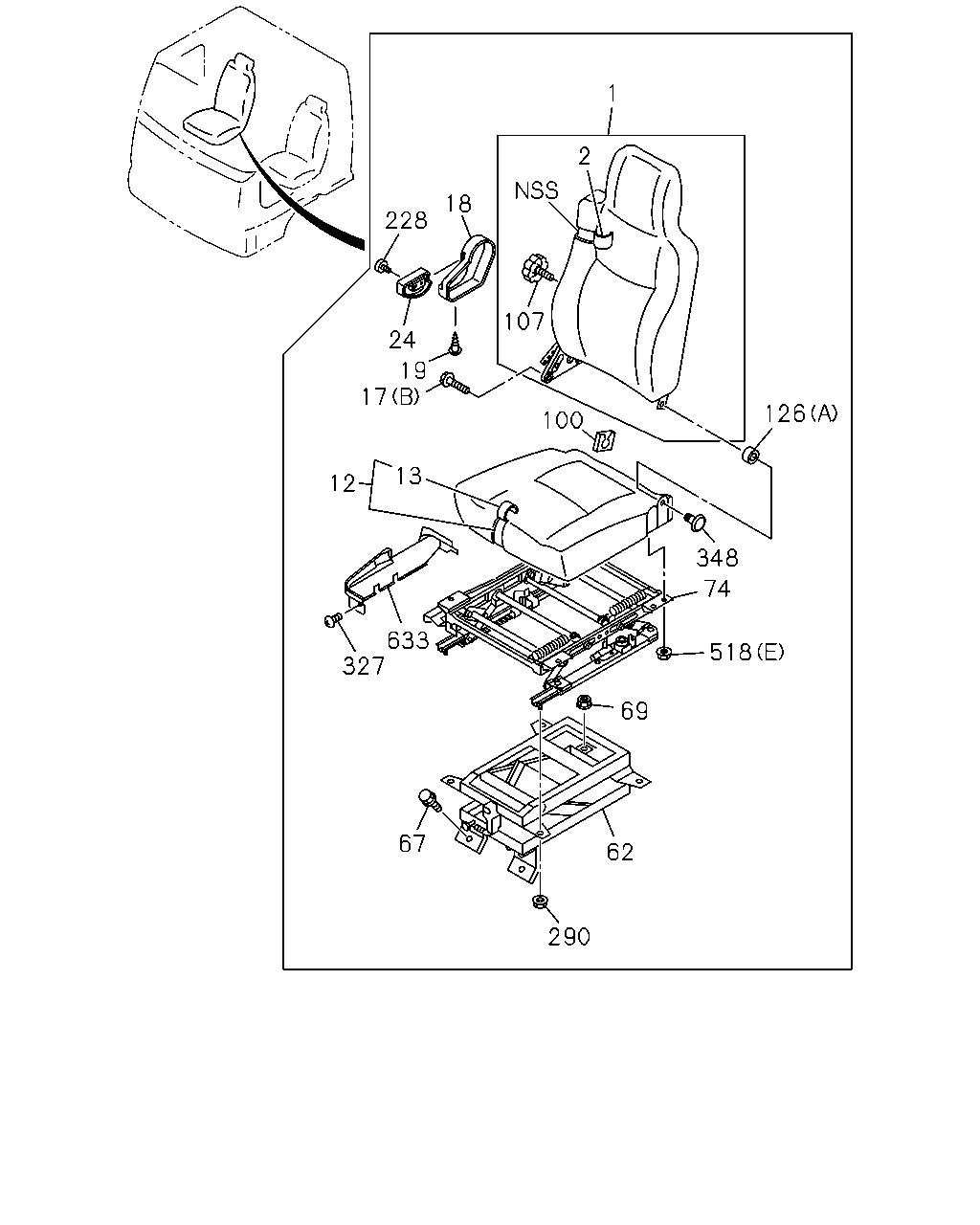

12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97466-611-0	01	1	1601-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-397-2	01	1	1302-1512
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-123-2	01	1	1302-1502
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97409-954-2	01	1	1302-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97421-402-2	01	1	1302-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-401-2	01	1	1302-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-909-1	01	1	1302-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-909-1	01	1	1503-1509
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1302-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1302-1502
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1302-1502
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1507-1508
17	BOLT; RECLINING SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1507-1508
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1509-1509
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1302-1502
18	COVER; RECLINING RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1302-1502
18	COVER; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1510-
18	COVER; RECLINING RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1302-1502
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1302-1502
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5	8-98062-663-0	01	1	1503-1506
19	SCREW; COVER SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1503-1506
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5	8-98062-663-0	01	1	1507-1508
19	SCREW; COVER SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5	8-98062-663-0	01	1	1507-1508
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5	8-98062-663-0	01	1	1509-1509
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1510-
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1302-1502
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1302-1502
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1510-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	1302-1502
42	STAND; DRIVER SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75558-604-2	01	1	1503-1506
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	1-75558-604-2	01	1	1503-1506
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75558-604-2	01	1	1507-1509
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1302-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1302-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10	1-75537-273-1	01	1	1507-1508
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1302-1502
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1302-1502
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98203-070-0	01	1	1503-1506
100	COVER; HINGE SEAT CLOTH<7FL>	8-98203-070-0	01	1	1503-1506
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98203-070-0	01	1	1507-1508
100	COVER; HINGE SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98203-070-0	01	1	1507-1508
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98203-070-0	01	1	1509-1509
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98286-009-0	01	1	1601-
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1302-1502
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1302-1502
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1507-1508
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1507-1508
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1509-1509
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1302-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1302-1502
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1302-1502
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4	8-98062-662-0	01	1	1503-1506
228	SCREW; KNOB SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1503-1506
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4	8-98062-662-0	01	1	1507-1508
228	SCREW; KNOB SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4	8-98062-662-0	01	1	1507-1508
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4	8-98062-662-0	01	1	1509-1509
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1510-
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1302-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1302-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	06	1	1507-1508
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1302-1502
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	08	1	1507-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98286-008-0	01	1	1601-
348	BOLT; HINGE,SEAT RIGID SEAT WO/ARM REST<TAZ>	8-98286-008-0	01	1	1601-
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	1302-1502
398	NUT; STAND VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	1-75538-207-0	04	1	1503-1506
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M8 FLANGE	1-75538-207-0	04	1	1503-1506
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	1-75538-207-0	04	1	1507-1509
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	1510-

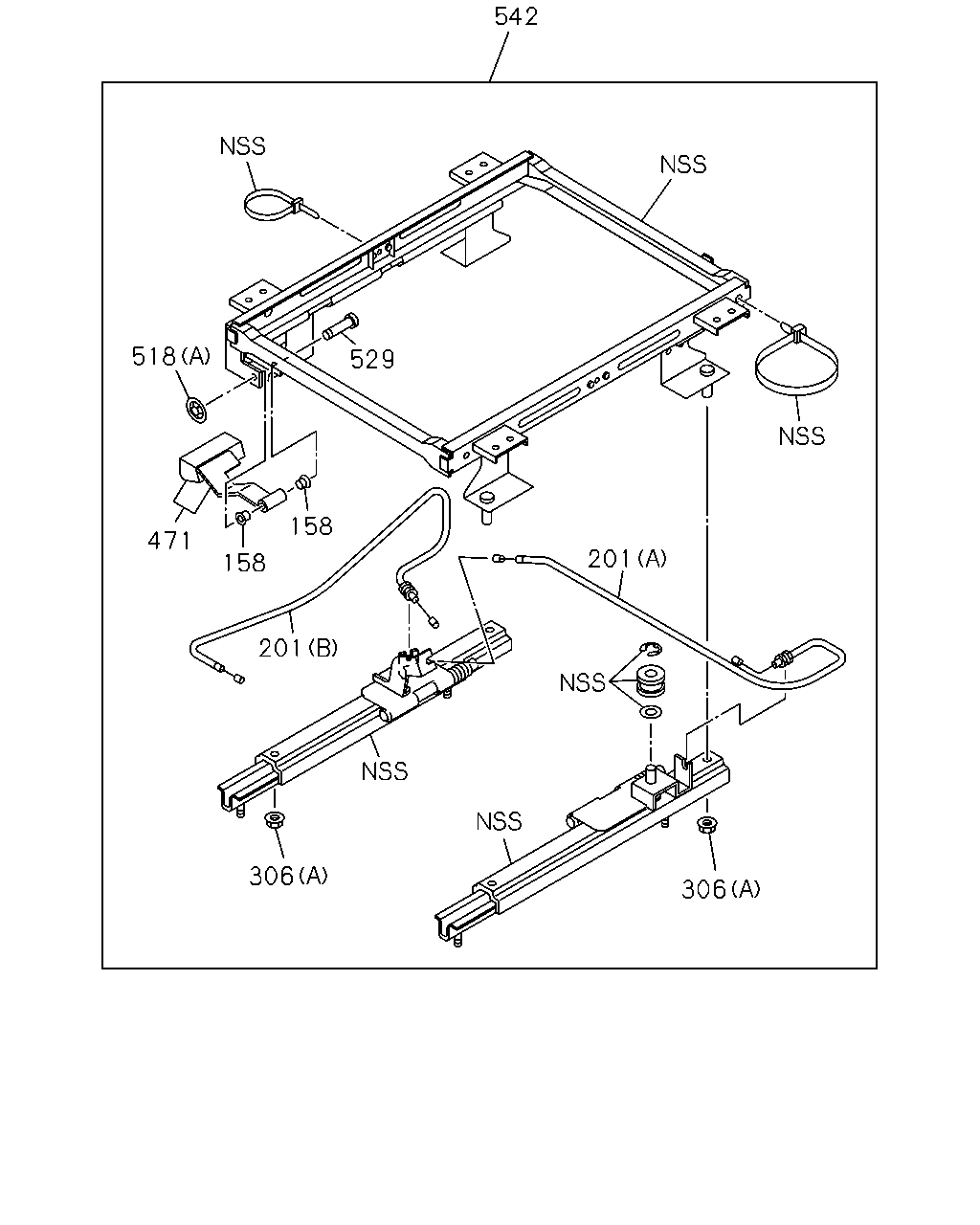

542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	1302-1502
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98291-653-0	01	1	1503-1506
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98291-653-0	01	1	1503-1506
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98291-653-0	01	1	1507-1509
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1510-

542 529 158 158 471 201 306 306 201 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

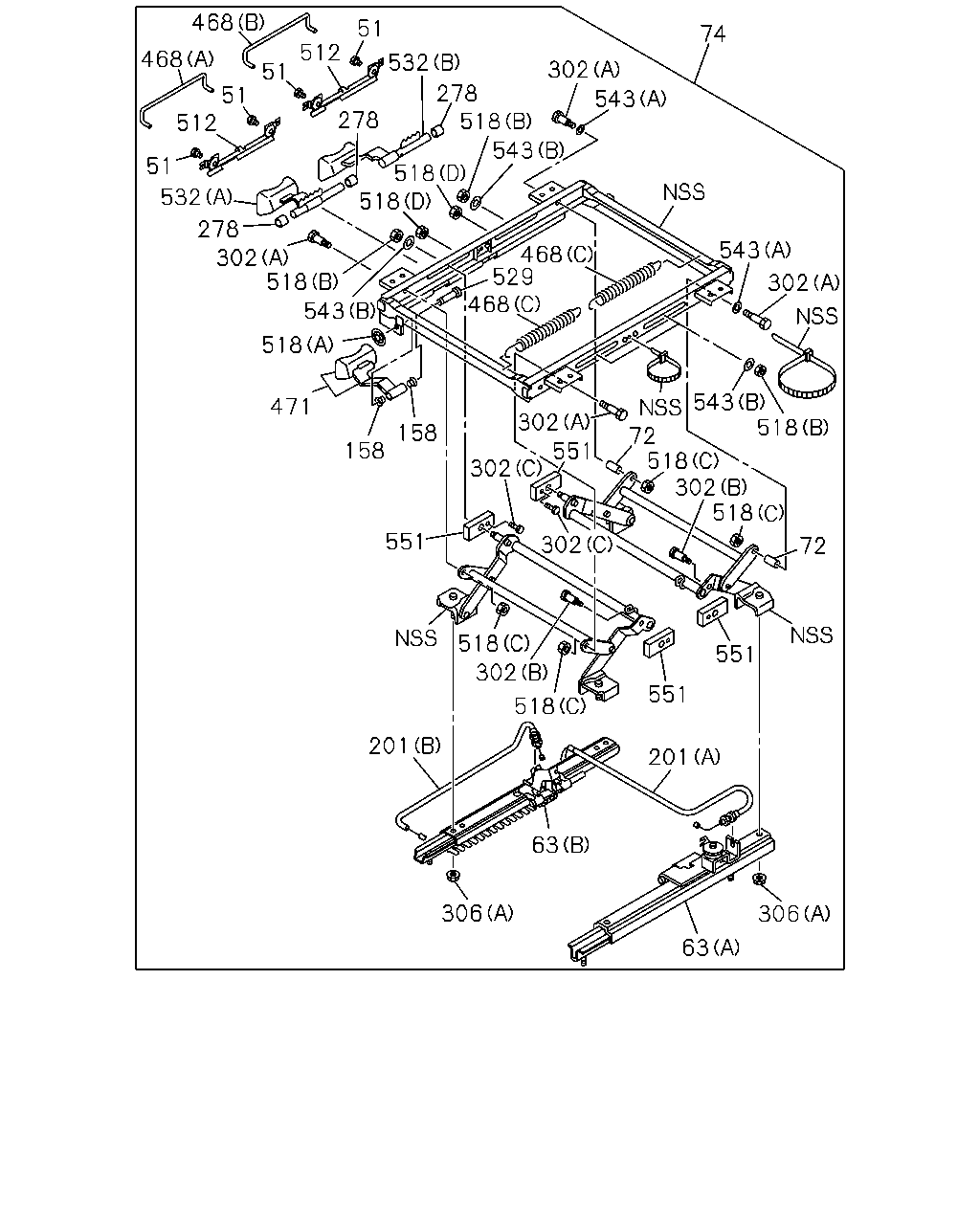

88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10	1-75537-273-1	01	1	1507-1508
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1302-1502
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1302-1502
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-209-0	02	1	1503-1506
158	BUSHING; LINK ARM SEAT CLOTH<7FL>	1-75518-209-0	02	1	1503-1506
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-209-0	02	1	1507-1508
158	BUSHING; LINK ARM SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-209-0	02	1	1507-1508
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-209-0	02	1	1509-1509
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1510-
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1302-1502
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1302-1502
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667	1-75518-288-0	01	1	1503-1506
201	CABLE; ADJ SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1503-1506
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667	1-75518-288-0	01	1	1507-1508
201	CABLE; ADJ SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667	1-75518-288-0	01	1	1507-1508
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667	1-75518-288-0	01	1	1509-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1302-1502
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1302-1502
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605	1-75518-289-1	01	1	1503-1506
201	CABLE; ADJ SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1503-1506
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605	1-75518-289-1	01	1	1507-1508
201	CABLE; ADJ SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605	1-75518-289-1	01	1	1507-1508
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605	1-75518-289-1	01	1	1509-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1510-
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1302-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1302-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	06	1	1507-1508
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1302-1502
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	08	1	1507-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1302-1502
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1302-1502
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98107-869-0	01	1	1503-1506
471	LEVER; SEAT ADJ SEAT CLOTH<7FL>	8-98107-869-0	01	1	1503-1506
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98107-869-0	01	1	1507-1508
471	LEVER; SEAT ADJ SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98107-869-0	01	1	1507-1508
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98107-869-0	01	1	1509-1509
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1510-
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8	1-75518-264-0	04	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE	1-75538-207-0	04	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT	5-09984-020-0	02	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE	8-94152-886-0	04	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1302-1502
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1302-1502
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1507-1508
518	NUT; TILT ADJ SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1507-1508
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1509-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1302-1502
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1302-1502
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-262-0	01	1	1503-1506
529	PIN; LINK SEAT CLOTH<7FL>	1-75518-262-0	01	1	1503-1506
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-262-0	01	1	1507-1508
529	PIN; LINK SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-262-0	01	1	1507-1508
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-262-0	01	1	1509-1509
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1510-
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	1302-1502
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98291-653-0	01	1	1503-1506
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98291-653-0	01	1	1503-1506
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98291-653-0	01	1	1507-1509
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1510-

468 468 51 512 51 51 512 51 532 278 278 532 278 302 518 543 543 518 518 302 518 518 543 471 158 158 551 468 529 468 302 302 551 72 543 518 518 302 518 72 551 551 518 302 201 518 63 306 63 306 201 302 543 302 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1510-
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1302-1506
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-325-1	04	1	1507-1508
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-323-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-199-1	01	1	1302-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-199-1	01	1	1507-1508
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-323-0	01	1	1302-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B)	1-75518-323-0	01	1	1507-1508
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1510-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1302-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-1506
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98291-668-0	02	1	1507-1508
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	1302-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98291-640-0	01	1	1507-1508
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10	1-75537-273-1	01	1	1507-1508
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1302-1502
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1302-1502
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-209-0	02	1	1503-1506
158	BUSHING; LINK ARM SEAT CLOTH<7FL>	1-75518-209-0	02	1	1503-1506
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-209-0	02	1	1507-1508
158	BUSHING; LINK ARM SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-209-0	02	1	1507-1508
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-209-0	02	1	1509-1509
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1510-
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1302-1502
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1302-1502
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667	1-75518-288-0	01	1	1503-1506
201	CABLE; ADJ SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1503-1506
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667	1-75518-288-0	01	1	1507-1508
201	CABLE; ADJ SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667	1-75518-288-0	01	1	1507-1508
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667	1-75518-288-0	01	1	1509-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1302-1502
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1302-1502
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605	1-75518-289-1	01	1	1503-1506
201	CABLE; ADJ SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1503-1506
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605	1-75518-289-1	01	1	1507-1508
201	CABLE; ADJ SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605	1-75518-289-1	01	1	1507-1508
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605	1-75518-289-1	01	1	1509-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1510-
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1302-1506
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-244-0	03	1	1507-1508
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1302-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B)	1-75518-266-2	02	1	1507-1508
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1302-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98291-667-0	04	1	1507-1508
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1302-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C)	1-75518-336-1	02	1	1507-1508
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1302-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1302-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	06	1	1507-1508
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1302-1502
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	08	1	1507-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1302-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-206-0	01	1	1507-1508
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1302-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B)	1-75518-207-0	01	1	1507-1508
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1302-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C)	1-75518-208-0	02	1	1507-1508
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1302-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D)	1-75538-132-0	01	1	1507-1508
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1302-1502
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1302-1502
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98107-869-0	01	1	1503-1506
471	LEVER; SEAT ADJ SEAT CLOTH<7FL>	8-98107-869-0	01	1	1503-1506
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98107-869-0	01	1	1507-1508
471	LEVER; SEAT ADJ SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98107-869-0	01	1	1507-1508
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98107-869-0	01	1	1509-1509
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1510-
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-243-1	02	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-243-1	02	1	1302-1506
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-243-1	02	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8	1-75518-264-0	04	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE	1-75538-207-0	04	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT	5-09984-020-0	02	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE	8-94152-886-0	04	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1302-1502
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1302-1502
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1507-1508
518	NUT; TILT ADJ SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1507-1508
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1509-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1302-1502
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1302-1502
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-262-0	01	1	1503-1506
529	PIN; LINK SEAT CLOTH<7FL>	1-75518-262-0	01	1	1503-1506
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-262-0	01	1	1507-1508
529	PIN; LINK SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-262-0	01	1	1507-1508
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-262-0	01	1	1509-1509
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1510-
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	1302-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-203-0	01	1	1507-1508
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	1302-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B)	1-75518-204-1	01	1	1507-1508
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1302-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=13 OD=19	8-98291-669-0	02	1	1507-1508
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1302-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=8.4	9-09160-508-0	04	1	1507-1508
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1302-1506
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-265-0	04	1	1507-1508

1 2 107 126 348 74 518 69 62 290 67 100 633 327 12 13 17 19 24 228 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97421-407-1	01	1	1302-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97466-622-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-406-1	01	1	1302-1506
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-406-1	01	1	1507-1509
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-406-1	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97409-955-5	01	1	1302-1502
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97409-955-5	01	1	1503-1509
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97421-412-0	01	1	1302-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-411-0	01	1	1302-1506
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-411-0	01	1	1507-1509
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-411-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-910-2	01	1	1302-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-910-2	01	1	1503-1509
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-123-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-608-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97421-398-2	01	1	1302-1512
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97466-611-0	01	1	1601-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-397-2	01	1	1302-1512
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-123-2	01	1	1302-1502
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97409-954-2	01	1	1302-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97421-402-2	01	1	1302-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-401-2	01	1	1302-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-909-1	01	1	1302-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-909-1	01	1	1503-1509
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1302-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1302-1502
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1302-1502
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1507-1508
17	BOLT; RECLINING SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1507-1508
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1509-1509
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1302-1502
18	COVER; RECLINING RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1302-1502
18	COVER; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1510-
18	COVER; RECLINING RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1302-1502
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1302-1502
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5	8-98062-663-0	01	1	1503-1506
19	SCREW; COVER SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1503-1506
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5	8-98062-663-0	01	1	1507-1508
19	SCREW; COVER SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5	8-98062-663-0	01	1	1507-1508
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5	8-98062-663-0	01	1	1509-1509
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1510-
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1302-1502
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1302-1502
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	1302-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98261-448-0	01	1	1507-1508
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1302-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1302-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	1302-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98291-640-0	01	1	1507-1508
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10	1-75537-273-1	01	1	1507-1508
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1302-1502
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1302-1502
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98203-070-0	01	1	1503-1506
100	COVER; HINGE SEAT CLOTH<7FL>	8-98203-070-0	01	1	1503-1506
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98203-070-0	01	1	1507-1508
100	COVER; HINGE SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98203-070-0	01	1	1507-1508
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98203-070-0	01	1	1509-1509
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98286-009-0	01	1	1601-
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98286-009-0	01	1	1601-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1510-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1302-1506
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	8-98063-174-0	01	1	1507-1508
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1302-1502
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1302-1502
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1507-1508
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1507-1508
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	8-98063-218-0	01	1	1509-1509
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1302-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1302-1502
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1302-1502
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4	8-98062-662-0	01	1	1503-1506
228	SCREW; KNOB SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1503-1506
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4	8-98062-662-0	01	1	1507-1508
228	SCREW; KNOB SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4	8-98062-662-0	01	1	1507-1508
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4	8-98062-662-0	01	1	1509-1509
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1510-
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1302-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	1-75538-207-0	04	1	1507-1508
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	1302-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98286-008-0	01	1	1601-
348	BOLT; HINGE,SEAT RIGID SEAT WO/ARM REST<TAZ>	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8	1-75518-264-0	04	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE	1-75538-207-0	04	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT	5-09984-020-0	02	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1302-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE	8-94152-886-0	04	1	1507-1508
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1302-1502
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1302-1502
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1507-1508
518	NUT; TILT ADJ SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1507-1508
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-263-0	01	1	1509-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1510-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-956-0	01	1	1302-

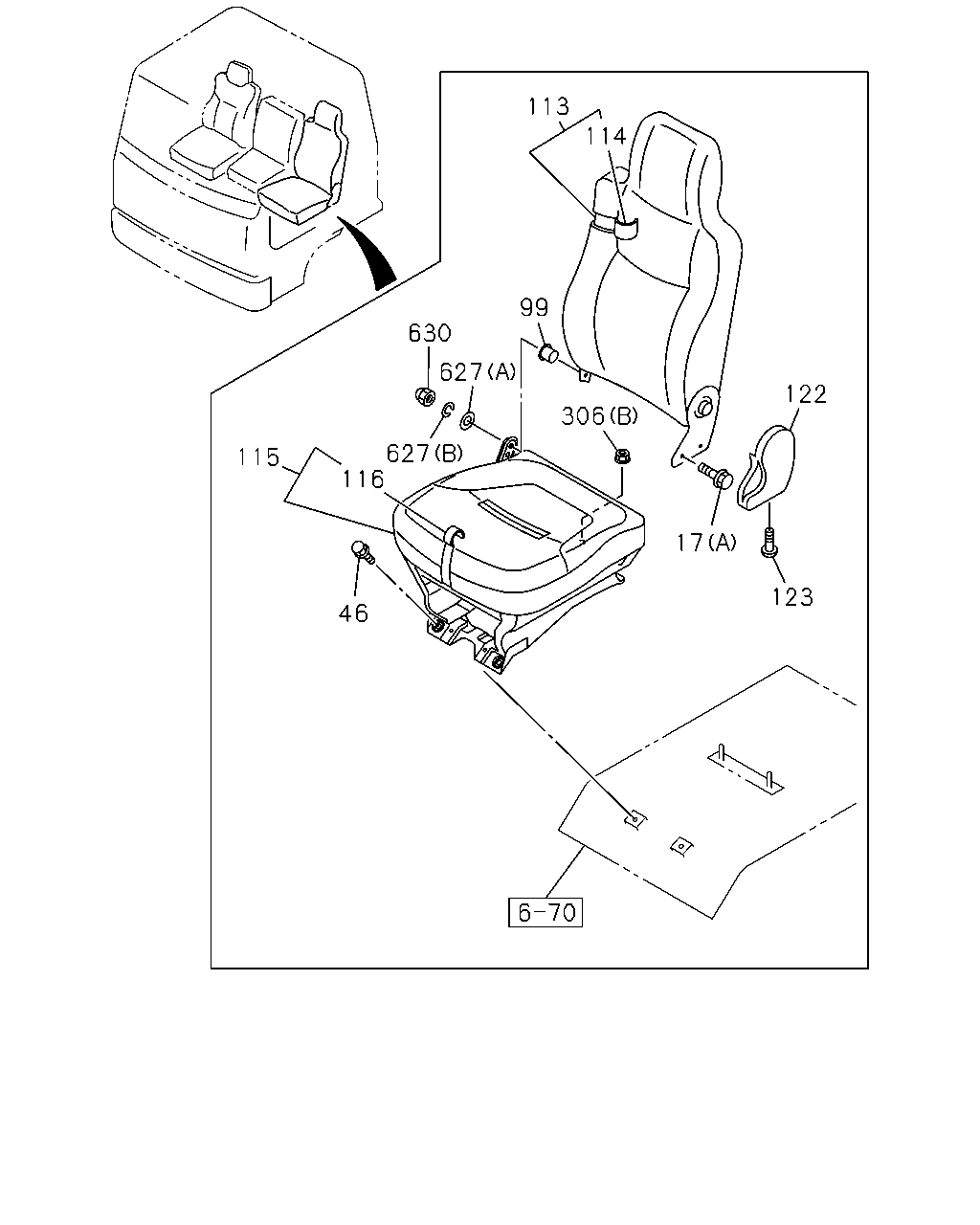

46 17 113 114 115 99 630 627 116 122 123 306 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1302-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1302-1502
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1302-1502
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1507-1508
17	BOLT; RECLINING SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1507-1508
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20	8-98062-661-0	02	1	1509-1509
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1302-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10	1-75537-273-1	01	1	1507-1508
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1302-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-422-0	01	1	1302-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-966-1	01	1	1302-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-424-0	01	1	1302-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-916-0	01	1	1302-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-418-2	01	1	1302-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-965-1	01	1	1302-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-420-1	01	1	1302-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-915-0	01	1	1302-
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1302-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1302-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1302-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1302-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	06	1	1507-1508
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1302-1502
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	1-75538-207-0	08	1	1507-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1302-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1302-
630	NUT; CAP M8	8-98063-225-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
