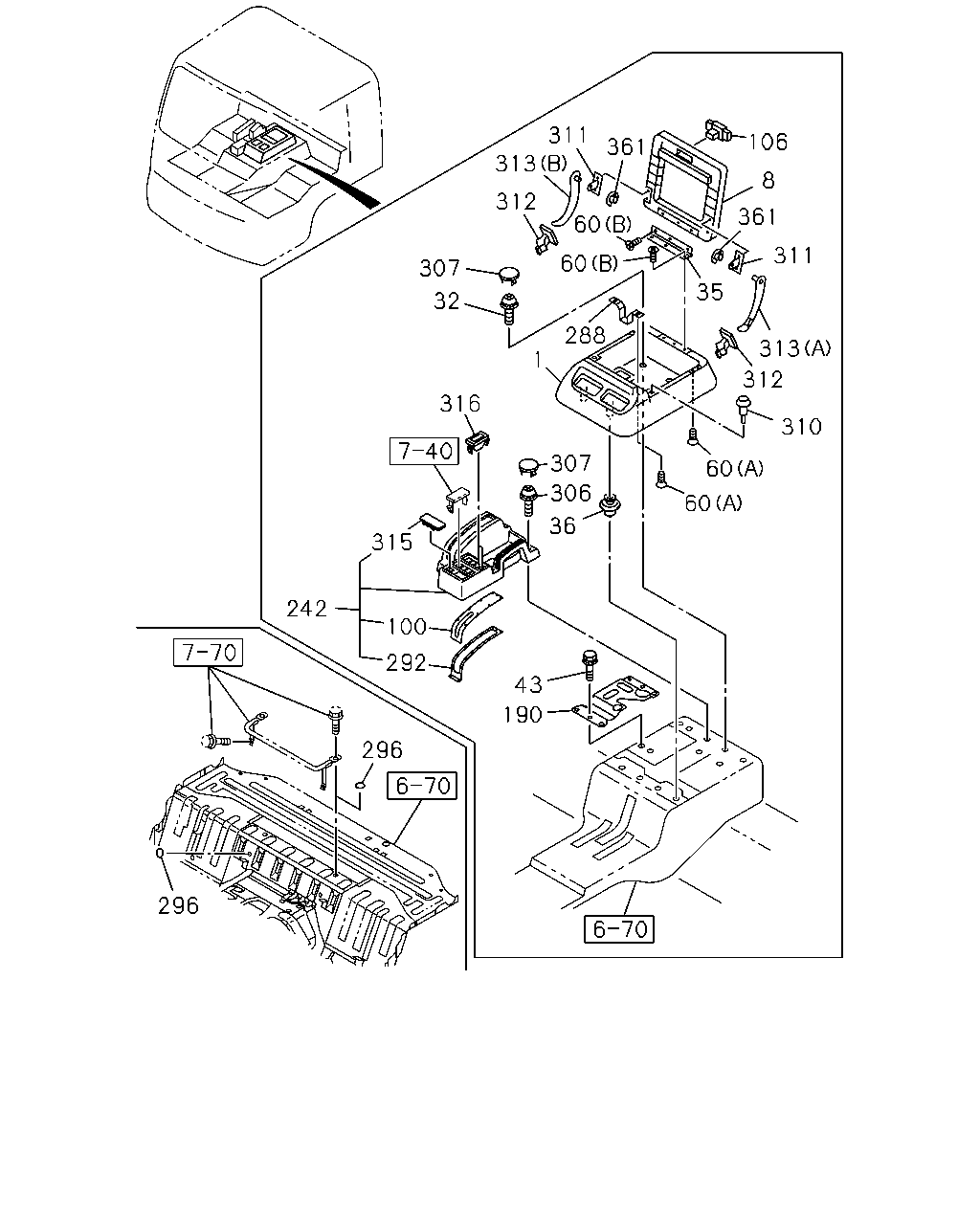

7-45 — CONSOLE BOX (#112763) — 27 parça

311 313 312 60 288 32 307 1 316 307 60 60 306 36 310 312 313 35 311 361 8 106 361 60 315 242 100 292 43 190 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOX; PARCEL CENTER SEAT DELETE 2 CREWS<SP9> GRAY	8-97408-710-0	01	1	1302-	●	●
8	LID; CENTER CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> GRAY	8-97408-712-0	01	1	1302-	●	●
32	SCREW; PARCEL BOX CENTER SEAT DELETE 2 CREWS<SP9> M6X16	0-38050-616-0	02	1	1302-	●	●
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-182-1	01	1	1302-	●	●
36	FASTENER; CENTER CONSOLE CENTER SEAT DELETE 2 CREWS<SP9>	1-09984-190-0	02	1	1302-	●	●
43	SCREW; BRKT,PARCEL BOX M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1302-		●
60	SCREW; BOX CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	06	1	1302-	●	●
60	SCREW; BOX CENTER SEAT DELETE 2 CREWS<SP9> (B) M5X14	8-94279-325-0	04	1	1302-	●	●
100	RUBBER; CONSOLE,FRT	1-72538-161-3	01	1	1302-	●	●
106	LOCK; CONSOLE LID CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-312-0	01	1	1302-	●	●
190	BRACKET; PARCEL BOX,SEAT SIDE	8-98059-836-0	01	1	1302-		●
242	TRAY ASM; CTR CONSOLE GRAY	8-97407-950-1	01	1	1302-	●	●
288	STOPPER; LID,CONSOLE CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-190-0	01	1	1302-	●	●
292	RETAINER; COVER	1-72538-162-1	01	1	1302-	●	●
296	SEAL EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK	1-76798-019-0	04	1	1302-	●	●
306	SCREW; TRAY M6X16	0-38050-616-0	04	1	1302-	●	●
307	COVER; HOLE,CTR CONSOLE GRAY	8-97407-951-0	04	1	1302-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> GRAY	8-97407-951-0	02	1	1302-	●	●
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-187-0	02	1	1302-	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-188-2	02	1	1302-	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE 2 CREWS<SP9>	1-72538-186-1	02	1	1302-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> (A)	1-72538-184-3	01	1	1302-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE 2 CREWS<SP9> (B)	1-72538-185-3	01	1	1302-	●	●
315	COVER; HOLE,SW GRAY	8-97409-339-0	01	1	1302-	●	●
316	BOX; COIN	8-94482-280-2	02	1	1302-	●	●
361	RING; SNAP CENTER SEAT DELETE 2 CREWS<SP9> ID=5	9-09185-405-0	02	1	1302-	●	●

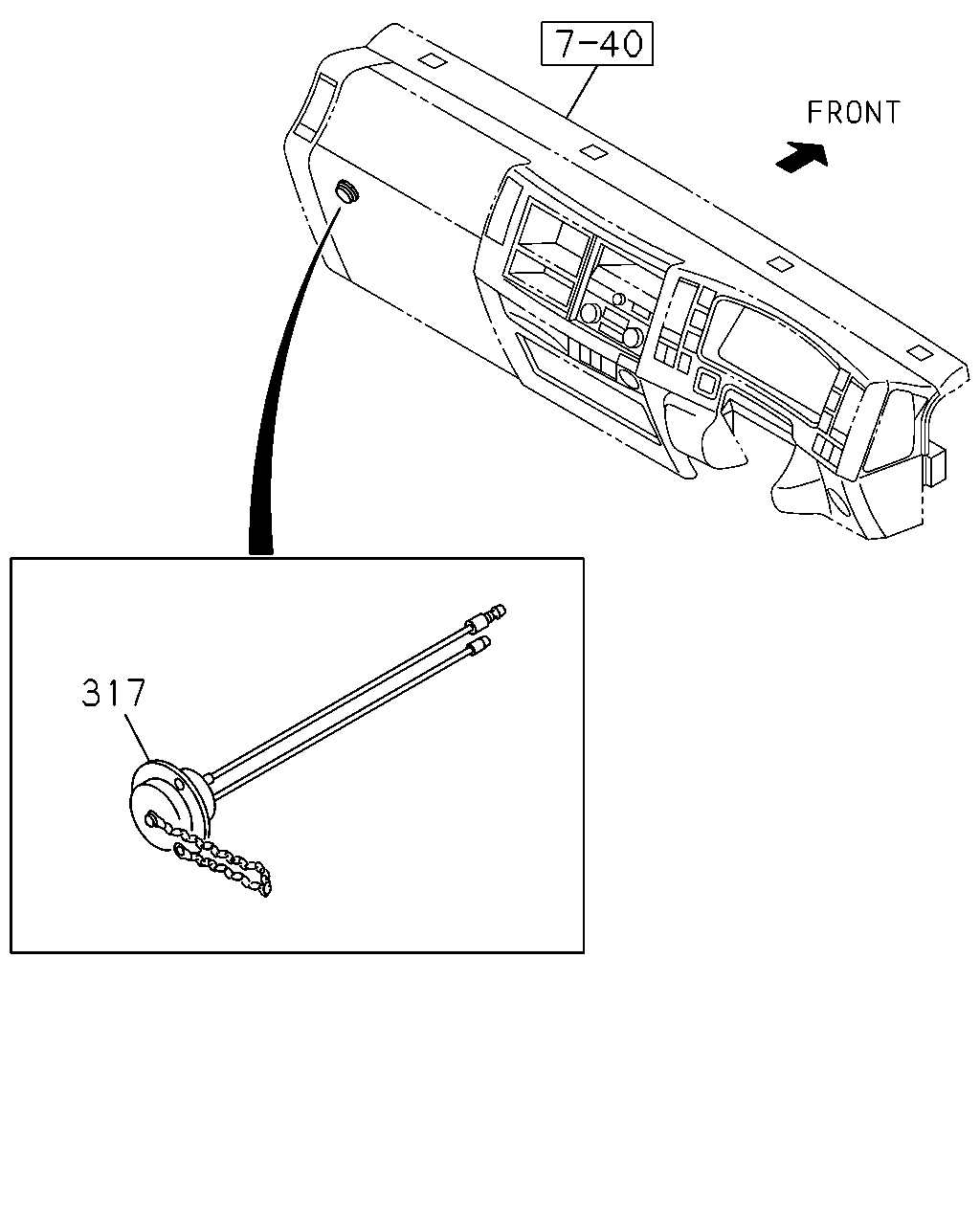

317

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	317	CONSENT ACCESSORY SOCKET<KC5>	8-97612-084-0	01	1	1302-		●
