11506 - FRR RHD EURO2 EXC.SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

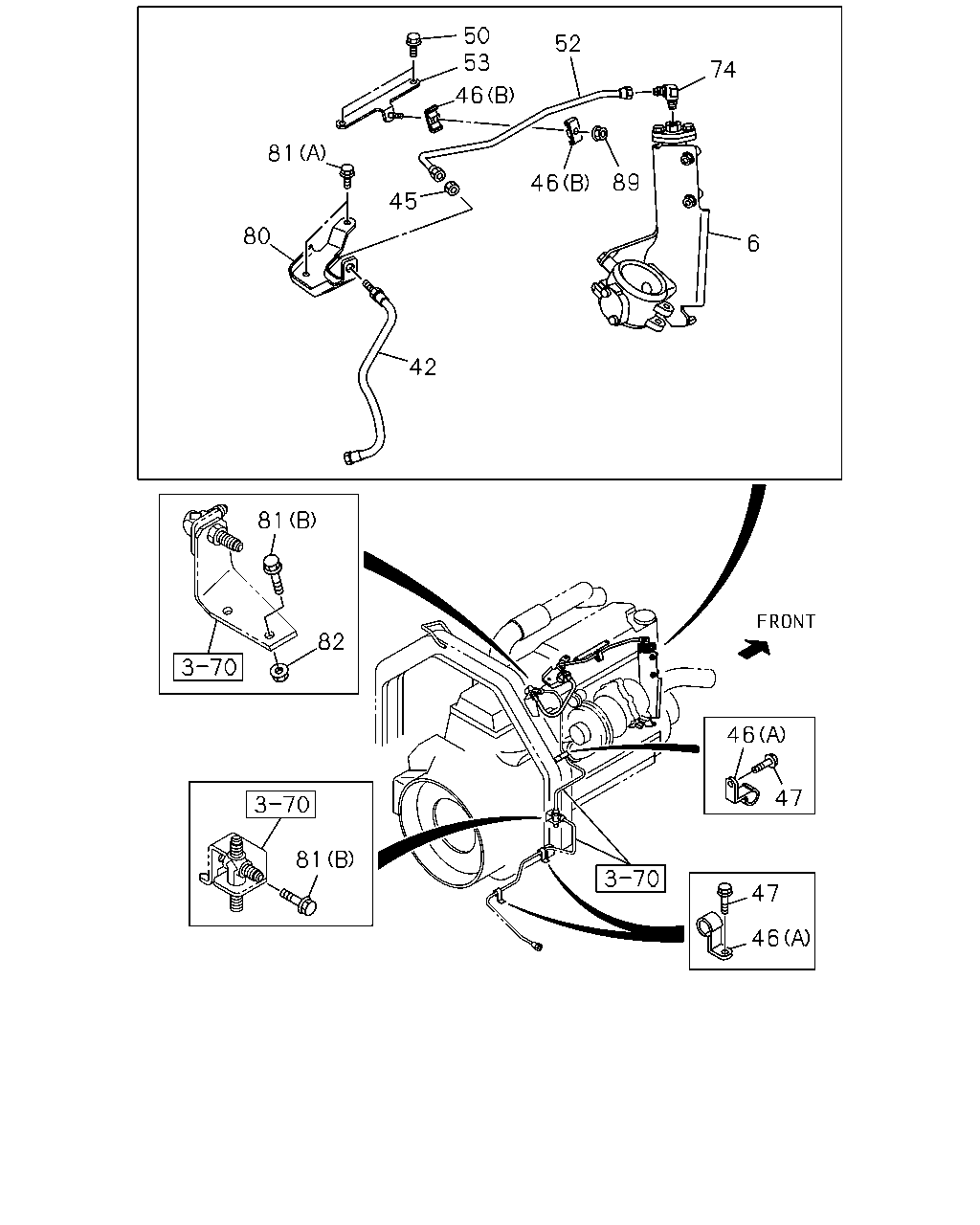

1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#112754) — 17 parça
6
74
52
50
46
53
46
89
42
45
81
80
46
47
47
46
81
82
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
8-97602-527-1
01
1
1302-
42
HOSE; FLEX,EXH BRK
L=340
1-09363-622-0
01
1
1302-
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
1302-
46
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
1302-
46
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
02
1
1302-
46
CLIP; AIR PIPE
(B) ID=11 & 11 L=19
8-98148-996-2
02
1
1302-
47
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1302-
47
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1302-
50
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1302-
52
PIPE ASM; AIR FLEX HOSE
8-97603-547-0
01
1
1302-
53
BRACKET; CLIP
8-98182-766-0
01
1
1302-
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1302-
80
BRACKET; FLEX HOSE
8-98182-767-0
01
1
1302-
81
BOLT; HOSE BRKT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1302-
81
BOLT; HOSE BRKT
(B) M8X20 FLANGE
0-28650-820-0
03
1
1302-
82
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
1302-
89
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1302-
