0-66 — GENERATOR (#112752) — 162 parça

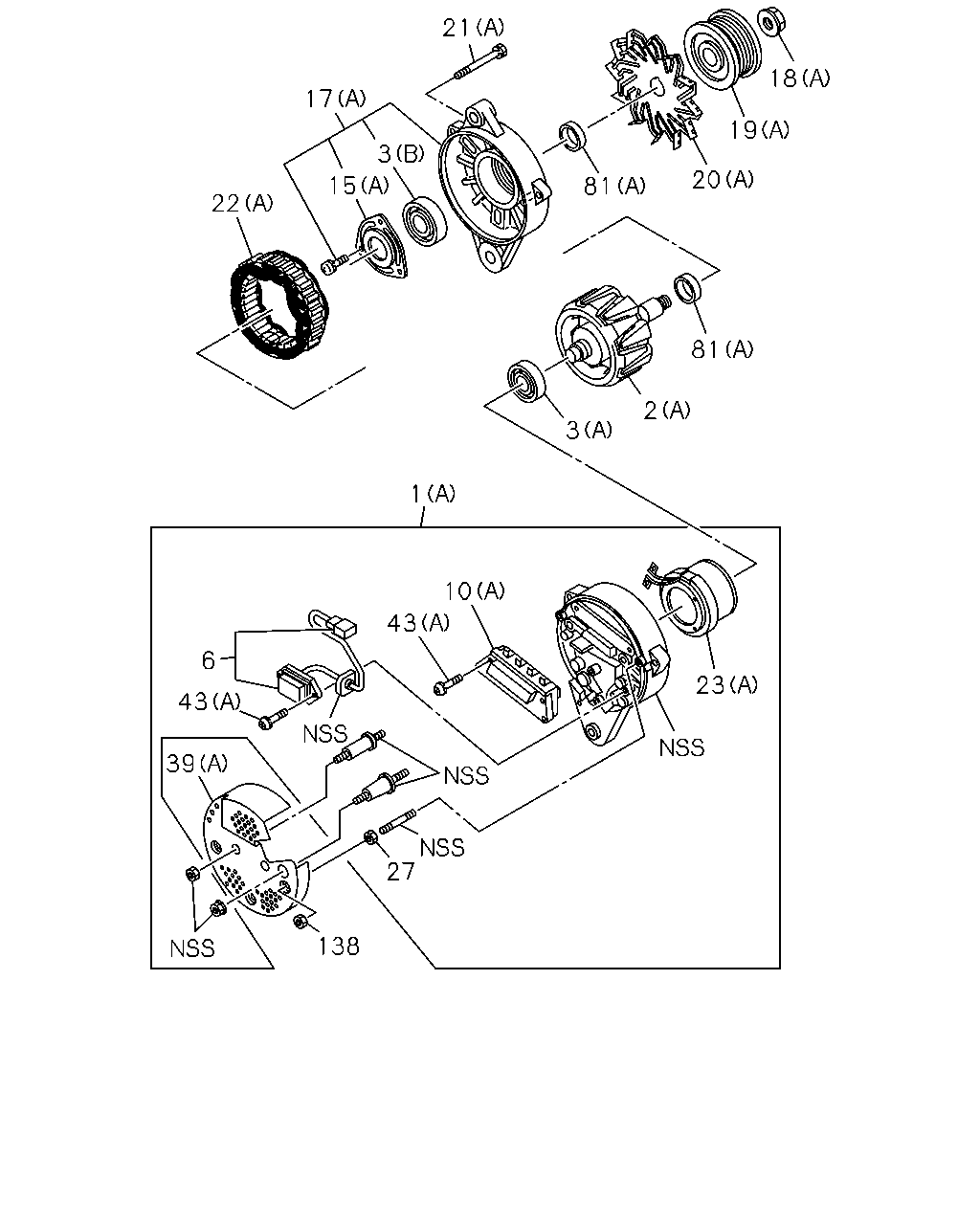

çizim 326830
138 27 39 43 6 43 10 23 1 3 2 81 20 19 18 81 21 17 3 15 22
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-684-1 01 1 1509-
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-684-1 01 1 -1509
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-009-0 01 1 1412-
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-009-0 01 1 -
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-638-0 01 1 -1509
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-638-0 01 1 1509-
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-000-1 01 1 -
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-000-1 01 1 1412-
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-463-3 		1-81229-631-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-463-3 		1-81229-631-0 01 1 1412-
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-723-0 01 1 1509-
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-723-0 01 1 -1509
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-758-0 01 1 -1509
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-758-0 01 1 1509-
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-463-3 		8-98048-001-0 01 1 1412-
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-463-3 		8-98048-001-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-688-0 01 1 1509-
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: C = 8-98013-463-3 		8-98040-688-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-688-0 01 1 -1509
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: C = 8-98013-463-3 		8-98040-688-0 01 1 1412-
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-686-0 01 1 -1509
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-686-0 01 1 1509-
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-011-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-011-0 01 1 1412-
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-760-1 01 1 -1509
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-760-1 01 1 1509-
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-004-0 01 1 1412-
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-004-0 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-872-0 01 1 1509-
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-872-0 01 1 -1509
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-003-0 01 1 1412-
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-003-0 01 1 -
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-643-0 01 1 -1509
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-643-0 01 1 1509-
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-463-3 		9-82216-098-0 01 1 1412-
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-463-3 		9-82216-098-0 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-641-0 01 1 -1509
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-641-0 01 1 1509-
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-007-0 01 1 1412-
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-007-0 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-463-3 		1-81223-003-1 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-463-3 		1-81223-003-1 01 1 1412-
20 FAN; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-874-0 01 1 -1509
20 FAN; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-874-0 01 1 1509-
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-382-0 03 1 1509-
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-382-0 03 1 -1509
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-463-3 		1-81229-661-0 04 1 -
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-463-3 		1-81229-661-0 04 1 1412-
22 STATOR; GEN
(A) ASM PART: A = 8-98013-461-5 		8-98040-639-0 01 1 -1509
22 STATOR; GEN
(A) ASM PART: A = 8-98013-461-5 		8-98040-639-0 01 1 1509-
22 STATOR; GEN
(A) ASM PART: B = 8-98013-462-5 		8-98040-640-0 01 1 1509-
22 STATOR; GEN
(A) ASM PART: B = 8-98013-462-5 		8-98040-640-0 01 1 -1509
22 STATOR; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-002-0 01 1 -
22 STATOR; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-002-0 01 1 1412-
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-645-0 01 1 -1509
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-645-0 01 1 1509-
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-008-1 01 1 1412-
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-008-1 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: C = 8-98013-463-3 		8-98040-687-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: C = 8-98013-463-3 		8-98040-687-0 01 1 1412-
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-687-0 01 1 -1509
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-687-0 01 1 1509-
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-012-0 01 1 1412-
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-012-0 01 1 -
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98181-103-0 01 1 1509-
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98181-103-0 01 1 -1509
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-476-0 03 1 1509-
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-476-0 03 1 -1509
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-463-3 		8-98048-058-0 04 1 -
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-463-3 		8-98048-058-0 04 1 1412-
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-3 		1-81229-627-0 01 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-3 		1-81229-627-0 01 1 1412-
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-870-0 02 1 1509-
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-870-0 02 1 -1509
138 NUT; COVER,GENERATOR
ASM PART: C = 8-98013-463-3 		8-98040-690-0 03 1 -
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-690-0 03 1 -1509
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-690-0 03 1 1509-
138 NUT; COVER,GENERATOR
ASM PART: C = 8-98013-463-3 		8-98040-690-0 03 1 1412-

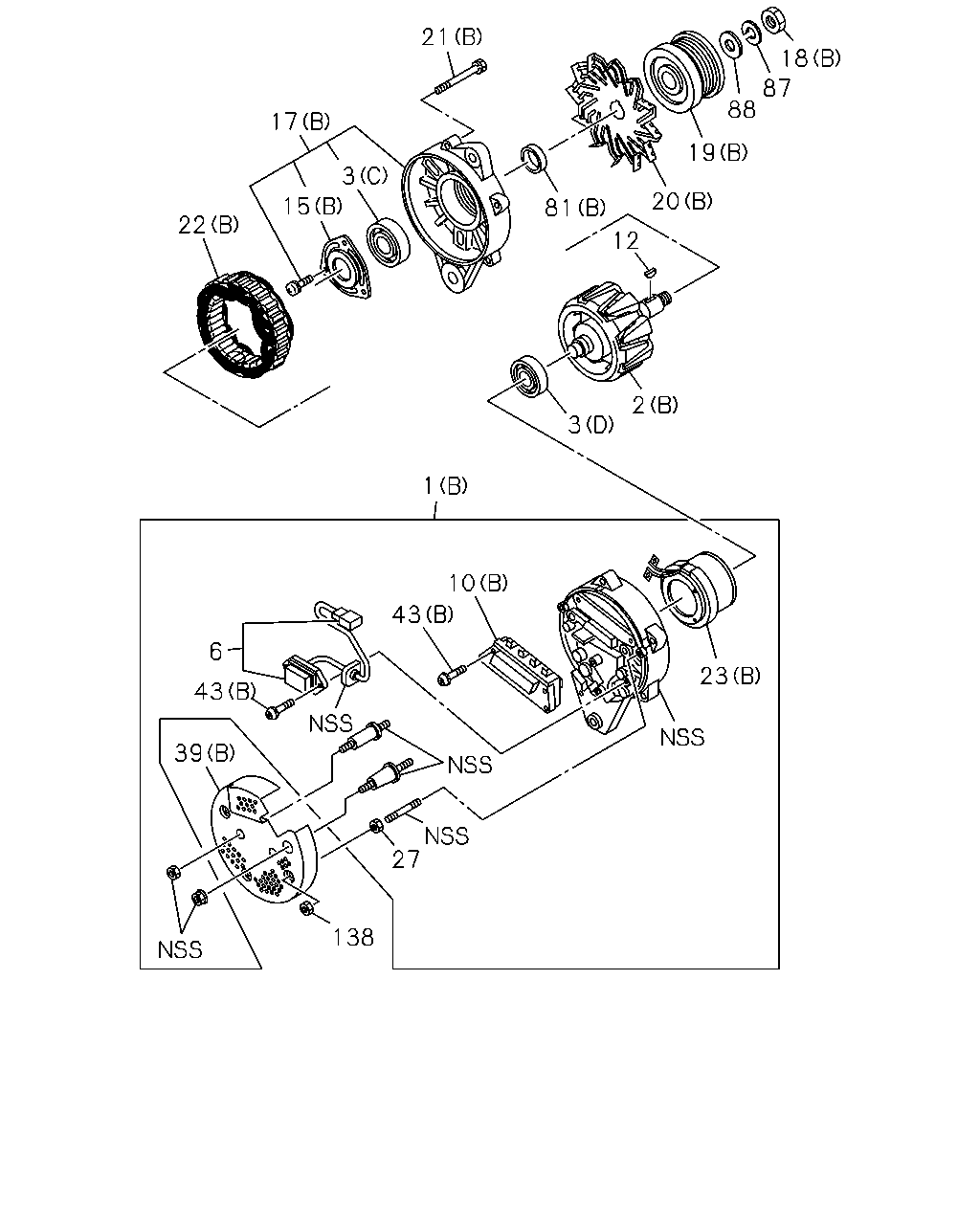

çizim 326843
18 87 88 19 20 81 12 2 3 1 21 17 3 15 22 10 23 43 6 43 39 27 138
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-684-1 01 1 1509-
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-684-1 01 1 -1509
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-009-0 01 1 1412-
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-009-0 01 1 -
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-638-0 01 1 -1509
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-638-0 01 1 1509-
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-000-1 01 1 -
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-000-1 01 1 1412-
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-463-3 		1-81229-631-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-463-3 		1-81229-631-0 01 1 1412-
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-723-0 01 1 1509-
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-723-0 01 1 -1509
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-758-0 01 1 -1509
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-758-0 01 1 1509-
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-463-3 		8-98048-001-0 01 1 1412-
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-463-3 		8-98048-001-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-688-0 01 1 1509-
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: C = 8-98013-463-3 		8-98040-688-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-688-0 01 1 -1509
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: C = 8-98013-463-3 		8-98040-688-0 01 1 1412-
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-686-0 01 1 -1509
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-686-0 01 1 1509-
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-011-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-011-0 01 1 1412-
12 KEY; ROTOR,GEN
ASM PART: C = 8-98013-463-3 		9-82215-867-0 01 1 1412-
12 KEY; ROTOR,GEN
ASM PART: C = 8-98013-463-3 		9-82215-867-0 01 1 -
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-760-1 01 1 -1509
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-760-1 01 1 1509-
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-004-0 01 1 1412-
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-004-0 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-872-0 01 1 1509-
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-872-0 01 1 -1509
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-003-0 01 1 1412-
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-003-0 01 1 -
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-643-0 01 1 -1509
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-643-0 01 1 1509-
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-463-3 		9-82216-098-0 01 1 1412-
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-463-3 		9-82216-098-0 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-641-0 01 1 -1509
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-641-0 01 1 1509-
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-007-0 01 1 1412-
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-007-0 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-463-3 		1-81223-003-1 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-463-3 		1-81223-003-1 01 1 1412-
20 FAN; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-874-0 01 1 -1509
20 FAN; GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-874-0 01 1 1509-
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-382-0 03 1 1509-
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-382-0 03 1 -1509
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-463-3 		1-81229-661-0 04 1 -
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-463-3 		1-81229-661-0 04 1 1412-
22 STATOR; GEN
(A) ASM PART: A = 8-98013-461-5 		8-98040-639-0 01 1 -1509
22 STATOR; GEN
(A) ASM PART: A = 8-98013-461-5 		8-98040-639-0 01 1 1509-
22 STATOR; GEN
(A) ASM PART: B = 8-98013-462-5 		8-98040-640-0 01 1 1509-
22 STATOR; GEN
(A) ASM PART: B = 8-98013-462-5 		8-98040-640-0 01 1 -1509
22 STATOR; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-002-0 01 1 -
22 STATOR; GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-002-0 01 1 1412-
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-645-0 01 1 -1509
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-645-0 01 1 1509-
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-008-1 01 1 1412-
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-008-1 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: C = 8-98013-463-3 		8-98040-687-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: C = 8-98013-463-3 		8-98040-687-0 01 1 1412-
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-687-0 01 1 -1509
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-687-0 01 1 1509-
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-012-0 01 1 1412-
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-463-3 		8-98048-012-0 01 1 -
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98181-103-0 01 1 1509-
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98181-103-0 01 1 -1509
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-476-0 03 1 1509-
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		1-81229-476-0 03 1 -1509
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-463-3 		8-98048-058-0 04 1 -
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-463-3 		8-98048-058-0 04 1 1412-
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-3 		1-81229-627-0 01 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-3 		1-81229-627-0 01 1 1412-
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-870-0 02 1 1509-
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-97382-870-0 02 1 -1509
87 WASHER; PULLEY,GEN
ASM PART: C = 8-98013-463-3 		1-81229-672-0 01 1 -
87 WASHER; PULLEY,GEN
ASM PART: C = 8-98013-463-3 		1-81229-672-0 01 1 1412-
88 WASHER; PL,PULLEY GEN
ASM PART: C = 8-98013-463-3 		1-81229-673-0 01 1 -
88 WASHER; PL,PULLEY GEN
ASM PART: C = 8-98013-463-3 		1-81229-673-0 01 1 1412-
138 NUT; COVER,GENERATOR
ASM PART: C = 8-98013-463-3 		8-98040-690-0 03 1 -
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-690-0 03 1 -1509
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-461-5, B = 8-98013-462-5 		8-98040-690-0 03 1 1509-
138 NUT; COVER,GENERATOR
ASM PART: C = 8-98013-463-3 		8-98040-690-0 03 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
