1-50 — EXHAUST PIPE AND SILENCER (#112751) — 162 parça

36 34 1 17 34 36 107 118 81 60 75 56 94 22 63 22 105 70 75 121 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1602-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98234-511-0	01	1	1602-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1602-
1	PIPE; EXH (A)	8-98212-603-0	01	1	1302-1601
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (A)	8-98212-603-0	01	1	1602-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X35 FLANGE	0-28051-235-0	03	1	1602-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1602-
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	01	1	1302-1601
17	BOLT; EXH PIPE TURBO - CONVENTIONAL<Q5T> (A) M12X120	1-09000-293-0	01	1	1602-
22	CLAMP; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	02	1	1602-
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	1302-1601
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	04	1	1602-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1602-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1602-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1602-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98245-536-0	01	1	1602-
56	BRACKET; CLAMP,EXH PIPE (A) L=40 B=50 H=74	1-22139-045-0	02	1	1302-1601
56	BRACKET; CLAMP,EXH PIPE TURBO - CONVENTIONAL<Q5T> (A) L=40 B=50 H=74	1-22139-045-0	02	1	1602-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98245-532-0	02	1	1602-
60	BRACKET; FRAME TO BRKT (A)	8-98183-955-0	02	1	1302-1601
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> (A)	8-98183-955-0	02	1	1602-
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	1302-1601
63	TUBE; DIST,BRKT TURBO - CONVENTIONAL<Q5T> L=11	1-22139-026-0	02	1	1602-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X70 FLANGE	0-28051-070-0	02	1	1602-
70	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	1302-1601
70	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M10X50	0-10856-050-0	02	1	1602-
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	04	1	1302-1601
75	RUBBER; SUPPORT,BRKT TURBO - CONVENTIONAL<Q5T> OD=30	1-22159-106-1	04	1	1602-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1601
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-1601
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1602-
94	BOLT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> M10X40 FLANGE	0-28651-040-0	02	1	1602-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	04	1	1302-1601
94	BOLT; CLAMP TURBO - CONVENTIONAL<Q5T> M10X40 FLANGE	0-28651-040-0	04	1	1602-
105	NUT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1602-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	04	1	1302-1601
105	NUT; CLAMP TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	04	1	1602-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=11 OD=54	1-09503-154-2	02	1	1602-
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	0-91614-810-0	02	1	1302-1601
121	WASHER; PL,BRKT TURBO - CONVENTIONAL<Q5T> (A) ID=10.5 OD=32	0-91614-810-0	02	1	1602-

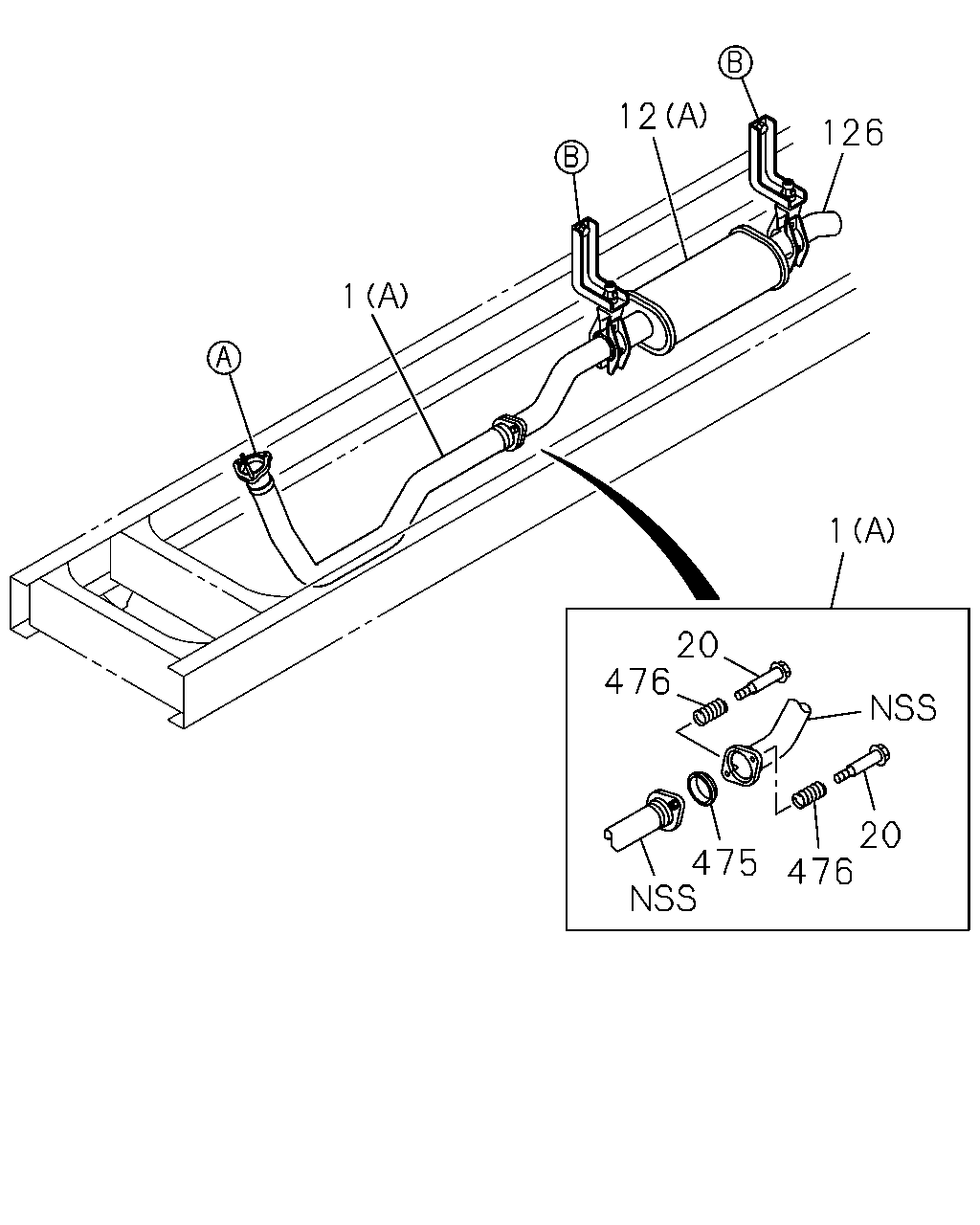

1 1 476 476 475 20 12 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1602-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98234-511-0	01	1	1602-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1602-
1	PIPE; EXH (A)	8-98212-603-0	01	1	1302-1601
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (A)	8-98212-603-0	01	1	1602-
12	SILENCER ASM; EXH EURO4 SPECIFICATION<NT4> (B)	8-98165-988-0	01	1	1602-
12	SILENCER ASM; EXH (A)	8-98212-605-0	01	1	1302-1601
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2> (A)	8-98212-605-0	01	1	1602-
20	BOLT; FLANGE,EXH PIPE M10X49.8	8-97039-586-0	02	1	1302-1601
20	BOLT; FLANGE,EXH PIPE TURBO - CONVENTIONAL<Q5T> M10X49.8	8-97039-586-0	02	1	1602-
126	PIPE; EXH,RR	8-98210-836-0	01	1	1302-
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-1	01	1	1302-1601
475	BEARING; SEAL,VIBNON,EXH PIPE TURBO - CONVENTIONAL<Q5T> OD=112	1-22119-294-1	01	1	1602-
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	1302-1601
476	SPRING; VIBNON,EXH PIPE TURBO - CONVENTIONAL<Q5T>	8-94141-851-0	02	1	1602-

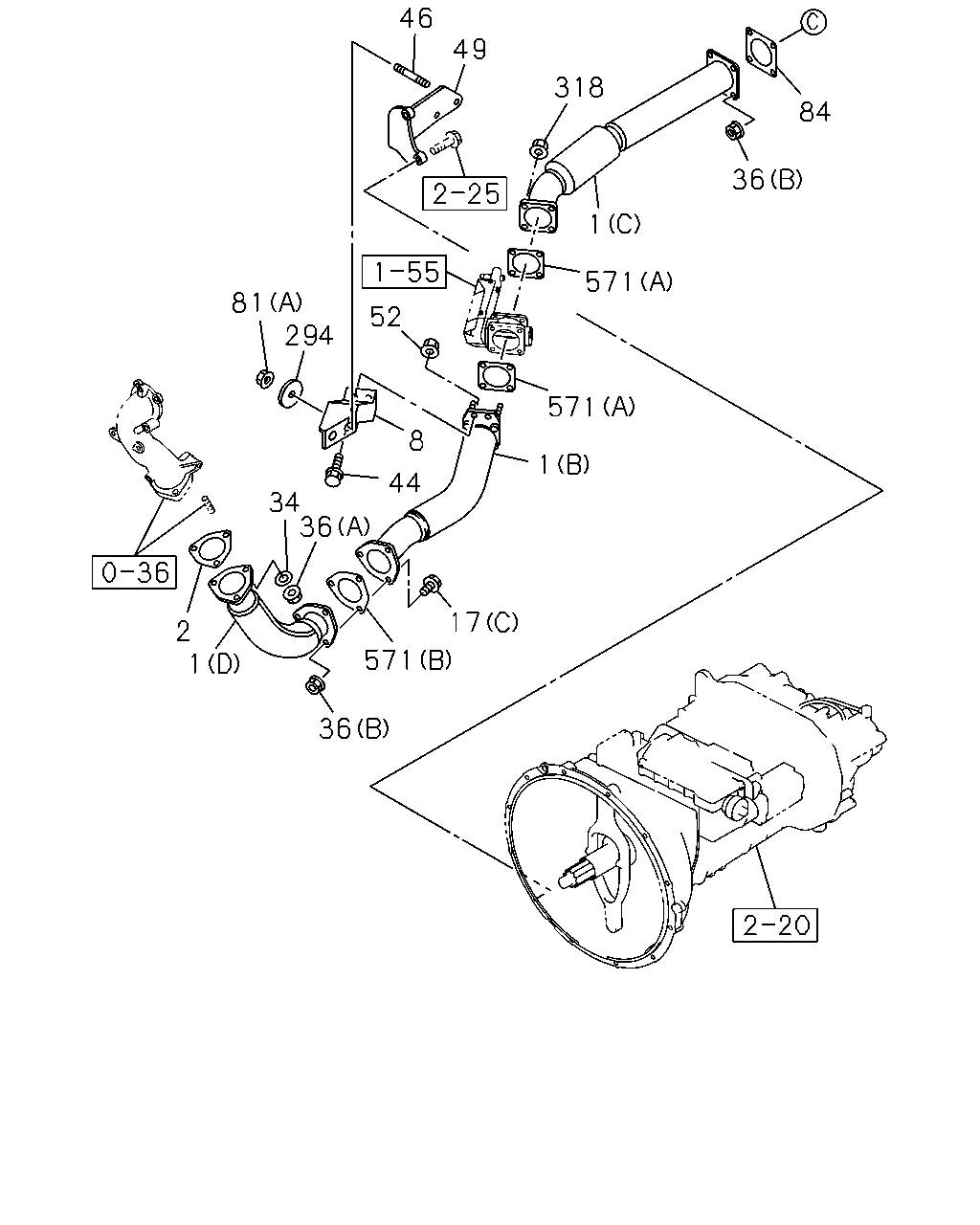

46 318 49 84 36 1 571 81 52 294 8 44 34 2 1 36 571 1 571 17 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1602-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98234-511-0	01	1	1602-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1602-
1	PIPE; EXH (A)	8-98212-603-0	01	1	1302-1601
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (A)	8-98212-603-0	01	1	1602-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBO - CONVENTIONAL<Q5T> ID=81	8-98043-481-0	01	1	1602-
8	BRACKET; EXH PIPE ZF6S1000 M/T(Y5D) EXC. TURBO - CONVENTIONAL<Q5T>	8-98090-388-0	01	1	1602-
8	BRACKET; EXH PIPE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>	8-98120-522-0	01	1	1602-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X35 FLANGE	0-28051-235-0	03	1	1602-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1602-
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	01	1	1302-1601
17	BOLT; EXH PIPE TURBO - CONVENTIONAL<Q5T> (A) M12X120	1-09000-293-0	01	1	1602-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1602-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1602-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1302-
44	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> M10X35 FLANGE	0-28651-035-0	02	1	1602-
46	BOLT; BRKT,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> M10X25 L=40	0-44011-025-0	02	1	1602-
49	BRACKET; EXH PIPE TO TRANS ZF6S1000 M/T(Y5D) EXC. TURBO - CONVENTIONAL<Q5T>	8-98123-994-0	01	1	1602-
49	BRACKET; EXH PIPE TO TRANS ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>	8-98120-497-0	01	1	1602-
52	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1601
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-1601
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1602-
84	GASKET; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T>	8-98096-305-0	01	1	1602-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5	8-98073-091-0	02	1	1602-
318	NUT; EXH PIPE,FRT EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	04	1	1602-
571	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=85.8	1-22116-043-0	02	1	1602-
571	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1602-

81 121 62 226 36 70 56 107 60 81 17 506 12 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH EURO4 SPECIFICATION<NT4> (B)	8-98165-988-0	01	1	1602-
12	SILENCER ASM; EXH (A)	8-98212-605-0	01	1	1302-1601
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2> (A)	8-98212-605-0	01	1	1602-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X35 FLANGE	0-28051-235-0	03	1	1602-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1602-
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	01	1	1302-1601
17	BOLT; EXH PIPE TURBO - CONVENTIONAL<Q5T> (A) M12X120	1-09000-293-0	01	1	1602-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1602-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1602-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1602-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98245-536-0	01	1	1602-
56	BRACKET; CLAMP,EXH PIPE (A) L=40 B=50 H=74	1-22139-045-0	02	1	1302-1601
56	BRACKET; CLAMP,EXH PIPE TURBO - CONVENTIONAL<Q5T> (A) L=40 B=50 H=74	1-22139-045-0	02	1	1602-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98245-532-0	02	1	1602-
60	BRACKET; FRAME TO BRKT (A)	8-98183-955-0	02	1	1302-1601
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> (A)	8-98183-955-0	02	1	1602-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> L=39	8-98060-852-0	02	1	1602-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X70 FLANGE	0-28051-070-0	02	1	1602-
70	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	1302-1601
70	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M10X50	0-10856-050-0	02	1	1602-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1601
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-1601
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1602-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=11 OD=54	1-09503-154-2	02	1	1602-
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	0-91614-810-0	02	1	1302-1601
121	WASHER; PL,BRKT TURBO - CONVENTIONAL<Q5T> (A) ID=10.5 OD=32	0-91614-810-0	02	1	1602-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1602-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1602-
506	BRACKET; STUD EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1602-

94 81 22 94 22 105 105 126 56 60 107 70 226 121 62 118 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	02	1	1602-
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	1302-1601
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	04	1	1602-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1602-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98245-536-0	01	1	1602-
56	BRACKET; CLAMP,EXH PIPE (A) L=40 B=50 H=74	1-22139-045-0	02	1	1302-1601
56	BRACKET; CLAMP,EXH PIPE TURBO - CONVENTIONAL<Q5T> (A) L=40 B=50 H=74	1-22139-045-0	02	1	1602-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98245-532-0	02	1	1602-
60	BRACKET; FRAME TO BRKT (A)	8-98183-955-0	02	1	1302-1601
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> (A)	8-98183-955-0	02	1	1602-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> L=39	8-98060-852-0	02	1	1602-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X70 FLANGE	0-28051-070-0	02	1	1602-
70	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	1302-1601
70	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M10X50	0-10856-050-0	02	1	1602-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1601
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1602-
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-1601
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1602-
94	BOLT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> M10X40 FLANGE	0-28651-040-0	02	1	1602-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	04	1	1302-1601
94	BOLT; CLAMP TURBO - CONVENTIONAL<Q5T> M10X40 FLANGE	0-28651-040-0	04	1	1602-
105	NUT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1602-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	04	1	1302-1601
105	NUT; CLAMP TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	04	1	1602-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=11 OD=54	1-09503-154-2	02	1	1602-
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	0-91614-810-0	02	1	1302-1601
121	WASHER; PL,BRKT TURBO - CONVENTIONAL<Q5T> (A) ID=10.5 OD=32	0-91614-810-0	02	1	1602-
126	PIPE; EXH,RR	8-98210-836-0	01	1	1302-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1602-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1602-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
