Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#112750) — 283 parça

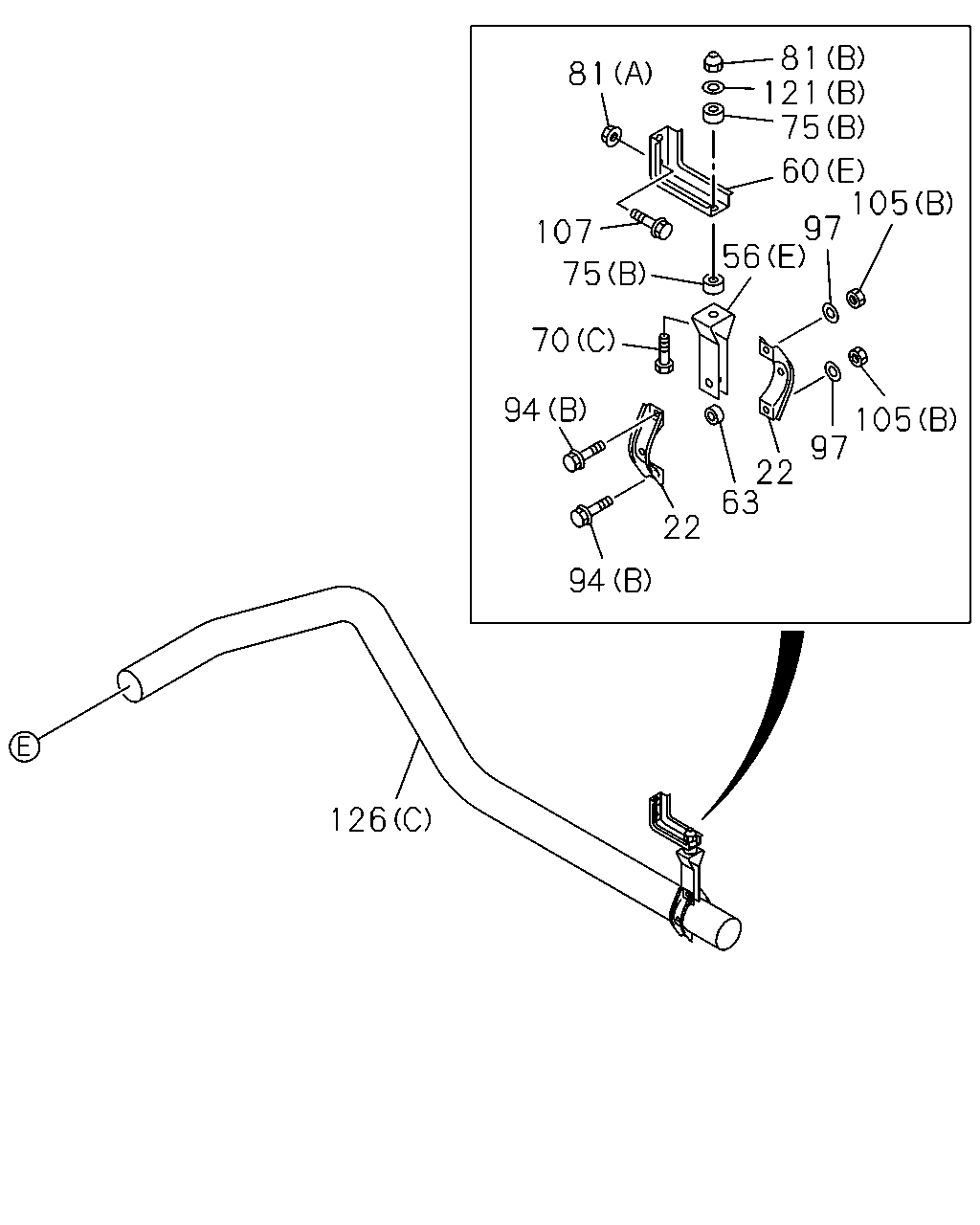

36 34 1 17 107 118 81 121 75 70 105 22 63 22 94 56 60 81 34 36 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1302-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1302-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
17	BOLT; EXH PIPE TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=80-84	1-22133-233-0	02	1	1302-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
63	TUBE; DIST,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=11	1-22139-026-0	01	1	1302-
63	TUBE; DIST,BRKT TURBO - CONVENTIONAL<Q5T> L=11	1-22139-026-0	02	1	1302-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-

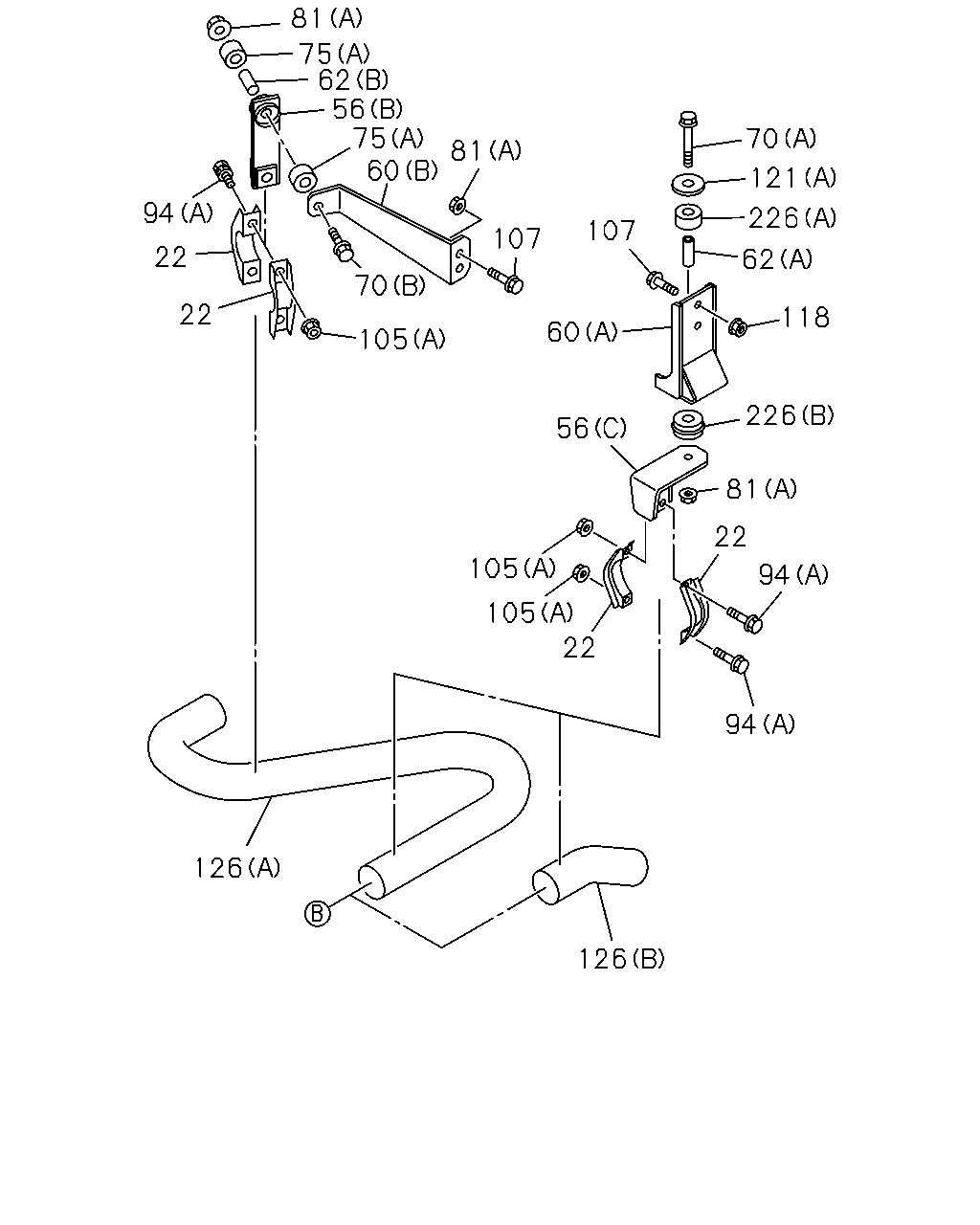

81 62 75 56 60 75 81 94 22 22 70 105 107 107 60 56 70 121 226 62 118 226 81 105 105 22 94 94 22 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=80-84	1-22133-233-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C)	8-98212-608-0	01	1	1302-
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1302-

107 81 60 75 56 62 75 81 94 22 70 105 22 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=80-84	1-22133-233-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C)	8-98212-608-0	01	1	1302-
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-

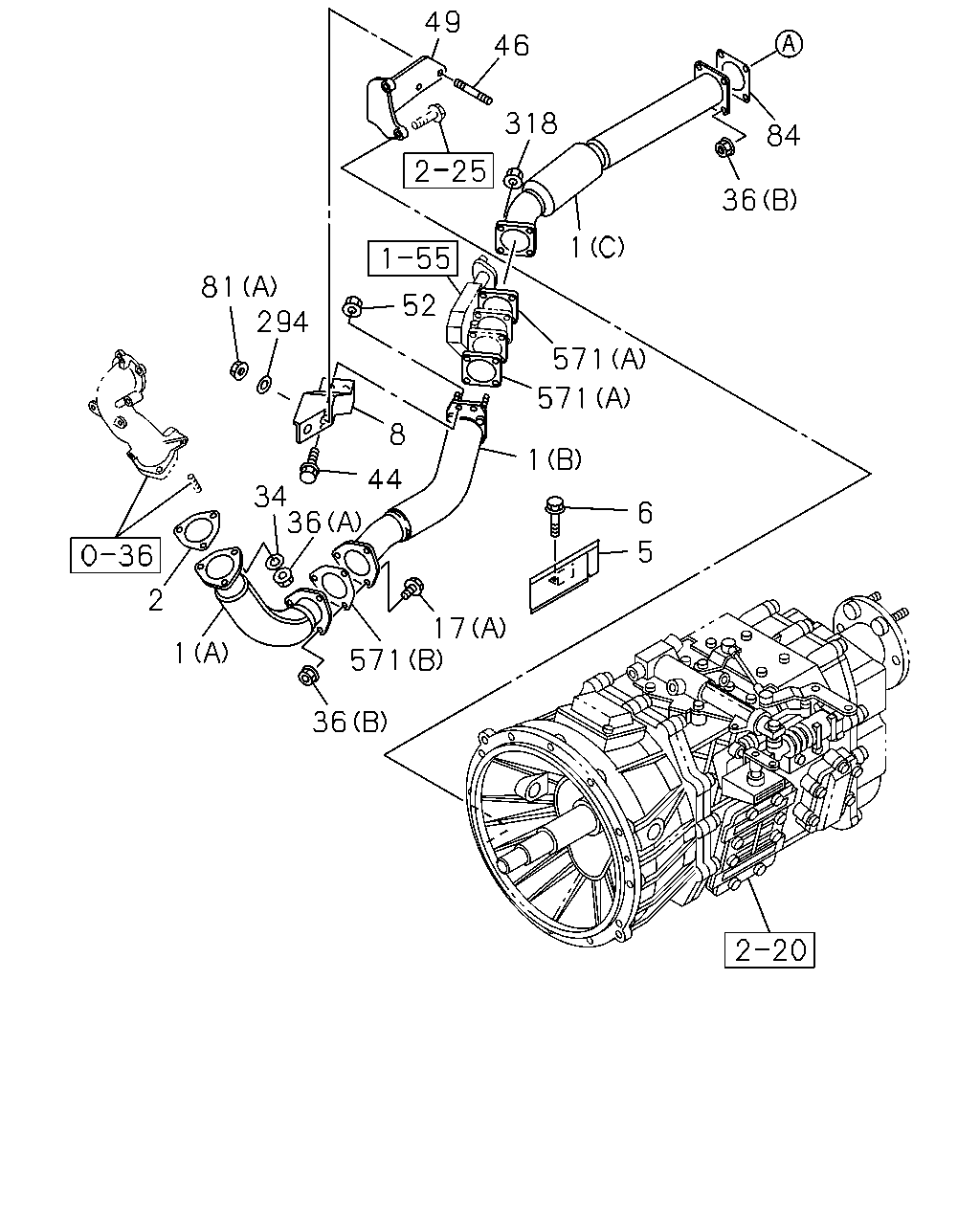

36 571 17 5 6 1 571 571 36 84 1 318 46 49 52 8 44 36 34 1 2 81 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1302-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1302-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBO - CONVENTIONAL<Q5T> ID=81	8-98043-481-0	01	1	1302-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98073-436-0	01	1	1302-1406
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98255-001-0	01	1	1407-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1302-
8	BRACKET; EXH PIPE FULLER ES11109 DD M/T(Y5N) EXC. TURBO - CONVENTIONAL<Q5T>	8-98069-914-0	01	1	1302-
8	BRACKET; EXH PIPE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>	8-98120-522-0	01	1	1302-
17	BOLT; EXH PIPE TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
44	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> M10X35 FLANGE	0-28651-035-0	02	1	1302-
46	BOLT; BRKT,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> M10X25 L=40	0-44011-025-0	02	1	1302-
49	BRACKET; EXH PIPE TO TRANS FULLER ES11109 DD M/T(Y5N) EXC. TURBO - CONVENTIONAL<Q5T>	8-98123-995-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>	8-98120-497-0	01	1	1302-
52	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
84	GASKET; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T>	8-98096-305-0	01	1	1302-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5	8-98073-091-0	02	1	1302-
318	NUT; EXH PIPE,FRT EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	04	1	1302-
571	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=85.8	1-22116-043-0	02	1	1302-
571	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-

105 97 22 63 22 94 94 70 75 107 81 81 60 75 121 105 56 97 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=80-84	1-22133-233-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
63	TUBE; DIST,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=11	1-22139-026-0	01	1	1302-
63	TUBE; DIST,BRKT TURBO - CONVENTIONAL<Q5T> L=11	1-22139-026-0	02	1	1302-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
97	WASHER; PL,CLAMP TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5	0-91614-510-0	02	1	1302-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
121	WASHER; PL,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C)	8-98212-608-0	01	1	1302-
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-

1 12 6 5 1 476 20 20 475 476

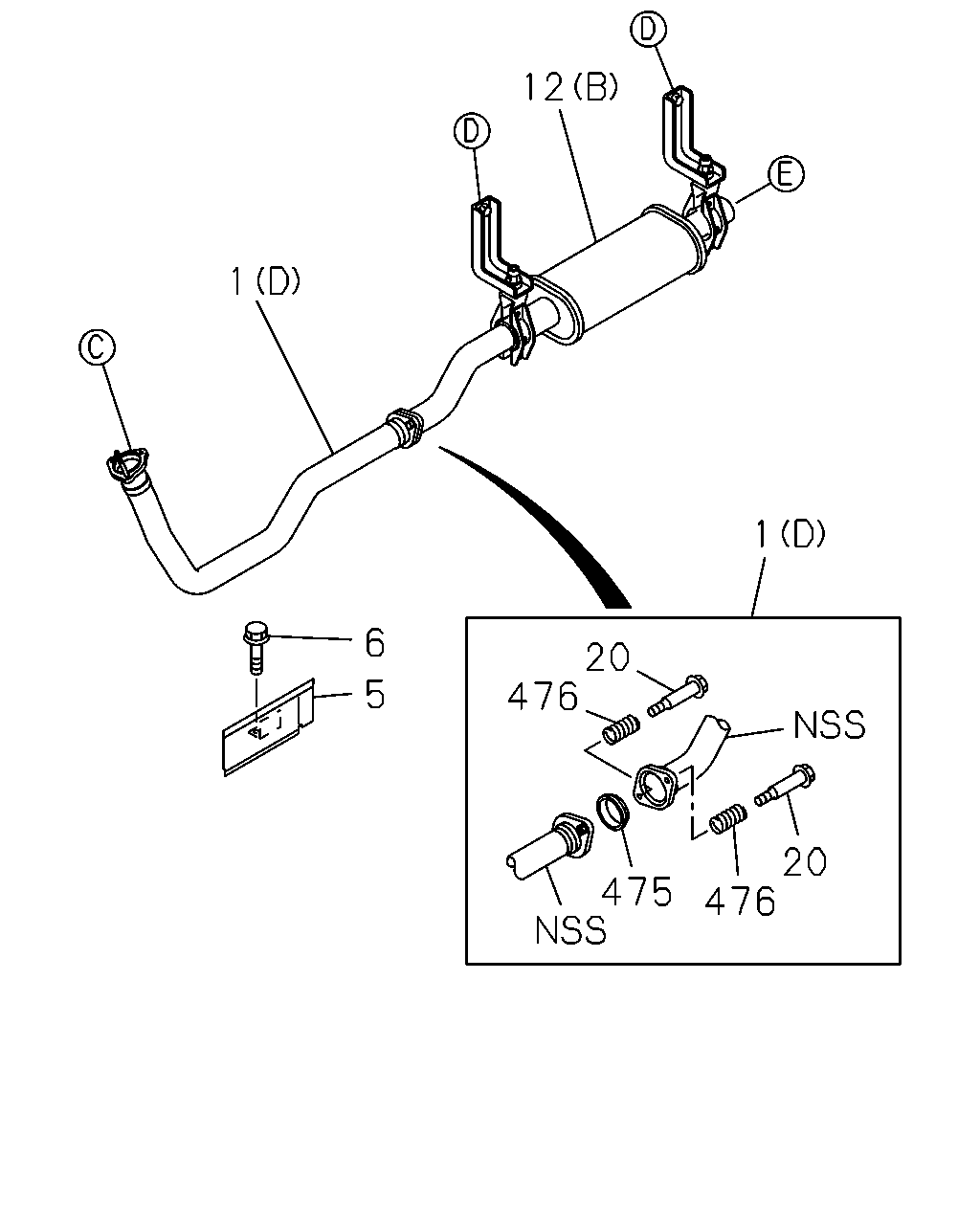

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1302-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1302-
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98073-436-0	01	1	1302-1406
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98255-001-0	01	1	1407-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1302-
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-605-0	01	1	1302-
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-604-0	01	1	1302-
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-389-2	01	1	1302-
12	SILENCER ASM; EXH EURO4 SPECIFICATION<NT4> (A)	8-98165-988-0	01	1	1302-
20	BOLT; FLANGE,EXH PIPE TURBO - CONVENTIONAL<Q5T> M10X49.8	8-97039-586-0	02	1	1302-
475	BEARING; SEAL,VIBNON,EXH PIPE TURBO - CONVENTIONAL<Q5T> OD=112	1-22119-294-1	01	1	1302-
476	SPRING; VIBNON,EXH PIPE TURBO - CONVENTIONAL<Q5T>	8-94141-851-0	02	1	1302-

81 121 226 62 107 81 60 226 56 36 70 17 506 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-605-0	01	1	1302-
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-604-0	01	1	1302-
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-389-2	01	1	1302-
12	SILENCER ASM; EXH EURO4 SPECIFICATION<NT4> (A)	8-98165-988-0	01	1	1302-
17	BOLT; EXH PIPE TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
121	WASHER; PL,BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1302-
506	BRACKET; STUD EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
