1-56 — EXHAUST BRAKE SYSTEM (#112747) — 10 parça

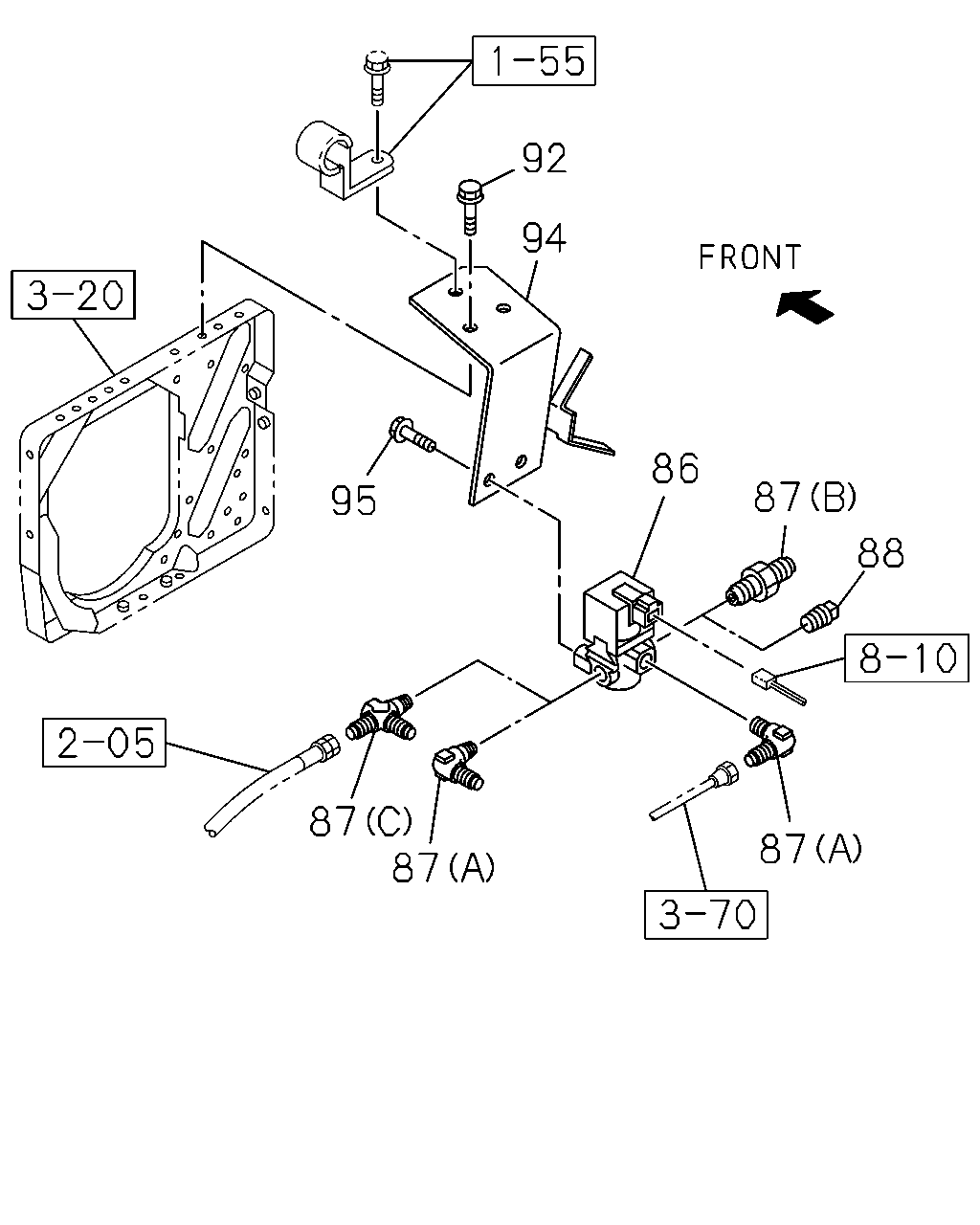

çizim 327188
87 88 87 87 87 86 94 92 95
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1302-
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-
87 CONNECTOR
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1302-
87 CONNECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
87 CONNECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1302-
88 PLUG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1302-
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1302-
94 BRACKET; MAG VLV,EXH BRAKE 8-98213-346-0 01 1 1302-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1302-
