0-32 — WATER PIPING; ENGINE (#112746) — 148 parça

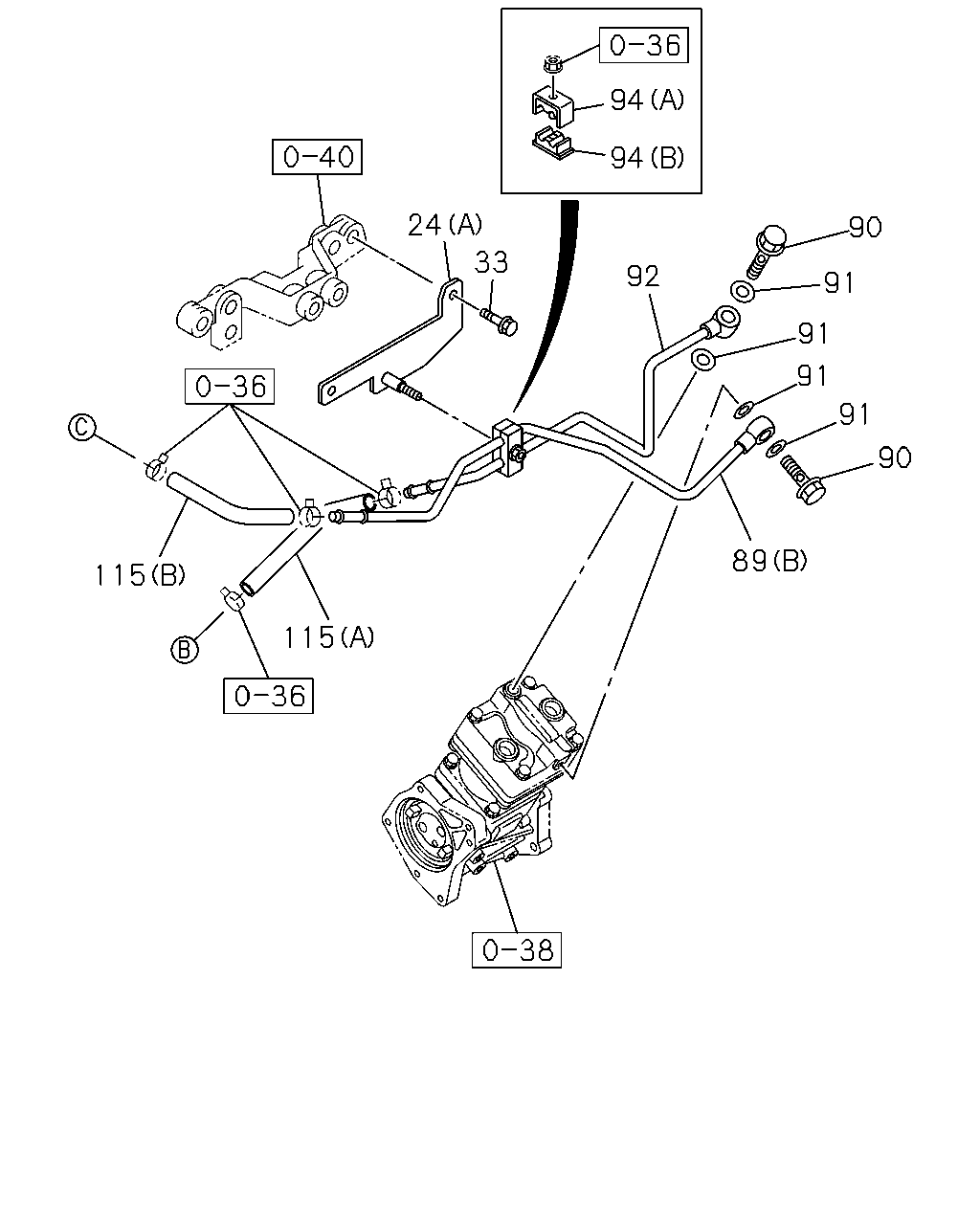

24 92 90 91 91 91 91 90 33 115 115 94 94 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE EURO5 SPECIFICATION<NT5> (B)	8-98209-357-1	01	1	1506-	●
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97379-140-0	01	1	1302-1511	●
24	BRACKET; WATER PIPE (A)	8-97379-140-0	01	1	1302-1511		●
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-97379-140-0	01	1	1512-	●
24	BRACKET; WATER PIPE (A)	8-97379-140-0	01	1	1512-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6X10 FLANGE	0-28050-610-0	02	1	1302-1511	●
33	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	02	1	1302-1511		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> M6X10 FLANGE	0-28050-610-0	02	1	1512-	●
33	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	02	1	1512-		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97376-783-1	01	1	1302-1511	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1302-1511		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (B)	8-97376-783-1	01	1	1512-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1512-		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1302-	●	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (C)	8-98095-668-0	01	1	1302-1505	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98095-668-0	01	1	1506-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●	●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97376-784-0	01	1	1302-1511	●
92	PIPE; WATER,AIR CMPR,OUT	8-97376-784-0	01	1	1302-1511		●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2>	8-97376-784-0	01	1	1512-	●
92	PIPE; WATER,AIR CMPR,OUT	8-97376-784-0	01	1	1512-		●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4>	8-98132-662-0	01	1	1302-1505	●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98132-662-0	01	1	1506-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-1511	●
94	CLIP; WATER PIPE (B) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-1511		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B) ID=9 & 9 L=25	1-09701-180-0	01	1	1512-	●
94	CLIP; WATER PIPE (B) ID=9 & 9 L=25	1-09701-180-0	01	1	1512-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-1511	●
94	CLIP; WATER PIPE (A) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-1511		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A) ID=9 & 9 L=25	8-94393-280-3	01	1	1512-	●
94	CLIP; WATER PIPE (A) ID=9 & 9 L=25	8-94393-280-3	01	1	1512-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98009-361-0	01	1	1302-1511	●
115	HOSE; RUBBER (B)	8-98009-361-0	01	1	1302-1511		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (B)	8-98009-361-0	01	1	1512-	●
115	HOSE; RUBBER (B)	8-98009-361-0	01	1	1512-		●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER (A) L=130	8-98136-884-0	01	1	1302-1505	●	●
115	HOSE; RUBBER EURO5 SPECIFICATION<NT5> (D)	8-98200-802-1	01	1	1506-	●
115	HOSE; RUBBER (A) L=130	8-98136-884-0	01	1	1506-	●	●

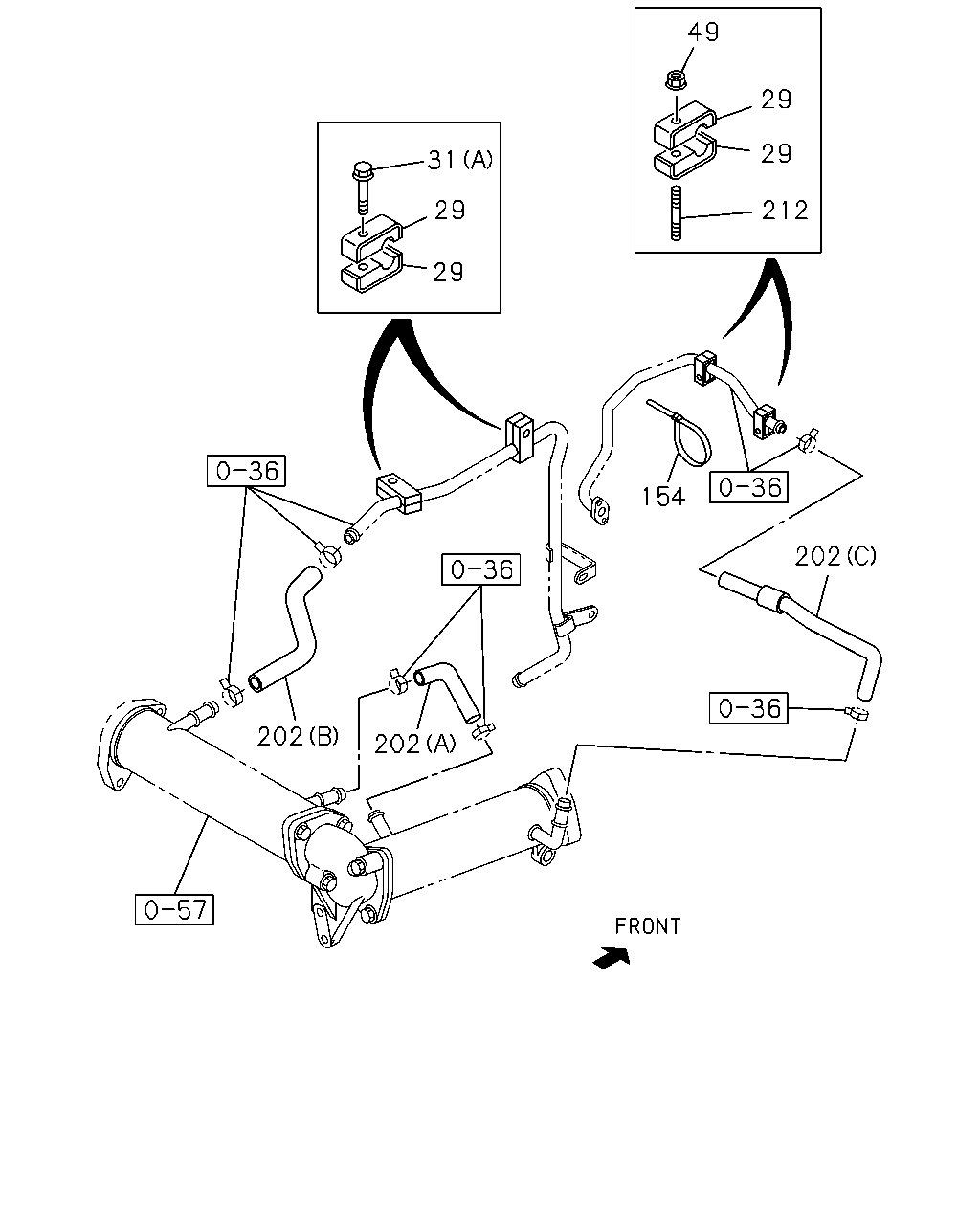

49 29 29 212 202 154 202 202 29 29 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=17 L=17	1-09701-284-0	08	1	1302-1505	●
29	CLIP; PIPE EURO3 SPECIFICATION<NT3> ID=17 L=17	1-09701-284-0	08	1	1302-1505		●
29	CLIP; PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> ID=17 L=17	1-09701-284-0	08	1	1506-1511	●
29	CLIP; PIPE EURO3 SPECIFICATION<NT3> ID=17 L=17	1-09701-284-0	08	1	1506-1511		●
29	CLIP; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=17 L=17	1-09701-284-0	08	1	1512-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X40 FLANGE	0-28050-840-0	02	1	1302-1505	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X40 FLANGE	0-28050-840-0	02	1	1302-1505		●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) M8X40 FLANGE	0-28050-840-0	02	1	1506-1511	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X40 FLANGE	0-28050-840-0	02	1	1506-1511		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X40 FLANGE	0-28050-840-0	02	1	1512-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> L=170.3	1-09987-182-0	01	1	1302-1505	●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> L=170.3	1-09987-182-0	01	1	1302-1505		●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> L=170.3	1-09987-182-0	01	1	1506-1511	●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> L=170.3	1-09987-182-0	01	1	1506-1511		●
154	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> L=170.3	1-09987-182-0	01	1	1512-	●
202	HOSE; RUBBER,EGR COOLER EURO5 SPECIFICATION<NT5> (G)	8-98208-201-1	01	1	1506-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98028-170-0	01	1	1302-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98028-171-0	01	1	1302-1505	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98028-171-0	01	1	1506-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98097-717-0	01	1	1302-1505	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F)	8-98097-717-0	01	1	1506-	●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-97386-586-1	01	1	1302-1511	●	●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (A)	8-98092-382-0	01	1	1302-1511	●	●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98097-605-1	01	1	1302-1511	●	●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1302-	●	●

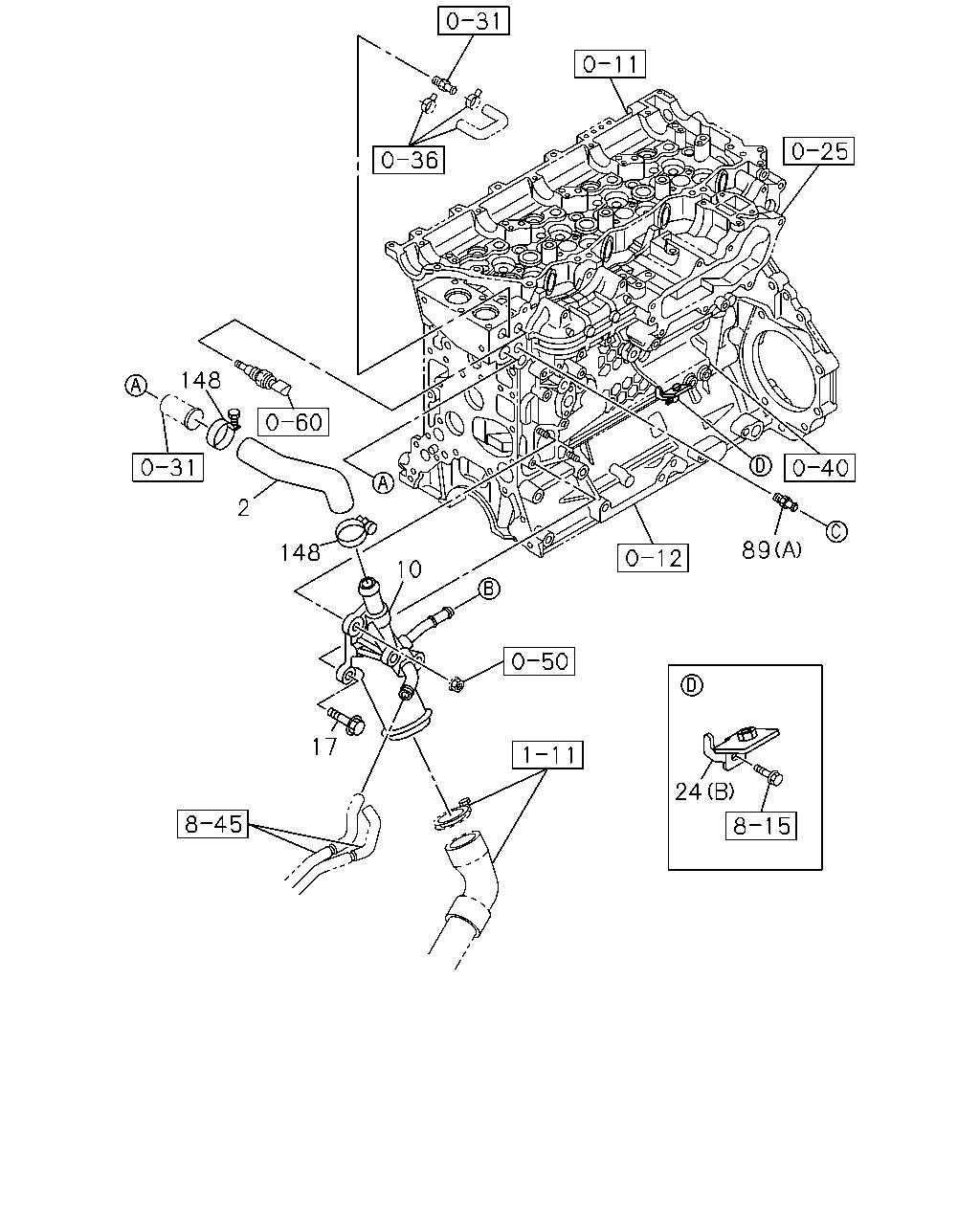

148 2 10 148 17 89 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1302-	●	●
10	PIPE; SUCTION	8-98166-995-0	01	1	1302-	●	●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1302-	●	●
24	BRACKET; WATER PIPE EURO5 SPECIFICATION<NT5> (B)	8-98209-357-1	01	1	1506-	●
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97379-140-0	01	1	1302-1511	●
24	BRACKET; WATER PIPE (A)	8-97379-140-0	01	1	1302-1511		●
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-97379-140-0	01	1	1512-	●
24	BRACKET; WATER PIPE (A)	8-97379-140-0	01	1	1512-		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97376-783-1	01	1	1302-1511	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1302-1511		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (B)	8-97376-783-1	01	1	1512-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1512-		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1302-	●	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (C)	8-98095-668-0	01	1	1302-1505	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98095-668-0	01	1	1506-	●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1302-	●	●

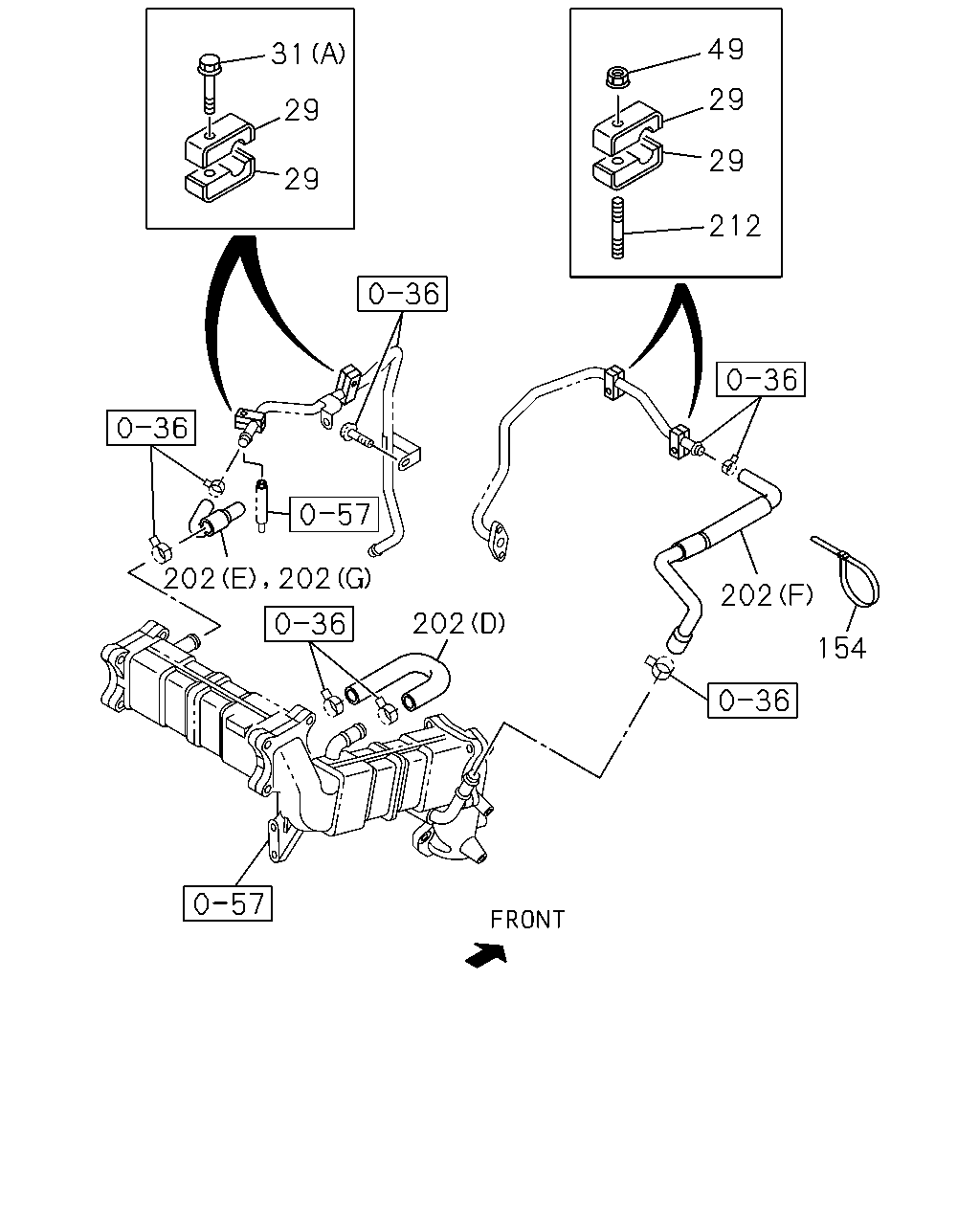

49 29 29 212 31 29 29 202 202 202 202 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=17 L=17	1-09701-284-0	08	1	1302-1505	●
29	CLIP; PIPE EURO3 SPECIFICATION<NT3> ID=17 L=17	1-09701-284-0	08	1	1302-1505		●
29	CLIP; PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> ID=17 L=17	1-09701-284-0	08	1	1506-1511	●
29	CLIP; PIPE EURO3 SPECIFICATION<NT3> ID=17 L=17	1-09701-284-0	08	1	1506-1511		●
29	CLIP; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=17 L=17	1-09701-284-0	08	1	1512-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X40 FLANGE	0-28050-840-0	02	1	1302-1505	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X40 FLANGE	0-28050-840-0	02	1	1302-1505		●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) M8X40 FLANGE	0-28050-840-0	02	1	1506-1511	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X40 FLANGE	0-28050-840-0	02	1	1506-1511		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X40 FLANGE	0-28050-840-0	02	1	1512-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> L=170.3	1-09987-182-0	01	1	1302-1505	●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> L=170.3	1-09987-182-0	01	1	1302-1505		●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> L=170.3	1-09987-182-0	01	1	1506-1511	●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> L=170.3	1-09987-182-0	01	1	1506-1511		●
154	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> L=170.3	1-09987-182-0	01	1	1512-	●
202	HOSE; RUBBER,EGR COOLER EURO5 SPECIFICATION<NT5> (G)	8-98208-201-1	01	1	1506-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98028-170-0	01	1	1302-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98028-171-0	01	1	1302-1505	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98028-171-0	01	1	1506-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98097-717-0	01	1	1302-1505	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F)	8-98097-717-0	01	1	1506-	●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-97386-586-1	01	1	1302-1511	●	●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (A)	8-98092-382-0	01	1	1302-1511	●	●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98097-605-1	01	1	1302-1511	●	●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1302-	●	●

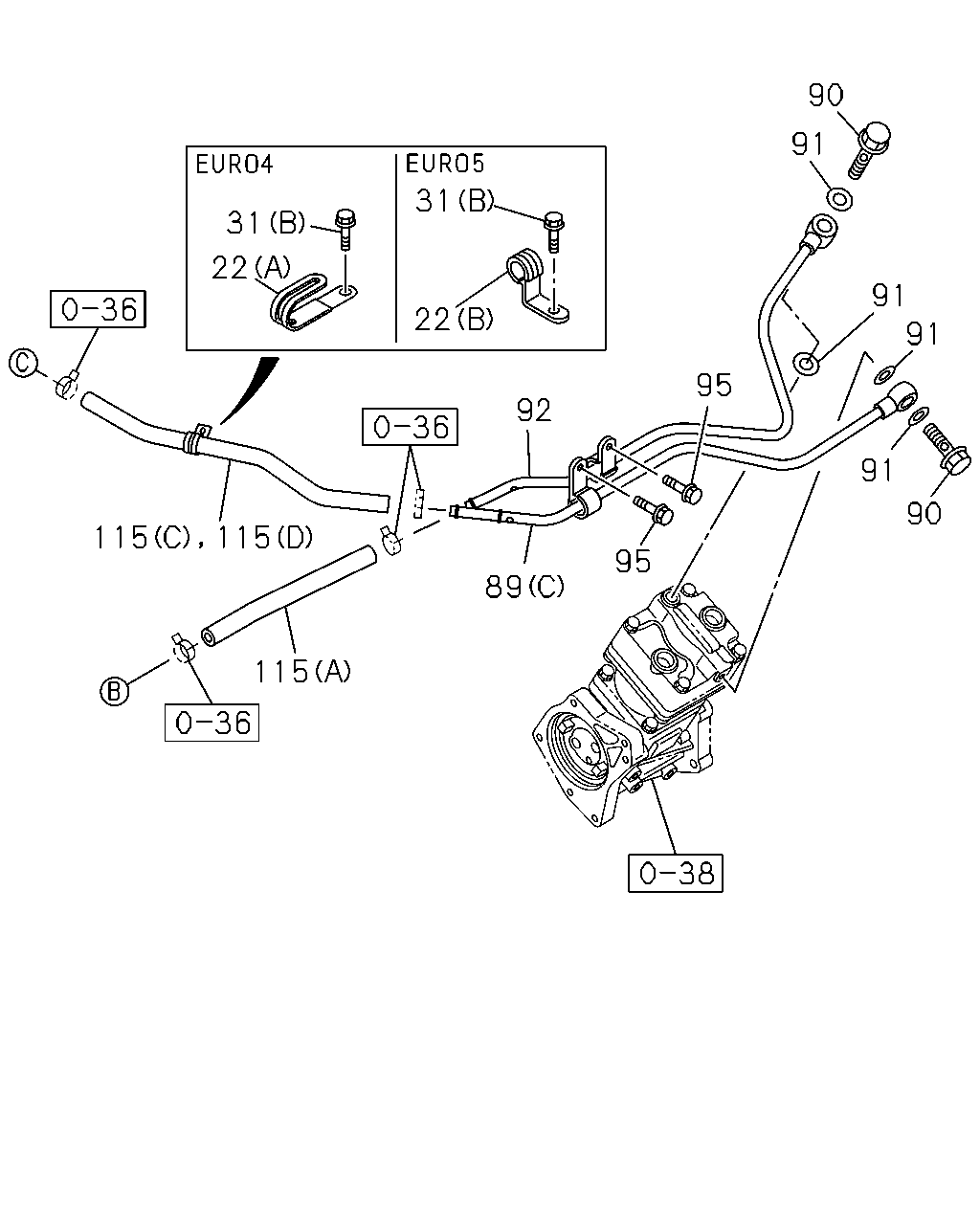

90 91 91 91 31 31 22 22 92 95 91 90 95 89 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1506-	●
22	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) L=36	8-94224-891-1	01	1	1302-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X40 FLANGE	0-28050-840-0	02	1	1302-1505	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X40 FLANGE	0-28050-840-0	02	1	1302-1505		●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) M8X40 FLANGE	0-28050-840-0	02	1	1506-1511	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X40 FLANGE	0-28050-840-0	02	1	1506-1511		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X40 FLANGE	0-28050-840-0	02	1	1512-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97376-783-1	01	1	1302-1511	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1302-1511		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (B)	8-97376-783-1	01	1	1512-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1512-		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1302-	●	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (C)	8-98095-668-0	01	1	1302-1505	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98095-668-0	01	1	1506-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●	●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97376-784-0	01	1	1302-1511	●
92	PIPE; WATER,AIR CMPR,OUT	8-97376-784-0	01	1	1302-1511		●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2>	8-97376-784-0	01	1	1512-	●
92	PIPE; WATER,AIR CMPR,OUT	8-97376-784-0	01	1	1512-		●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4>	8-98132-662-0	01	1	1302-1505	●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98132-662-0	01	1	1506-	●
95	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
95	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98009-361-0	01	1	1302-1511	●
115	HOSE; RUBBER (B)	8-98009-361-0	01	1	1302-1511		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (B)	8-98009-361-0	01	1	1512-	●
115	HOSE; RUBBER (B)	8-98009-361-0	01	1	1512-		●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER (A) L=130	8-98136-884-0	01	1	1302-1505	●	●
115	HOSE; RUBBER EURO5 SPECIFICATION<NT5> (D)	8-98200-802-1	01	1	1506-	●
115	HOSE; RUBBER (A) L=130	8-98136-884-0	01	1	1506-	●	●
