Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#112742) — 467 parça

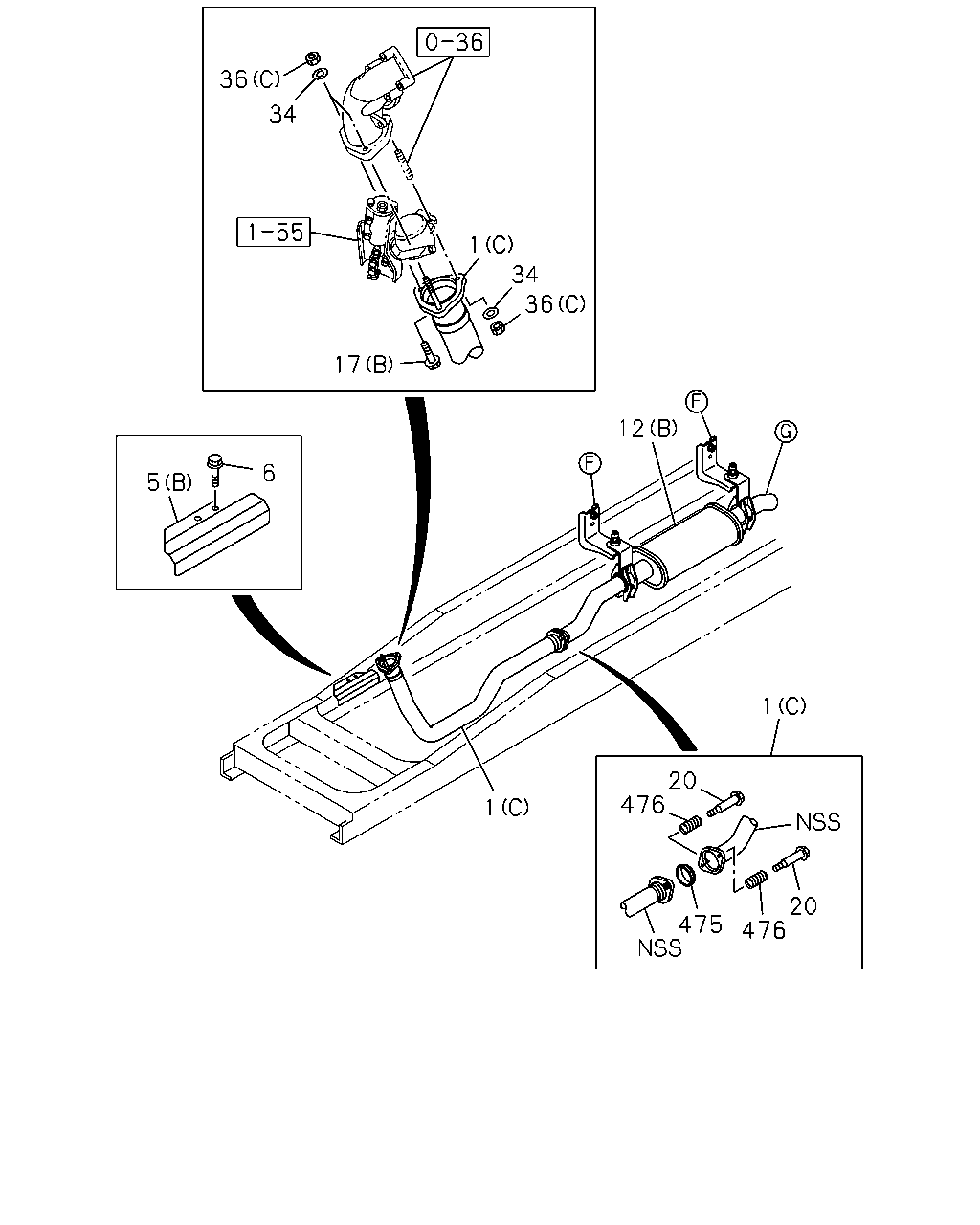

12 1 20 476 475 476 20 36 34 1 34 36 17 6 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98082-498-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-672-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98243-546-0	01	1	1304-
1	PIPE; EXH 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98096-347-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98208-673-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98212-742-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98097-032-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98234-511-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98234-514-0	01	1	1302-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (A)	8-98089-287-1	01	1	1302-
5	PROTECTOR; HEAT 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98044-124-0	01	1	1302-
6	BOLT; HEAT PROTECTOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	8-98090-389-2	01	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98219-189-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-747-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C)	8-98165-988-0	01	1	1302-
17	BOLT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X35 FLANGE	0-28051-235-0	03	1	1302-
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10X49.8	8-97039-586-0	02	1	1302-
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M12 FLANGE	0-91180-212-0	07	1	1302-
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> OD=112	1-22119-294-0	01	1	1302-
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	8-94141-851-0	02	1	1302-

236 49 22 52 506 12 505 1 318 571 571 1 36 2 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98082-498-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-672-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98243-546-0	01	1	1304-
1	PIPE; EXH 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98096-347-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98208-673-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98212-742-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98097-032-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98234-511-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98234-514-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (A)	8-97381-455-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (A)	8-98089-287-1	01	1	1302-
5	PROTECTOR; HEAT 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98044-124-0	01	1	1302-
6	BOLT; HEAT PROTECTOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	8-98090-389-2	01	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98219-189-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-747-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C)	8-98165-988-0	01	1	1302-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M12 FLANGE	0-91180-212-0	07	1	1302-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (A)	8-98234-530-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98122-671-0	01	1	1302-
52	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M12 FLANGE	0-91180-212-0	04	1	1302-
52	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1302-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER	8-97581-234-0	04	1	1302-
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	04	1	1302-
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS)	8-98096-305-0	01	1	1302-
506	BRACKET; STUD 4HK1-TCS ENG(RJS) M12X35	1-22131-963-0	02	1	1302-
506	BRACKET; STUD 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1302-
571	GASKET 4HK1-TCS ENG(RJS) (A) ID=64	8-97373-108-0	02	1	1302-
571	GASKET 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=85.8	1-22116-043-0	02	1	1302-
571	GASKET 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-

2 1 6 5 34 8 36 57 36 44 1 8 65 509 49 17 571 571 52 318 1 36 84 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98082-498-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98208-672-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98243-546-0	01	1	1304-
1	PIPE; EXH 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98096-347-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98208-673-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98212-742-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98097-032-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98234-511-0	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98234-514-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (A)	8-97381-455-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (A)	8-98089-287-1	01	1	1302-
5	PROTECTOR; HEAT 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98044-124-0	01	1	1302-
6	BOLT; HEAT PROTECTOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98233-626-0	01	1	1302-1310
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98259-870-0	01	1	1311-
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98233-627-0	01	1	1302-1404
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98275-817-0	01	1	1405-
17	BOLT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X35 FLANGE	0-28051-235-0	03	1	1302-
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M12 FLANGE	0-91180-212-0	07	1	1302-
44	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X35 FLANGE	0-28651-035-0	02	1	1302-
46	BOLT; BRKT,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28051-030-0	02	1	1302-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (A)	8-98234-530-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98122-671-0	01	1	1302-
52	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M12 FLANGE	0-91180-212-0	04	1	1302-
52	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
65	WASHER; PL 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5	8-98073-091-0	02	1	1302-
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	8-98096-305-0	01	1	1302-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER	8-97581-234-0	04	1	1302-
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	04	1	1302-
509	STUD; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	8-98233-625-0	01	1	1302-1311
509	STUD; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	8-98259-983-0	01	1	1312-
571	GASKET 4HK1-TCS ENG(RJS) (A) ID=64	8-97373-108-0	02	1	1302-
571	GASKET 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=85.8	1-22116-043-0	02	1	1302-
571	GASKET 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-

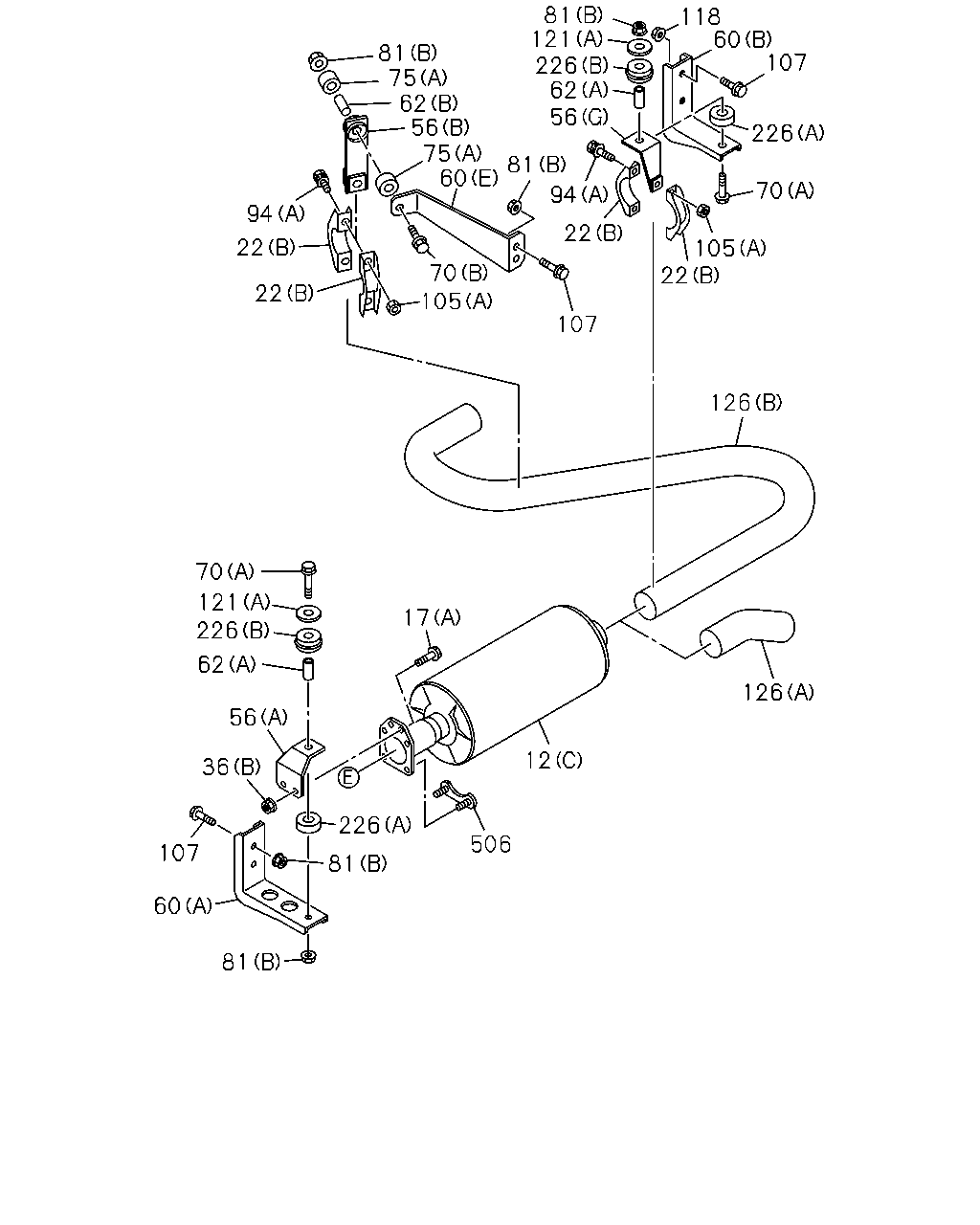

126 126 126 126 22 105 22 70 107 94 60 75 56 62 75 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98074-824-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98086-352-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (F)	8-98212-758-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (F)	8-98212-758-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98073-291-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98074-829-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98070-640-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98245-521-0	01	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) OD=40	1-22159-094-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) OD=30	1-22159-106-1	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	03	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98073-427-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98073-427-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98208-675-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-757-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98212-972-0	01	1	1302-

506 226 81 12 126 126 22 105 70 226 107 60 118 81 56 62 226 121 81 62 75 56 60 75 94 81 22 107 105 70 22 22 94 17 56 62 121 226 36 70 107 60 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	8-98090-389-2	01	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98219-189-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-747-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C)	8-98165-988-0	01	1	1302-
17	BOLT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X35 FLANGE	0-28051-235-0	03	1	1302-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M12 FLANGE	0-91180-212-0	07	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98074-824-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98086-352-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (F)	8-98212-758-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (F)	8-98212-758-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98073-291-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98074-829-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98070-640-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98245-521-0	01	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) OD=40	1-22159-094-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) OD=30	1-22159-106-1	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	03	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98073-427-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98073-427-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98208-675-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-757-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98212-972-0	01	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	01	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	01	1	1302-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	01	1	1302-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	01	1	1302-
506	BRACKET; STUD 4HK1-TCS ENG(RJS) M12X35	1-22131-963-0	02	1	1302-
506	BRACKET; STUD 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1302-

94 22 56 75 121 81 118 81 107 60 70 22 105 75 81 75 81 60 56 62 75 70 107 105 22 126 126 22 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98074-824-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98086-352-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (F)	8-98212-758-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (F)	8-98212-758-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98073-291-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98074-829-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98070-640-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98245-521-0	01	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) OD=40	1-22159-094-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) OD=30	1-22159-106-1	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	03	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98073-427-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98073-427-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98208-675-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-757-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98212-972-0	01	1	1302-

70 107 121 226 81 56 62 17 36 226 60 81 107 60 70 105 118 62 226 22 121 56 22 94 81 226 70 62 56 75 75 94 97 105 22 22 107 81 60 81 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X35 FLANGE	0-28051-235-0	03	1	1302-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (A) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (C) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M12 FLANGE	0-91180-212-0	07	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98074-824-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98086-352-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (F)	8-98212-758-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (F)	8-98212-758-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98073-291-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98074-829-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98070-640-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98245-521-0	01	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) OD=40	1-22159-094-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) OD=30	1-22159-106-1	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE	0-91180-210-0	03	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
97	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5	9-09164-510-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	01	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	01	1	1302-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	01	1	1302-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
