0-40 — FUEL INJECTION SYSTEM (#112740) — 91 parça

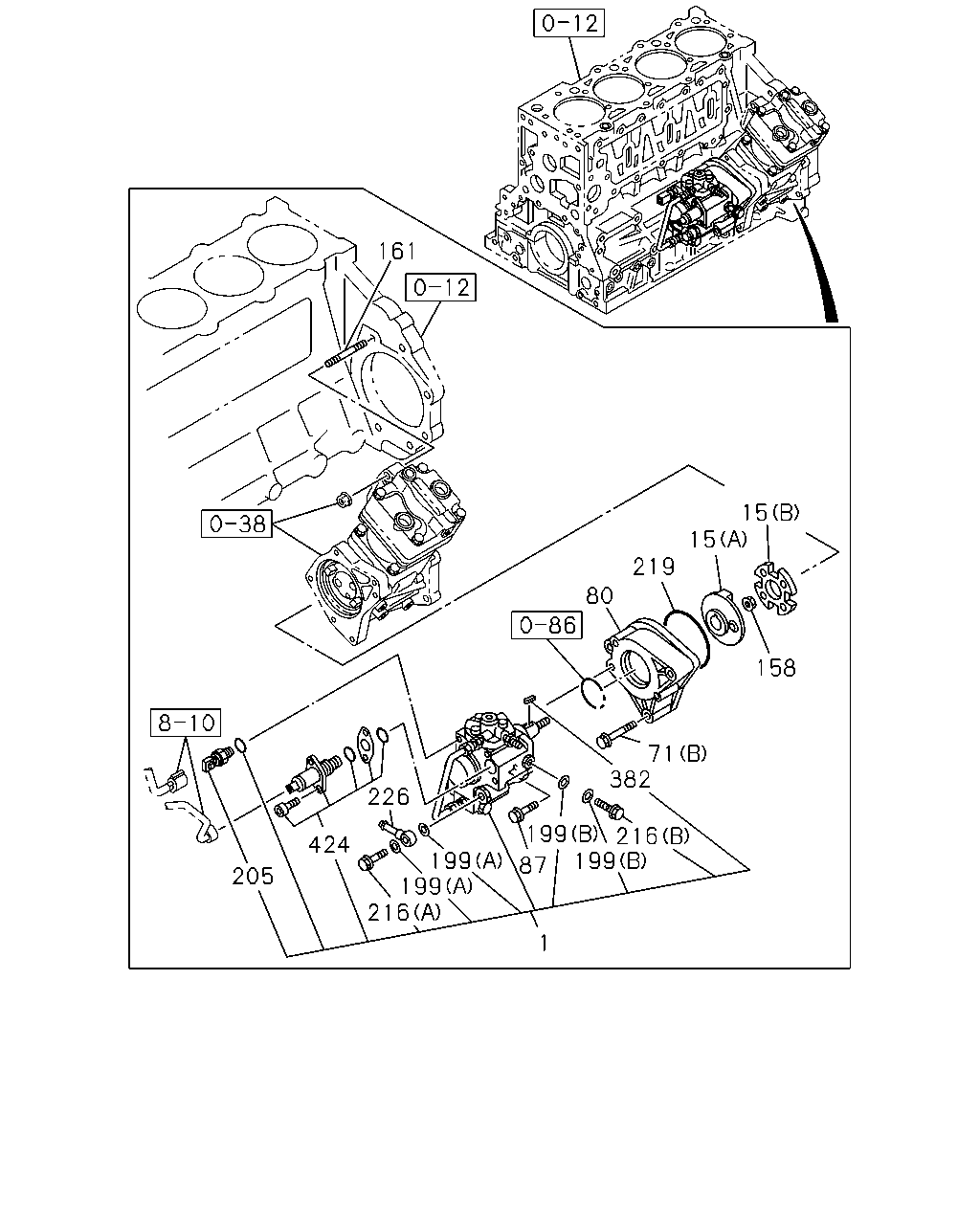

çizim 326550
161 205 15 15 219 80 158 71 382 216 199 226 424 216 199 199 199 1 87
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 1302-
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1302-
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1302-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1302-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1302-
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1302-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1302-
80 BRACKET; PUMP 8-98061-699-0 01 1 1302-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1302-
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1302-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1302-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1302-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1302-
226 PIPE; FUEL 8-98126-332-0 01 1 1302-
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1302-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1302-

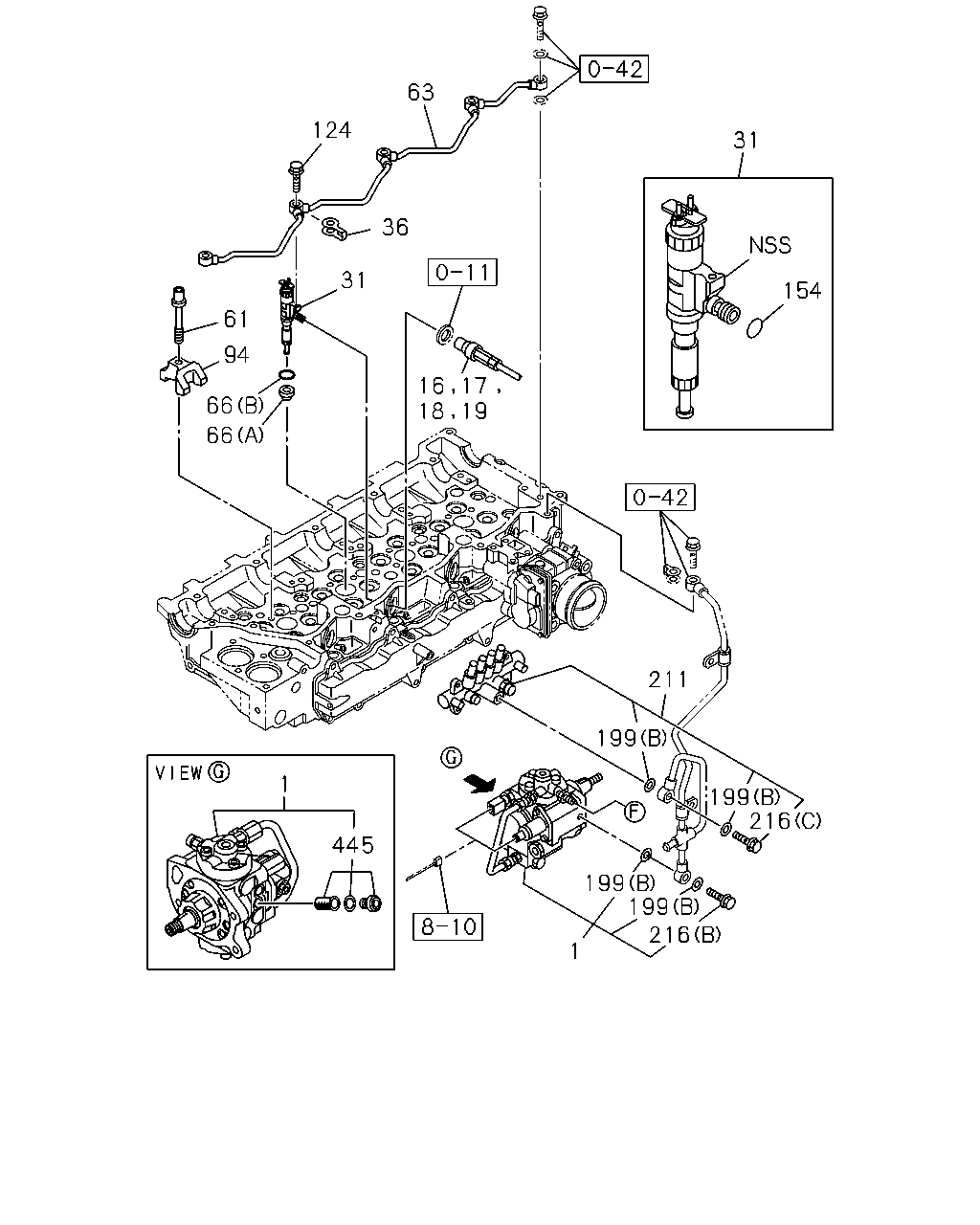

çizim 326571
63 124 61 31 36 94 66 66 16 17 18 19 1 445 1 199 199 216 216 199 199 211 154 31
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 1302-
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1302-1404
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502-
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1302-1404
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502-
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1302-1404
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502-
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1302-1306
19 PIPE; INJ NO.4 8-98245-980-0 01 1 1307-1404
19 PIPE; INJ NO.4 8-98271-230-0 01 1 1405-1501
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502-
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1302-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1302-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1302-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1302-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1302-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1302-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1302-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1302-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1302-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1302-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1302-

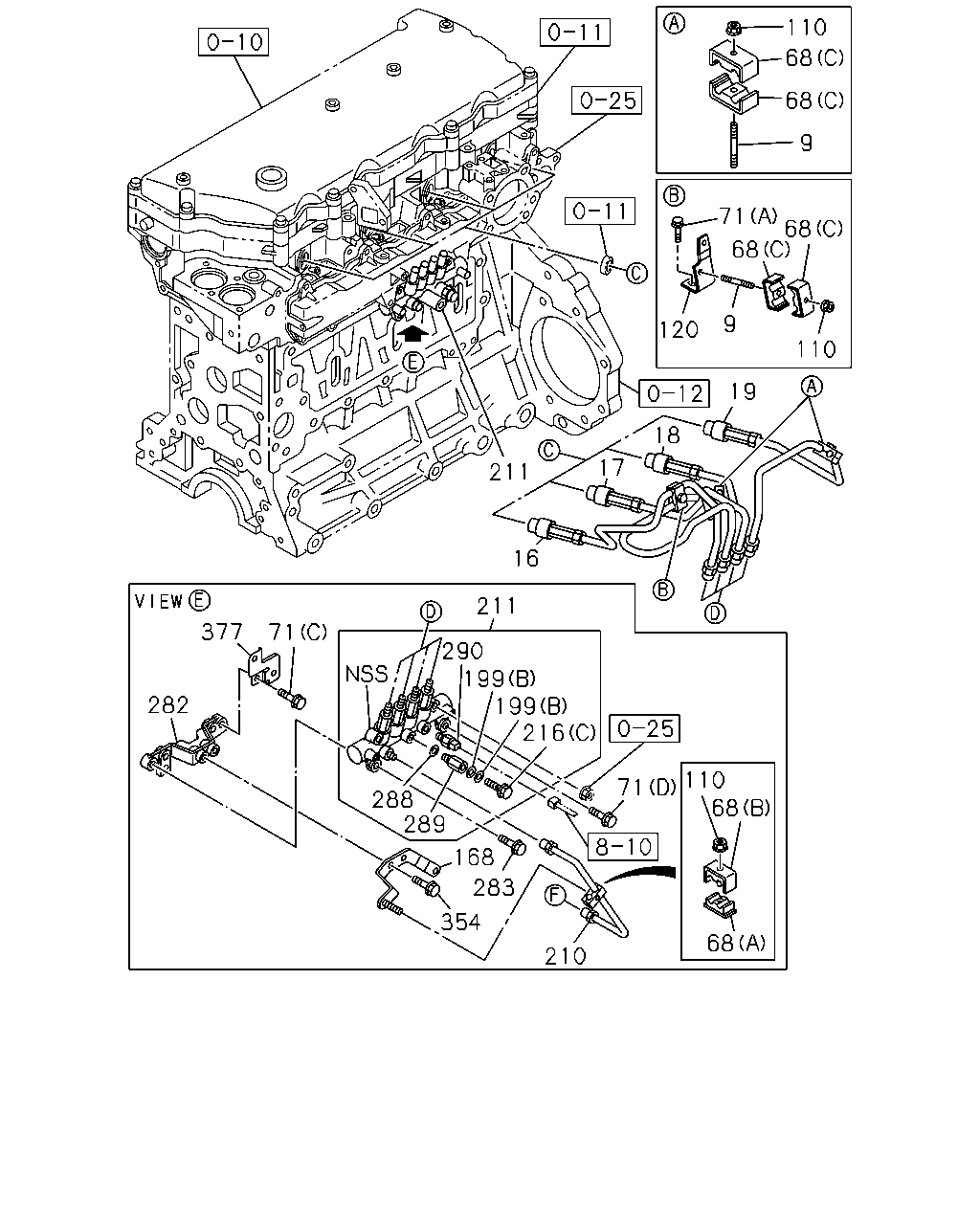

çizim 331367
211 110 68 68 9 71 68 68 120 9 110 19 18 17 16 211 377 71 282 71 210 110 68 216 199 199 290 288 289 168 283 354 68
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 1302-
9 STUD; CLIP
M6X35 L=43 		8-97203-278-0 01 1 1302-
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1302-1404
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502-
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1302-1404
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502-
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1302-1404
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502-
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1302-1306
19 PIPE; INJ NO.4 8-98245-980-0 01 1 1307-1404
19 PIPE; INJ NO.4 8-98271-230-0 01 1 1405-1501
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502-
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1302-
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1302-
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1302-1405
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1302-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1302-
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1302-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1302-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 1302-
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1302-
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 1302-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302-
210 PIPE; INJ,C/R 8-97376-779-0 01 1 1302-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1302-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302-
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1302-
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 1302-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1302-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1302-
290 SENSOR; PRESS 8-98119-790-0 01 1 1302-
354 BOLT; FUEL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1302-
377 BRACKET; HARNESS 8-97379-783-1 01 1 1302-
