2 |
CRANKCASE; AIR CMPR

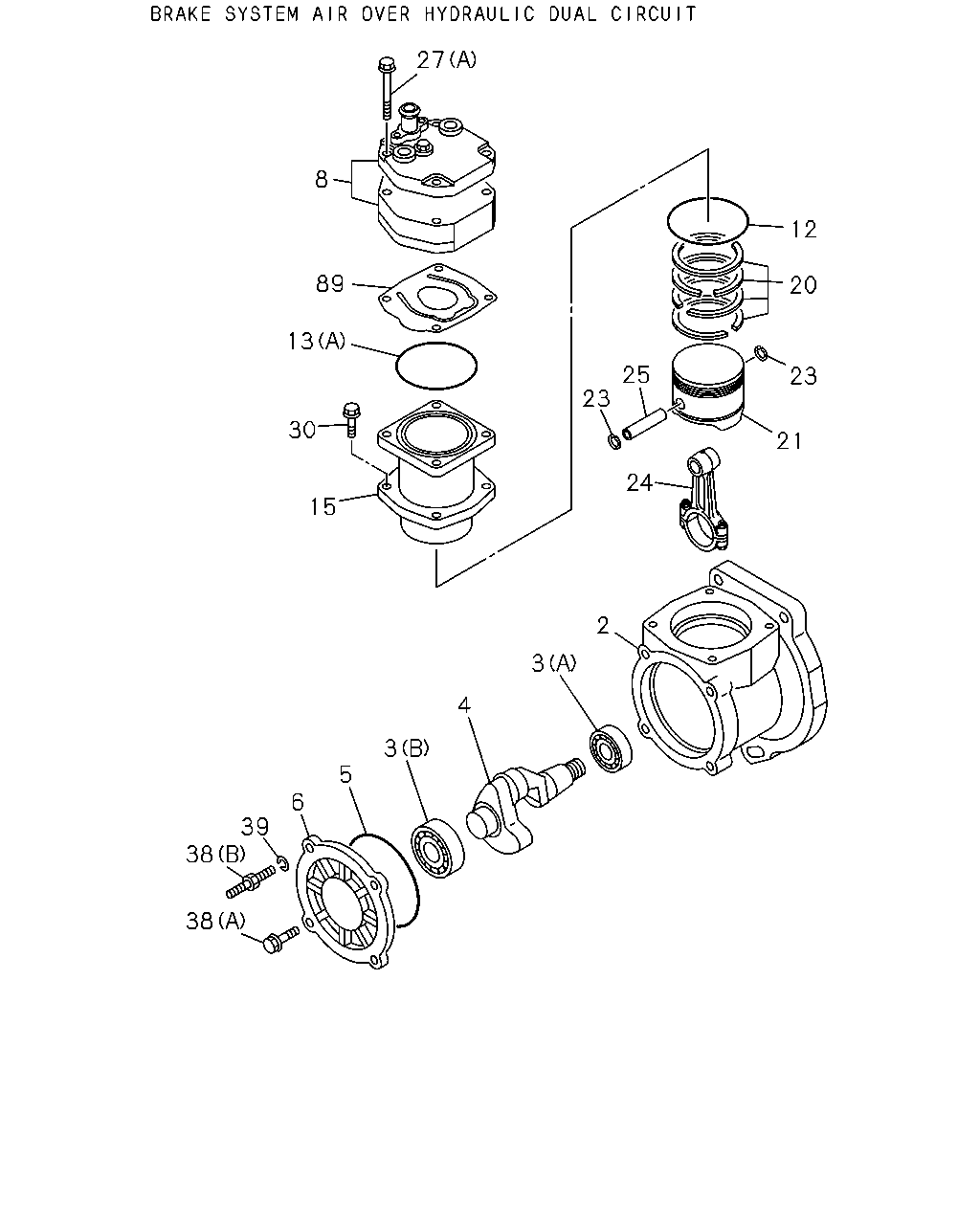

BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-19151-274-0 |
01 |
1 |
1302- |
● |
|
| |
2 |
CRANKCASE; AIR CMPR

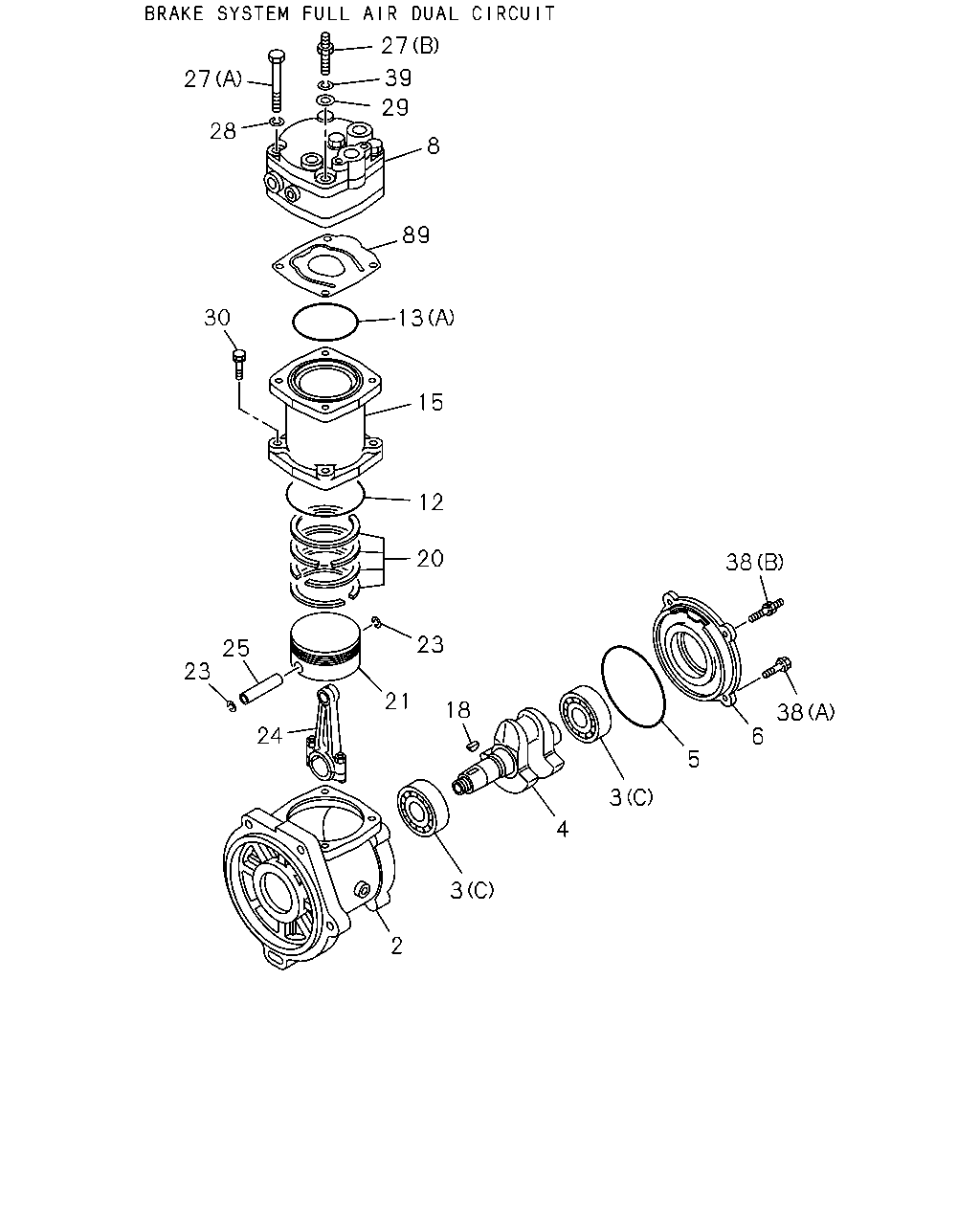

BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-97614-060-1 |
01 |
1 |
1302- |
● |
|
| |
2 |

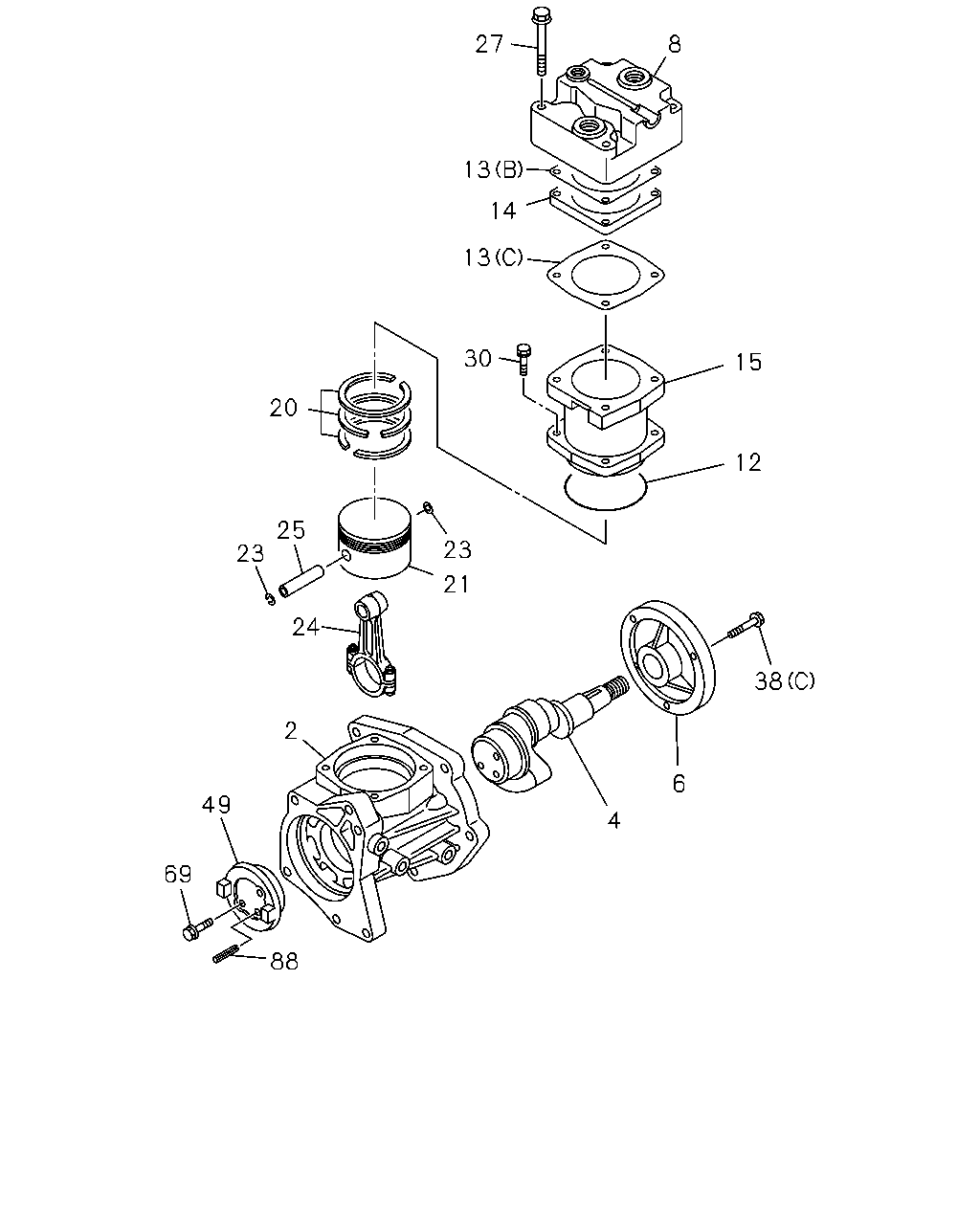

CRANKCASE; AIR CMPR
|
1-19151-303-0 |
01 |
1 |
1305- |
|
● |
| |
3 |
BEARING; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
9-00006-206-0 |
01 |
1 |
1302- |
● |
|
| |
3 |
BEARING; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
9-00090-152-0 |
01 |
1 |
1302- |
● |
|
| |
3 |
BEARING; AIR CMPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
|
1-09800-268-0 |
02 |
1 |
1302- |
● |
|
| |
4 |
CRANKSHAFT; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-19171-096-0 |
01 |
1 |
1302- |
● |
|
| |
4 |
CRANKSHAFT; AIR CMPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-97614-059-1 |
01 |
1 |
1302- |
● |
|
| |
4 |
CRANKSHAFT; AIR CMPR
|
1-19171-090-1 |
01 |
1 |
1305- |
|
● |
| |
5 |
GASKET; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
8-98192-460-0 |
01 |
1 |
1302- |
● |
|
| |
5 |
GASKET; AIR CMPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-98192-463-0 |
01 |
1 |
1302- |
● |
|
| |
6 |
COVER ASM; BRG,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-19156-039-0 |
01 |
1 |
1302- |
● |
|
| |
6 |
COVER ASM; BRG,AIR CMPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-97614-058-1 |
01 |
1 |
1302- |
● |
|
| |
6 |
COVER ASM; BRG,AIR CMPR
|
1-19156-086-1 |
01 |
1 |
1305- |
|
● |
| |
8 |
HEAD ASM; CYL,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
8-98167-014-0 |
01 |
1 |
1302- |
● |
|
| |
8 |
HEAD ASM; CYL,AIR CMPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-98167-013-0 |
01 |
1 |
1302- |
● |
|
| |
8 |
HEAD ASM; CYL,AIR CMPR
|
1-19110-075-0 |
01 |
1 |
1305- |
|
● |
| |
12 |
GASKET; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
8-98185-684-0 |
01 |
1 |
1302-1304 |
● |
|
| |
12 |
GASKET; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
8-98185-684-0 |
01 |
1 |
1305- |
● |
|
| |
12 |
GASKET; AIR CMPR
|
8-98185-684-0 |
01 |
1 |
1305- |
|
● |
| |
12 |
GASKET; AIR CMPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-98048-641-0 |
01 |
1 |
1302- |
● |
|
| |
13 |
GASKET; AIR CMPR
(A)
|
8-98048-640-0 |
01 |
1 |
1302- |
● |
|
| |
13 |
GASKET; AIR CMPR
(B)
|
1-19115-015-0 |
01 |
1 |
1305- |
|
● |
| |
13 |
GASKET; AIR CMPR
(C)
|
1-19115-016-0 |
01 |
1 |
1305- |
|
● |
| |
15 |
CYLINDER; AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
8-98038-668-0 |
01 |
1 |
1302- |
● |
|
| |
15 |
CYLINDER; AIR CMPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-97614-056-0 |
01 |
1 |
1302- |
● |
|
| |
15 |
CYLINDER; AIR CMPR
|
1-19163-068-1 |
01 |
1 |
1305- |
|
● |
| |
18 |
KEY; AIR CMPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-08055-516-0 |
01 |
1 |
1302- |
● |
|
| |
20 |
RING KIT; PISTON,AIR CMPR
|
1-19163-058-0 |
01 |
1 |
1302-1304 |
● |
|
| |
20 |
RING KIT; PISTON,AIR CMPR
|
1-19163-058-0 |
01 |
1 |
1305- |
● |
● |
| |
21 |
PISTON; AIR CMPR
|
1-19161-027-0 |
01 |
1 |
1302-1304 |
● |
|
| |
21 |
PISTON; AIR CMPR
|
1-19161-027-0 |
01 |
1 |
1305- |
● |
● |
| |
23 |
RING; SNAP,PISTON,AIR CMPR
|
1-19169-004-0 |
02 |
1 |
1302-1304 |
● |
|
| |
23 |
RING; SNAP,PISTON,AIR CMPR
|
1-19169-004-0 |
02 |
1 |
1305- |
● |
● |
| |
24 |
ROD ASM; CONN,AIR CMPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-19173-010-0 |
01 |
1 |
1302- |
● |
|
| |
24 |
ROD ASM; CONN,AIR CMPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-97614-057-0 |
01 |
1 |
1302- |
● |
|
| |
24 |
ROD ASM; CONN,AIR CMPR
|
1-19173-023-0 |
01 |
1 |
1305- |
|
● |
| |
25 |
PIN; PISTON,AIR CMPR
|
1-19167-003-0 |
01 |
1 |
1302-1304 |
● |
|
| |
25 |
PIN; PISTON,AIR CMPR
|
1-19167-003-0 |
01 |
1 |
1305- |
● |
● |
| |
27 |
BOLT; HD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M10X75
|
8-98167-018-0 |
04 |
1 |
1302- |
● |
|
| |
27 |
BOLT; HD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
8-97614-054-0 |
01 |
1 |
1302- |
● |
|
| |
27 |
BOLT; HD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M10X75
|
8-98167-018-0 |
03 |
1 |
1302- |
● |
|
| |
27 |
BOLT; HD
|
8-98188-172-0 |
04 |
1 |
1305- |
|
● |
| |
28 |
WASHER; LK,HD BOLT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-97613-694-0 |
01 |
1 |
1302- |
● |
|
| |
29 |
WASHER; PL,HD BOLT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-97613-686-0 |
01 |
1 |
1302- |
● |
|
| |
30 |
BOLT; CYL TO CRANKCASE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X25
|
8-98038-763-0 |
04 |
1 |
1302- |
● |
|
| |
30 |
BOLT; CYL TO CRANKCASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10X30
|
8-97613-704-0 |
04 |
1 |
1302- |
● |
|
| |
30 |
BOLT; CYL TO CRANKCASE
M10X25
|
9-01911-025-0 |
04 |
1 |
1305- |
|
● |
| |
38 |
BOLT; COVER FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
8-97617-894-0 |
02 |
1 |
1302- |
● |
|
| |
38 |
BOLT; COVER FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M8X20
|
8-97617-895-0 |
02 |
1 |
1302- |
● |
|
| |
38 |
BOLT; COVER FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M10X30
|
8-97613-704-0 |
02 |
1 |
1302- |
● |
|
| |
38 |
BOLT; COVER FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
8-97617-310-0 |
02 |
1 |
1302- |
● |
|
| |
38 |
BOLT; COVER FIX
(C)
|
1-19159-023-0 |
03 |
1 |
1305- |
|
● |
| |
39 |
WASHER; LK,COVER FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
8-97617-893-0 |
02 |
1 |
1302- |
● |
|
| |
39 |
WASHER; LK,COVER FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-97613-694-0 |
02 |
1 |
1302- |
● |
|
| |
89 |
VALVE; SUCTION
|
1-19119-045-0 |
01 |
1 |
1302- |
● |
|
