◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11517 - FVM(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#112733) — 63 parça

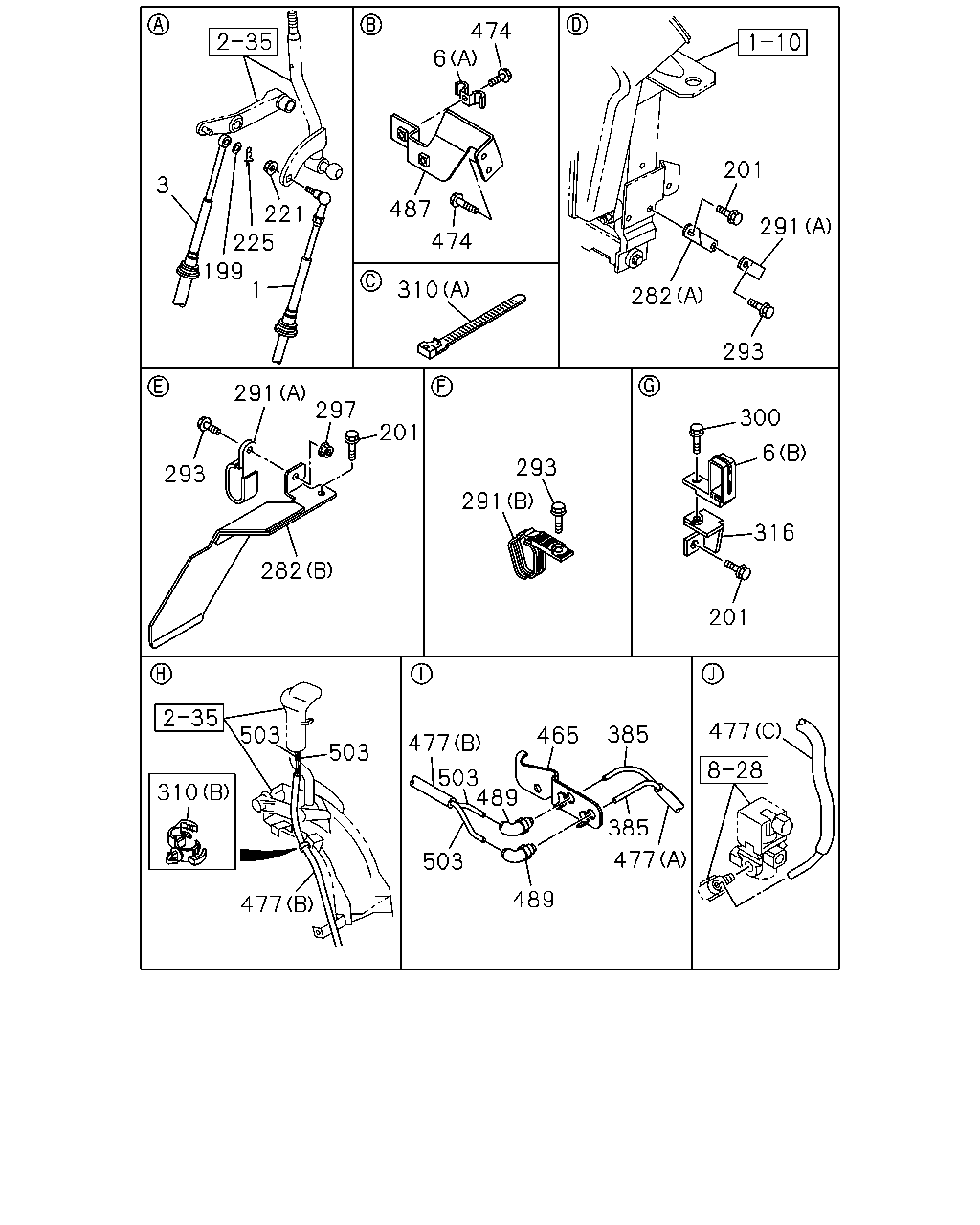

çizim 331106
316 6 300 293 282 201 291 293 291 201 477 477 385 465 477 503 489 385 503 489 474 487 474 6 310 221 225 199 3 1 297 291 293 282 201 477 503 503 310
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF6S1000 M/T(Y5D) L=3390 		8-98017-478-6 01 1 1302-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98047-809-5 01 1 1302-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98177-867-2 01 1 1302-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 1302-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 1302-
3 CABLE; SELECT,TRANS CONT
ZF6S1000 M/T(Y5D) L=3355 		8-98017-499-5 01 1 1302-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98047-823-4 01 1 1302-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3380 		8-98177-868-1 01 1 1302-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 1302-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 1302-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1302-
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1302-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1302-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1302-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1302-
201 BOLT; BRKT
ZF6S1000 M/T(Y5D) M16X25 FLANGE 		0-28851-625-0 01 1 1302-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1302-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1302-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1302-
282 BRACKET; TRANS SIDE
(B) 		8-98171-762-0 01 1 1302-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) (A) 		8-98010-418-0 01 1 1302-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-98098-265-2 01 1 1302-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1302-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 1302-
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28050-820-0 01 1 1302-
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28650-820-0 01 1 1302-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1302-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 1302-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 1302-
316 BRACKET; CLIP 8-98086-439-0 01 1 1302-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1302-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98208-198-0 01 1 1302-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 1302-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 1302-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1302-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1302-
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 1302-
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 1302-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1302-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1302-

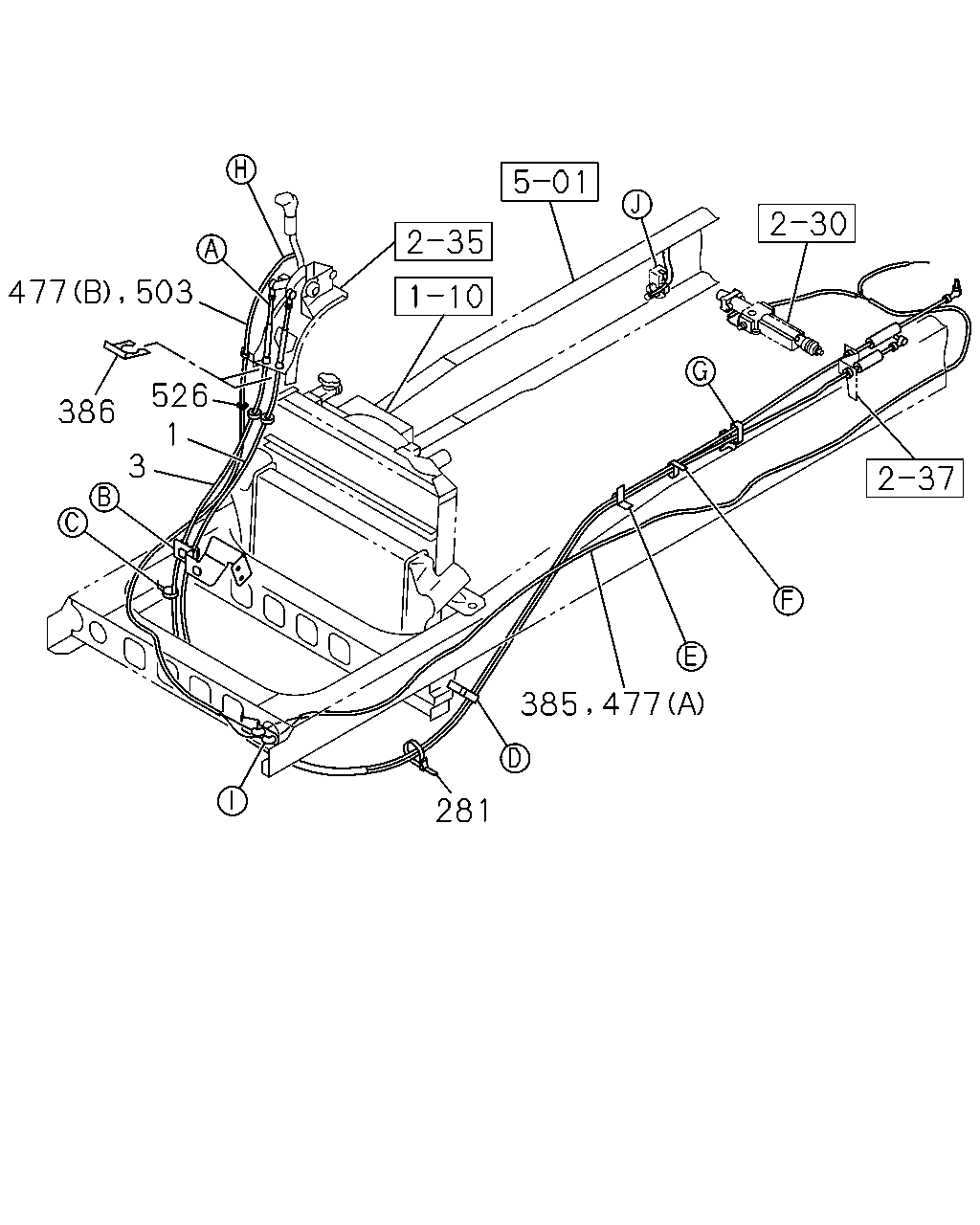

çizim 331132
477 503 386 526 3 1 281 385 477
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF6S1000 M/T(Y5D) L=3390 		8-98017-478-6 01 1 1302-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98047-809-5 01 1 1302-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98177-867-2 01 1 1302-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 1302-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 1302-
3 CABLE; SELECT,TRANS CONT
ZF6S1000 M/T(Y5D) L=3355 		8-98017-499-5 01 1 1302-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98047-823-4 01 1 1302-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3380 		8-98177-868-1 01 1 1302-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 1302-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 1302-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1302-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1302-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1302-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1302-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1302-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1302-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1302-
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1302-
