24 |
CLIP; FUEL HOSE
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
ID=20 L=70
|
1-09701-033-0 |
01 |
1 |
1302-1511 |
| |
24 |
CLIP; FUEL HOSE
6HK1-TCN ENG(82L)
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
ID=20 L=70
|
1-09701-033-0 |
01 |
1 |
1512- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
(E)
L=920
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1302- |
| |
29 |
HOSE; FUEL
WHEEL BASE 3900MM(39W)
FUEL TANK 200L FRAME SIDE<N20>
(E)
L=710
|
8-98186-527-0 |
01 |
1 |
1302-1304 |
| |
29 |
HOSE; FUEL
4HK1-TCS ENG(RJS)
WHEEL BASE 3900MM(39W)
(E)
L=710
|
8-98186-527-0 |
01 |
1 |
1305- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
WHEEL BASE 3900MM(39W)
FUEL TANK 200L FRAME SIDE<N20>
(E)
L=710
|
8-98186-527-0 |
01 |
1 |
1305- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEELBASE 5000MM(50W)
FUEL TANK 200L FRAME SIDE<N20>
(E)
L=730
|
8-98205-834-0 |
01 |
1 |
1302-1304 |
| |
29 |
HOSE; FUEL
4HK1-TCS ENG(RJS)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEELBASE 5000MM(50W)
(E)
L=730
|
8-98205-834-0 |
01 |
1 |
1305- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEELBASE 5000MM(50W)
FUEL TANK 200L FRAME SIDE<N20>
(E)
L=730
|
8-98205-834-0 |
01 |
1 |
1305- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>
(E)
L=1830
|
8-98212-455-0 |
01 |
1 |
1402- |
| |
29 |
HOSE; FUEL
4HK1-TCS ENG(RJS)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(D)
|
8-98220-011-0 |
01 |
1 |
1305-1511 |
| |
29 |
HOSE; FUEL
4HK1-TCS ENG(RJS)
EURO2 SPECIFICATION<NT2>
(D)
|
8-98220-011-0 |
01 |
1 |
1512- |
| |
29 |
HOSE; FUEL
4HK1-TCS ENG(RJS)
EURO4 SPECIFICATION<NT4>
(D)
|
8-98214-027-0 |
01 |
1 |
1305- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
(A)
|
8-98078-196-2 |
01 |
1 |
1302- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
(B)
|
8-98078-197-1 |
01 |
1 |
1302- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
(C)
L=60
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1302- |
| |
39 |
PIPE; FUEL
(B)
NPTF3/8-18 OD=10
|
8-98122-953-0 |
02 |
1 |
1302- |
| |
39 |
PIPE; FUEL
4HK1-TCS ENG(RJS)
(C)
|
8-98229-613-0 |
01 |
1 |
1305- |
| |
39 |
PIPE; FUEL
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
(A)
|
8-98009-438-1 |
01 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
1402- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>
(E)
L=250
|
5-09707-030-1 |
08 |
1 |
1402- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3900MM(39W)
FUEL TANK 200L FRAME SIDE<N20>
(G)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(I)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
02 |
1 |
1305- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(C)
ID=14
|
1-09704-102-0 |
04 |
1 |
1305- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(H)
ID=13-18 L=14.5
|
1-09709-290-0 |
02 |
1 |
1305- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(D)
ID=16
|
8-94238-568-0 |
04 |
1 |
1305- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(A)
ID=13
|
8-94238-571-0 |
08 |
1 |
1305- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
1302-1401 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 200L+200L<NF7>
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
1402- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
1402- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
(E)
L=250
|
5-09707-030-1 |
05 |
1 |
1302-1304 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(E)
L=250
|
5-09707-030-1 |
05 |
1 |
1305- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
(E)
L=250
|
5-09707-030-1 |
05 |
1 |
1305- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
(E)
L=250
|
5-09707-030-1 |
03 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEELBASE 5000MM(50W)
FUEL TANK 200L FRAME SIDE<N20>
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1302-1304 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1302-1304 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEELBASE 5000MM(50W)
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1305- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEELBASE 5000MM(50W)
FUEL TANK 200L FRAME SIDE<N20>
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1305- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1305- |
| |
47 |
PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
(B)
|
8-98213-750-0 |
01 |
1 |
1305- |
| |
47 |
PIPE; FUEL,RETURN
6HK1-TCN ENG(82L)
(A)
L=688
|
8-98129-921-0 |
01 |
1 |
1302- |
| |
55 |
COVER; PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
L=350
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
1305- |
| |
55 |
COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1302-1401 |
| |
55 |
COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1402-1505 |
| |
55 |
COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1506-1506 |
| |
55 |
COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
EXC. EURO5 SPECIFICATION<NT5>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1506-1506 |
| |
55 |
COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1507- |
| |
55 |
COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
03 |
1 |
1302- |
| |
62 |
BOLT; CLIP FIX
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1302-1511 |
| |
62 |
BOLT; CLIP FIX
6HK1-TCN ENG(82L)
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1512- |
| |
64 |
NUT; CLIP
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1302-1511 |
| |
64 |
NUT; CLIP
6HK1-TCN ENG(82L)
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1512- |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L)
EURO5 SPECIFICATION<NT5>
|
8-98317-947-0 |
01 |
1 |
1506-1506 |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>
|
8-98212-453-0 |
01 |
1 |
1402- |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L)
WHEEL BASE 3900MM(39W)
FUEL TANK 200L FRAME SIDE<N20>
L=1370
|
8-98212-451-0 |
01 |
1 |
1302- |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS)
L=1450
|
8-98238-730-0 |
01 |
1 |
1305- |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
L=1600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1302- |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEELBASE 5000MM(50W)
FUEL TANK 200L FRAME SIDE<N20>
L=1380
|
8-98186-528-0 |
01 |
1 |
1302-1505 |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEELBASE 5000MM(50W)
FUEL TANK 200L FRAME SIDE<N20>
EXC. EURO5 SPECIFICATION<NT5>
L=1380
|
8-98186-528-0 |
01 |
1 |
1506-1506 |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEELBASE 5000MM(50W)
FUEL TANK 200L FRAME SIDE<N20>
L=1380
|
8-98186-528-0 |
01 |
1 |
1507- |
| |
80 |
BOLT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
1402- |
| |
80 |
BOLT; CLIP,FUEL TANK
(B)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1302- |
| |
80 |
BOLT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1305- |
| |
80 |
BOLT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1302- |
| |
83 |
NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1305- |
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1302- |
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1302-1401 |
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1402- |
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(D)
|
1-47475-427-1 |
01 |
1 |
1305- |
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(E)
|
8-98126-612-0 |
01 |
1 |
1305- |
| |
97 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
(A)
L=50
|
1-47475-299-2 |
01 |
1 |
1302- |
| |
97 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
(B)
|
8-98053-654-0 |
01 |
1 |
1302- |
| |
97 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
(C)
|
8-98129-922-0 |
01 |
1 |
1302- |
| |
174 |
PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L)
L=685
|
8-98129-920-0 |
01 |
1 |
1302- |
| |
303 |
BOLT; BRKT
(B)
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
1302- |
| |
303 |
BOLT; BRKT
WHEEL BASE 3900MM(39W)
FUEL TANK 200L FRAME SIDE<N20>
(A)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1302- |
| |
303 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
(C)
M8X40 FLANGE
|
0-28650-840-0 |
01 |
1 |
1305- |
| |
304 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302- |
| |
304 |
NUT; BRKT

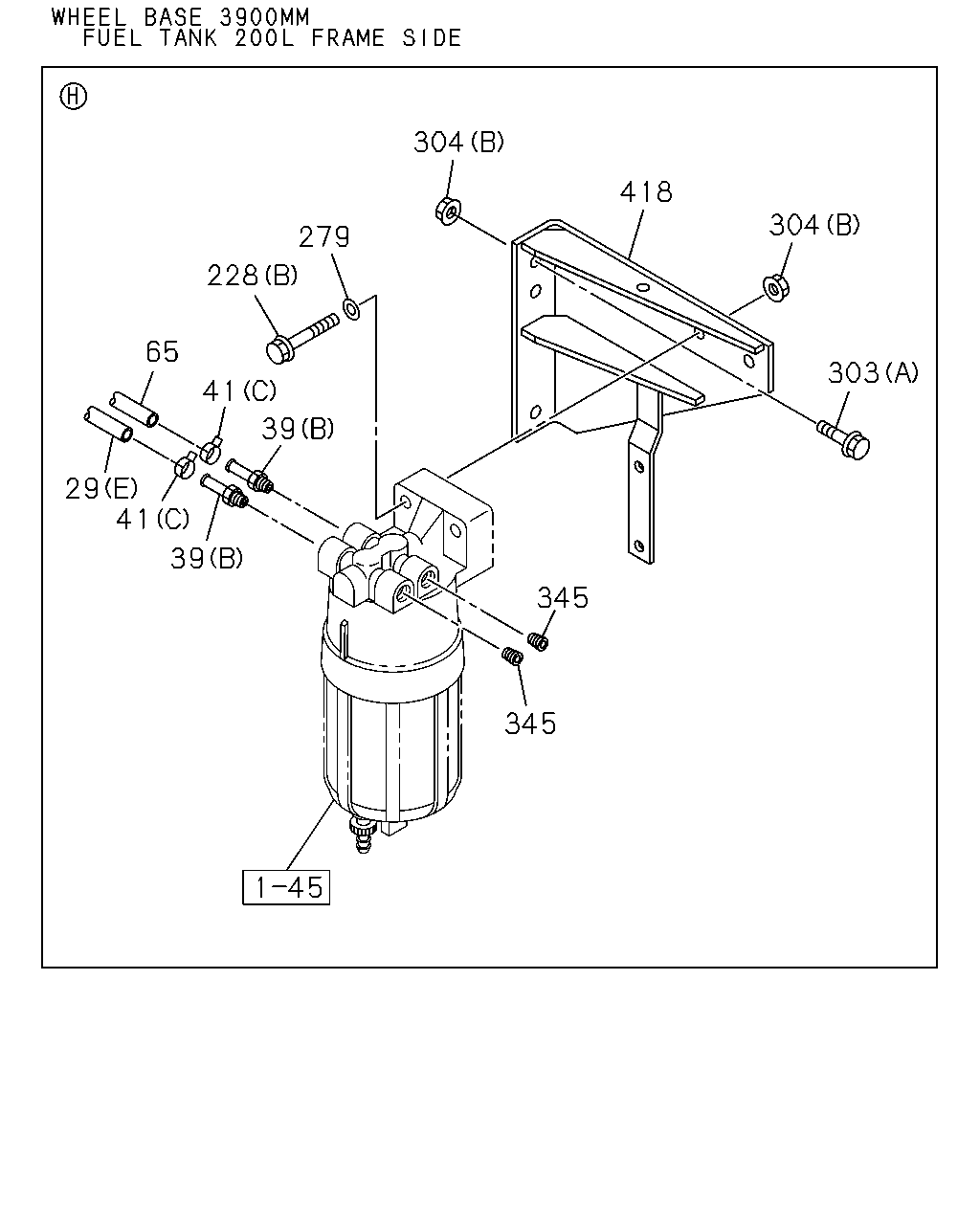

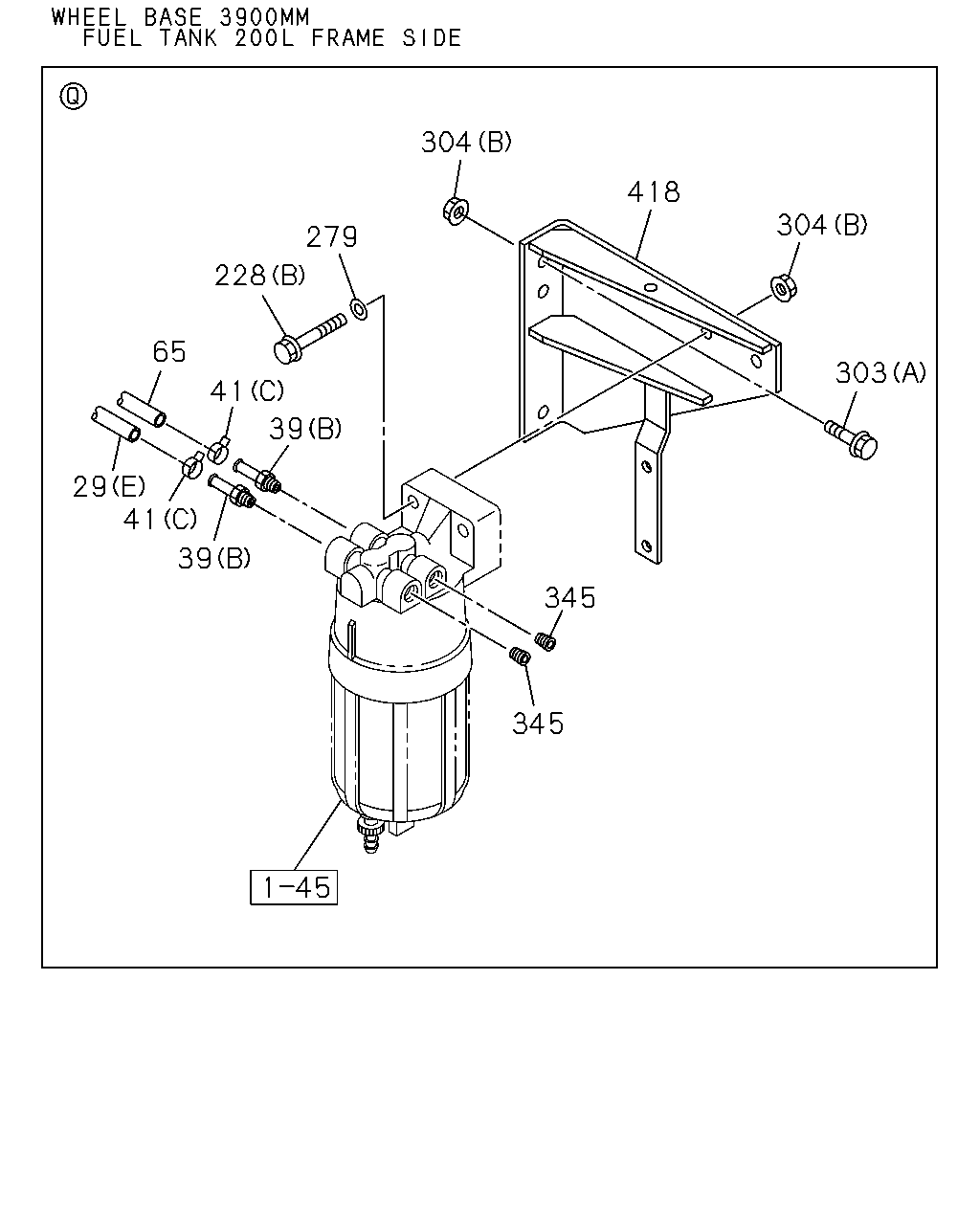

WHEEL BASE 3900MM(39W)
FUEL TANK 200L FRAME SIDE<N20>
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302- |
| |
304 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1302- |
| |
373 |
CLAMP; HOSE,FUEL

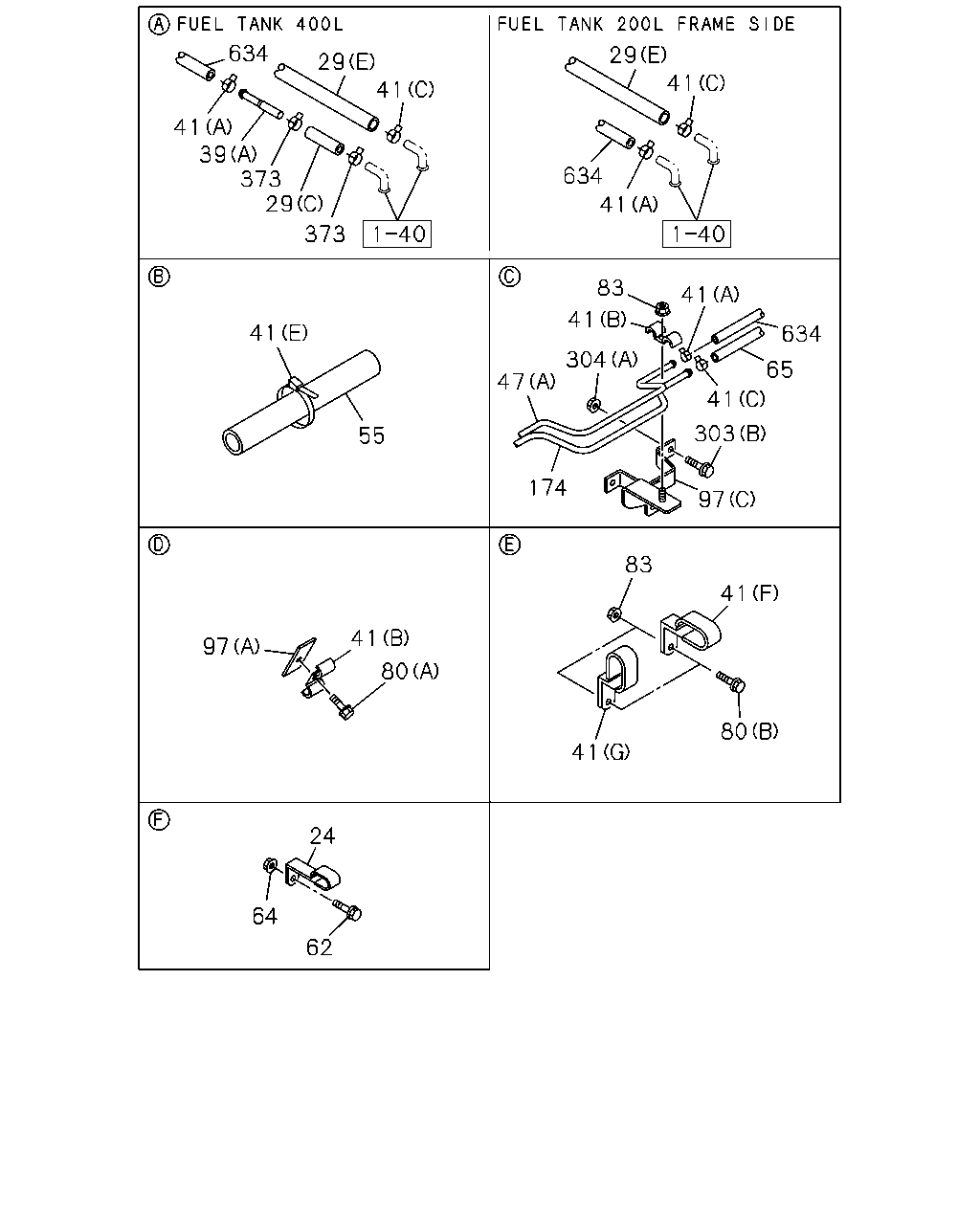

FUEL TANK 400L<SDH>
ID=16
|
8-94238-568-0 |
02 |
1 |
1302-1505 |
| |
373 |
CLAMP; HOSE,FUEL
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
ID=16
|
8-94238-568-0 |
02 |
1 |
1506- |
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCN ENG(82L)
EURO5 SPECIFICATION<NT5>
|
8-98317-948-0 |
01 |
1 |
1506-1506 |
| |
634 |
HOSE; RUBBER RETURN
4HK1-TCS ENG(RJS)
L=830
|
8-98238-644-0 |
01 |
1 |
1305- |
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
L=810
|
8-98186-973-0 |
01 |
1 |
1302-1401 |
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCN ENG(82L)
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
L=810
|
8-98186-973-0 |
01 |
1 |
1402- |
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCN ENG(82L)
FUEL TANK 400L<SDH>
L=800
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1302-1511 |
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCN ENG(82L)
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=800
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1512- |
