Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#112729) — 298 parça

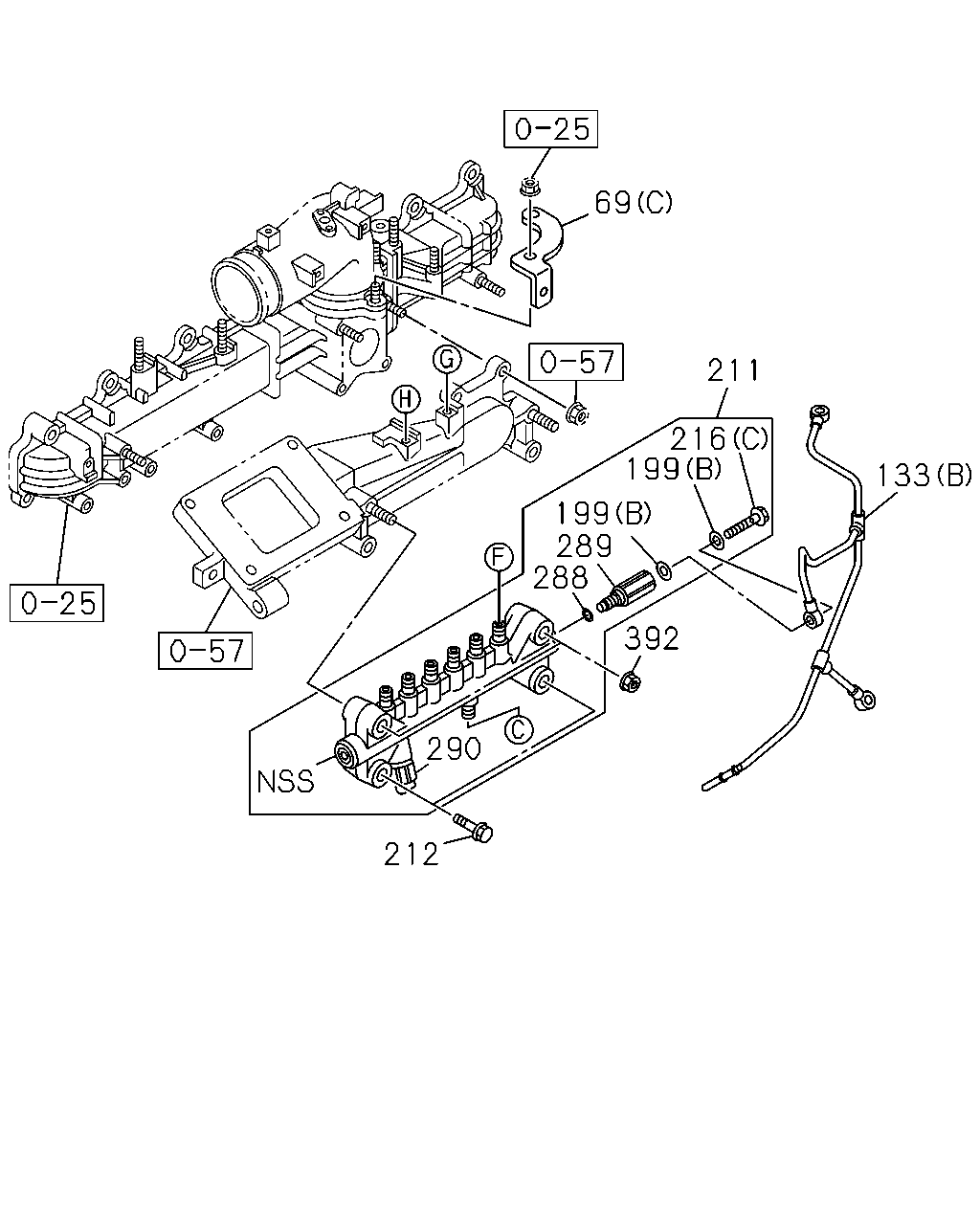

212 392 199 199 211 133 288 289 216 290 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1302-	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1302-	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1302-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1305-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1305-	●	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1305-		●
212	BOLT; RAIL ASM M10X50 FLANGE	8-97372-243-0	02	1	1302-	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-1304	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1305-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-1304	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1305-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-1304	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1305-	●	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1302-1304	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1305-	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1302-1304	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1305-	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1302-1304	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1305-	●	●
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	1302-	●

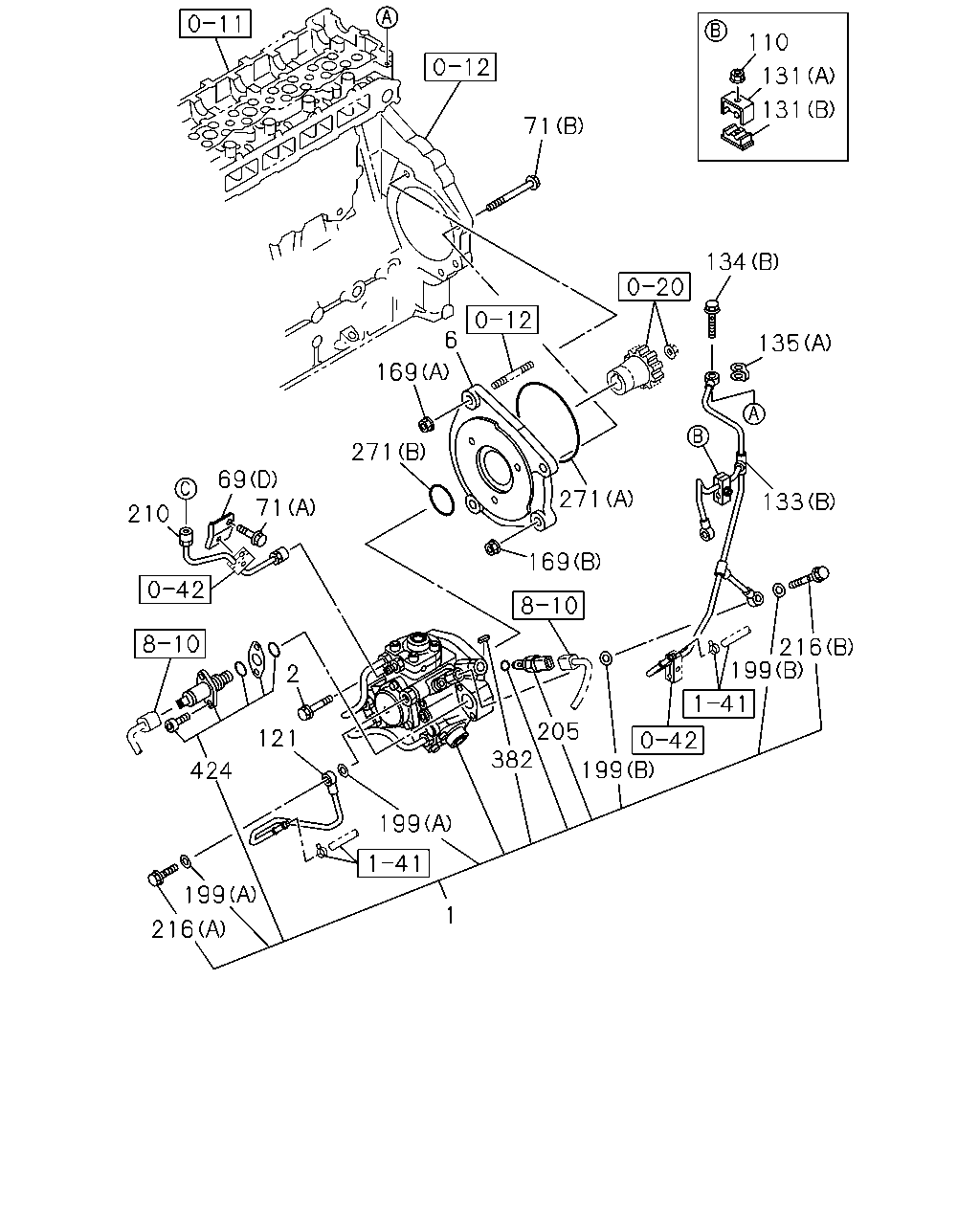

71 134 135 133 271 169 271 169 6 69 71 210 2 121 424 199 216 199 382 205 199 199 216 110 131 131 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97605-946-7	01	1	1302-	●
1	PUMP ASM; INJ	8-97386-557-5	01	1	1305-		●
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	1302-	●
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1302-	●
71	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
71	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	1302-	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1302-	●
71	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	1305-		●
71	BOLT; BRKT (E) M8X40 FLANGE	0-28050-840-0	01	1	1305-		●
71	BOLT; BRKT (F) M8X50 FLANGE	0-28050-850-0	01	1	1305-		●
71	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	03	1	1305-		●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	04	1	1305-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	1302-	●
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	1302-	●
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	1302-	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1302-	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1302-	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1302-	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1302-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1302-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1302-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-	●
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1302-	●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1302-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1305-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1305-	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1302-1304	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1305-	●	●
210	PIPE; INJ,C/R	8-98059-805-0	01	1	1302-	●
210	PIPE; INJ,C/R	8-97376-779-0	01	1	1305-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-1304	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1305-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-1304	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1305-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-1304	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1305-	●	●
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	1302-	●
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	1302-	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1302-1304	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1305-	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1302-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1305-		●

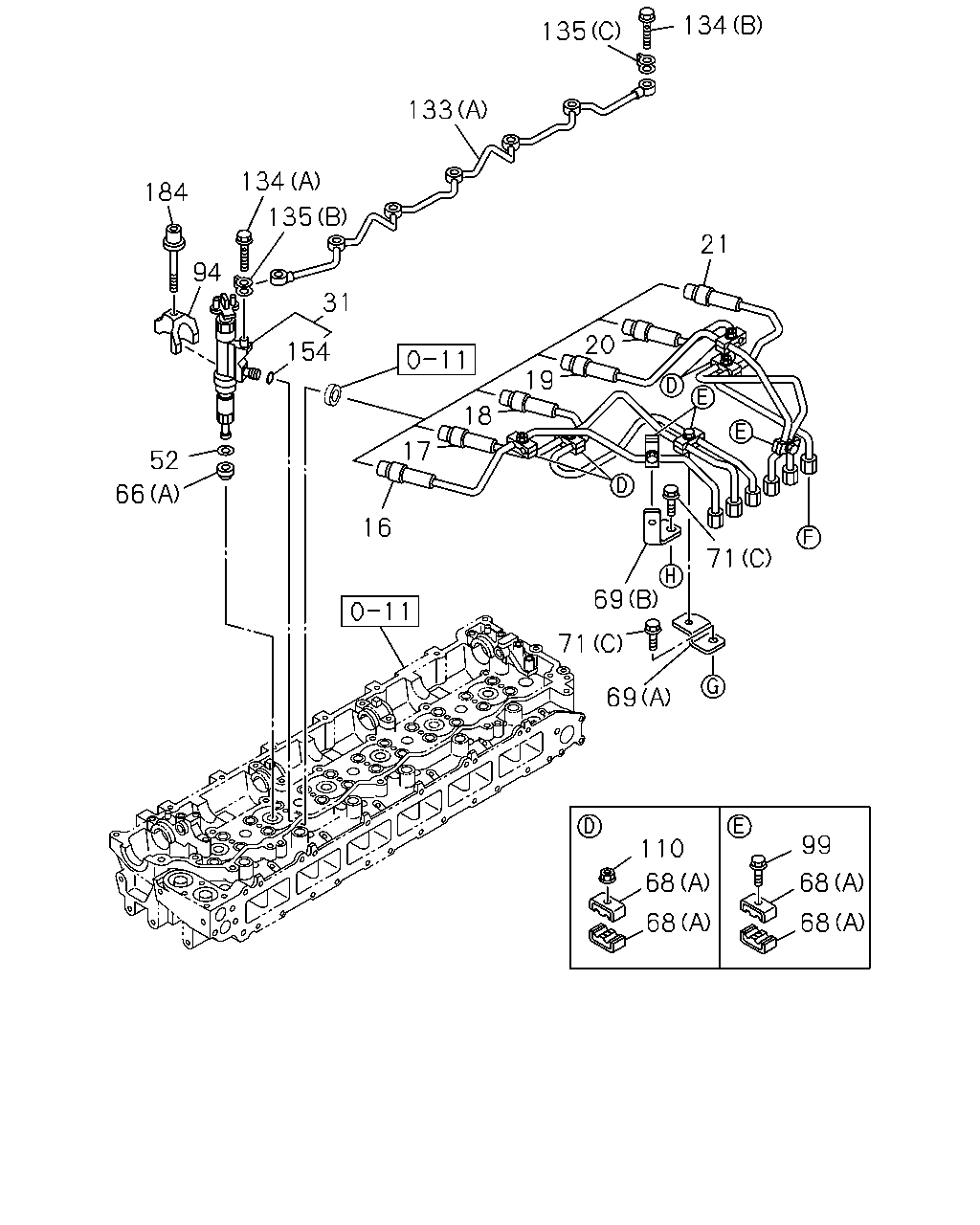

99 68 68 68 68 110 69 71 69 71 21 20 19 18 17 16 52 66 154 31 135 134 184 94 133 135 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98185-344-0	01	1	1305-1404		●
16	PIPE; INJ NO.1	8-98271-202-0	01	1	1405-1501		●
16	PIPE; INJ NO.1	8-98298-606-0	01	1	1502-		●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-345-0	01	1	1305-1404		●
17	PIPE; INJ NO.2	8-98271-203-0	01	1	1405-1501		●
17	PIPE; INJ NO.2	8-98298-607-0	01	1	1502-		●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-346-0	01	1	1305-1404		●
18	PIPE; INJ NO.3	8-98271-204-0	01	1	1405-1501		●
18	PIPE; INJ NO.3	8-98298-608-0	01	1	1502-		●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403	●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501	●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98185-347-0	01	1	1305-1306		●
19	PIPE; INJ NO.4	8-98245-980-0	01	1	1307-1404		●
19	PIPE; INJ NO.4	8-98271-230-0	01	1	1405-1501		●
19	PIPE; INJ NO.4	8-98298-609-0	01	1	1502-		●
20	PIPE; INJ NO.5	8-98185-366-0	01	1	1302-1403	●
20	PIPE; INJ NO.5	8-98271-211-0	01	1	1404-1501	●
20	PIPE; INJ NO.5	8-98298-615-0	01	1	1502-	●
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1302-1403	●
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1501	●
21	PIPE; INJ NO.6	8-98298-617-0	01	1	1502-	●
31	NOZZLE ASM; INJ	8-97609-789-6	06	1	1302-	●
31	NOZZLE ASM; INJ	8-98219-181-0	04	1	1305-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1305-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	1305-		●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1302-1405	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-	●
68	CLIP; INJ PIPE (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1305-		●
68	CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1305-		●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1305-1405		●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-		●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1302-	●
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1302-	●
71	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
71	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	1302-	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1302-	●
71	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	1305-		●
71	BOLT; BRKT (E) M8X40 FLANGE	0-28050-840-0	01	1	1305-		●
71	BOLT; BRKT (F) M8X50 FLANGE	0-28050-850-0	01	1	1305-		●
71	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	03	1	1305-		●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1302-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1305-		●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	04	1	1305-		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1302-	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1302-	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1302-	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1302-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1302-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1302-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1302-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1305-		●
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	1302-	●

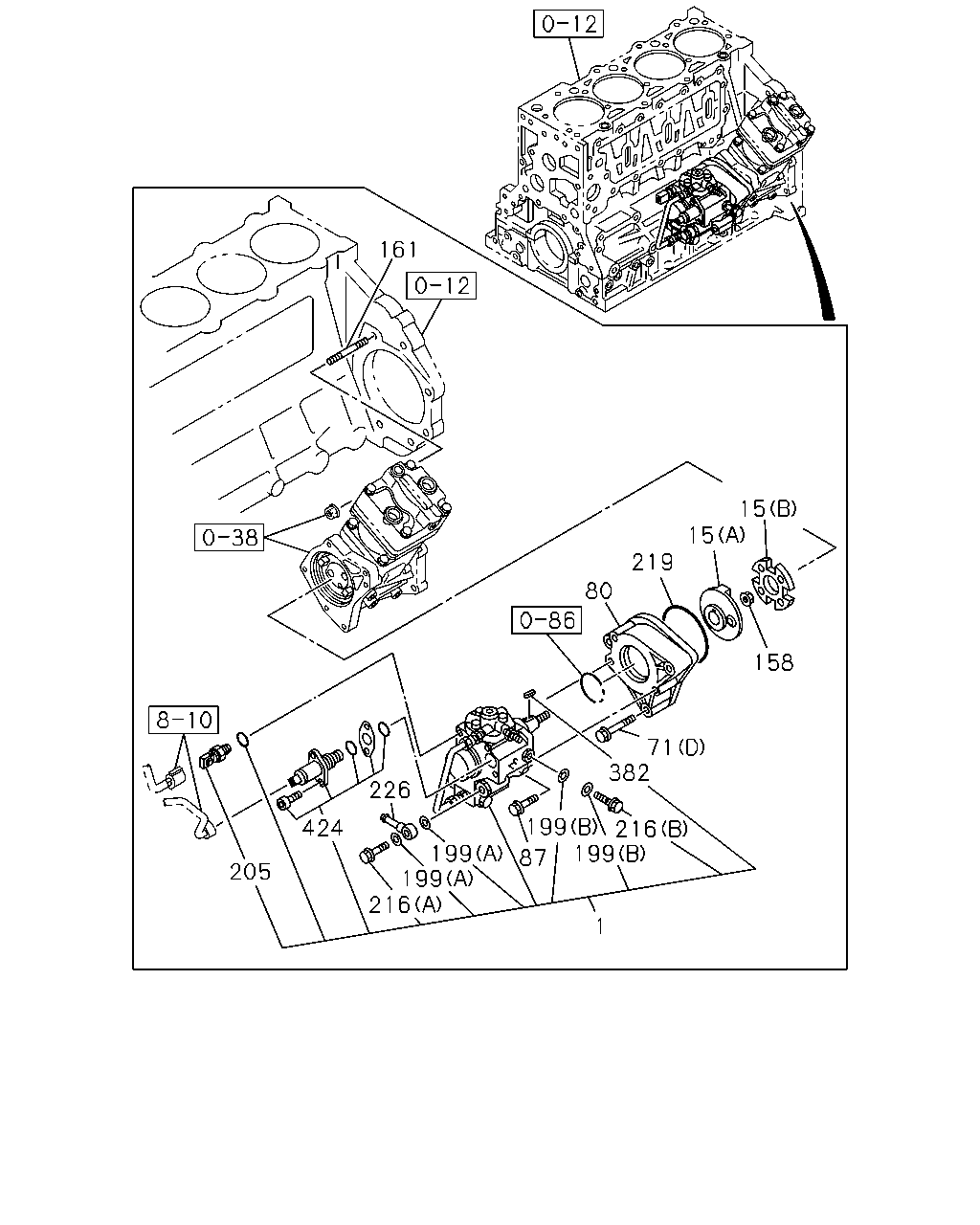

161 15 15 219 80 158 71 382 199 216 199 87 1 199 199 216 424 205 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97605-946-7	01	1	1302-	●
1	PUMP ASM; INJ	8-97386-557-5	01	1	1305-		●
15	COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1305-		●
15	COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1305-		●
71	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
71	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	1302-	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1302-	●
71	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	1305-		●
71	BOLT; BRKT (E) M8X40 FLANGE	0-28050-840-0	01	1	1305-		●
71	BOLT; BRKT (F) M8X50 FLANGE	0-28050-850-0	01	1	1305-		●
71	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	03	1	1305-		●
80	BRACKET; PUMP	8-98061-699-0	01	1	1305-		●
87	BOLT; PUMP M8X30 FLANGE	0-28650-830-0	03	1	1305-		●
158	NUT; INJ PUMP M14 FLANGE	0-91180-114-0	01	1	1305-		●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	1305-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1305-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1305-	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1302-1304	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1305-	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-1304	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1305-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-1304	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1305-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-1304	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1305-	●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6	1-09623-593-0	01	1	1305-		●
226	PIPE; FUEL	8-98126-332-0	01	1	1305-		●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1302-1304	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1305-	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1302-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1305-		●

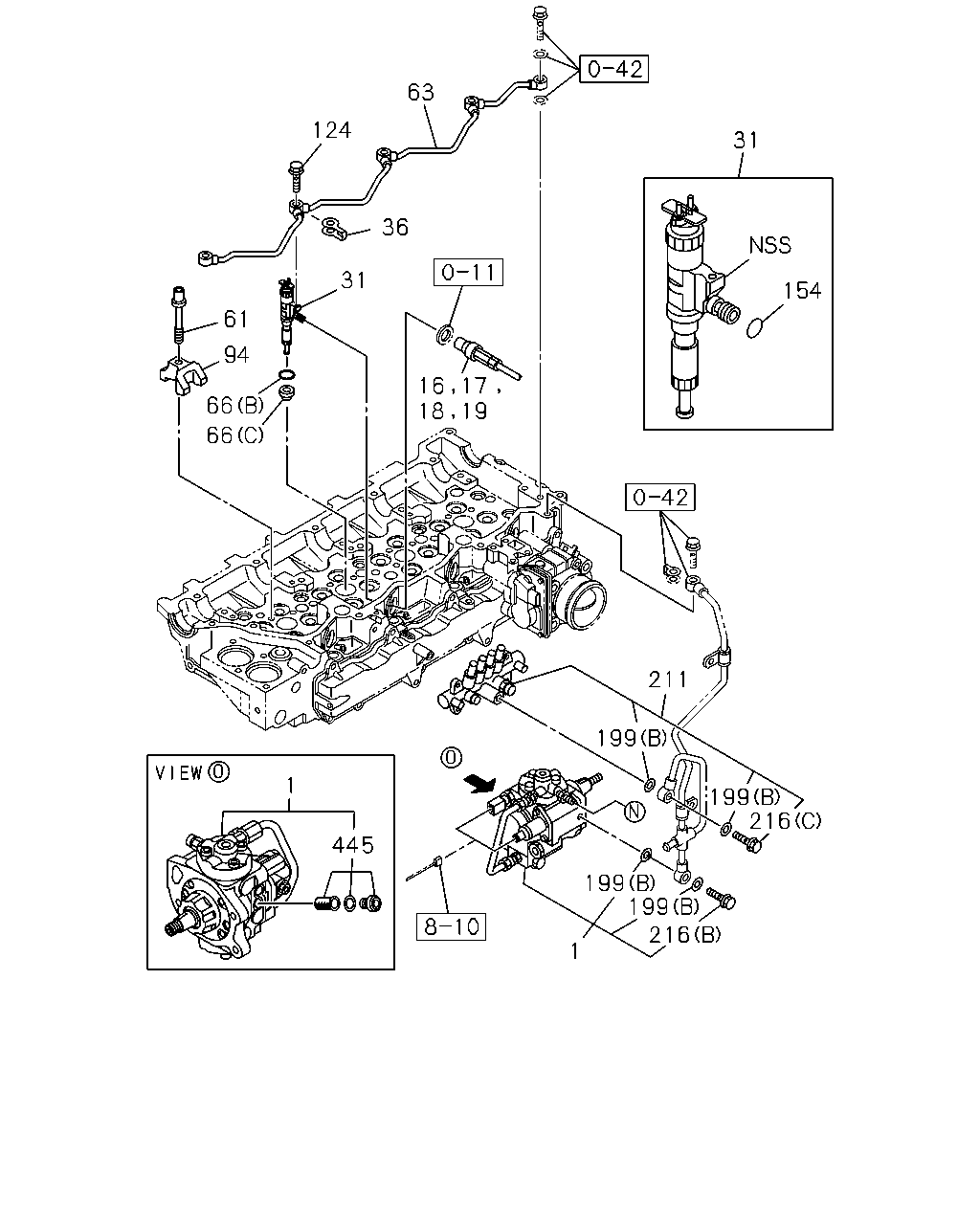

31 154 63 124 36 31 61 66 94 66 16 17 18 19 211 199 199 216 199 199 216 1 1 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97605-946-7	01	1	1302-	●
1	PUMP ASM; INJ	8-97386-557-5	01	1	1305-		●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98185-344-0	01	1	1305-1404		●
16	PIPE; INJ NO.1	8-98271-202-0	01	1	1405-1501		●
16	PIPE; INJ NO.1	8-98298-606-0	01	1	1502-		●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-345-0	01	1	1305-1404		●
17	PIPE; INJ NO.2	8-98271-203-0	01	1	1405-1501		●
17	PIPE; INJ NO.2	8-98298-607-0	01	1	1502-		●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-346-0	01	1	1305-1404		●
18	PIPE; INJ NO.3	8-98271-204-0	01	1	1405-1501		●
18	PIPE; INJ NO.3	8-98298-608-0	01	1	1502-		●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403	●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501	●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98185-347-0	01	1	1305-1306		●
19	PIPE; INJ NO.4	8-98245-980-0	01	1	1307-1404		●
19	PIPE; INJ NO.4	8-98271-230-0	01	1	1405-1501		●
19	PIPE; INJ NO.4	8-98298-609-0	01	1	1502-		●
31	NOZZLE ASM; INJ	8-97609-789-6	06	1	1302-	●
31	NOZZLE ASM; INJ	8-98219-181-0	04	1	1305-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1305-		●
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1305-		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1305-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1305-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	1305-		●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1302-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1305-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1305-		●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1302-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1305-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1305-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1305-	●	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1305-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-1304	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1305-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-1304	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1305-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-1304	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1305-	●	●
445	SCREW; FILTER,INLET	8-98204-986-0	01	1	1305-		●

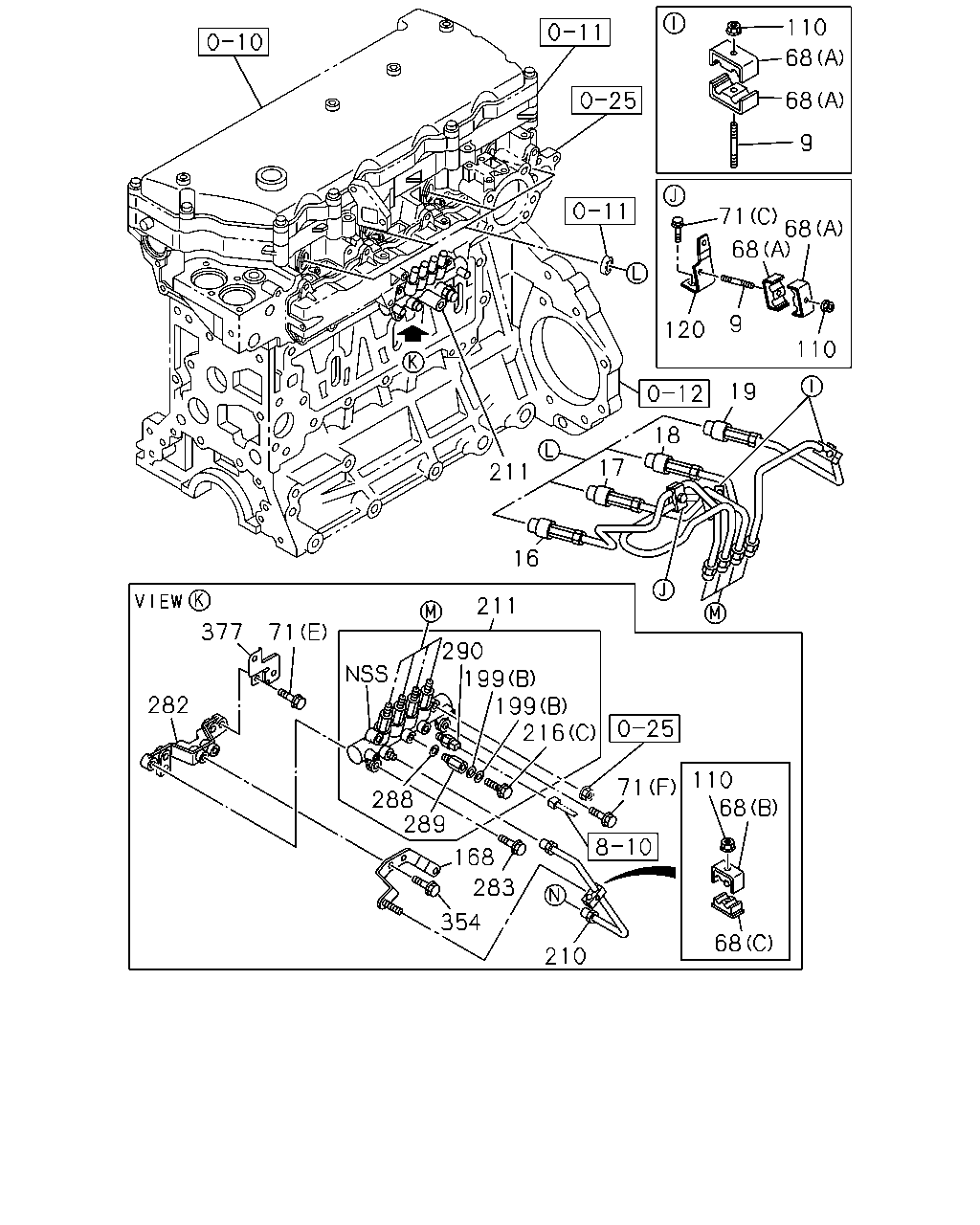

110 68 68 9 71 120 68 68 110 9 19 18 17 211 16 211 71 377 282 290 199 199 216 71 68 110 68 210 354 168 283 289 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	STUD; CLIP M6X30 L=38	0-41010-630-0	02	1	1305-		●
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1305-		●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98185-344-0	01	1	1305-1404		●
16	PIPE; INJ NO.1	8-98271-202-0	01	1	1405-1501		●
16	PIPE; INJ NO.1	8-98298-606-0	01	1	1502-		●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-345-0	01	1	1305-1404		●
17	PIPE; INJ NO.2	8-98271-203-0	01	1	1405-1501		●
17	PIPE; INJ NO.2	8-98298-607-0	01	1	1502-		●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-346-0	01	1	1305-1404		●
18	PIPE; INJ NO.3	8-98271-204-0	01	1	1405-1501		●
18	PIPE; INJ NO.3	8-98298-608-0	01	1	1502-		●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403	●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501	●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98185-347-0	01	1	1305-1306		●
19	PIPE; INJ NO.4	8-98245-980-0	01	1	1307-1404		●
19	PIPE; INJ NO.4	8-98271-230-0	01	1	1405-1501		●
19	PIPE; INJ NO.4	8-98298-609-0	01	1	1502-		●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1302-1405	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-	●
68	CLIP; INJ PIPE (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1305-		●
68	CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1305-		●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1305-1405		●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-		●
71	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
71	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	1302-	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1302-	●
71	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	1305-		●
71	BOLT; BRKT (E) M8X40 FLANGE	0-28050-840-0	01	1	1305-		●
71	BOLT; BRKT (F) M8X50 FLANGE	0-28050-850-0	01	1	1305-		●
71	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	03	1	1305-		●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	04	1	1305-		●
120	BRACKET; INJ PIPE	8-98001-041-0	01	1	1305-		●
168	BRACKET; FUEL PIPE	8-98072-403-0	01	1	1305-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1305-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-1304	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1305-	●	●
210	PIPE; INJ,C/R	8-98059-805-0	01	1	1302-	●
210	PIPE; INJ,C/R	8-97376-779-0	01	1	1305-		●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1305-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-1304	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1305-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-1304	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1305-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-1304	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1305-	●	●
282	BRACKET; COMMON RAIL	8-98157-115-0	01	1	1305-		●
283	BOLT; COMMON RAIL M8X25 FLANGE	0-28050-825-0	01	1	1305-		●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1302-1304	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1305-	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1302-1304	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1305-	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1302-1304	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1305-	●	●
354	BOLT; FUEL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1305-		●
377	BRACKET; HARNESS	8-97379-783-1	01	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
