Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#112724) — 310 parça

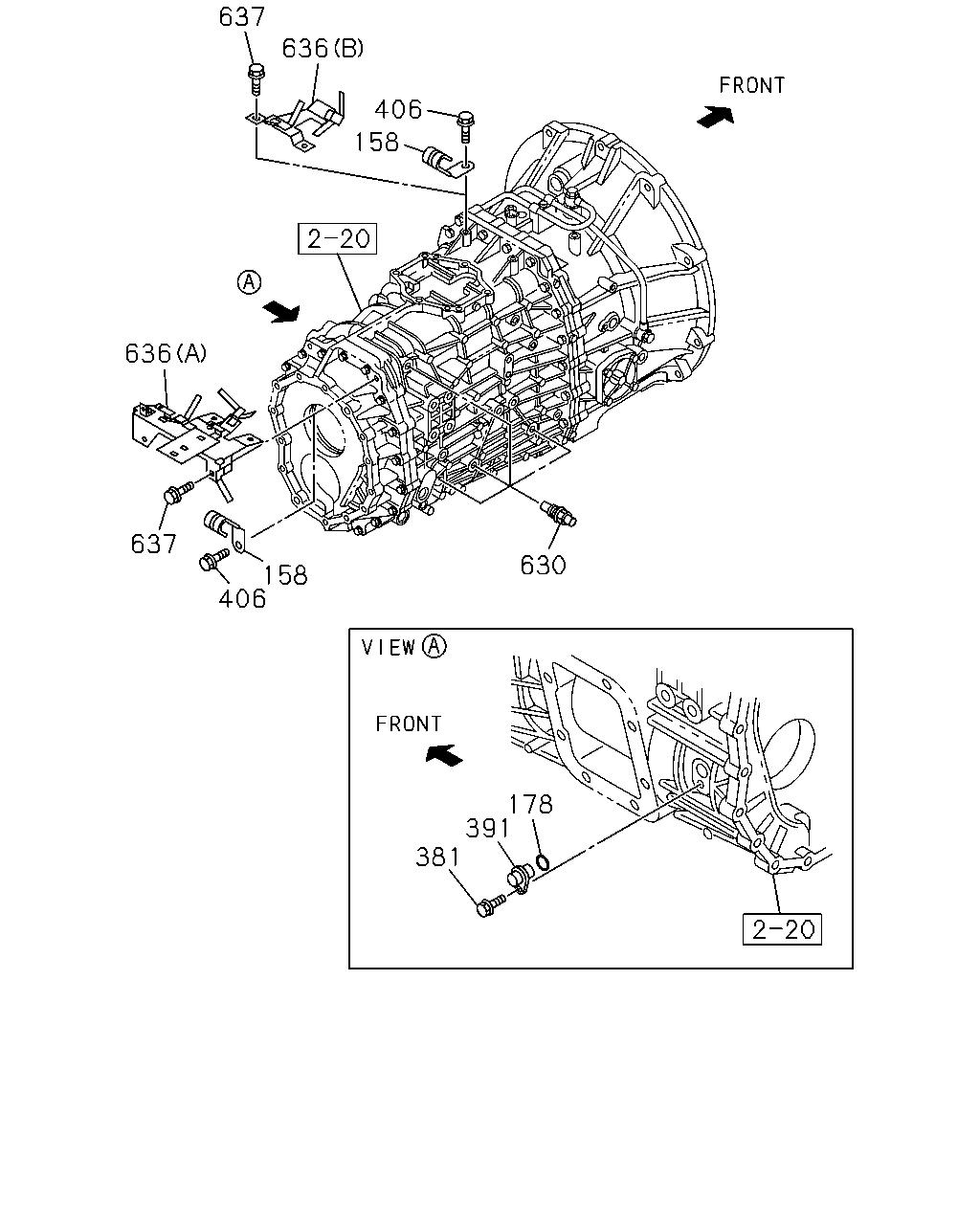

178 391 381 630 406 637 636 158 406 636 637 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1302-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1302-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1302-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1302-
630	DETENT ASM	8-98019-536-0	04	1	1302-
636	BRACKET; CLIP 4HK1-TCS ENG(RJS) (B)	8-97610-092-1	01	1	1302-1502
636	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-97610-096-2	01	1	1302-
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1302-1502
637	BOLT; BRACKET 15" CLUTCH(RE9) M8X16 FLANGE	0-28050-816-0	02	1	1503-

551 78 551 51 65 32 551 684 89 102 551 99 66 6 683 192 192 6 192 6 192 320 685 234 453 682 551 551 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1302-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1302-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1302-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1302-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1302-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1302-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1302-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1302-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1302-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1302-
320	SHAFT; LEVER	8-97377-928-0	01	1	1302-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1302-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1302-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1302-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1302-

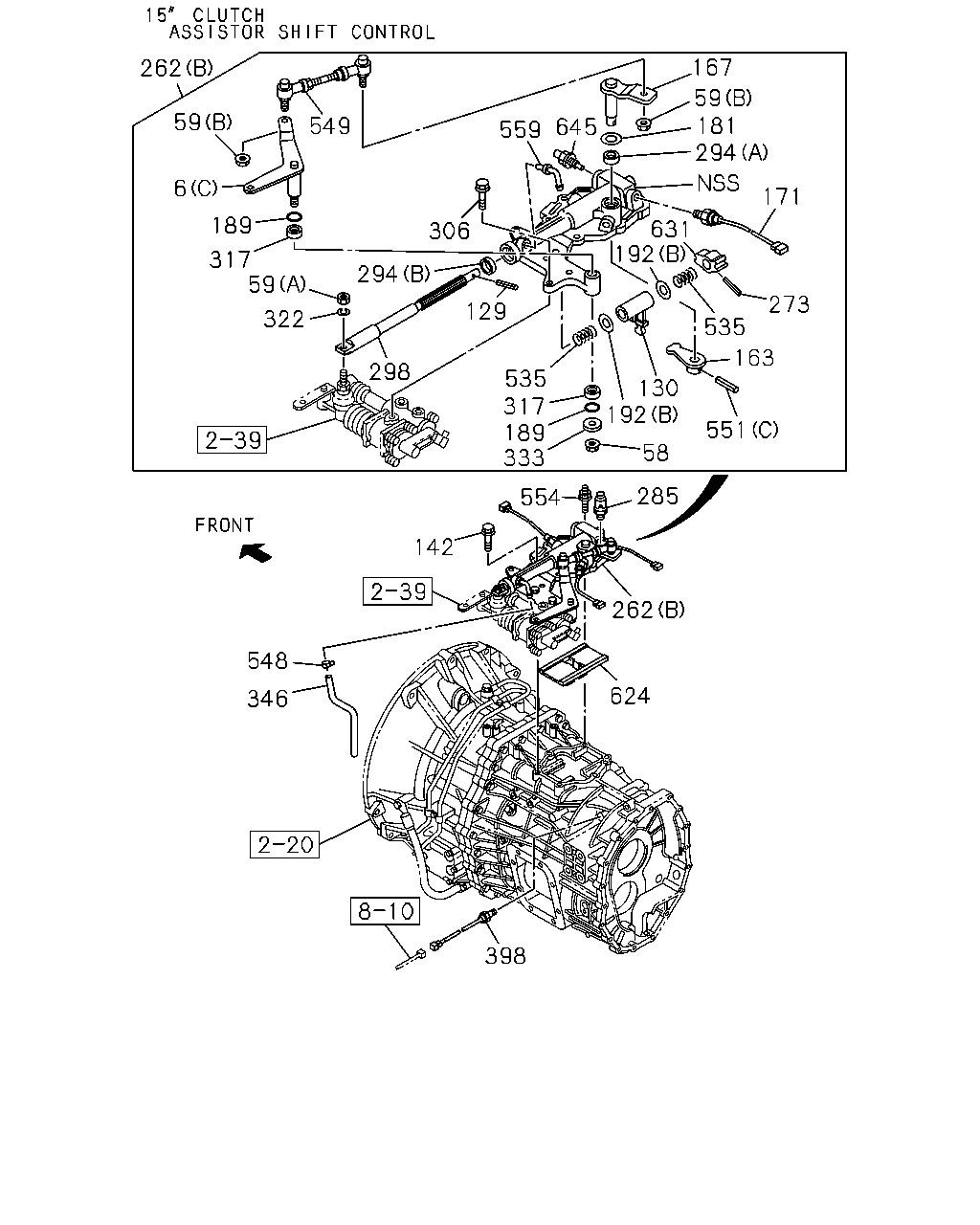

262 59 549 6 189 317 59 322 294 306 298 129 559 645 167 59 181 294 171 631 192 273 535 163 130 551 192 58 535 317 189 333 285 554 142 548 346 262 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX 15" CLUTCH(RE9) M8X22 FLANGE	8-97365-376-0	04	1	1302-
142	BOLT; QUAD BOX 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1302-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
554	STUD; CONT BOX 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

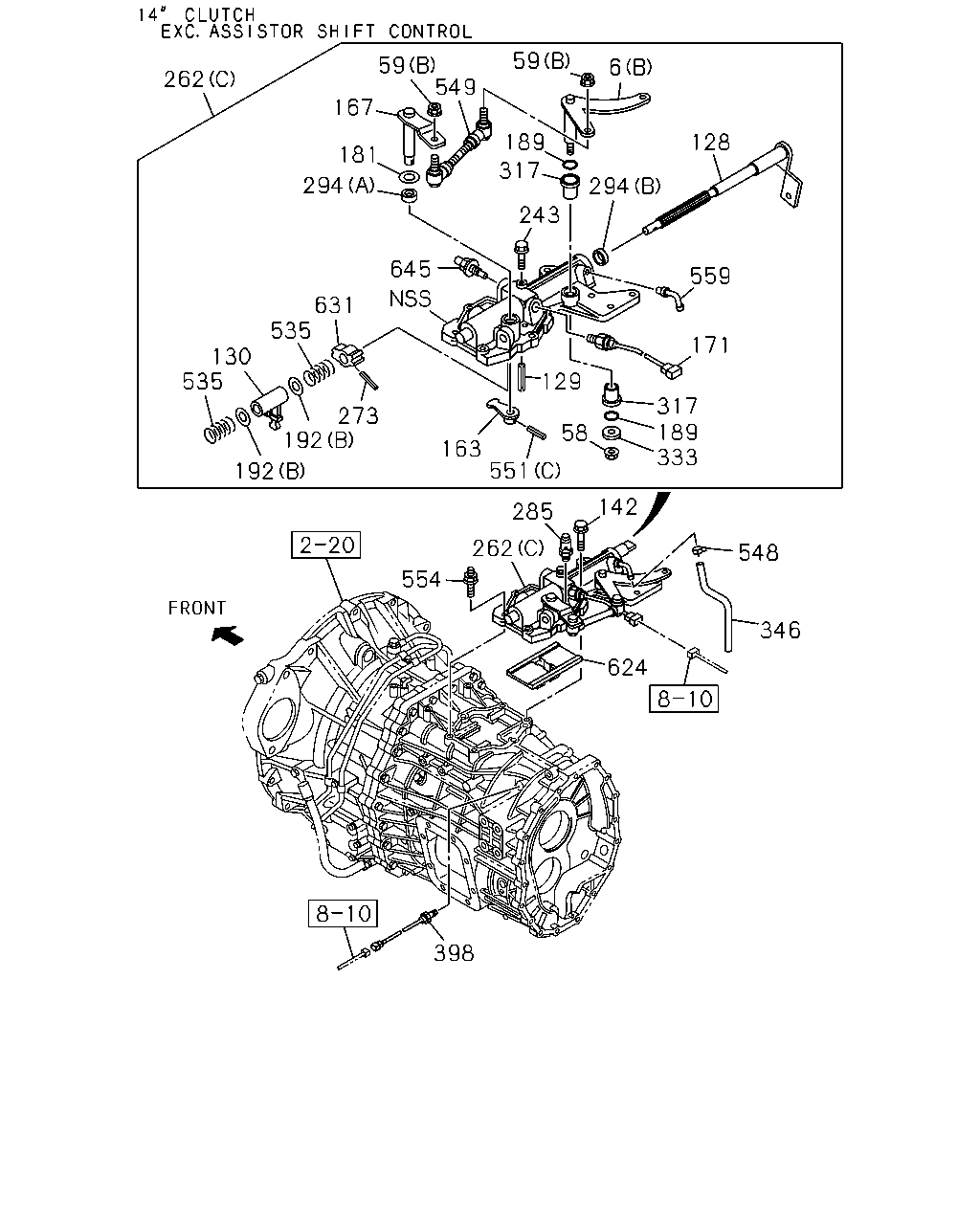

59 167 181 294 549 189 243 317 6 59 298 294 59 322 559 171 306 317 333 189 58 551 163 273 192 192 535 130 535 631 645 129 285 262 346 548 624 554 142 398 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX 15" CLUTCH(RE9) M8X22 FLANGE	8-97365-376-0	04	1	1302-
142	BOLT; QUAD BOX 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1302-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1302-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
554	STUD; CONT BOX 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

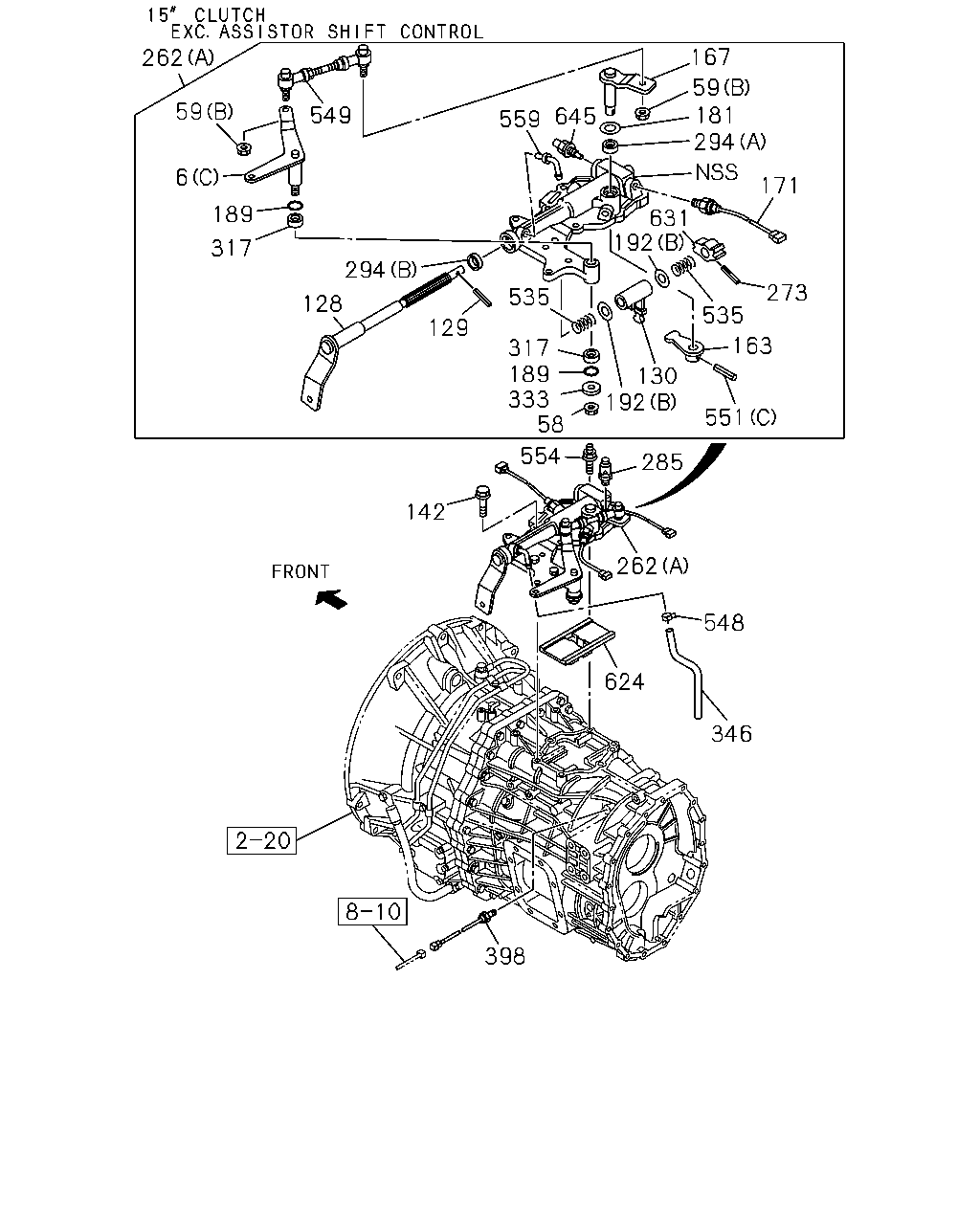

262 167 549 59 59 189 6 128 294 243 317 645 559 631 535 130 535 192 192 273 163 129 551 58 189 333 317 171 548 346 624 262 554 285 181 294 142 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX 15" CLUTCH(RE9) M8X22 FLANGE	8-97365-376-0	04	1	1302-
142	BOLT; QUAD BOX 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1302-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1302-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
554	STUD; CONT BOX 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

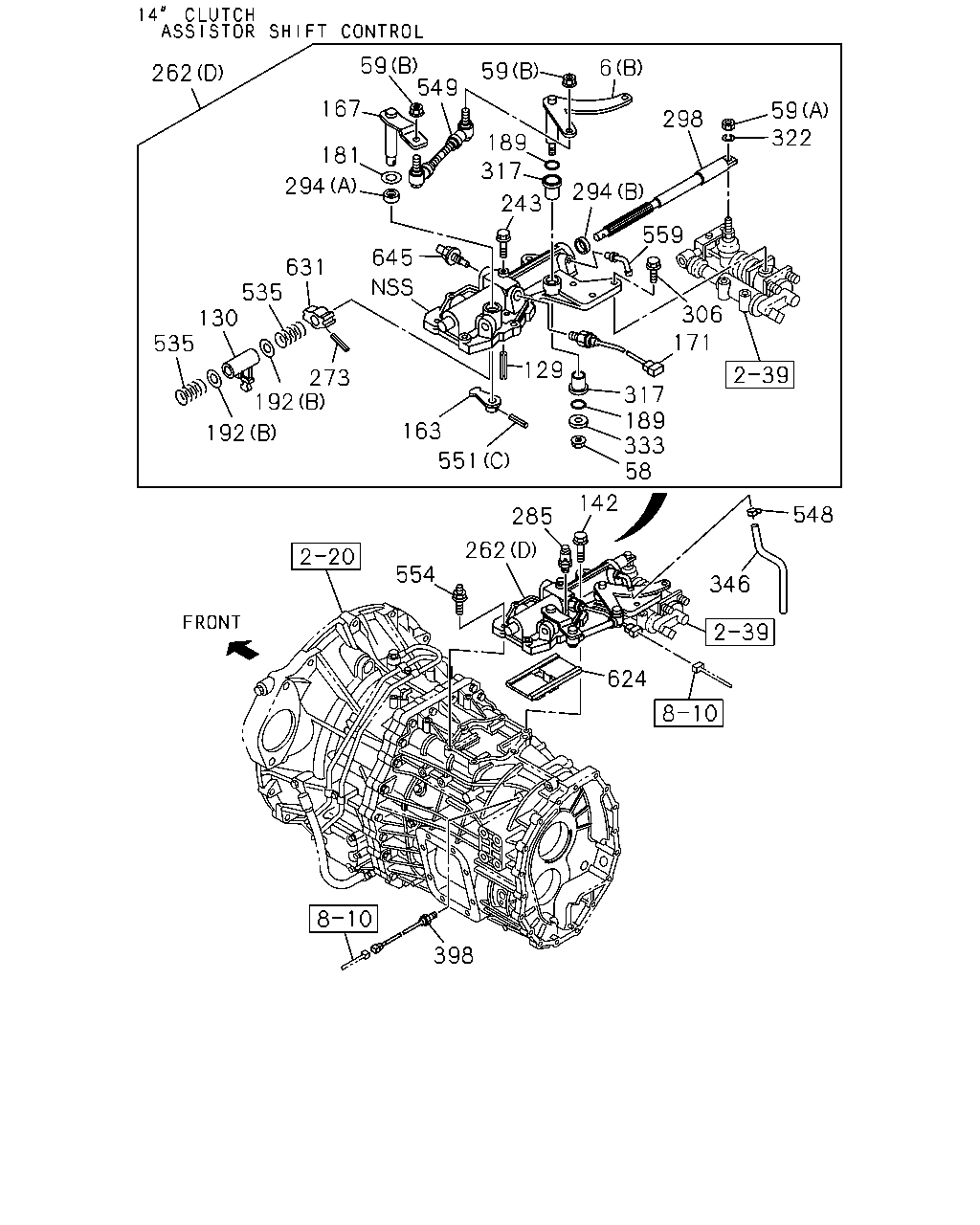

262 59 549 6 189 317 294 128 129 535 559 645 167 59 181 294 171 273 535 631 192 163 130 192 551 317 189 333 58 554 285 262 548 346 624 398 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX 15" CLUTCH(RE9) M8X22 FLANGE	8-97365-376-0	04	1	1302-
142	BOLT; QUAD BOX 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1302-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
554	STUD; CONT BOX 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
