Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#112723) — 381 parça

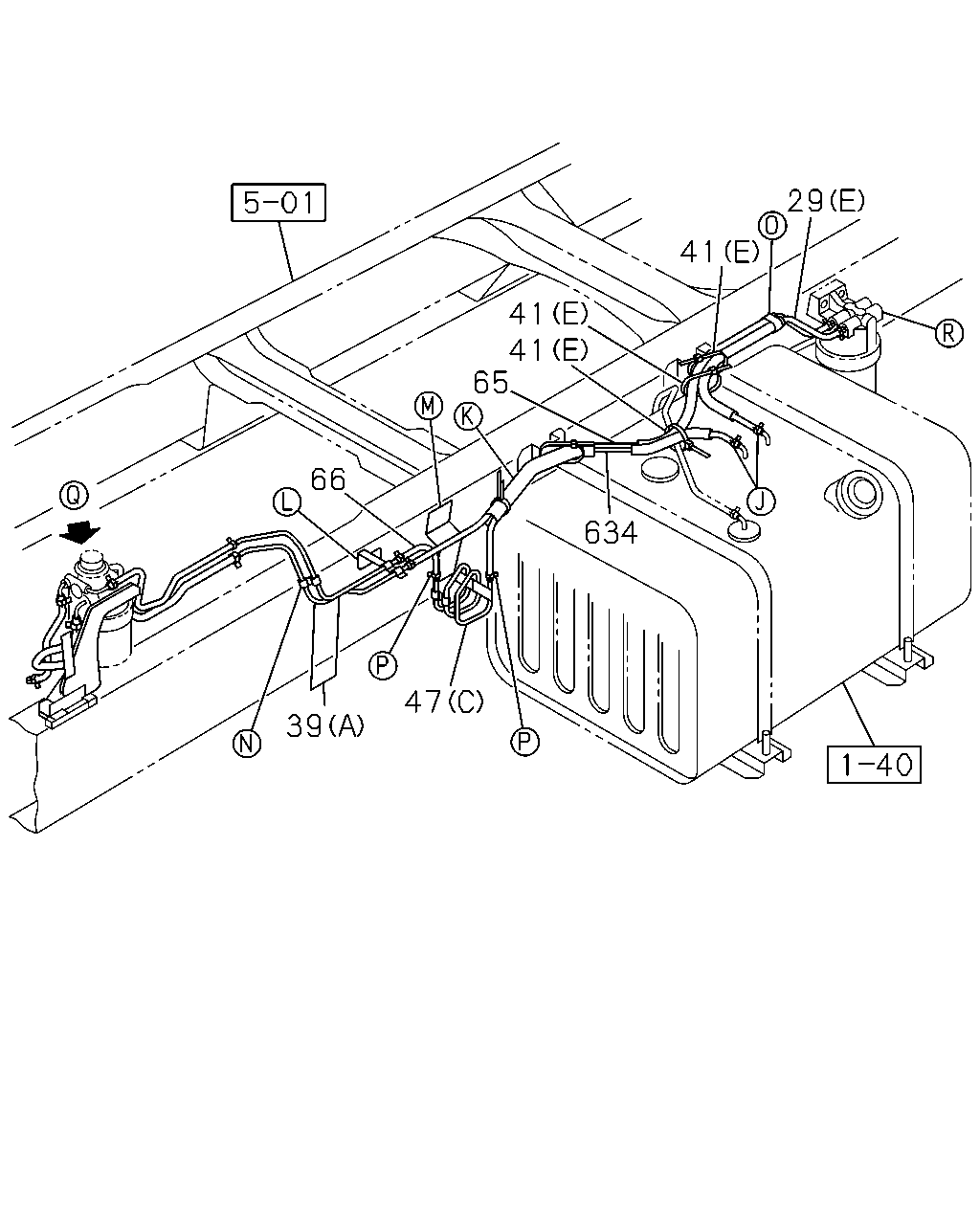

304 418 304 303 345 345 39 41 65 228 279 41 29 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98229-613-0	01	1	1302-
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=1380	8-98186-528-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3900MM(39W)	8-98136-381-0	01	1	1302-

279 228 345 345 304 39 41 65 39 41 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98229-613-0	01	1	1302-
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=1380	8-98186-528-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-

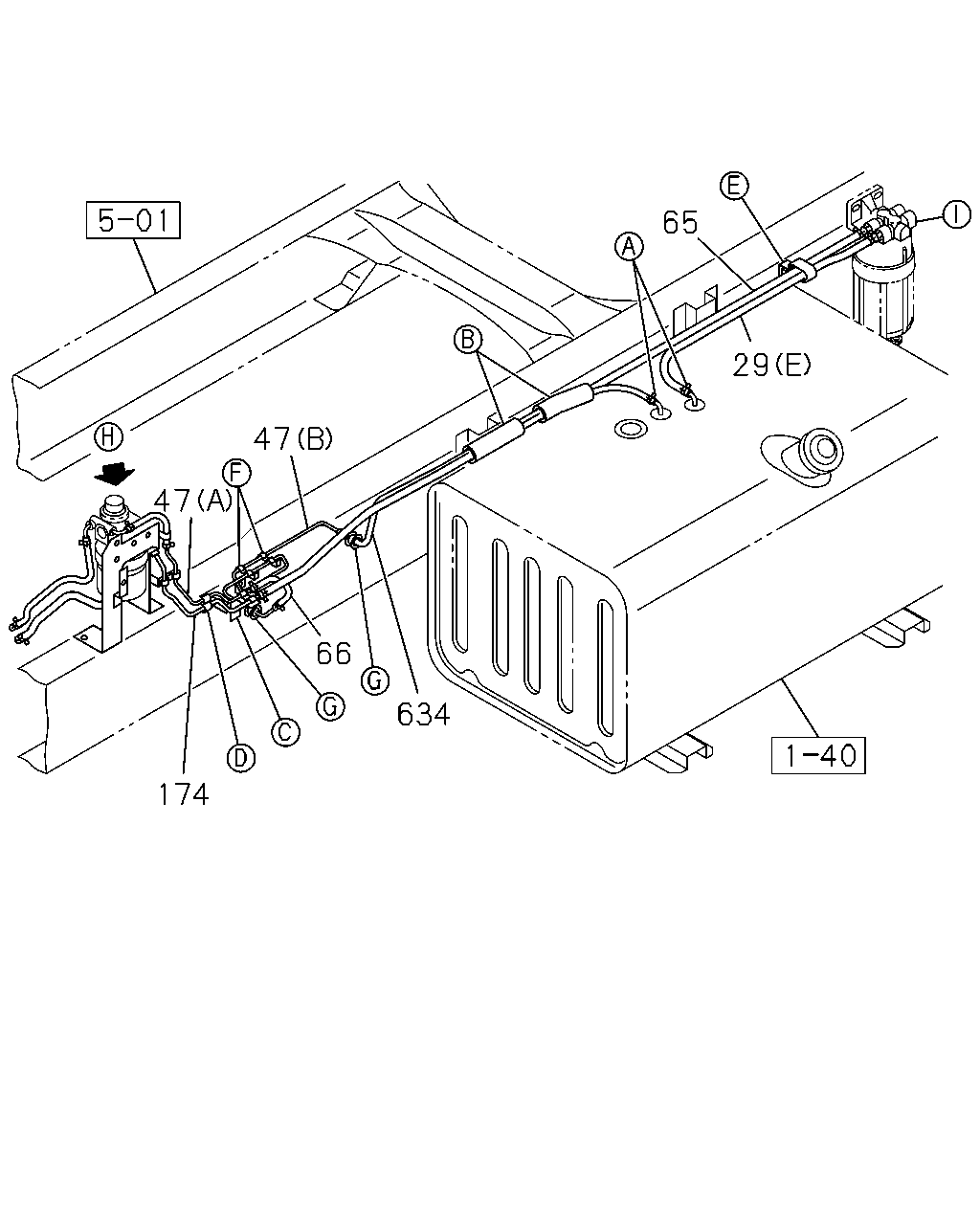

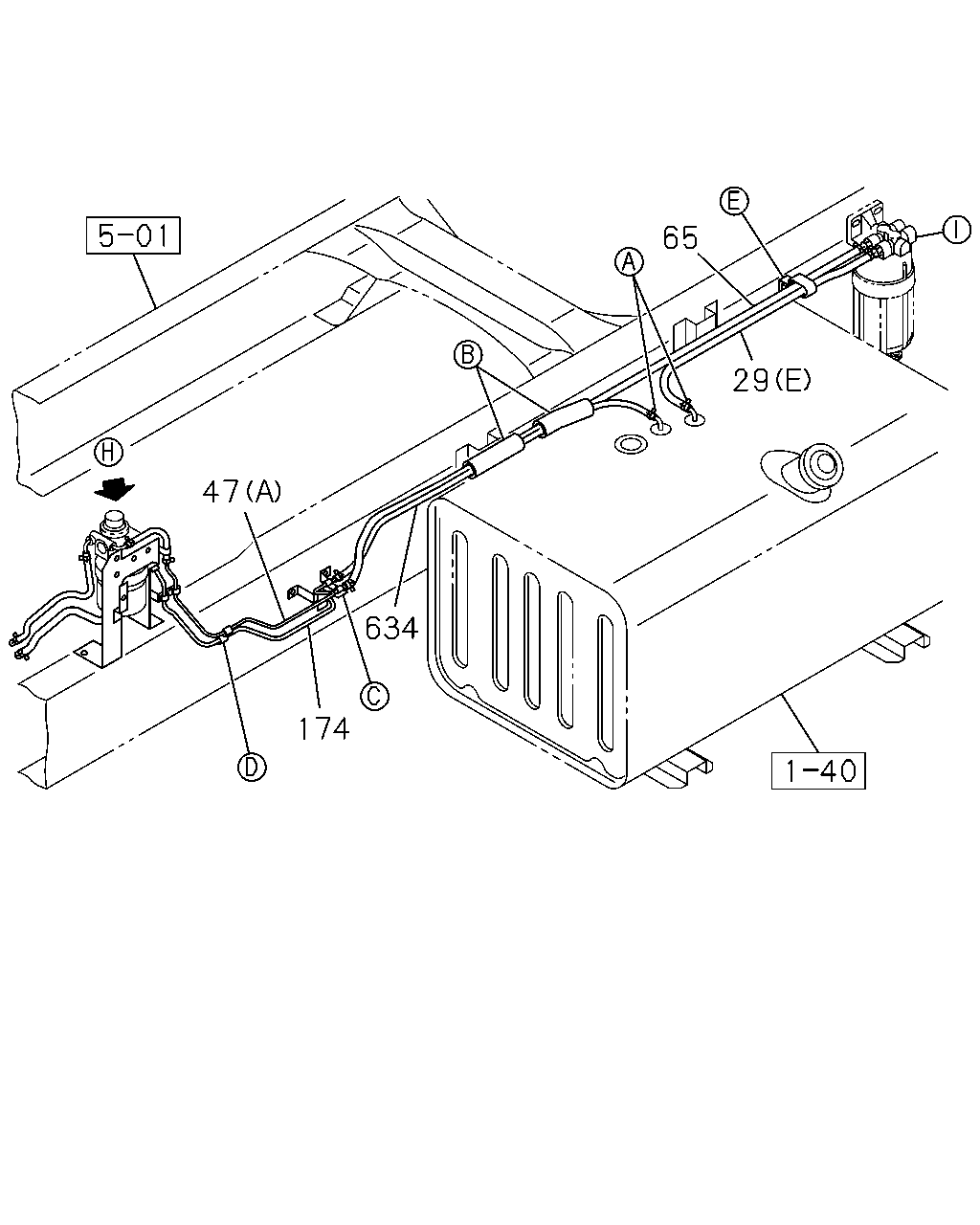

29 41 41 41 65 634 47 39 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98229-613-0	01	1	1302-
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (C)	8-98213-750-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=787	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=688	8-98129-921-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=1380	8-98186-528-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=810	8-98186-973-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> L=810	8-98186-973-0	01	1	1302-

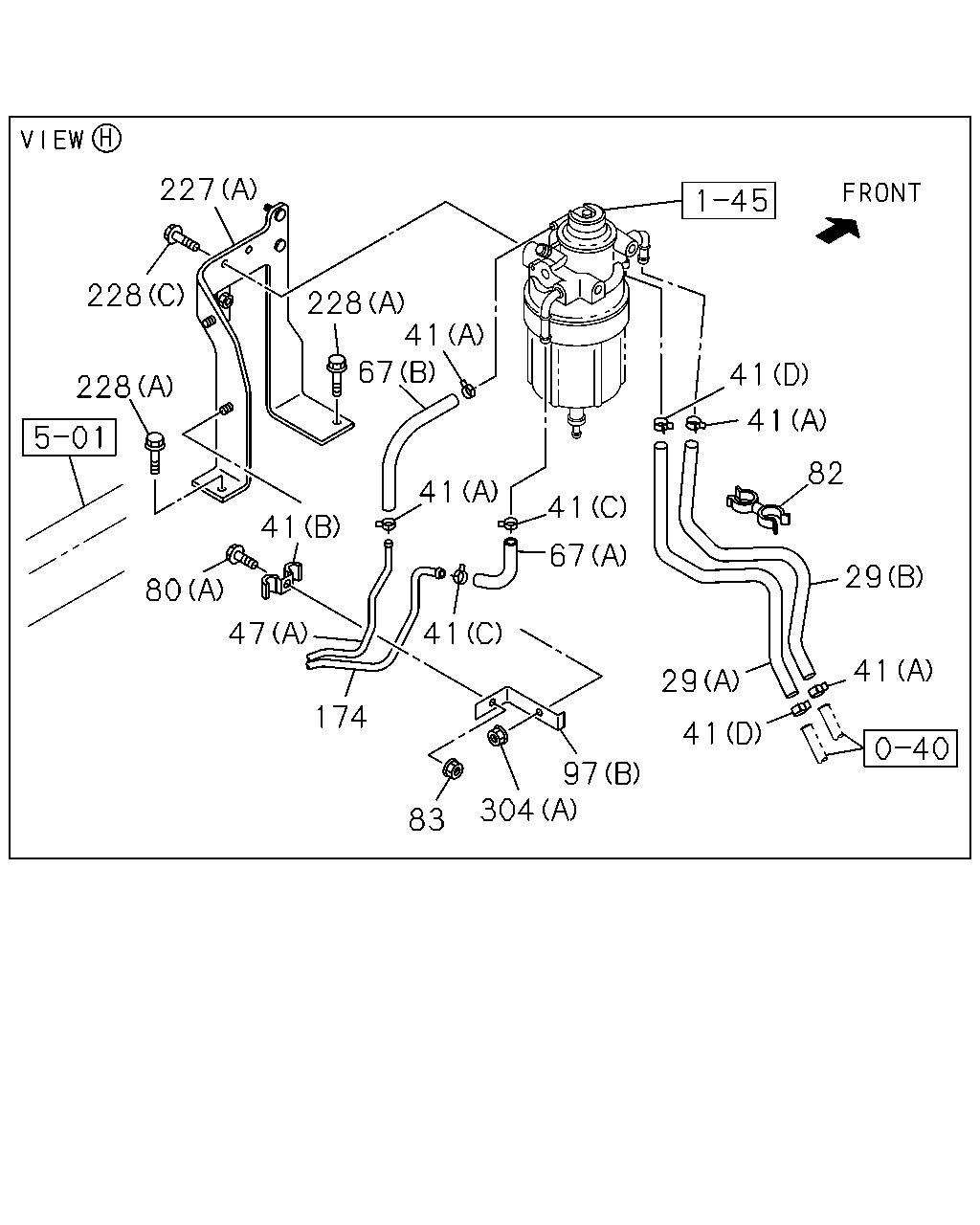

227 228 228 80 41 47 174 83 304 97 41 41 67 41 228 41 67 29 41 41 29 82 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (C)	8-98213-750-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=787	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=688	8-98129-921-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (A)	8-98206-489-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (B)	8-98208-821-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
82	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	1302-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1302-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	03	1	1302-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1302-
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=685	8-98129-920-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS) (B)	8-98203-480-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98044-366-3	01	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-

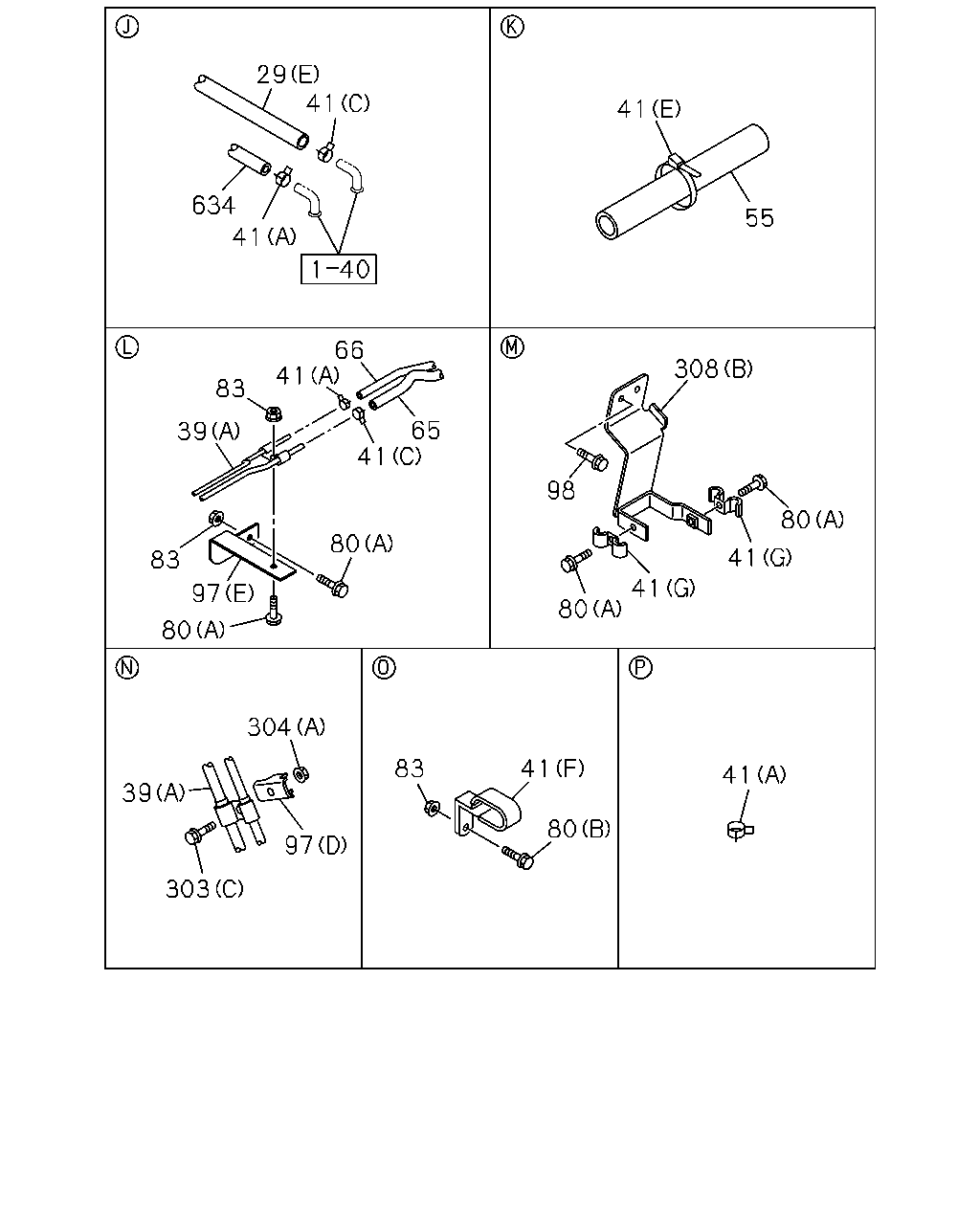

29 41 634 41 41 55 308 80 41 41 80 98 65 41 80 80 83 39 83 41 66 304 39 303 97 83 41 80 41 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98229-613-0	01	1	1302-
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1302-
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=1380	8-98186-528-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1302-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	03	1	1302-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1302-
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	02	1	1302-
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	1302-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
308	BRACKET; FUEL PIPE 4HK1-TCS ENG(RJS) (B)	8-98213-361-0	01	1	1302-
308	BRACKET; FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) L=75	1-47478-323-0	02	1	1302-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=810	8-98186-973-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> L=810	8-98186-973-0	01	1	1302-

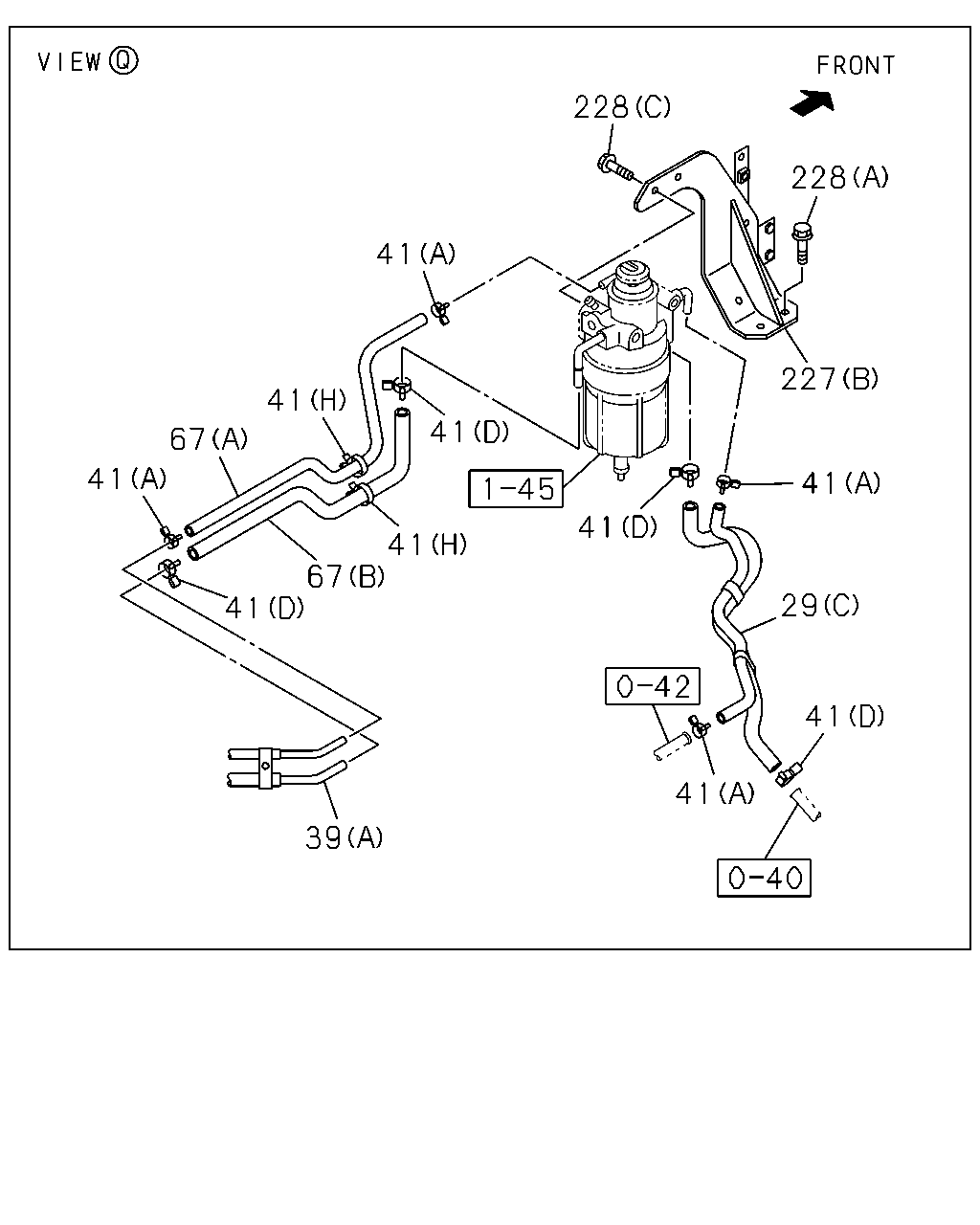

41 228 228 227 41 29 41 41 41 41 41 67 41 41 41 67 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98229-613-0	01	1	1302-
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (A)	8-98206-489-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (B)	8-98208-821-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS) (B)	8-98203-480-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98044-366-3	01	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-

304 279 345 345 228 39 39 41 41 65 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98229-613-0	01	1	1302-
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=1380	8-98186-528-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-

47 634 174 65 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (C)	8-98213-750-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=787	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=688	8-98129-921-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=1380	8-98186-528-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=685	8-98129-920-0	01	1	1302-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=810	8-98186-973-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> L=810	8-98186-973-0	01	1	1302-

29 634 41 41 41 55 41 97 80 83 41 80 95 83 80 41 308 98 103 97 174 303 41 65 634 66 41 83 41 47 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	05	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (C)	8-98213-750-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=787	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=688	8-98129-921-0	01	1	1302-
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1302-
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=1380	8-98186-528-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1302-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	03	1	1302-
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=25	1-09332-011-1	02	1	1302-
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1302-
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	02	1	1302-
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	1302-
103	NUT; BRKT 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=685	8-98129-920-0	01	1	1302-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
308	BRACKET; FUEL PIPE 4HK1-TCS ENG(RJS) (B)	8-98213-361-0	01	1	1302-
308	BRACKET; FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) L=75	1-47478-323-0	02	1	1302-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=810	8-98186-973-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> L=810	8-98186-973-0	01	1	1302-

174 66 634 29 65 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) L=730	8-98205-834-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98220-011-0	01	1	1302-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98214-027-0	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (C)	8-98213-750-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=787	8-98127-647-0	01	1	1302-
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=688	8-98129-921-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=1380	8-98186-528-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) L=685	8-98129-920-0	01	1	1302-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4>	8-98186-971-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=810	8-98186-973-0	01	1	1302-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> L=810	8-98186-973-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
