Isuzu WW
▶
TRUCKS
▶
FRR
▶
11506 - FRR RHD EURO2 EXC.SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

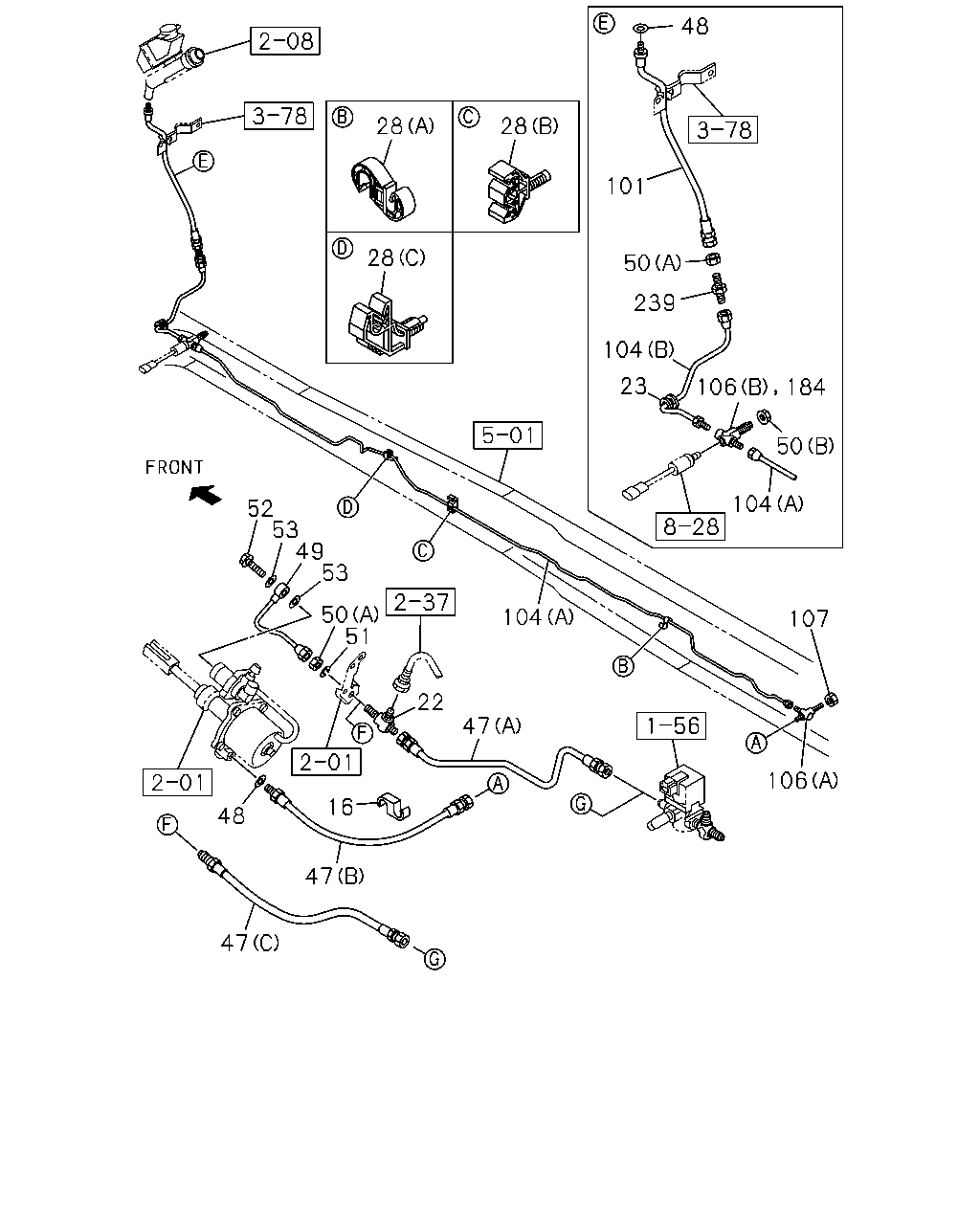

2-05 — CLUTCH PIPING
(#112720) — 26 parça
28
28
28
50
101
48
106
104
239
184
50
23
104
107
106
104
52
53
49
53
50
51
22
47
16
47
48
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
02
1
1302-
22
UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY
0-92138-706-0
01
1
1302-
23
GROMMET; CLU PIPE
ID=15 OD=20 T=17.5
1-09332-130-0
01
1
1302-
28
CLIP; OIL PIPE
(C) ID=6.35
1-09701-247-1
01
1
1302-
28
CLIP; OIL PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
03
1
1302-
28
CLIP; OIL PIPE
(B)
8-98012-254-1
01
1
1302-
47
HOSE; FLEX,CLU CONT
(B) L=470
8-98072-353-0
01
1
1302-
47
HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=580
1-09363-613-1
01
1
1302-
47
HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=680
1-09363-647-0
01
1
1302-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
02
1
1302-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239
1-49117-401-0
01
1
1302-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1302-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1302-
51
WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2
0-91510-812-0
01
1
1302-
51
WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2
0-91510-512-0
01
1
1302-
52
BOLT; EYE,AIR PIPE
M14X27 FLANGE
1-09675-086-0
01
1
1302-
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
1-09630-085-0
02
1
1302-1312
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500
8-98072-350-0
01
1
1302-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336
8-98067-058-0
01
1
1302-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2695
8-98078-148-2
01
1
1302-
106
UNION; OIL PIPE
(A) M12 2WAY
1-09654-059-2
01
1
1302-
106
UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY
8-98051-113-0
01
1
1302-
107
NUT; UNION,OIL PIPE
M12
0-91111-512-0
01
1
1302-
184
UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>
8-98150-865-0
01
1
1302-
239
UNION; CLU HOSE
M12 L=66.5
0-92113-306-0
01
1
1302-
