1-11 — RADIATOR HOSE AND SUB TANK (#112716) — 65 parça

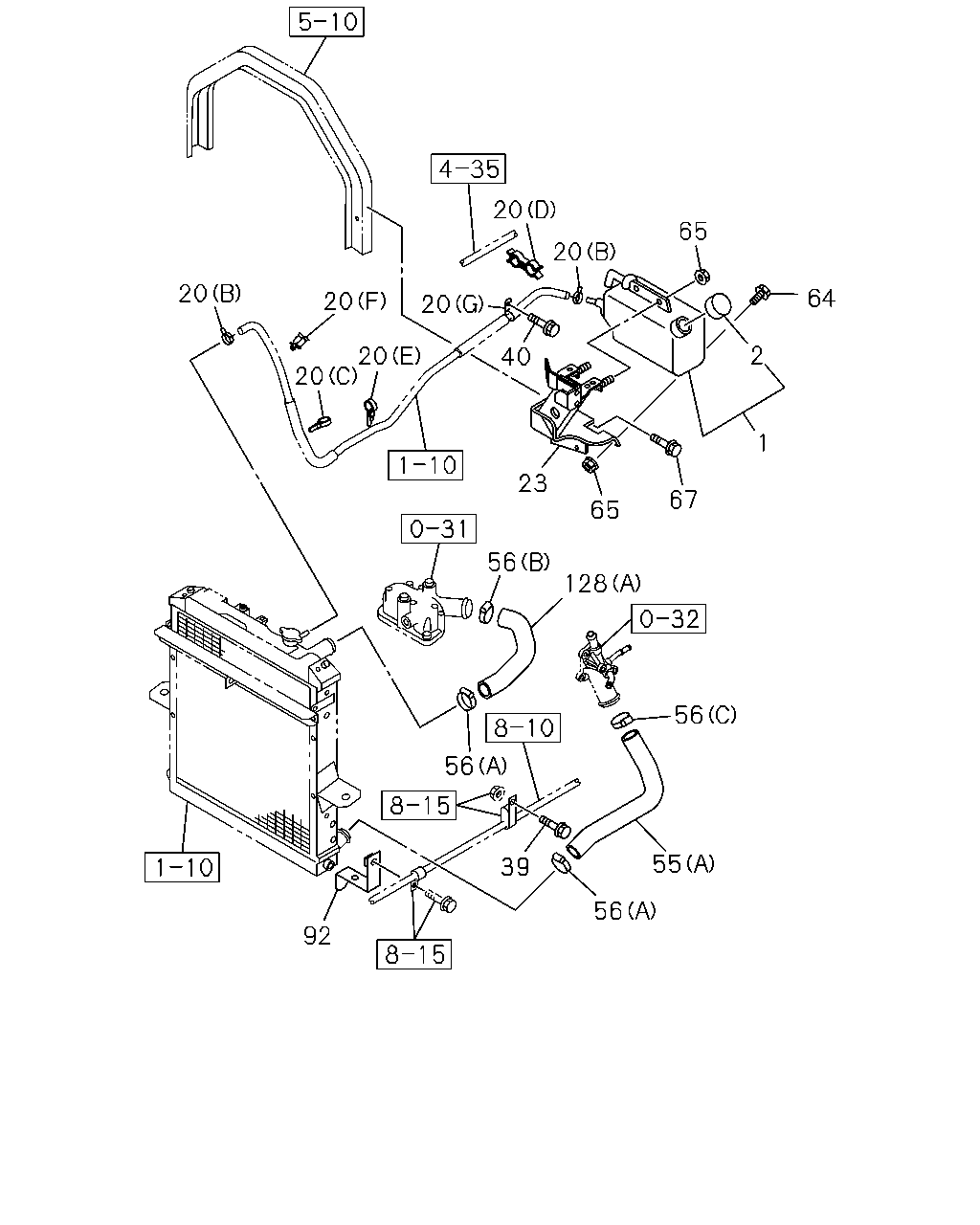

20 20 20 20 20 20 20 40 23 56 128 65 67 56 55 56 39 56 92 65 64 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD	8-98171-757-0	01	1	1302-	●	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1302-	●	●
20	CLIP; HOSE,RAD (G) ID=13 L=20	0-95235-235-0	02	1	1302-		●
20	CLIP; HOSE,RAD (D) ID=11.5 & 14.5	8-94314-293-0	01	1	1302-		●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	02	1	1302-		●
20	CLIP; HOSE,RAD (F) ID=12	8-98029-256-0	01	1	1302-		●
20	CLIP; HOSE,RAD (E) ID=14 L=44	9-09917-427-0	01	1	1302-		●
20	CLIP; HOSE,RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=13 L=20	0-95235-235-0	01	1	1302-1405		●
20	CLIP; HOSE,RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (G) ID=13 L=20	0-95235-235-0	01	1	1302-1405		●
20	CLIP; HOSE,RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=13 L=20	0-95235-235-0	01	1	1406-		●
20	CLIP; HOSE,RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (G) ID=13 L=20	0-95235-235-0	01	1	1406-		●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1302-	●	●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1302-		●
20	CLIP; HOSE,RAD (A) ID=13 H=40 L=25	1-09700-620-0	01	1	1302-	●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	04	1	1302-	●
23	BRACKET; RESERVE TANK	8-98013-534-4	01	1	1302-	●	●
39	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	01	1	1302-		●
40	BOLT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	03	1	1302-1405		●
40	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) M8X20 FLANGE	0-28650-820-0	03	1	1302-1405		●
40	BOLT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	03	1	1406-		●
40	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> M8X20 FLANGE	0-28650-820-0	03	1	1406-		●
40	BOLT; CLIP RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1302-1405		●
40	BOLT; CLIP ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1406-		●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
55	HOSE; WATER,RAD OUTLET (A)	8-98010-573-2	01	1	1302-		●
55	HOSE; WATER,RAD OUTLET (B)	8-98010-577-1	01	1	1302-	●
56	CLIP; WATER HOSE,RAD (B) ID=52	1-09704-057-0	01	1	1302-		●
56	CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1302-		●
56	CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1302-		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1302-	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	03	1	1302-	●	●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1302-	●	●
92	BRACKET; CLIP,RUBBER HOSE EURO4 SPECIFICATION<NT4>	8-98055-051-0	01	1	1302-		●
128	HOSE; WATER,RAD INL (A)	8-98205-873-0	01	1	1302-		●
128	HOSE; WATER,RAD INL (B)	8-98010-576-2	01	1	1302-	●

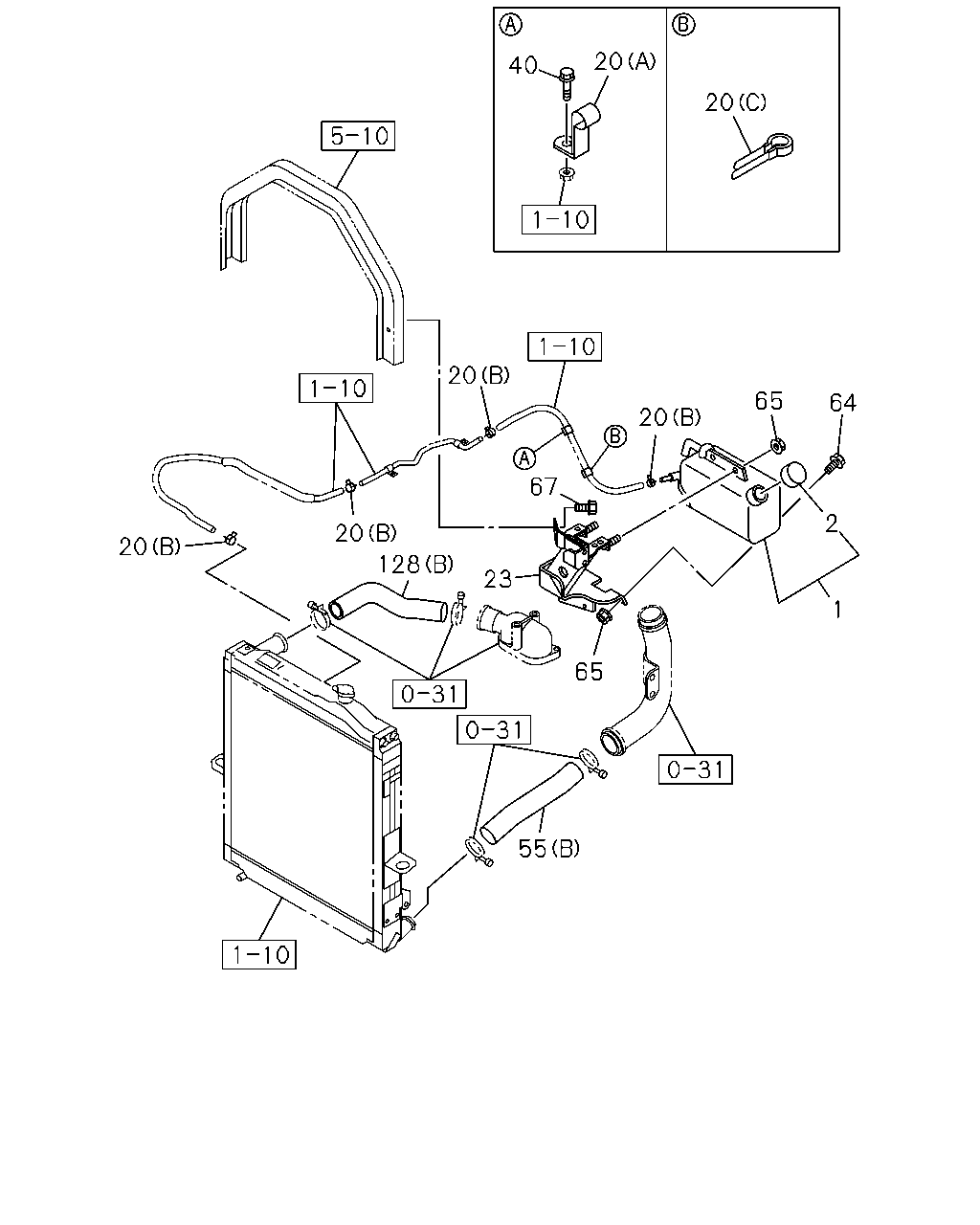

20 20 20 40 20 20 128 23 65 55 67 20 65 64 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD	8-98171-757-0	01	1	1302-	●	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1302-	●	●
20	CLIP; HOSE,RAD (G) ID=13 L=20	0-95235-235-0	02	1	1302-		●
20	CLIP; HOSE,RAD (D) ID=11.5 & 14.5	8-94314-293-0	01	1	1302-		●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	02	1	1302-		●
20	CLIP; HOSE,RAD (F) ID=12	8-98029-256-0	01	1	1302-		●
20	CLIP; HOSE,RAD (E) ID=14 L=44	9-09917-427-0	01	1	1302-		●
20	CLIP; HOSE,RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=13 L=20	0-95235-235-0	01	1	1302-1405		●
20	CLIP; HOSE,RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (G) ID=13 L=20	0-95235-235-0	01	1	1302-1405		●
20	CLIP; HOSE,RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) ID=13 L=20	0-95235-235-0	01	1	1406-		●
20	CLIP; HOSE,RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> (G) ID=13 L=20	0-95235-235-0	01	1	1406-		●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1302-	●	●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1302-		●
20	CLIP; HOSE,RAD (A) ID=13 H=40 L=25	1-09700-620-0	01	1	1302-	●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	04	1	1302-	●
23	BRACKET; RESERVE TANK	8-98013-534-4	01	1	1302-	●	●
40	BOLT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	03	1	1302-1405		●
40	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) M8X20 FLANGE	0-28650-820-0	03	1	1302-1405		●
40	BOLT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	03	1	1406-		●
40	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE HIGH TORQUE<Q5W> M8X20 FLANGE	0-28650-820-0	03	1	1406-		●
40	BOLT; CLIP RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1302-1405		●
40	BOLT; CLIP ENGINE HIGH TORQUE<Q5W> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1406-		●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
55	HOSE; WATER,RAD OUTLET (A)	8-98010-573-2	01	1	1302-		●
55	HOSE; WATER,RAD OUTLET (B)	8-98010-577-1	01	1	1302-	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1302-	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	03	1	1302-	●	●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1302-	●	●
128	HOSE; WATER,RAD INL (A)	8-98205-873-0	01	1	1302-		●
128	HOSE; WATER,RAD INL (B)	8-98010-576-2	01	1	1302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
