2-05 — CLUTCH PIPING (#112708) — 24 parça

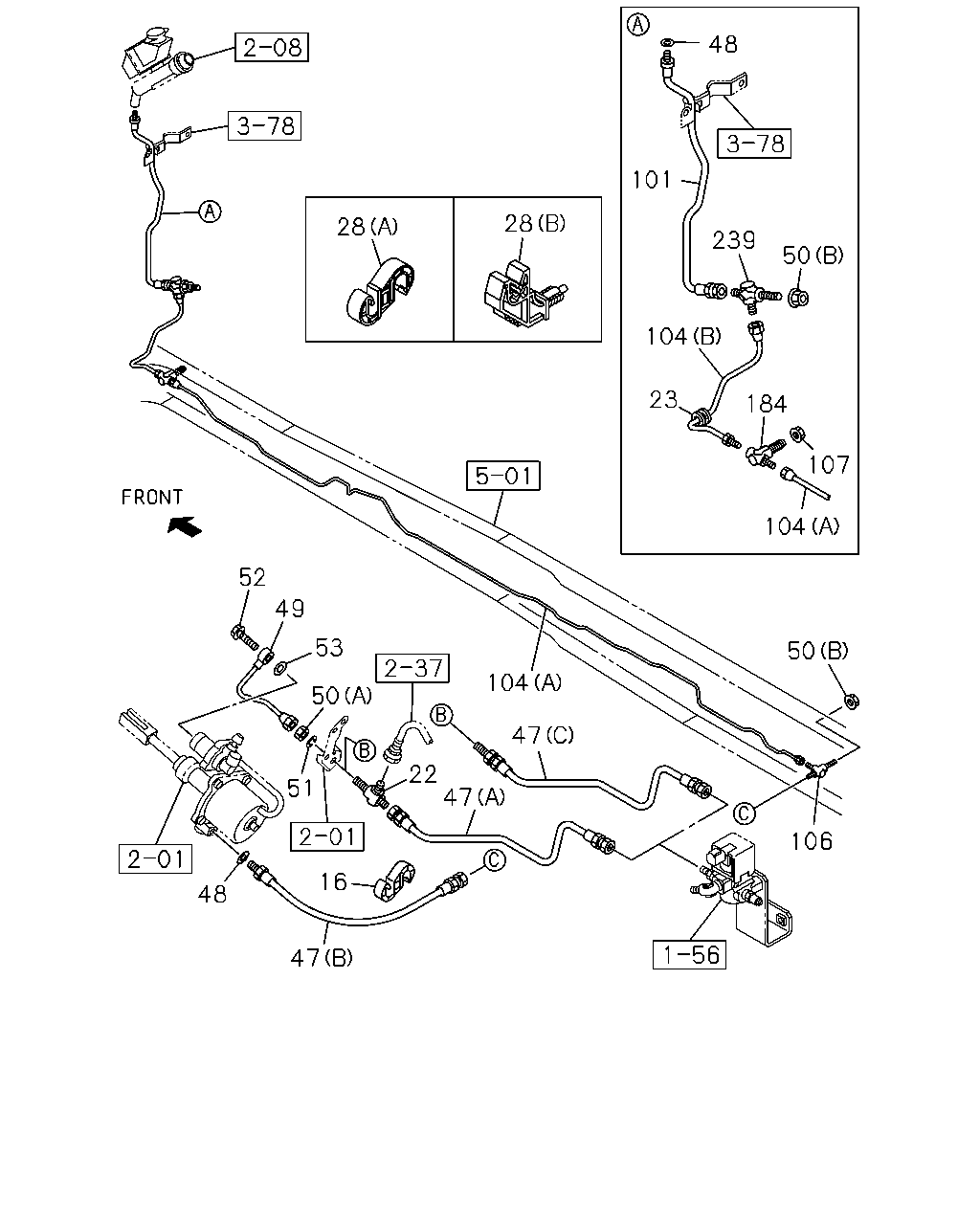

çizim 327196
28 28 48 101 239 50 104 23 184 107 104 50 106 47 104 22 47 16 47 48 51 50 49 53 52
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) ID=10 & 12 		1-09709-278-1 01 1 1302-
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1302-
23 GROMMET; CLU PIPE
MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302-
28 CLIP; OIL PIPE
MANUAL TRANSMISSION<X9C> (B) ID=6.35 		1-09701-247-1 04 1 1302-
28 CLIP; OIL PIPE
MANUAL TRANSMISSION<X9C> (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1302-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> (A) L=340 		1-09363-617-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
MANUAL TRANSMISSION<X9C> (B) L=530 		8-98072-348-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=420 		1-09363-633-0 01 1 1302-
48 GASKET; FLEX HOSE,CLU CONT
MZW6P M/T(RSZ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1302-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1302-
50 NUT; UNION
MANUAL TRANSMISSION<X9C> (B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
MANUAL TRANSMISSION<X9C> (B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
15" CLUTCH(RE9) (A) M12 		9-09840-280-0 01 1 1302-
51 WASHER; LK
15" CLUTCH(RE9) ID=12.2 		0-91510-512-0 01 1 1302-
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1302-
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
MANUAL TRANSMISSION<X9C> L=440 		8-98072-346-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (A) L=2824 SERVICED BY L=2900 		1-47428-744-0 01 1 1302-
106 UNION; OIL PIPE
MANUAL TRANSMISSION<X9C> M12 2WAY 		1-09654-059-2 01 1 1302-
107 NUT; UNION,OIL PIPE
MANUAL TRANSMISSION<X9C> M12 		0-91111-512-0 01 1 1302-
184 UNION; FLEX HOSE
MZW6P M/T(RSZ) 		8-98150-865-0 01 1 1302-
239 UNION; CLU HOSE
MANUAL TRANSMISSION<X9C> M12 2WAY 		1-09654-059-2 01 1 1302-
