◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11517 - FVM(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#112705) — 99 parça
çizim 326796
10 11 1 2 112 8 107 79 13
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1302-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1302-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1302-
8 CABLE; BATTERY,STARTER
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> L=2960 		8-98174-099-0 01 1 1302-1502
8 CABLE; BATTERY,STARTER
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> 		8-98295-573-0 01 1 1503-1510
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> 		8-98295-573-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-573-0 01 1 1602-
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> BATTERY 115E41L<8MA> 		8-98295-573-0 01 1 1602-
8 CABLE; BATTERY,STARTER
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760 		8-98174-094-0 01 1 1302-1502
8 CABLE; BATTERY,STARTER
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-572-0 01 1 1503-1510
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-572-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-572-0 01 1 1602-
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> CATALYSIS CONTROL<6MZ> 		8-98295-572-0 01 1 1602-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1302-1502
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1503-1510
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-571-0 01 1 1602-
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-571-0 01 1 1602-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770 		8-98174-091-0 01 1 1302-1502
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1503-1510
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-570-0 01 1 1602-
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-570-0 01 1 1602-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1302-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1302-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1302-
79 CLIP; BATTERY CABLE
ZF6S1000 M/T(Y5D) (A) ID=15 L=28 		1-09701-216-0 01 1 1302-
79 CLIP; BATTERY CABLE
(B) ID=13-18 L=26 		1-09709-293-0 02 1 1302-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 03 1 1302-
79 CLIP; BATTERY CABLE
ZF6S1000 M/T(Y5D) (D) ID=20 L=50 		9-09917-430-0 01 1 1302-
79 CLIP; BATTERY CABLE
ZF6S1000 M/T(Y5D) (C) ID=19 L=40 		0-95235-876-0 01 1 1302-
79 CLIP; BATTERY CABLE
ZF6S1000 M/T(Y5D) (C) ID=19 L=24 H=21 		1-09700-109-1 01 1 1302-
79 CLIP; BATTERY CABLE
ZF9S1110 M/T(Y5E) (C) ID=21 L=24 		8-98019-191-0 02 1 1302-
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1302-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1302-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-

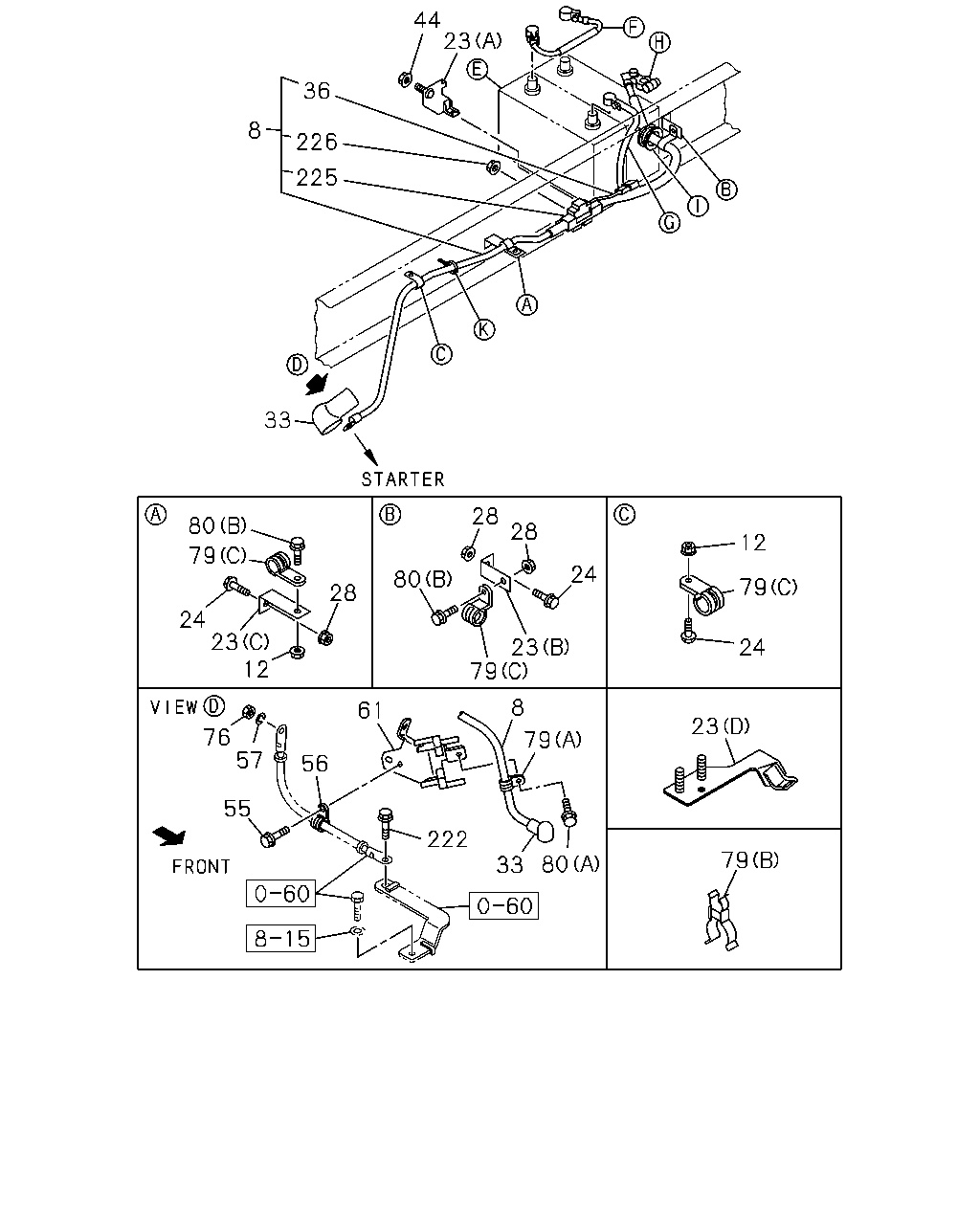

çizim 330649
44 23 36 226 225 8 33 28 28 24 12 79 24 23 79 222 33 80 23 79 80 28 23 24 12 80 76 57 61 8 79 55 56 79
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> L=2960 		8-98174-099-0 01 1 1302-1502
8 CABLE; BATTERY,STARTER
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> 		8-98295-573-0 01 1 1503-1510
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> 		8-98295-573-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-573-0 01 1 1602-
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> BATTERY 115E41L<8MA> 		8-98295-573-0 01 1 1602-
8 CABLE; BATTERY,STARTER
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760 		8-98174-094-0 01 1 1302-1502
8 CABLE; BATTERY,STARTER
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-572-0 01 1 1503-1510
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-572-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-572-0 01 1 1602-
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> CATALYSIS CONTROL<6MZ> 		8-98295-572-0 01 1 1602-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1302-1502
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1503-1510
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-571-0 01 1 1602-
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-571-0 01 1 1602-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770 		8-98174-091-0 01 1 1302-1502
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1503-1510
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1511-1601
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-570-0 01 1 1602-
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. CATALYSIS CONTROL<6MZ> 		8-98295-570-0 01 1 1602-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1302-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1302-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 1302-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1302-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98201-025-0 01 1 1302-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W) (B) L=65 		1-47479-064-1 01 1 1302-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 7100MM(71W) (C) L=95 		1-82699-085-0 02 1 1302-
23 BRACKET; CABLE CLIP TO FRAME
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) (C) L=55 		1-47475-304-0 01 1 1302-
23 BRACKET; CABLE CLIP TO FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) (C) L=95 		1-82699-085-0 01 1 1302-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 1302-
24 BOLT; BRKT TO FRAME
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
24 BOLT; BRKT TO FRAME
WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
24 BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1302-
28 NUT; BRKT TO FRAME
ZF6S1000 M/T(Y5D) M8 FLANGE 		0-91180-108-0 05 1 1302-
33 CAP; INSULATOR
ZF6S1000 M/T(Y5D) 		1-82699-431-0 01 1 1302-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1302-1502
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1302-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1302-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1302-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1302-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1302-
79 CLIP; BATTERY CABLE
ZF6S1000 M/T(Y5D) (A) ID=15 L=28 		1-09701-216-0 01 1 1302-
79 CLIP; BATTERY CABLE
(B) ID=13-18 L=26 		1-09709-293-0 02 1 1302-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 03 1 1302-
79 CLIP; BATTERY CABLE
ZF6S1000 M/T(Y5D) (D) ID=20 L=50 		9-09917-430-0 01 1 1302-
79 CLIP; BATTERY CABLE
ZF6S1000 M/T(Y5D) (C) ID=19 L=40 		0-95235-876-0 01 1 1302-
79 CLIP; BATTERY CABLE
ZF6S1000 M/T(Y5D) (C) ID=19 L=24 H=21 		1-09700-109-1 01 1 1302-
79 CLIP; BATTERY CABLE
ZF9S1110 M/T(Y5E) (C) ID=21 L=24 		8-98019-191-0 02 1 1302-
80 BOLT; BATTERY CABLE CLIP
ZF6S1000 M/T(Y5D) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1302-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1302-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1302-1502
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1302-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
