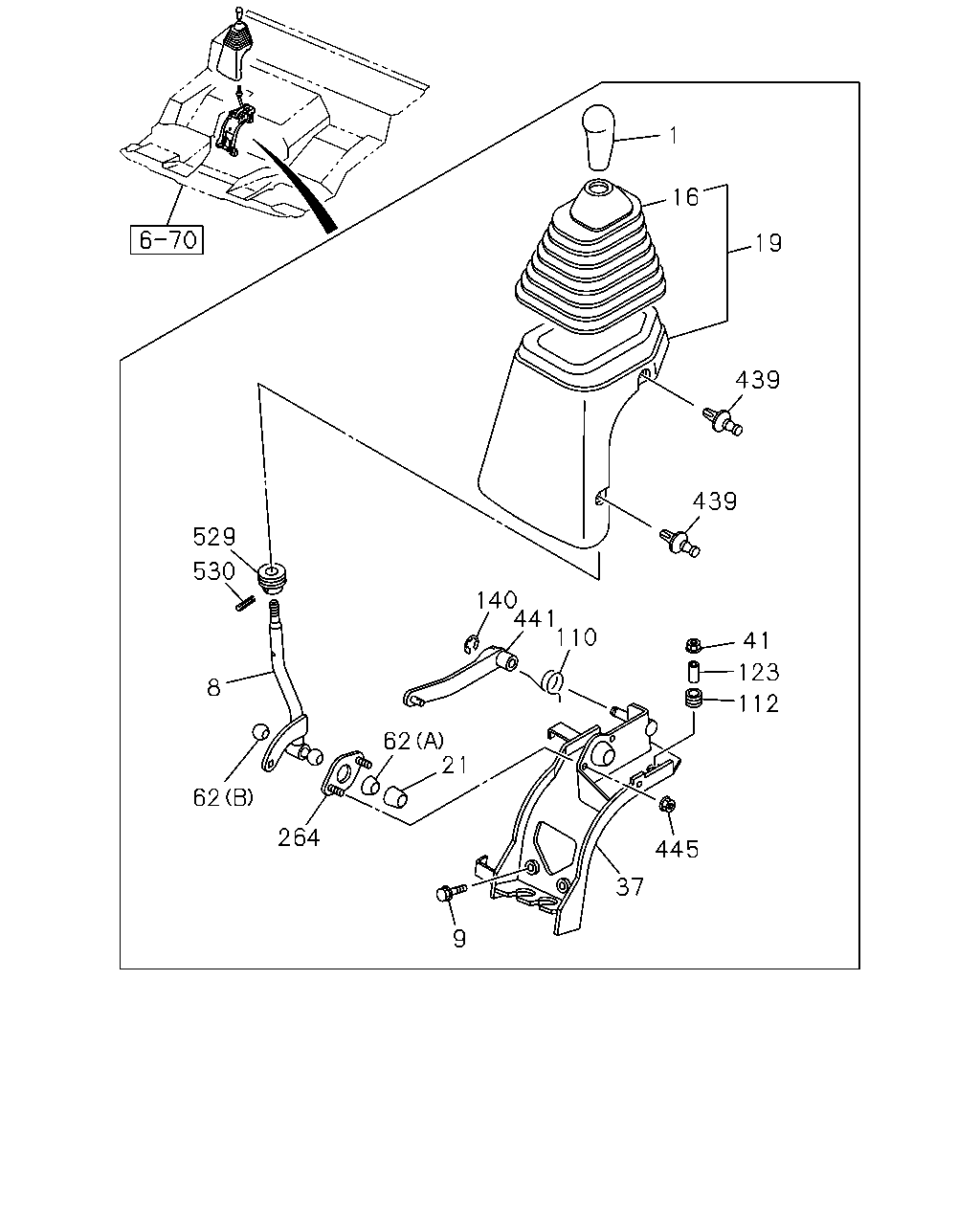

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#112703) — 23 parça

1 16 19 439 439 41 123 112 445 37 9 21 62 264 62 8 530 529 140 441 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ)	1-33611-070-1	01	1	1302-
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98071-282-0	01	1	1302-
9	BOLT; CHANGE LEVER MZW6P M/T(RSZ) M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1302-
16	BOOT; CHANGE LEVER MANUAL TRANSMISSION<X9C>	1-79998-751-4	01	1	1302-
19	COVER; CHANGE LEVER MANUAL TRANSMISSION<X9C> GRAY	8-97407-954-0	01	1	1302-
21	SEAT; CHANGE LEVER MZW6P M/T(RSZ)	1-33619-429-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98071-302-0	01	1	1302-
41	NUT; CHANGE LEVER MZW6P M/T(RSZ) M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
62	SEAT; BALL,CHANGE LEVER MZW6P M/T(RSZ) (A)	1-33619-427-0	01	1	1302-
62	SEAT; BALL,CHANGE LEVER MZW6P M/T(RSZ) (B)	8-97049-147-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1302-
112	RUBBER; CUSHION MZW6P M/T(RSZ)	1-33619-442-0	04	1	1302-
123	COLLAR; DIST,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-443-0	04	1	1302-
140	RING; SNAP MZW6P M/T(RSZ) ID=10	0-91805-510-0	01	1	1302-
264	PLATE; COVER MZW6P M/T(RSZ)	1-33619-430-0	01	1	1302-
439	FASTENER; COVER EXC. A/T<X9D> GRAY	8-97407-955-0	04	1	1302-
439	FASTENER; COVER LCT2000 A/T ALLISON(Y4F) GRAY	8-97407-955-0	05	1	1302-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1302-
445	NUT; PLATE MZW6P M/T(RSZ) M6 FLANGE	0-91180-106-0	02	1	1302-
529	RING; BOOT MZW6P M/T(RSZ)	1-33619-504-0	01	1	1302-
530	PIN; SPRING MZW6P M/T(RSZ)	1-33619-505-0	01	1	1302-

439 439

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	439	FASTENER; COVER EXC. A/T<X9D> GRAY	8-97407-955-0	04	1	1302-
	439	FASTENER; COVER LCT2000 A/T ALLISON(Y4F) GRAY	8-97407-955-0	05	1	1302-
