◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11509 - FSR-R EU2/4EXC.SPACE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#112699) — 8 parça

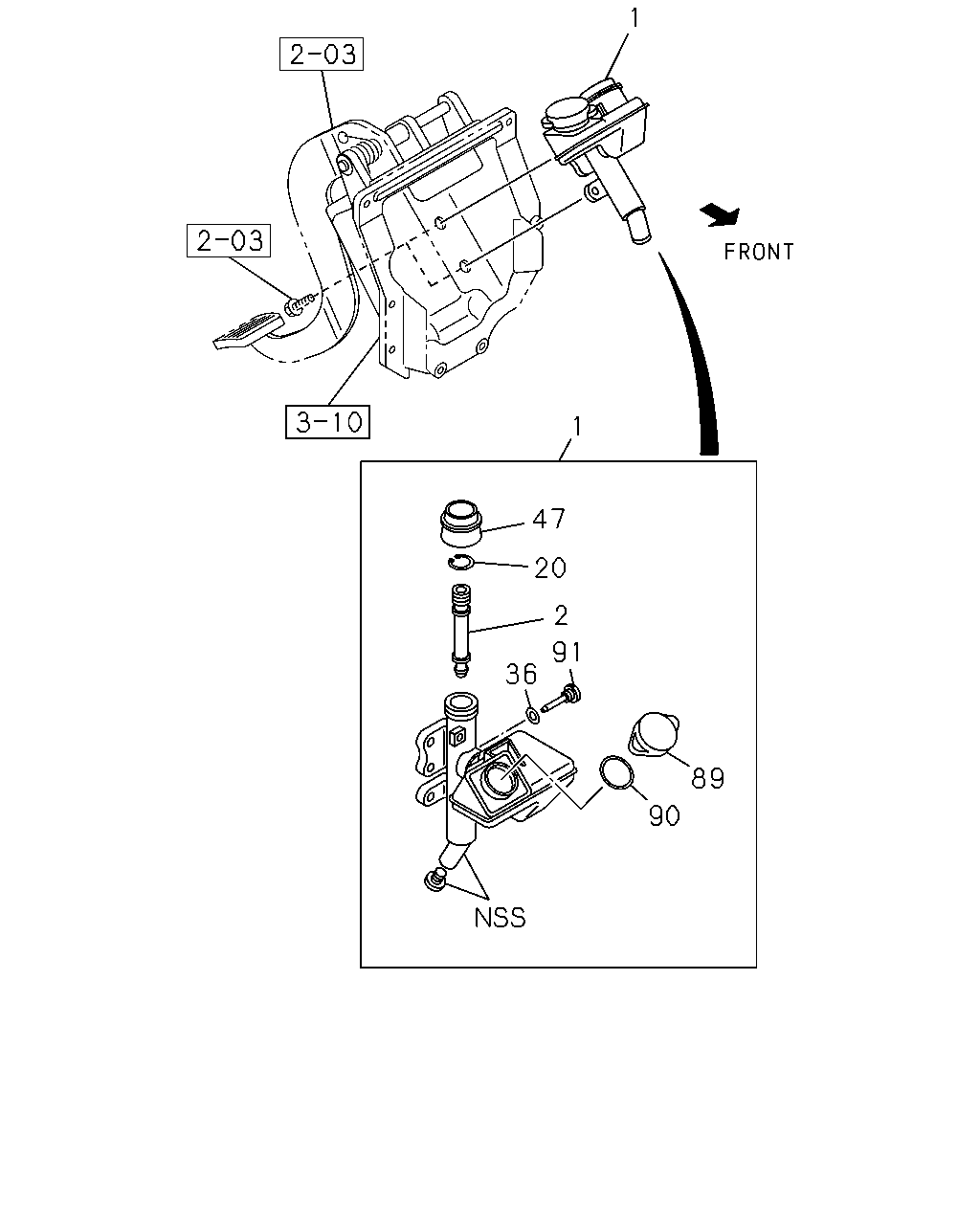

çizim 330976
1 1 47 20 2 91 36 89 90
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-47500-250-2 01 1 1302-
2 REPAIR KIT; CLU M/CYL
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-85576-461-0 01 1 1302-
20 RING; SNAP,BODY
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-47519-013-0 01 1 1302-
36 GASKET; CLU M/CYL
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-47519-014-0 01 1 1302-
47 COVER; DUST,PUSH ROD
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-47519-018-0 01 1 1302-
89 CAP; OIL FILLER,CLU M/CYL
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-47519-017-0 01 1 1302-
90 GASKET; OIL FILLER,CLU M/CYL
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-47519-016-0 01 1 1302-
91 BOLT; STOPPER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-47519-015-0 01 1 1302-
