Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11520 - FVZ(RHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

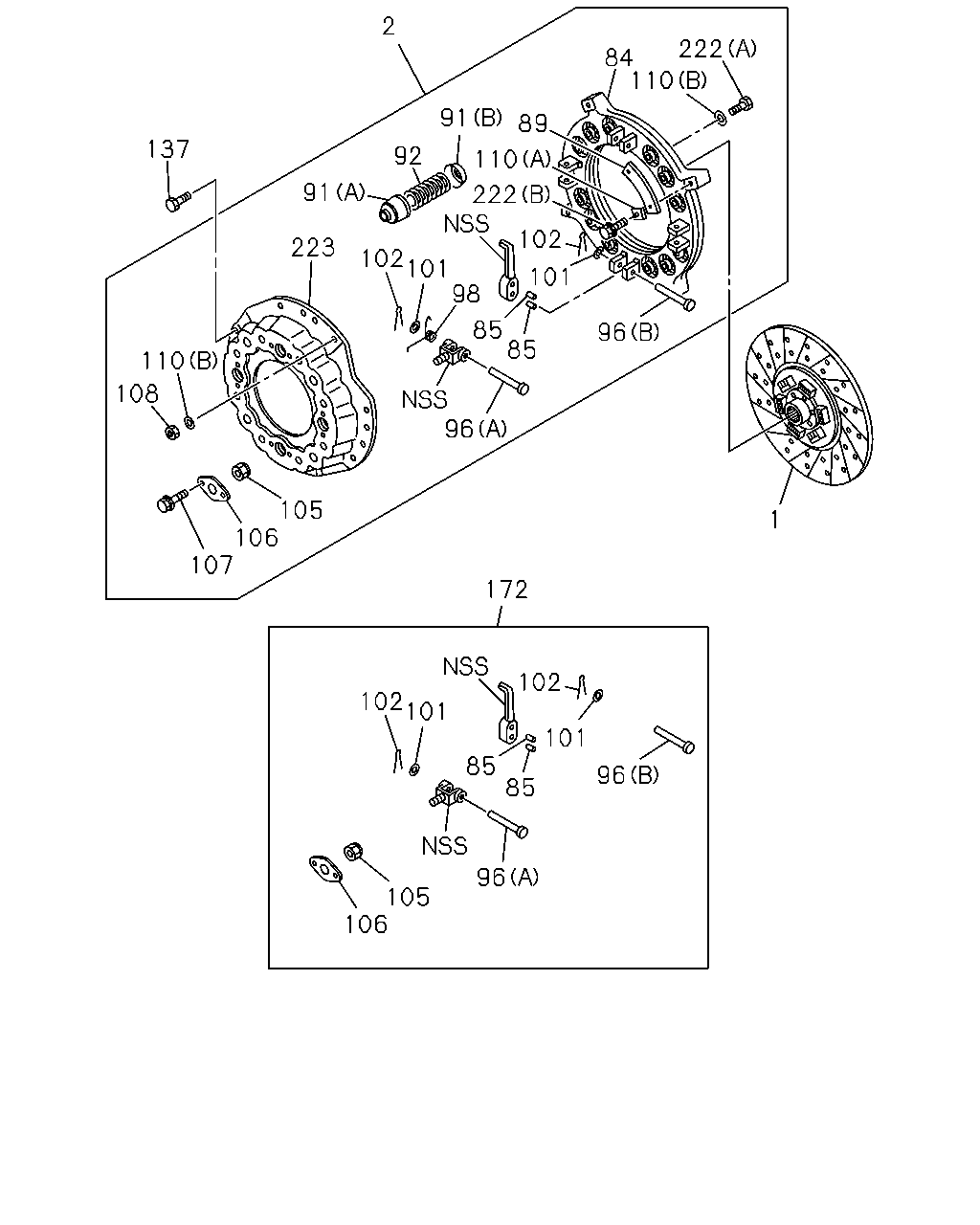

2-01 — CLUTCH
(#112697) — 50 parça
◀
[201A] BOOSTER AND BRACKET (25 parça)
[201A] DISC AND PLATE (25 parça)
▶
155
170
157
164
166
154
149
155
170
157
148
128
128
125
123
116
119
120
130
131
57
122
118
122
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31341-036-0
01
1
1302-
116
BLOCK; SHIFT,CLU
1-31321-086-1
01
1
1302-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
1302-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
1302-
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
1302-
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
1302-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=360
1-09364-881-0
01
1
1302-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW
0-90301-610-0
01
1
1302-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
1302-
123
CLIP; FLEX HOSE,SHIFT BLOCK
8-97010-484-0
01
1
1302-
125
SHAFT; CLU
1-31342-336-0
01
1
1302-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1302-
130
SCREW; SHIFT FORK
9-06120-816-0
01
1
1302-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1302-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1302-
149
EYE; SPRING,RETURN SPRING
1-31426-041-0
01
1
1302-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1302-
155
BRACKET; MINIPACK
(B)
1-31429-472-1
01
1
1302-
155
BRACKET; MINIPACK
(A)
1-31429-473-0
01
1
1302-
157
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
1302-
164
EYE; SPRING
1-31426-050-0
01
1
1302-
166
NUT; SPRING EYE
M10 FLANGE
0-91180-210-0
01
1
1302-
170
NUT; BOOSTER FIX
M10 FLANGE
0-91180-210-0
03
1
1302-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-516-1
01
1
1302-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
1302-
1
2
137
110
108
223
91
106
107
105
96
102
222
92
91
101
110
101
85
96
102
89
110
84
98
172
101
102
102
96
101
85
85
105
106
96
85
222
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15"
1-31240-972-1
01
1
1302-
2
PLATE ASM; PRESSURE,CLU
1-31220-380-2
01
1
1302-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-145-0
01
1
1302-
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
1302-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1302-
89
PLATE; STRAP
1-31229-050-0
16
1
1302-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
1302-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
1302-
92
SPRING; CLU
1-31214-053-0
12
1
1302-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1302-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1302-
98
SPRING; RETURN
1-31233-003-0
04
1
1302-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
1302-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
1302-
105
NUT; SUPPORT
1-31235-014-0
04
1
1302-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1302-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1302-
108
NUT; STRAP
1-09449-036-0
04
1
1302-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
1302-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
1302-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1302-
172
LEVER KIT; RELEASE,CLU
1-87831-172-1
01
1
1302-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
1302-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
1302-
223
COVER; CLU
1-31211-019-1
01
1
1302-
