2-01A — CLUTCH (#112696) — 90 parça

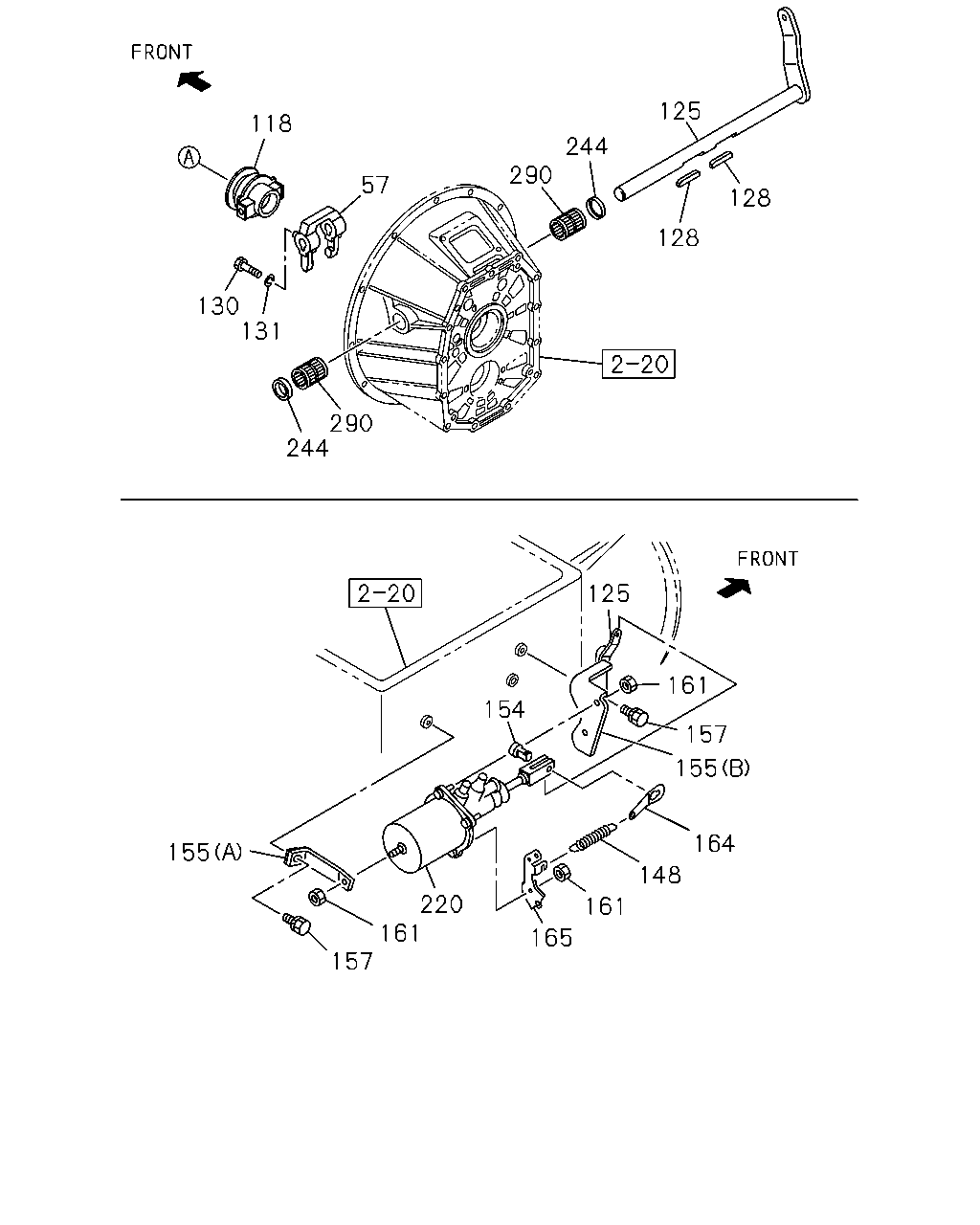

118 290 244 128 244 125 131 128 130 57 157 165 148 161 161 155 154 155 161 125 164 157 290 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1302-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1302-
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1302-
125	SHAFT; CLU	1-31342-335-0	01	1	1302-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1302-
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1302-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1302-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1302-
154	PIN; JAW JOINT	1-31424-009-0	01	1	1302-
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	1302-
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	1302-
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1302-
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1302-
164	EYE; SPRING	1-31426-041-0	01	1	1302-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1302-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1302-
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1302-

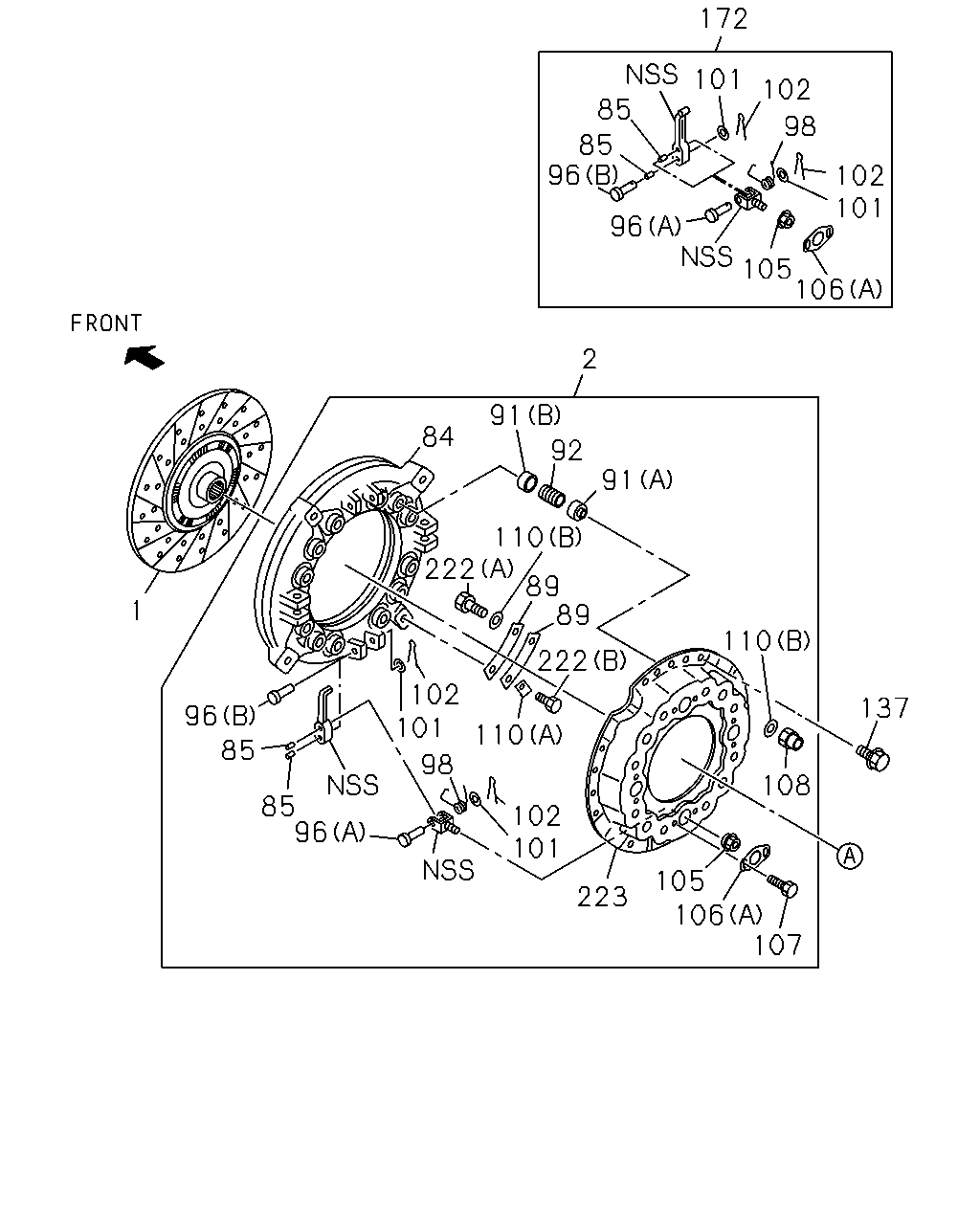

172 85 101 102 102 106 105 96 96 85 101 84 91 91 110 222 89 89 222 110 137 108 105 106 107 223 102 101 98 102 101 85 96 85 96 110 98 2 1 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31240-971-1	01	1	1302-1401
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31260-040-1	01	1	1402-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) 15"	1-31240-851-2	01	1	1302-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-451-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-374-2	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-120-0	01	1	1302-
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1302-
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1302-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1302-
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1302-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-092-0	12	1	1302-
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1302-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1302-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	1302-
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	1302-
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	1302-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	1302-
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1302-
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	1302-

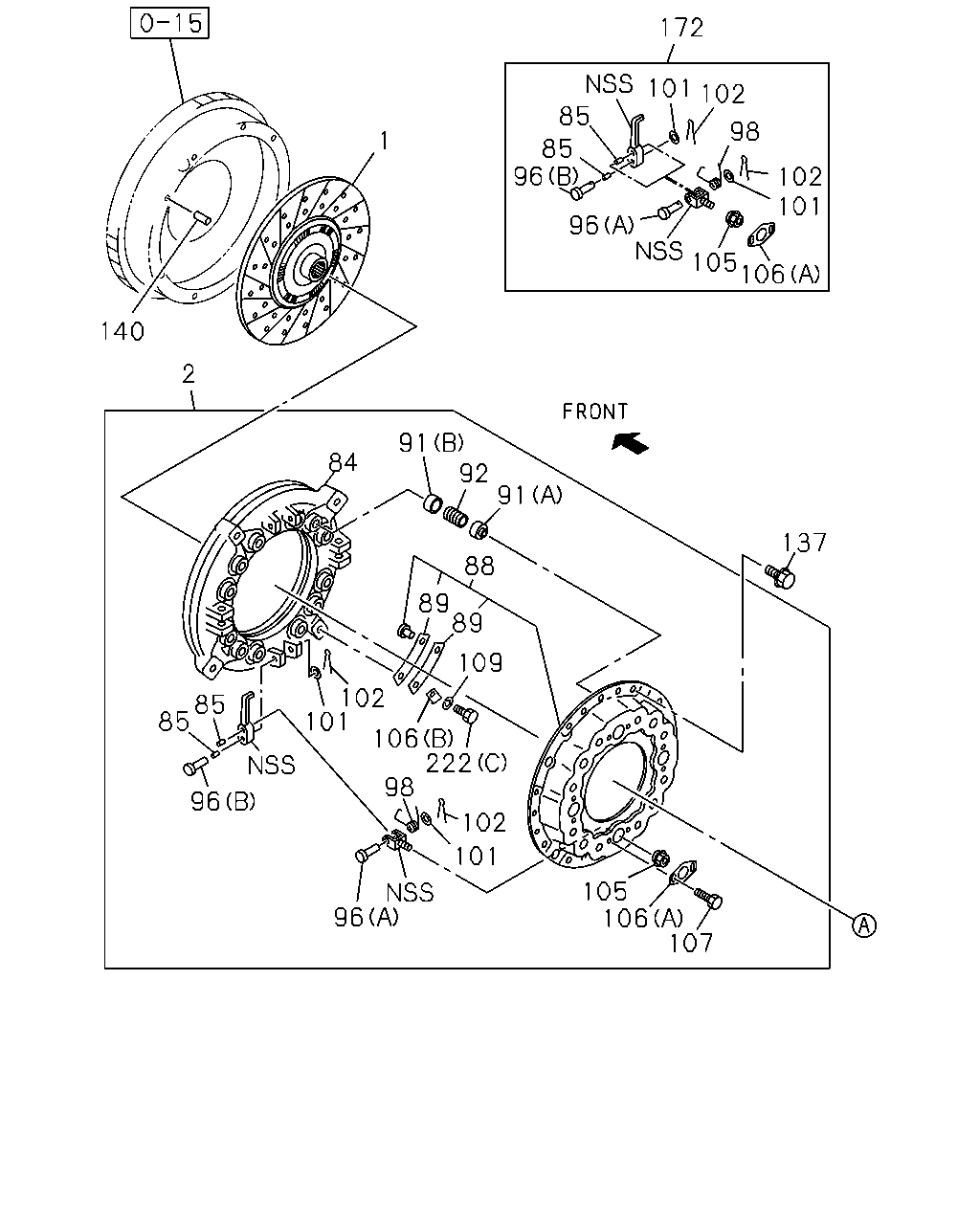

1 140 2 84 85 85 96 101 102 106 222 98 96 101 102 109 89 89 88 91 92 91 105 106 107 137 101 102 98 102 101 85 85 96 96 105 106 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31240-971-1	01	1	1302-1401
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31260-040-1	01	1	1402-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) 15"	1-31240-851-2	01	1	1302-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-451-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-374-2	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-120-0	01	1	1302-
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1302-
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1302-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	1302-
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1302-
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1302-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-092-0	12	1	1302-
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1302-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1302-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	1302-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) L=25	8-94410-361-0	02	1	1302-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	1302-
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1302-
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-
