2-01A — CLUTCH (#112693) — 96 parça

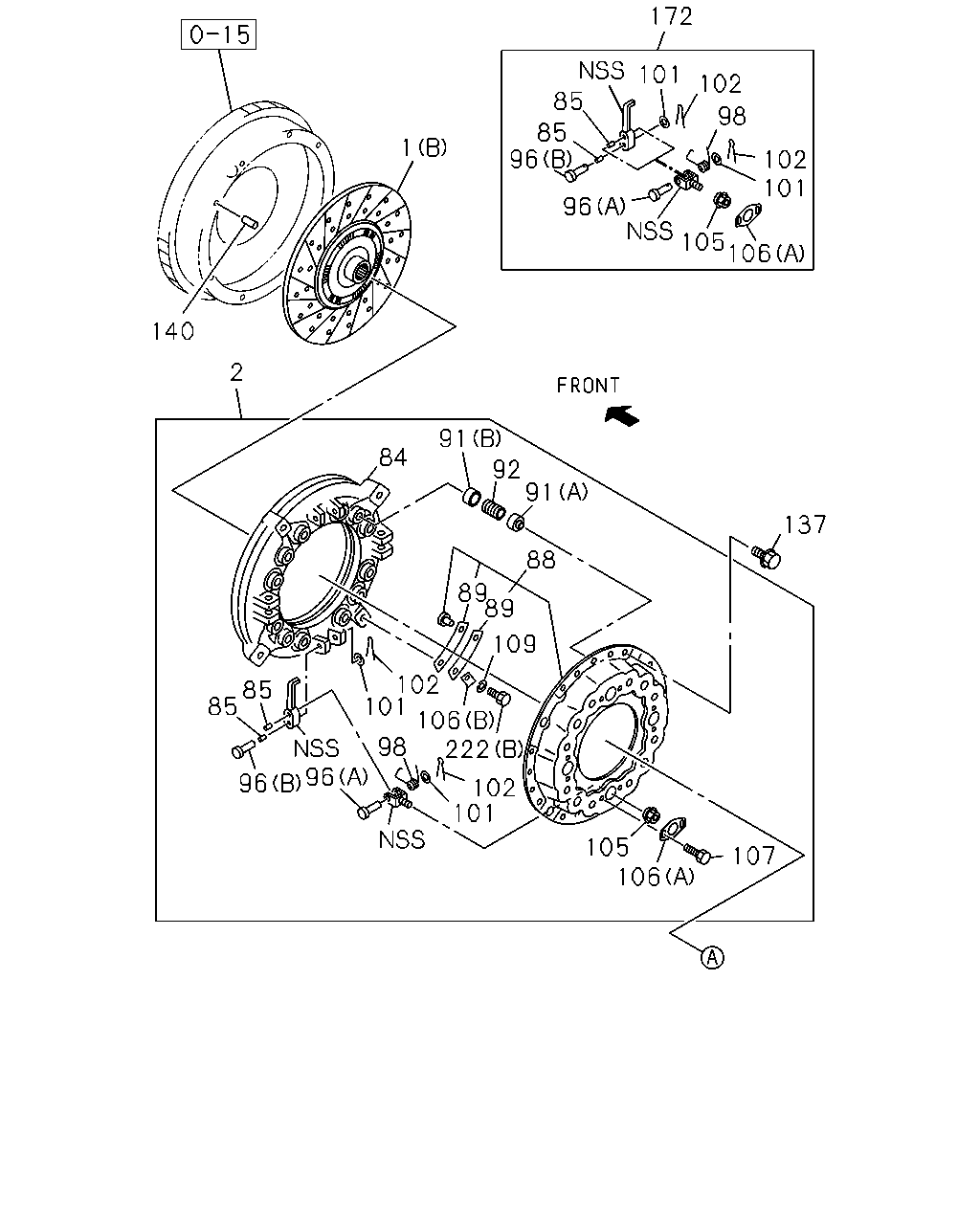

140 1 172 101 85 85 96 102 102 98 96 101 105 106 2 84 91 91 92 137 88 89 89 109 102 85 85 96 98 102 106 101 96 222 101 105 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCN ENG(82L) (B) BEST VALUE PARTS	1-87610-119-0	01	1	1411-1505
1	DISC; CLUTCH 6HK1-TCN ENG(82L) (B) BEST VALUE PARTS	1-87610-119-0	01	1	1506-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) (B) 14"	1-31240-971-1	01	1	1305-1401
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) (B) 14"	1-31260-040-1	01	1	1402-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) (B) 15"	1-31240-851-2	01	1	1302-1505
1	DISC; CLUTCH 6HK1-TCN ENG(82L) (B) 15"	1-31240-851-2	01	1	1506-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) (B) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS)	1-31220-451-0	01	1	1305-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-374-2	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-120-0	01	1	1302-
84	PLATE; PRESSURE 4HK1-TCS ENG(RJS) 14"	1-31221-136-0	01	1	1305-
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1302-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
88	COVER SUB ASM; CLU 4HK1-TCS ENG(RJS)	1-31211-038-0	01	1	1305-
89	PLATE; STRAP 4HK1-TCS ENG(RJS)	1-31229-001-0	08	1	1305-
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1302-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU 4HK1-TCS ENG(RJS)	1-31214-092-0	12	1	1305-
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1302-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 4HK1-TCS ENG(RJS) OD=2.7 L=22	9-08113-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1302-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 4HK1-TCS ENG(RJS) (B)	1-31235-008-0	04	1	1305-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
109	WASHER; LK,STRAP 4HK1-TCS ENG(RJS) ID=10.2	0-91510-510-0	04	1	1305-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) L=25	8-94410-361-0	02	1	1305-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-1505
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1506-
222	BOLT; STRAP 4HK1-TCS ENG(RJS) (B)	1-31239-059-0	04	1	1305-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1302-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-

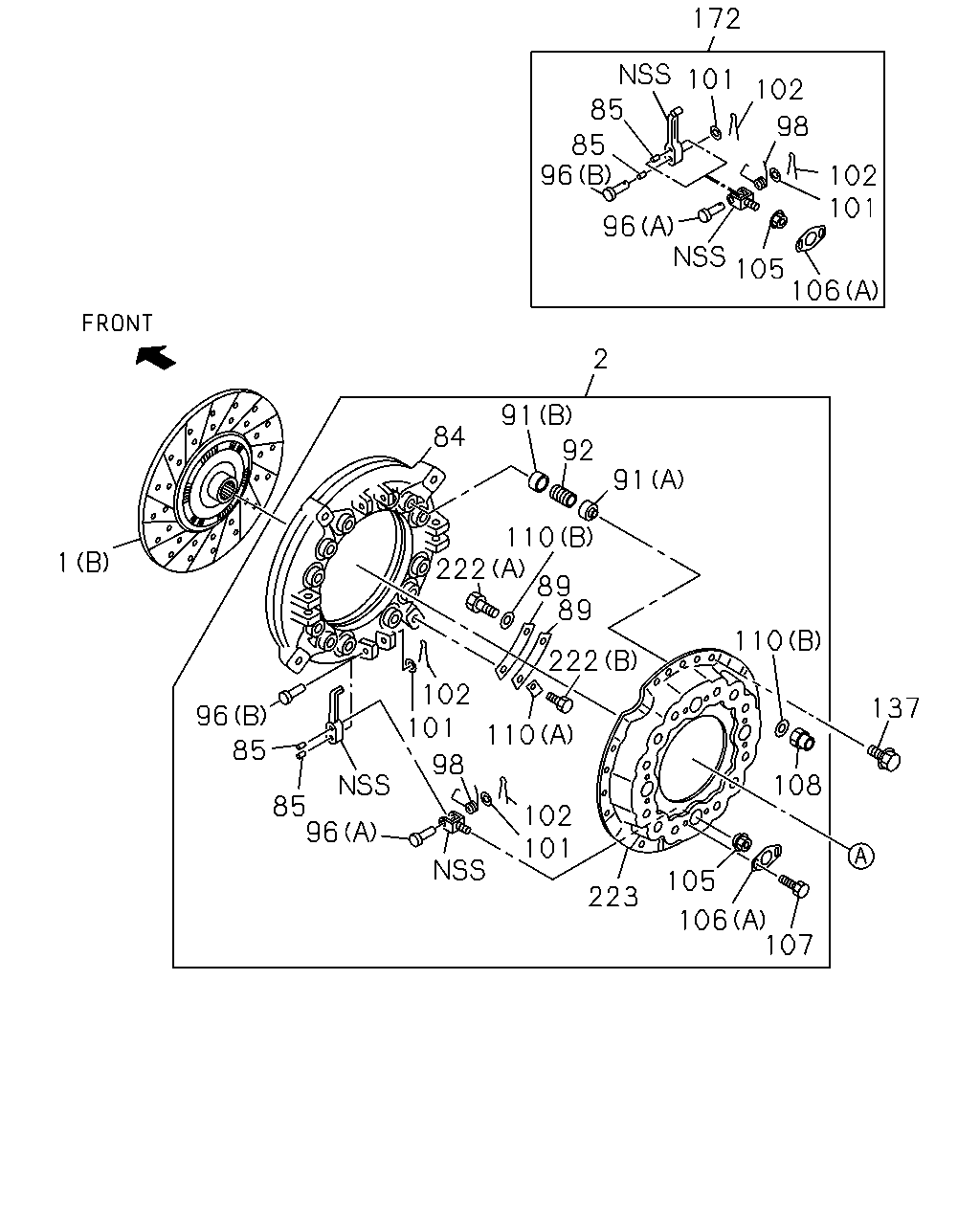

172 101 85 85 102 102 96 105 101 96 106 98 1 84 91 91 110 222 96 85 85 96 102 101 110 102 101 222 89 92 110 137 89 108 223 106 107 105 98 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCN ENG(82L) (B) BEST VALUE PARTS	1-87610-119-0	01	1	1411-1505
1	DISC; CLUTCH 6HK1-TCN ENG(82L) (B) BEST VALUE PARTS	1-87610-119-0	01	1	1506-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) (B) 14"	1-31240-971-1	01	1	1305-1401
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) (B) 14"	1-31260-040-1	01	1	1402-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) (B) 15"	1-31240-851-2	01	1	1302-1505
1	DISC; CLUTCH 6HK1-TCN ENG(82L) (B) 15"	1-31240-851-2	01	1	1506-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) (B) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS)	1-31220-451-0	01	1	1305-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-374-2	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-120-0	01	1	1302-
84	PLATE; PRESSURE 4HK1-TCS ENG(RJS) 14"	1-31221-136-0	01	1	1305-
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1302-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
89	PLATE; STRAP 4HK1-TCS ENG(RJS)	1-31229-001-0	08	1	1305-
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1302-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU 4HK1-TCS ENG(RJS)	1-31214-092-0	12	1	1305-
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1302-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 4HK1-TCS ENG(RJS) OD=2.7 L=22	9-08113-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1302-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 4HK1-TCS ENG(RJS) (B)	1-31235-008-0	04	1	1305-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
108	NUT; STRAP 6HK1-TCN ENG(82L)	1-09449-036-0	04	1	1302-
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (A) T=1.2	1-31229-009-0	04	1	1302-
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (B) T=3.2	8-97374-512-0	08	1	1302-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-1505
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1506-
222	BOLT; STRAP 4HK1-TCS ENG(RJS) (B)	1-31239-059-0	04	1	1305-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1302-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-
223	COVER; CLU 6HK1-TCN ENG(82L)	1-31211-019-1	01	1	1302-

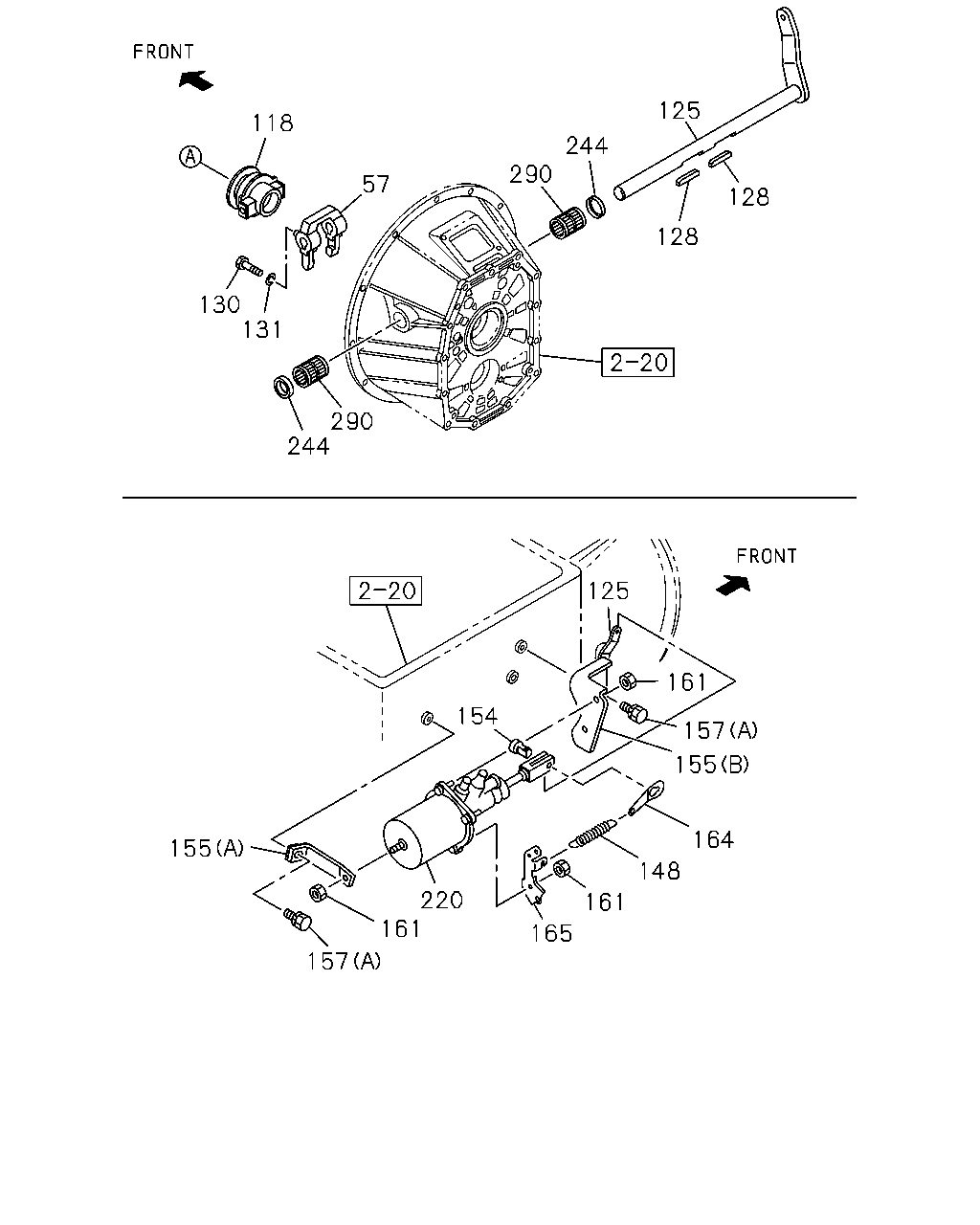

118 57 130 244 131 290 290 244 125 128 128 125 161 157 155 164 148 154 155 157 220 165 161 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1302-
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1302-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1302-
125	SHAFT; CLU	1-31342-335-0	01	1	1302-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1302-
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1302-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1302-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1302-
154	PIN; JAW JOINT	1-31424-009-0	01	1	1302-
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	1302-
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	1302-
157	BOLT; BRKT (A) M10X25 FLANGE	0-28751-025-0	03	1	1302-
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1302-
164	EYE; SPRING	1-31426-041-0	01	1	1302-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1302-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1302-
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1302-
