2-01 — CLUTCH (#112689) — 113 parça

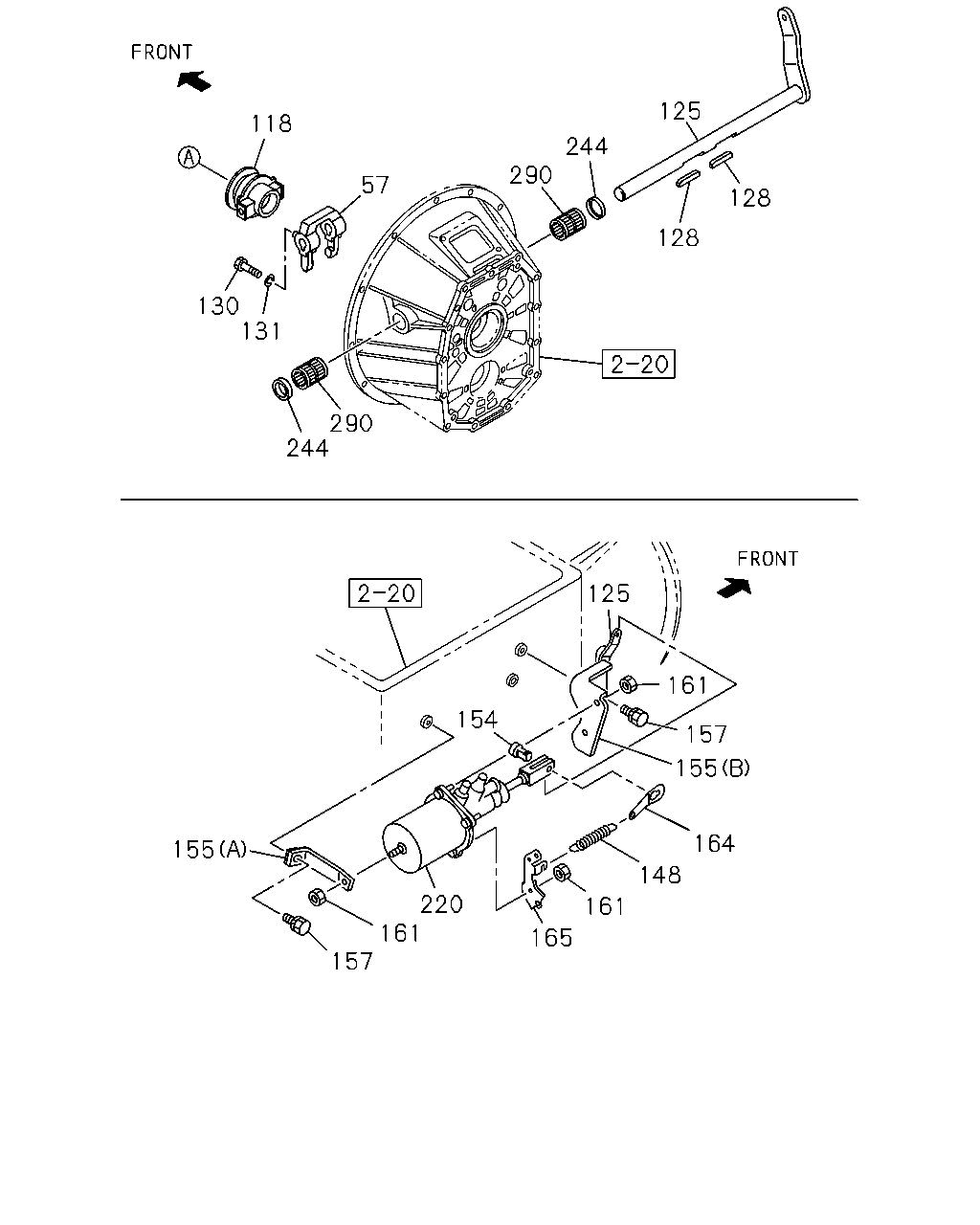

çizim 327061
125 244 290 57 118 130 131 290 244 128 128 125 161 157 155 164 148 161 165 220 161 157 155 154
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU 1-31341-048-2 01 1 1302-
118 BEARING; CLU RELEASE 1-31310-026-0 01 1 1302-
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-109-0 01 1 1302-
125 SHAFT; CLU 1-31342-335-0 01 1 1302-
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1302-
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 1302-
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1302-
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1302-
154 PIN; JAW JOINT 1-31424-009-0 01 1 1302-
155 BRACKET; MINIPACK
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (A) 		1-31429-474-1 01 1 1302-
155 BRACKET; MINIPACK
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (B) 		1-31429-477-0 01 1 1302-
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (A) 		1-31429-475-1 01 1 1302-
155 BRACKET; MINIPACK
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> (A) 		1-31429-475-1 01 1 1302-
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (B) 		1-31429-478-0 01 1 1302-
155 BRACKET; MINIPACK
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> (B) 		1-31429-478-0 01 1 1302-
157 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 03 1 1302-
161 NUT; BRKT
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-208-0 05 1 1302-
161 NUT; BRKT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 05 1 1302-
161 NUT; BRKT
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 05 1 1302-
164 EYE; SPRING 1-31426-041-0 01 1 1302-
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE 1-47477-789-0 01 1 1302-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> 		1-31800-510-2 01 1 1302-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) 		1-31800-511-2 01 1 1302-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> 		1-31800-511-2 01 1 1302-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-089-0 01 1 1302-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> BEST VALUE PARTS 		1-87610-089-0 01 1 1302-
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 1302-
290 BEARING; NEEDLE
NTN 		1-09811-002-1 02 1 1302-

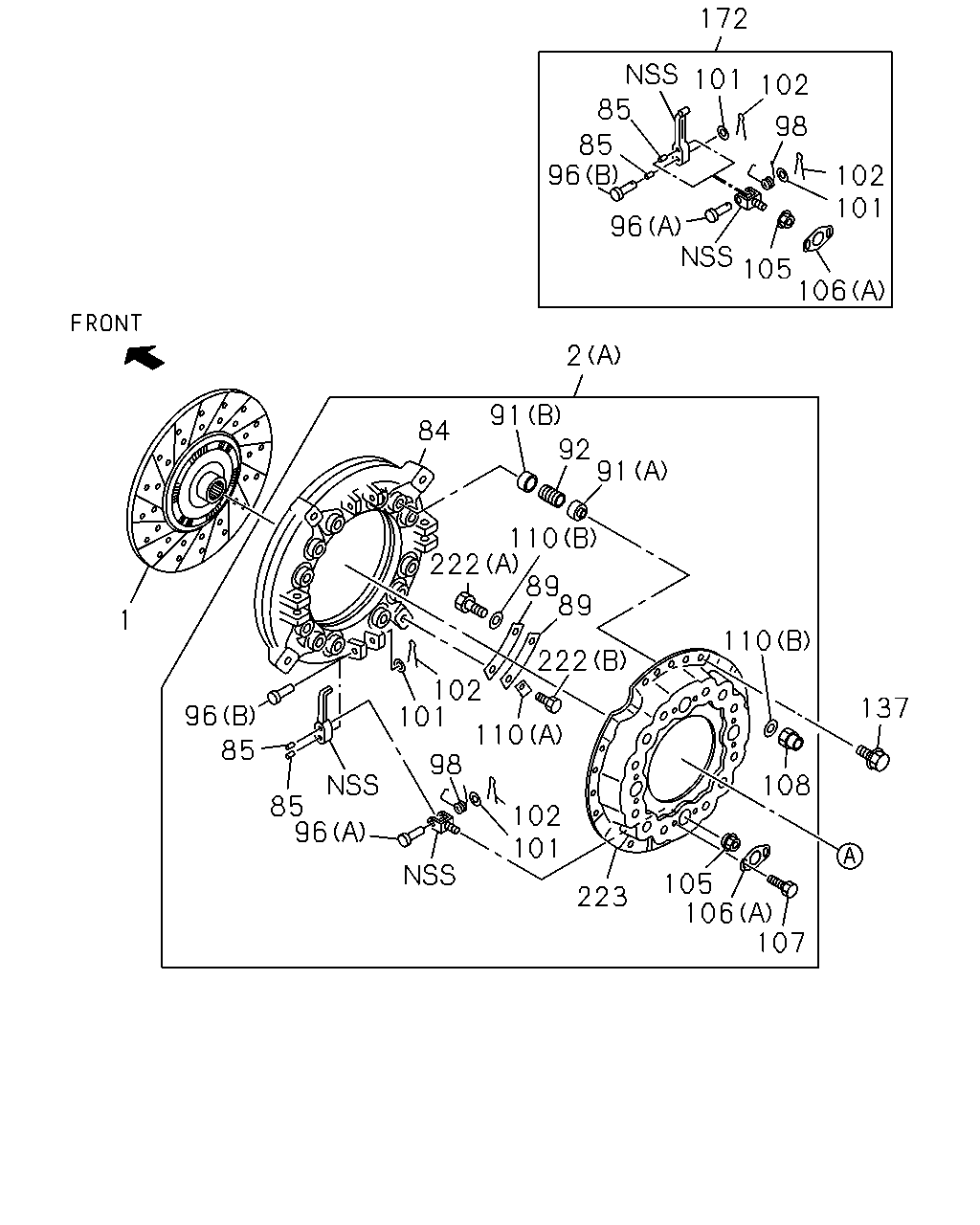

çizim 330965
1 96 85 101 101 102 110 102 222 110 91 84 98 96 223 105 108 106 137 110 107 92 222 89 89 91 106 105 96 96 85 85 101 102 172 102 98 101 2 85
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-119-0 01 1 1411-
1 DISC; CLUTCH
14" CLUTCH(WF6) BEST VALUE PARTS 		1-87610-140-0 01 1 1411-
1 DISC; CLUTCH
14" CLUTCH(WF6) 14" 		1-31240-971-1 01 1 1302-1401
1 DISC; CLUTCH
14" CLUTCH(WF6) 14" 		1-31260-040-1 01 1 1402-
1 DISC; CLUTCH
15" CLUTCH(RE9) 15" 		1-31240-851-2 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (B) 		1-31220-411-0 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> (B) 		1-31220-451-0 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) (A) 		1-31220-374-2 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) (A) BEST VALUE PARTS 		1-87610-120-0 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (A) BEST VALUE PARTS 		1-87610-147-0 01 1 1302-
84 PLATE; PRESSURE
14" CLUTCH(WF6) 14" 		1-31221-136-0 01 1 1302-
84 PLATE; PRESSURE
15" CLUTCH(RE9) 15" 		1-31221-100-0 01 1 1302-
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 1302-
89 PLATE; STRAP
14" CLUTCH(WF6) 		1-31229-001-0 08 1 1302-
89 PLATE; STRAP
15" CLUTCH(RE9) 		1-31229-050-0 16 1 1302-
91 SEAT; SPR
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (A) ID=37 H=25 		1-31219-012-0 08 1 1302-
91 SEAT; SPR
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (B) ID=37 H=15 		1-31219-013-0 08 1 1302-
91 SEAT; SPR
15" CLUTCH(RE9) (A) ID=37 H=25 		1-31219-012-0 12 1 1302-
91 SEAT; SPR
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> (A) ID=37 H=25 		1-31219-012-0 12 1 1302-
91 SEAT; SPR
15" CLUTCH(RE9) (B) ID=37 H=15 		1-31219-013-0 12 1 1302-
91 SEAT; SPR
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> (B) ID=37 H=15 		1-31219-013-0 12 1 1302-
92 SPRING; CLU
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> 		1-31214-095-0 08 1 1302-
92 SPRING; CLU
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> 		1-31214-092-0 12 1 1302-
92 SPRING; CLU
15" CLUTCH(RE9) 		1-31214-086-0 12 1 1302-
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 1302-
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 1302-
98 SPRING; RETURN 1-31233-003-0 04 1 1302-
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 1302-
102 PIN; SPLIT,RELEASE LEVER
14" CLUTCH(WF6) OD=2.7 L=22 		9-08113-022-0 08 1 1302-
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH(RE9) OD=2.7 L=22 		9-08103-022-0 08 1 1302-
105 NUT; SUPPORT 1-31235-014-0 04 1 1302-
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 1302-
106 PLATE; LK,LEVER SUPPORT
14" CLUTCH(WF6) (B) 		1-31235-008-0 04 1 1302-
107 BOLT; LK PLATE 1-31239-061-0 08 1 1302-
108 NUT; STRAP
15" CLUTCH(RE9) 		1-09449-036-0 04 1 1302-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (A) T=1.2 		1-31229-009-0 04 1 1302-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (B) T=3.2 		8-97374-512-0 08 1 1302-
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 1302-
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 1302-
222 BOLT; STRAP
14" CLUTCH(WF6) (C) 		1-31239-059-0 04 1 1302-
222 BOLT; STRAP
15" CLUTCH(RE9) (B) M10X23.2 		1-09040-042-0 04 1 1302-
222 BOLT; STRAP
15" CLUTCH(RE9) (A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1302-
223 COVER; CLU
15" CLUTCH(RE9) 		1-31211-019-1 01 1 1302-

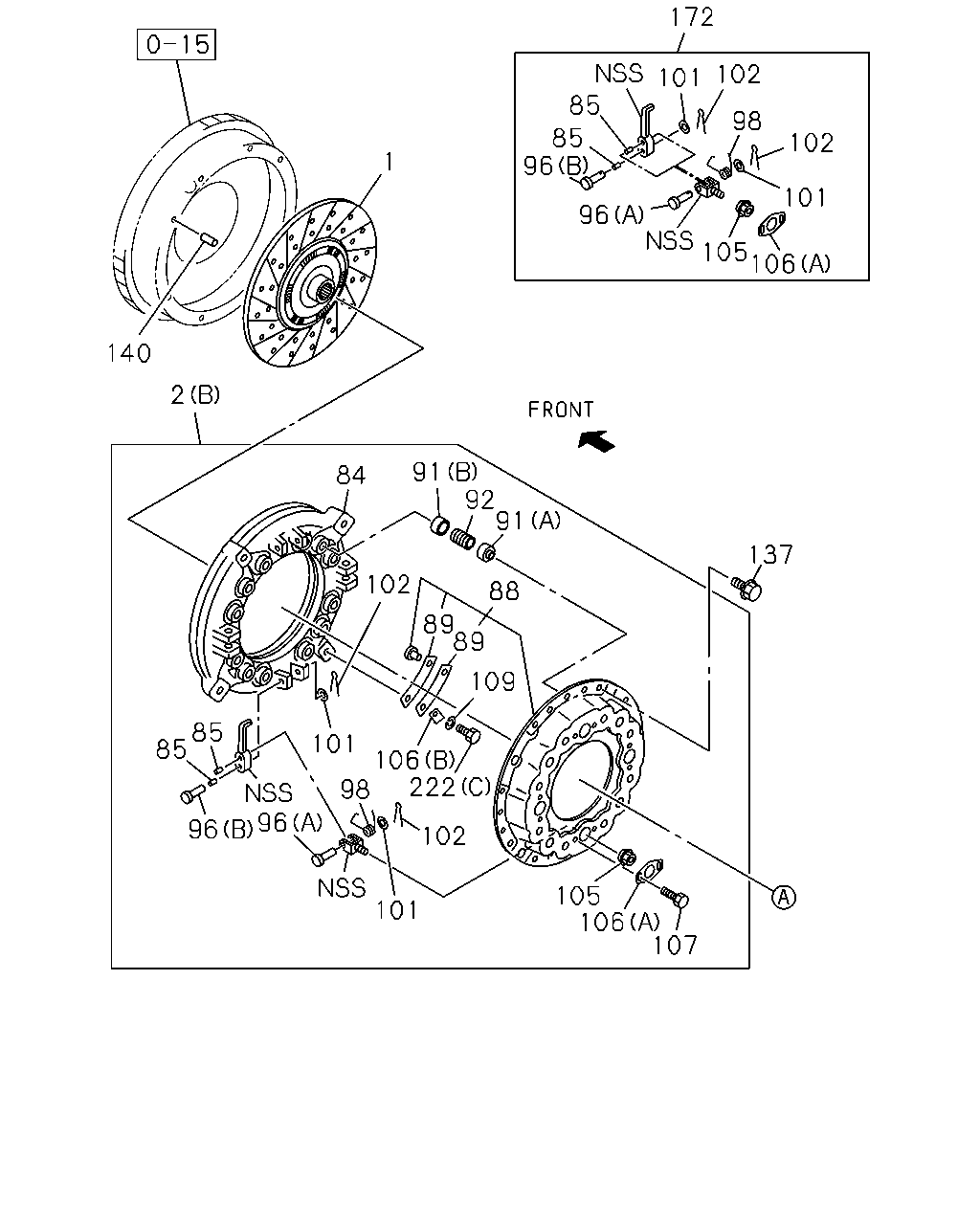

çizim 330998
172 101 102 85 85 96 96 105 98 101 102 106 1 140 2 84 91 92 91 102 88 137 89 89 109 85 85 96 96 101 102 222 106 101 105 106 107 98
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-119-0 01 1 1411-
1 DISC; CLUTCH
14" CLUTCH(WF6) BEST VALUE PARTS 		1-87610-140-0 01 1 1411-
1 DISC; CLUTCH
14" CLUTCH(WF6) 14" 		1-31240-971-1 01 1 1302-1401
1 DISC; CLUTCH
14" CLUTCH(WF6) 14" 		1-31260-040-1 01 1 1402-
1 DISC; CLUTCH
15" CLUTCH(RE9) 15" 		1-31240-851-2 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (B) 		1-31220-411-0 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> (B) 		1-31220-451-0 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) (A) 		1-31220-374-2 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) (A) BEST VALUE PARTS 		1-87610-120-0 01 1 1302-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (A) BEST VALUE PARTS 		1-87610-147-0 01 1 1302-
84 PLATE; PRESSURE
14" CLUTCH(WF6) 14" 		1-31221-136-0 01 1 1302-
84 PLATE; PRESSURE
15" CLUTCH(RE9) 15" 		1-31221-100-0 01 1 1302-
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 1302-
88 COVER SUB ASM; CLU
14" CLUTCH(WF6) 		1-31211-038-0 01 1 1302-
89 PLATE; STRAP
14" CLUTCH(WF6) 		1-31229-001-0 08 1 1302-
89 PLATE; STRAP
15" CLUTCH(RE9) 		1-31229-050-0 16 1 1302-
91 SEAT; SPR
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (A) ID=37 H=25 		1-31219-012-0 08 1 1302-
91 SEAT; SPR
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> (B) ID=37 H=15 		1-31219-013-0 08 1 1302-
91 SEAT; SPR
15" CLUTCH(RE9) (A) ID=37 H=25 		1-31219-012-0 12 1 1302-
91 SEAT; SPR
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> (A) ID=37 H=25 		1-31219-012-0 12 1 1302-
91 SEAT; SPR
15" CLUTCH(RE9) (B) ID=37 H=15 		1-31219-013-0 12 1 1302-
91 SEAT; SPR
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> (B) ID=37 H=15 		1-31219-013-0 12 1 1302-
92 SPRING; CLU
14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2> 		1-31214-095-0 08 1 1302-
92 SPRING; CLU
14" CLUTCH(WF6) EURO4 SPECIFICATION<NT4> 		1-31214-092-0 12 1 1302-
92 SPRING; CLU
15" CLUTCH(RE9) 		1-31214-086-0 12 1 1302-
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 1302-
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 1302-
98 SPRING; RETURN 1-31233-003-0 04 1 1302-
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 1302-
102 PIN; SPLIT,RELEASE LEVER
14" CLUTCH(WF6) OD=2.7 L=22 		9-08113-022-0 08 1 1302-
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH(RE9) OD=2.7 L=22 		9-08103-022-0 08 1 1302-
105 NUT; SUPPORT 1-31235-014-0 04 1 1302-
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 1302-
106 PLATE; LK,LEVER SUPPORT
14" CLUTCH(WF6) (B) 		1-31235-008-0 04 1 1302-
107 BOLT; LK PLATE 1-31239-061-0 08 1 1302-
109 WASHER; LK,STRAP
14" CLUTCH(WF6) ID=10.2 		0-91510-510-0 04 1 1302-
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 1302-
140 PIN; STRAIGHT
4HK1-TCS ENG(RJS) L=25 		8-94410-361-0 02 1 1302-
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 1302-
222 BOLT; STRAP
14" CLUTCH(WF6) (C) 		1-31239-059-0 04 1 1302-
222 BOLT; STRAP
15" CLUTCH(RE9) (B) M10X23.2 		1-09040-042-0 04 1 1302-
222 BOLT; STRAP
15" CLUTCH(RE9) (A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1302-
