◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#112676) — 55 parça

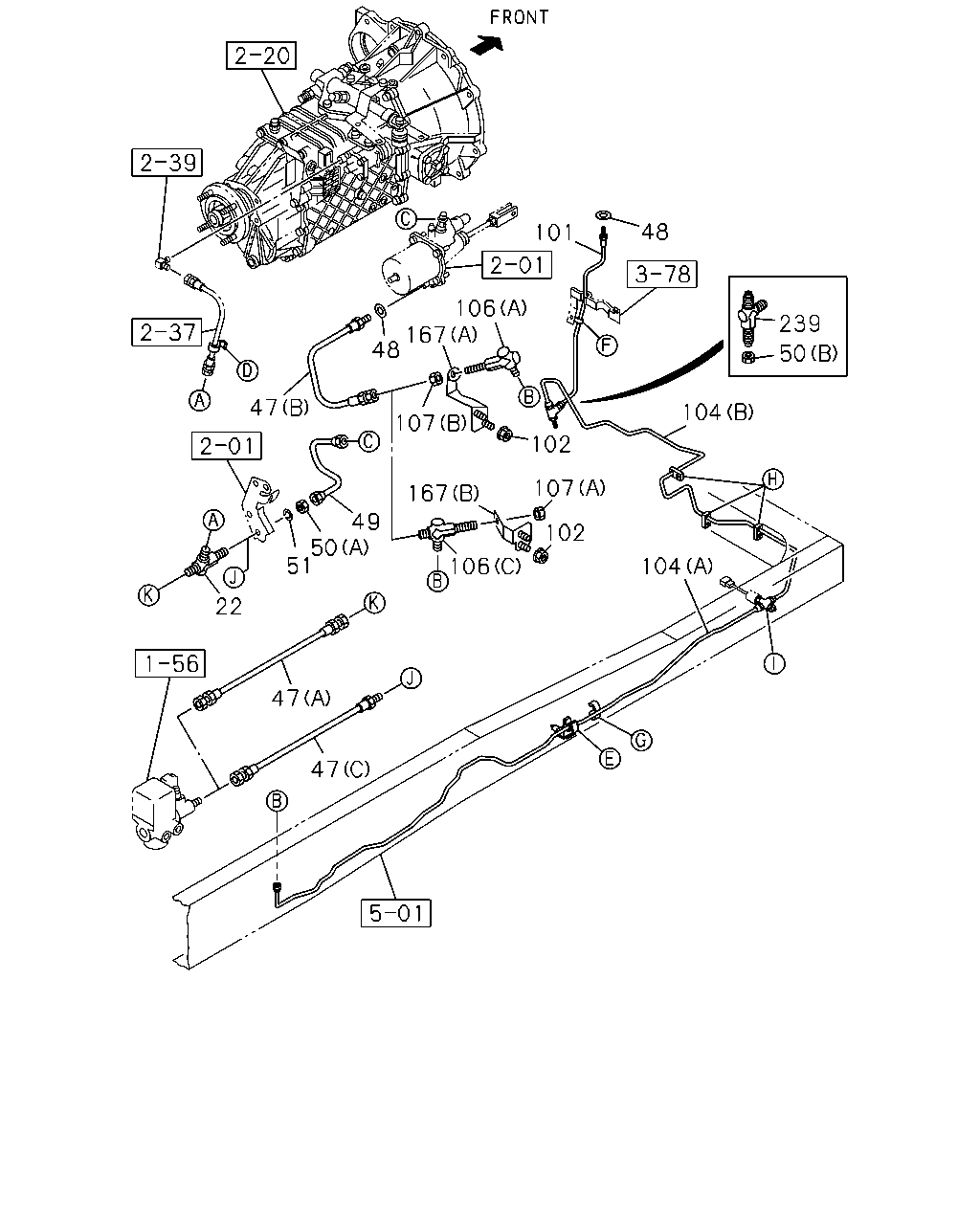

çizim 327114
47 48 167 106 101 48 107 102 102 107 106 167 104 104 47 47 22 50 51 49 239 50
BalonParca AdiParca NoAdetTipApplied Date
22 UNION; CLU PIPE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) (B) L=390 		8-98080-980-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=660 		1-09363-971-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=740 		1-09363-674-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) (B) L=440 		8-98072-346-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> (A) L=720 		1-09363-970-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=720 		1-09363-801-0 01 1 1302-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1302-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T(RSZ) L=204 		1-49117-400-0 01 1 1302-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> L=207 		1-49124-782-0 01 1 1302-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1302-
50 NUT; UNION
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1302-
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1302-
51 WASHER; LK
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1302-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=510 		8-98059-811-0 01 1 1302-
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EURO5 SPECIFICATION<NT5> (A) L=2689 		8-98240-509-0 01 1 1506-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1519 		8-98217-131-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) (A) L=2039 		8-98078-086-1 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) (A) L=2683 		8-98162-742-1 01 1 1302-1505
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) L=2683 		8-98162-742-1 01 1 1506-1511
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) (A) L=2683 		8-98162-742-1 01 1 1512-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1302-
106 UNION; OIL PIPE
MZW6P M/T(RSZ) (A) M12 ELBOW 		0-92125-206-0 01 1 1302-
106 UNION; OIL PIPE
4HK1-TCC ENG(RDV) (C) M12 2WAY 		1-09654-059-2 01 1 1302-
107 NUT; UNION,OIL PIPE
MZW6P M/T(RSZ) (B) M12 		9-09840-280-0 01 1 1302-
107 NUT; UNION,OIL PIPE
4HK1-TCC ENG(RDV) (A) M12 		0-91111-512-0 01 1 1302-
167 BRACKET; UNION
MZW6P M/T(RSZ) (A) 		8-98078-147-0 01 1 1302-
167 BRACKET; UNION
MZZ6W M/T(RSA) (B) 		8-98086-811-1 01 1 1302-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 1302-
çizim 330887
28 16 207 50 184 106 104 28 28 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1302-
16 CLIP; FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=10 & 12 		1-09709-278-1 01 1 1302-
28 CLIP; OIL PIPE
EURO5 SPECIFICATION<NT5> (A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1506-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 1302-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1302-1505
28 CLIP; OIL PIPE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1506-1511
28 CLIP; OIL PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1512-
28 CLIP; OIL PIPE
(C) 		8-98012-254-1 04 1 1302-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1302-
50 NUT; UNION
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EURO5 SPECIFICATION<NT5> (A) L=2689 		8-98240-509-0 01 1 1506-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1519 		8-98217-131-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) (A) L=2039 		8-98078-086-1 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) (A) L=2683 		8-98162-742-1 01 1 1302-1505
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) L=2683 		8-98162-742-1 01 1 1506-1511
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) (A) L=2683 		8-98162-742-1 01 1 1512-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1302-
106 UNION; OIL PIPE
MZW6P M/T(RSZ) (A) M12 ELBOW 		0-92125-206-0 01 1 1302-
106 UNION; OIL PIPE
4HK1-TCC ENG(RDV) (C) M12 2WAY 		1-09654-059-2 01 1 1302-
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1302-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1302-
