Isuzu WW
▶
TRUCKS
▶
FRR
▶
11504 - FRR-L EURO2 EXC.SPAC
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

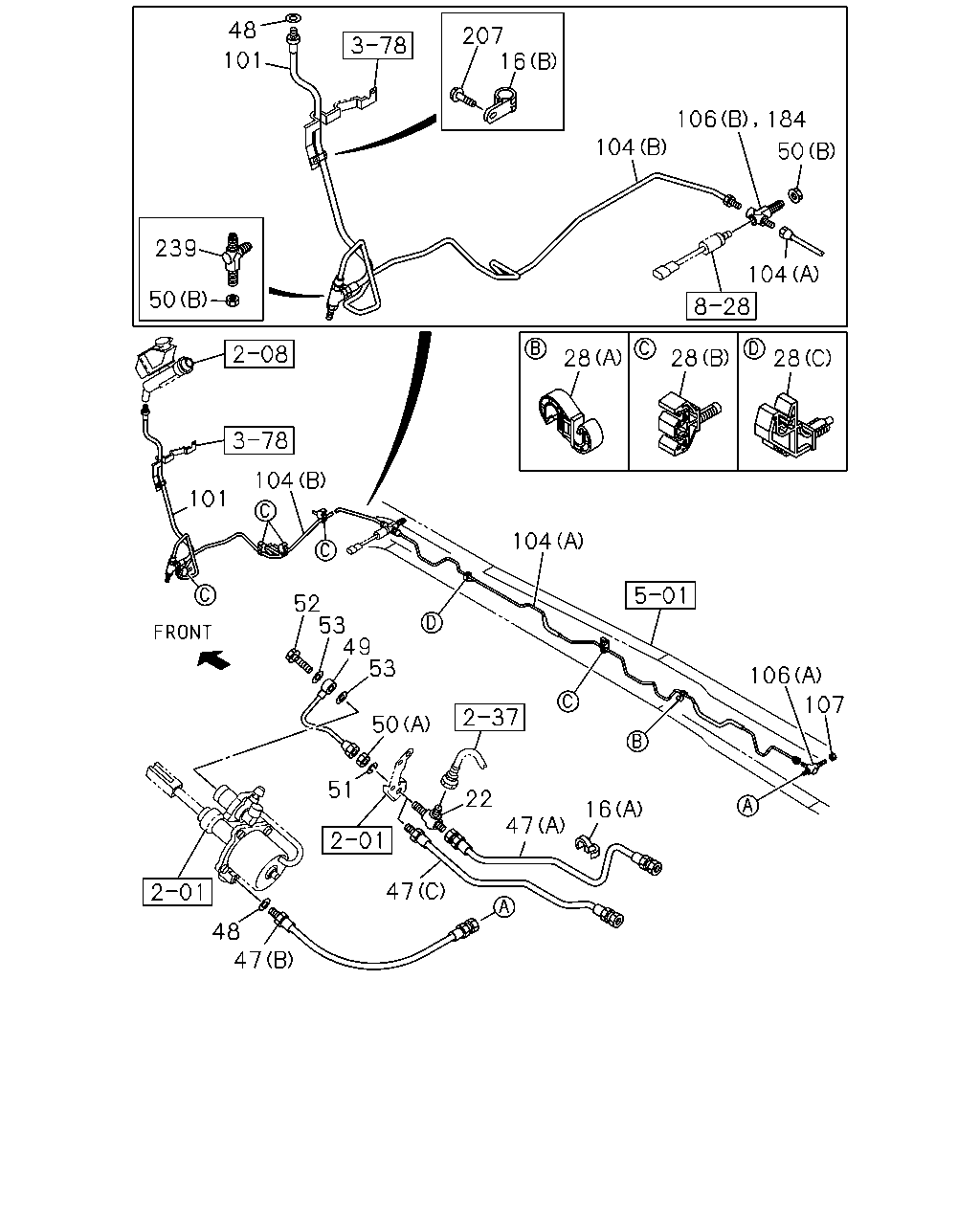

2-05 — CLUTCH PIPING
(#112675) — 29 parça
28
28
28
106
107
16
47
22
47
104
53
49
53
52
101
104
50
51
48
47
104
104
50
106
184
207
48
101
16
239
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
(B) ID=18 L=28
1-09701-067-0
01
1
1302-
16
CLIP; FLEX HOSE
(A) ID=10 & 12
1-09709-278-1
02
1
1302-
22
UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY
0-92138-706-0
01
1
1302-
28
CLIP; OIL PIPE
(C) ID=6.35
1-09701-247-1
01
1
1302-
28
CLIP; OIL PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
03
1
1302-
28
CLIP; OIL PIPE
(B)
8-98012-254-1
01
1
1302-
28
CLIP; OIL PIPE
(B)
8-98012-254-1
04
1
1302-
47
HOSE; FLEX,CLU CONT
(B) L=470
8-98072-353-0
01
1
1302-
47
HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=580
1-09363-613-1
01
1
1302-
47
HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=680
1-09363-647-0
01
1
1302-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
02
1
1302-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239
1-49117-401-0
01
1
1302-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1302-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1302-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1302-
51
WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2
0-91510-812-0
01
1
1302-
51
WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2
0-91510-512-0
01
1
1302-
52
BOLT; EYE,AIR PIPE
M14X27 FLANGE
1-09675-086-0
01
1
1302-
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
1-09630-085-0
02
1
1302-1312
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=570
8-98116-741-0
01
1
1302-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1648 SERVICED BY L=1700
1-47428-737-0
01
1
1302-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2695
8-98078-148-2
01
1
1302-
106
UNION; OIL PIPE
(A) M12 2WAY
1-09654-059-2
01
1
1302-
106
UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY
8-98051-113-0
01
1
1302-
107
NUT; UNION,OIL PIPE
M12
0-91111-512-0
01
1
1302-
184
UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>
8-98150-865-0
01
1
1302-
207
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1302-
239
UNION; CLU HOSE
M12 2WAY
1-09654-059-2
01
1
1302-
