2-20 — MANUAL TRANSMISSION ASM AND CASE (#112673) — 144 parça

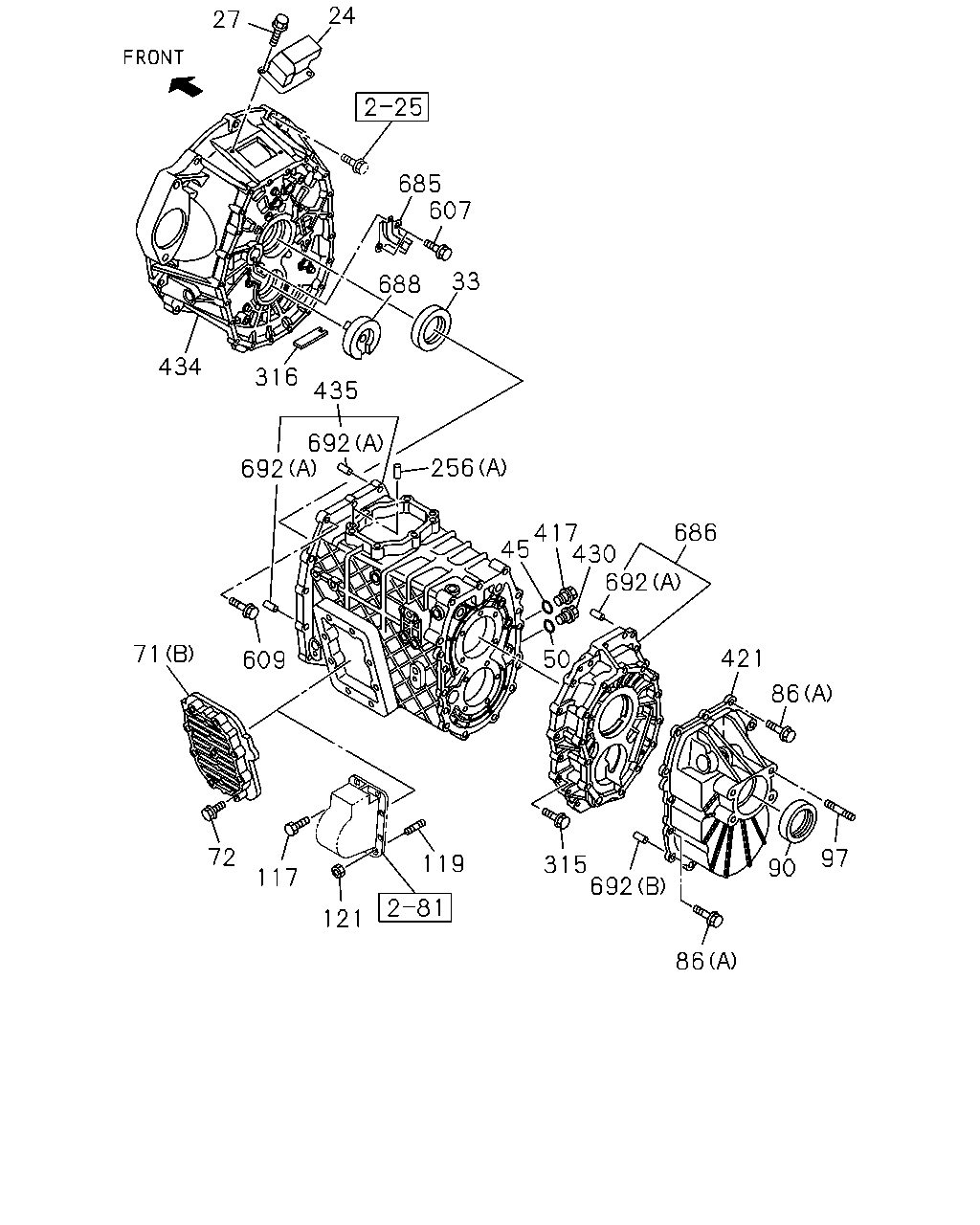

27 24 685 688 33 316 434 435 692 692 609 71 72 117 121 256 45 417 430 50 692 686 421 86 97 90 86 692 15 119 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1302-1410	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1302-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1302-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1302-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98122-318-0	01	1	1302-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98270-265-1	01	1	1409-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1302-	●
72	BOLT; SIDE COVER M10X50 FLANGE	1-09044-081-0	08	1	1302-		●
72	BOLT; SIDE COVER M10X20 FLANGE	8-98014-142-0	08	1	1302-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1302-		●
86	BOLT; RR COVER (B) M10X40 FLANGE	0-28151-040-0	10	1	1302-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-97365-377-0	02	1	1302-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1302-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1302-	●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1302-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1302-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1302-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1302-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1302-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1302-	●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1302-		●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1302-	●
256	PIN; KNOCK (C) ID=6 L=12	9-08160-612-0	02	1	1302-	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1302-	●	●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1302-		●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1302-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1302-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
434	HOUSING; CLU	8-98004-507-2	01	1	1302-		●
434	HOUSING; CLU	8-97382-931-1	01	1	1302-	●
435	CASE; TRANS	8-98186-449-0	01	1	1302-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
435	CASE; TRANS	8-97382-868-1	01	1	1302-	●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1302-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1302-	●
685	COVER; OIL PORT	8-98018-864-1	01	1	1302-		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	1302-		●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1302-1508		●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1302-		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1302-		●

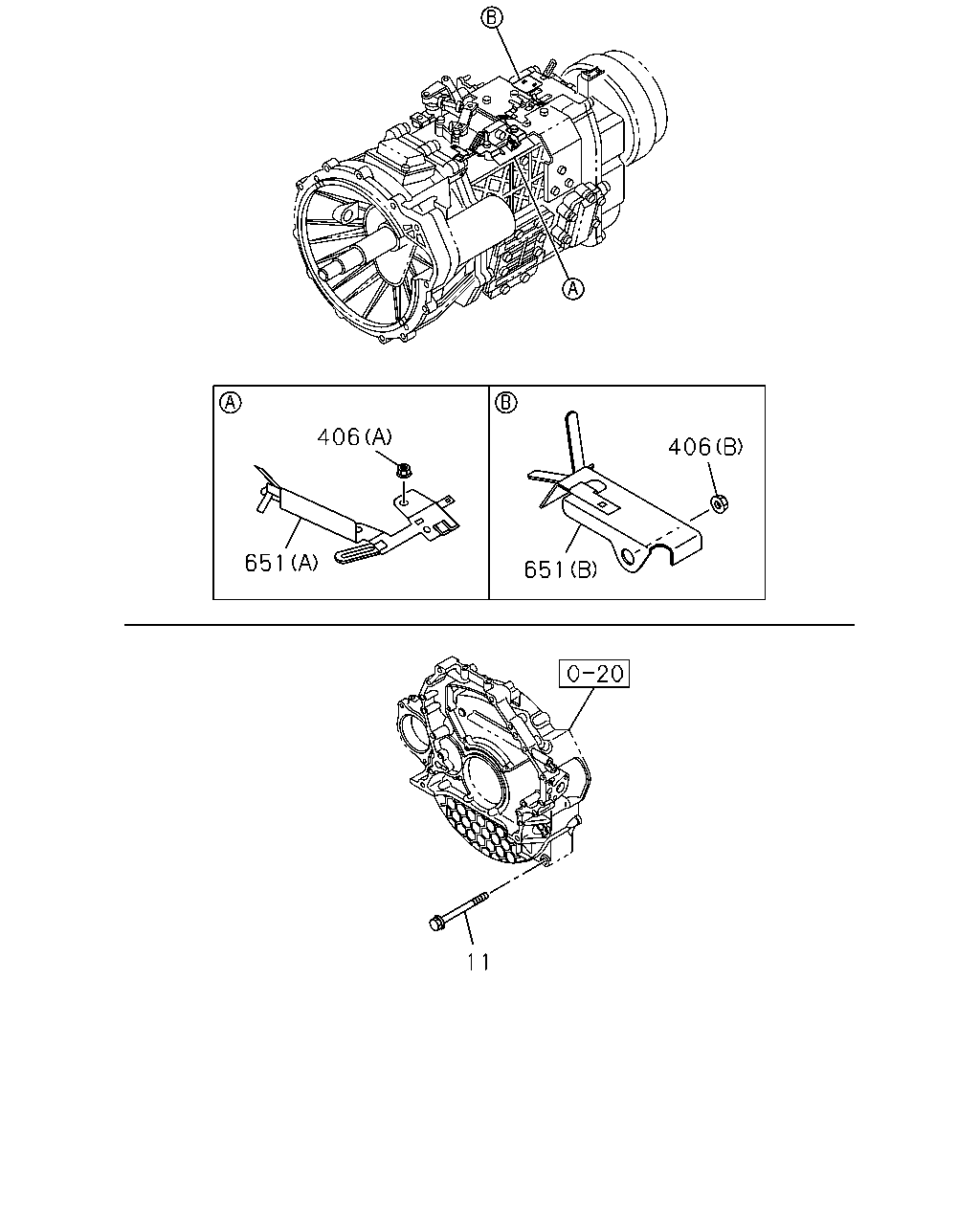

406 651 651 406 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT EURO2 SPECIFICATION<NT2> M12X25 FLANGE	0-28151-225-0	01	1	1302-	●	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-		●
406	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1302-		●
406	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
651	BRACKET; T/M HARNESS (B)	8-98044-568-1	01	1	1302-		●
651	BRACKET; T/M HARNESS (A)	8-97609-800-3	01	1	1302-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

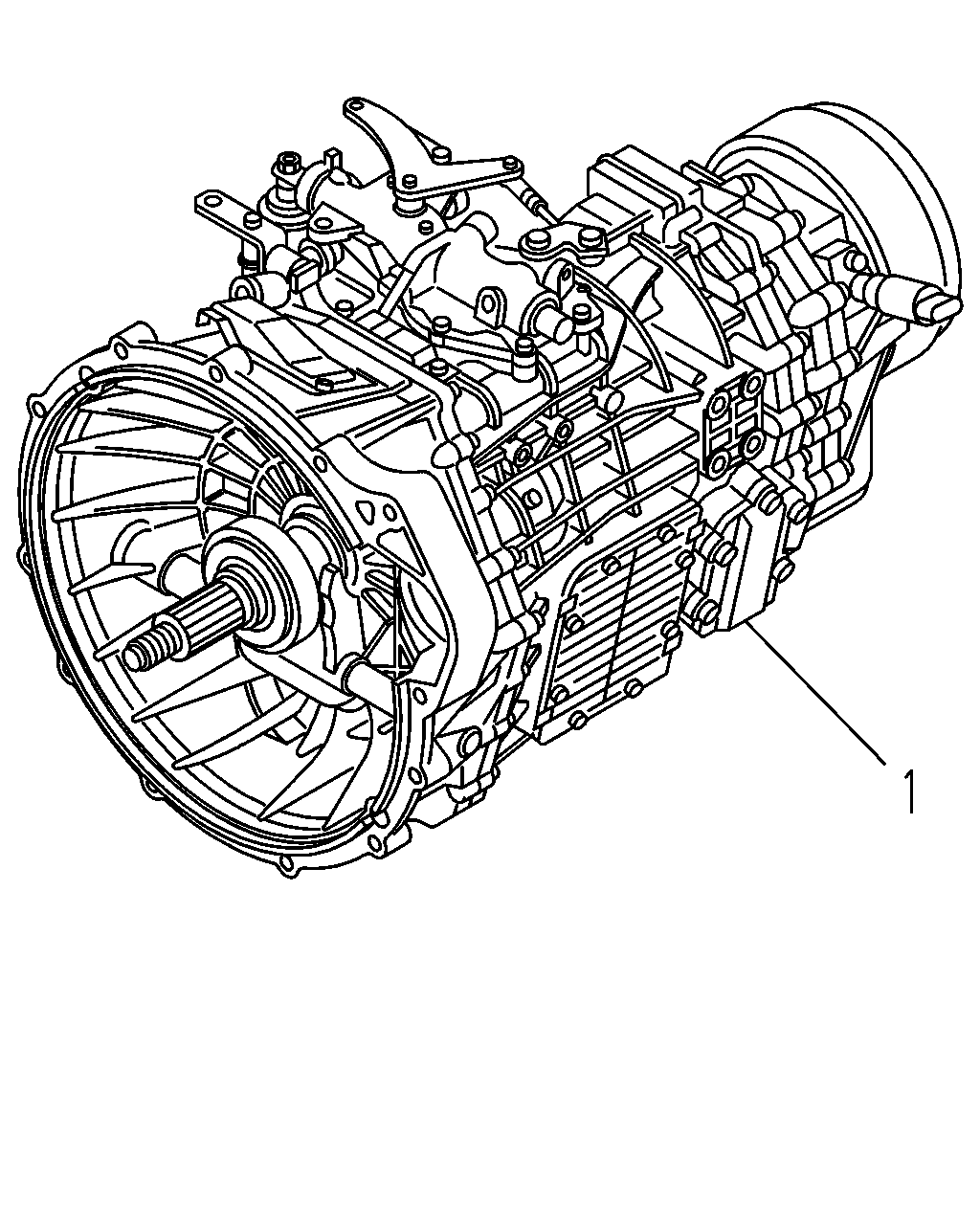

1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-578-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-578-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-392-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-394-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-394-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98171-392-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1302-	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-		●

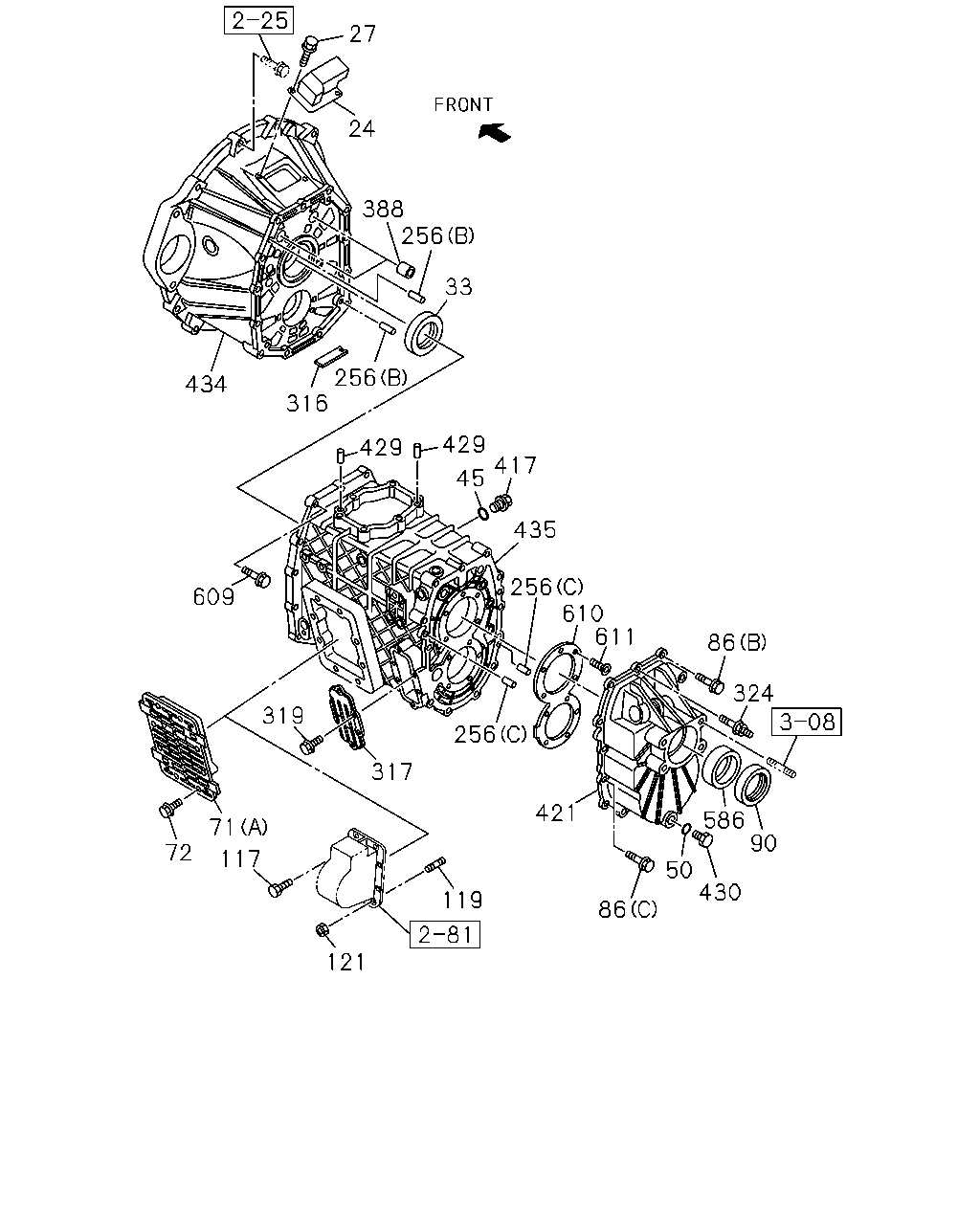

121 119 117 72 319 71 317 421 86 586 90 50 256 324 86 611 610 256 435 45 417 429 429 609 316 434 256 33 256 388 24 27 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1302-1410	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1302-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1302-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1302-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98122-318-0	01	1	1302-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98270-265-1	01	1	1409-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1302-	●
72	BOLT; SIDE COVER M10X50 FLANGE	1-09044-081-0	08	1	1302-		●
72	BOLT; SIDE COVER M10X20 FLANGE	8-98014-142-0	08	1	1302-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1302-		●
86	BOLT; RR COVER (B) M10X40 FLANGE	0-28151-040-0	10	1	1302-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-97365-377-0	02	1	1302-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1302-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1302-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1302-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1302-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1302-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1302-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1302-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1302-	●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1302-		●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1302-	●
256	PIN; KNOCK (C) ID=6 L=12	9-08160-612-0	02	1	1302-	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-	●	●
317	COVER; CASE	8-97252-626-0	01	1	1302-	●
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	1302-	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1302-	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1302-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1302-	●	●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1302-		●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1302-	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1302-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1302-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
434	HOUSING; CLU	8-98004-507-2	01	1	1302-		●
434	HOUSING; CLU	8-97382-931-1	01	1	1302-	●
435	CASE; TRANS	8-98186-449-0	01	1	1302-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
435	CASE; TRANS	8-97382-868-1	01	1	1302-	●
586	BEARING; NEEDLE	8-97253-108-0	01	1	1302-	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1302-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1302-	●
610	RETAINER; BRG	8-97241-314-2	01	1	1302-	●
611	SCREW M10X27 TORQUES	8-97365-354-0	10	1	1302-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

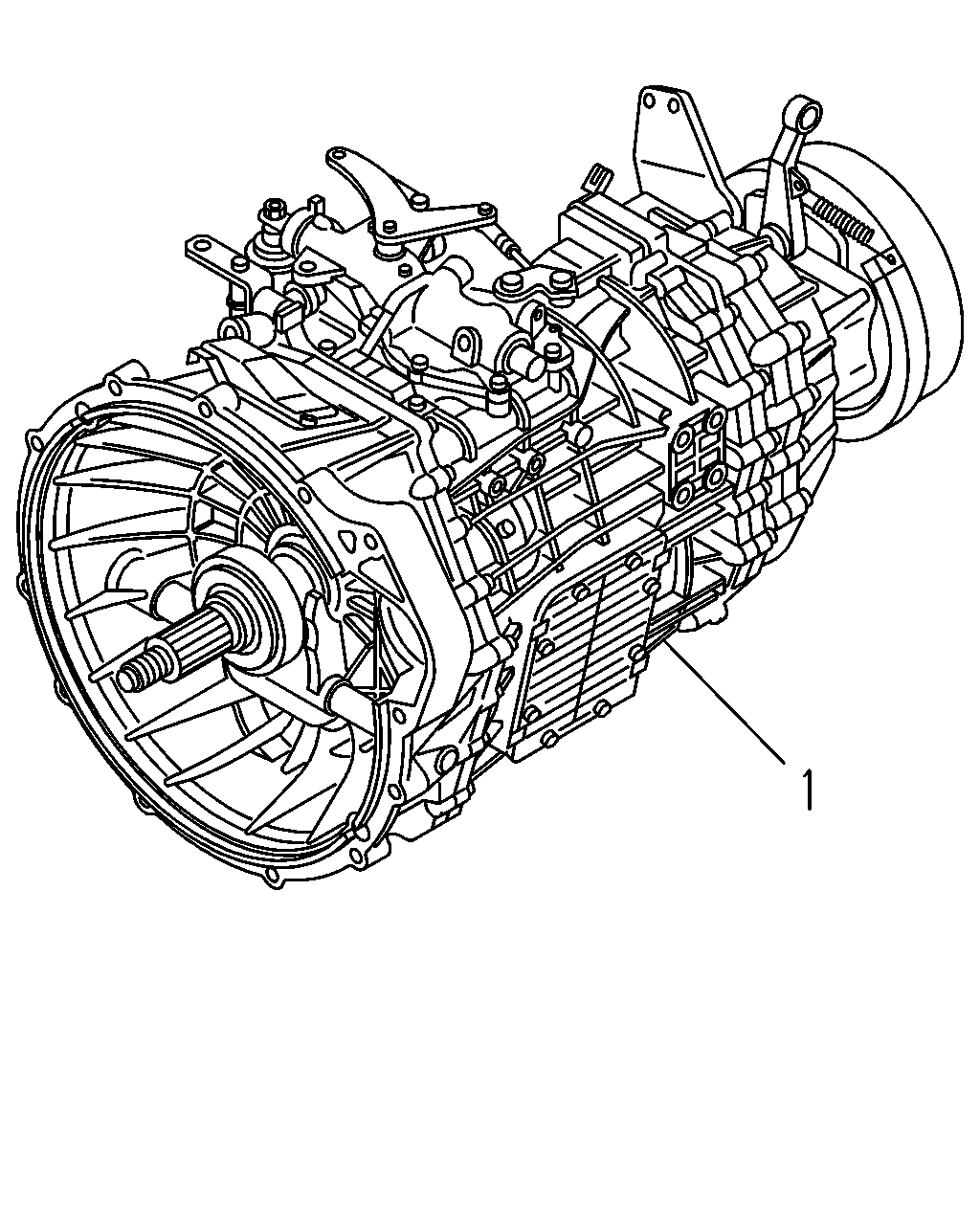

1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-578-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-578-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-392-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-394-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-394-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98171-392-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1302-	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-		●
