2-05 — CLUTCH PIPING (#112669) — 22 parça

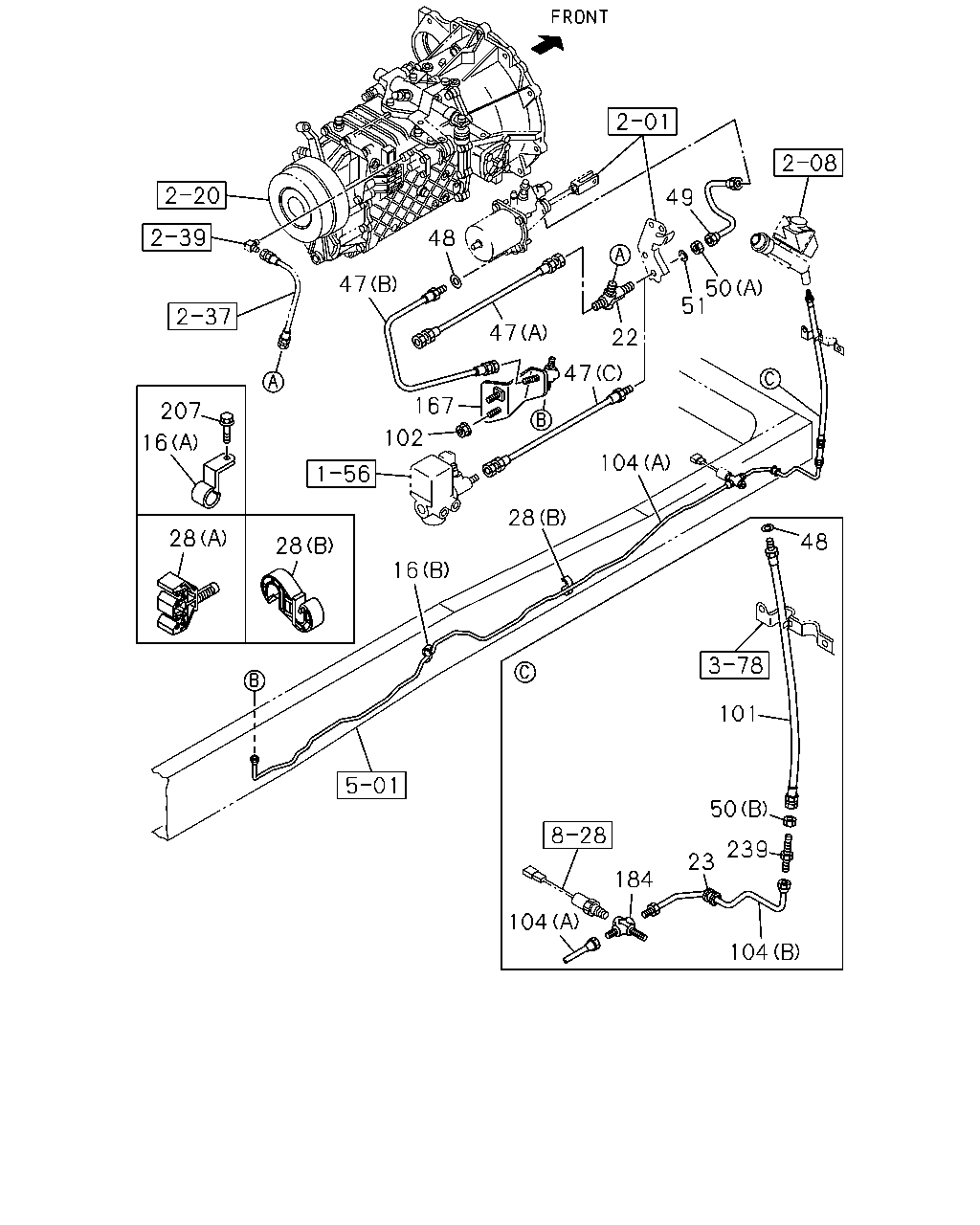

çizim 327161
47 48 102 167 47 22 51 50 49 104 28 16 28 207 28 16 104 23 184 104 50 101 48 239 47
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
(A) ID=15 L=22 H=30 		1-09701-215-1 01 1 1302- ● ●
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 1302- ● ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1302- ● ●
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1302- ● ●
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 03 1 1302- ● ●
28 CLIP; OIL PIPE
(A) 		8-98012-254-1 01 1 1302- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 1302- ● ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=620 		1-09363-705-0 01 1 1302- ● ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=700 		1-09363-718-0 01 1 1302- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1302- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1302- ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302- ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1302- ● ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1302- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1302- ● ●
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 1302- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2054 		8-98216-627-0 01 1 1302- ● ●
167 BRACKET; UNION 8-98115-978-1 01 1 1302- ● ●
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1302- ● ●
207 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1302- ● ●
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 1302- ● ●
