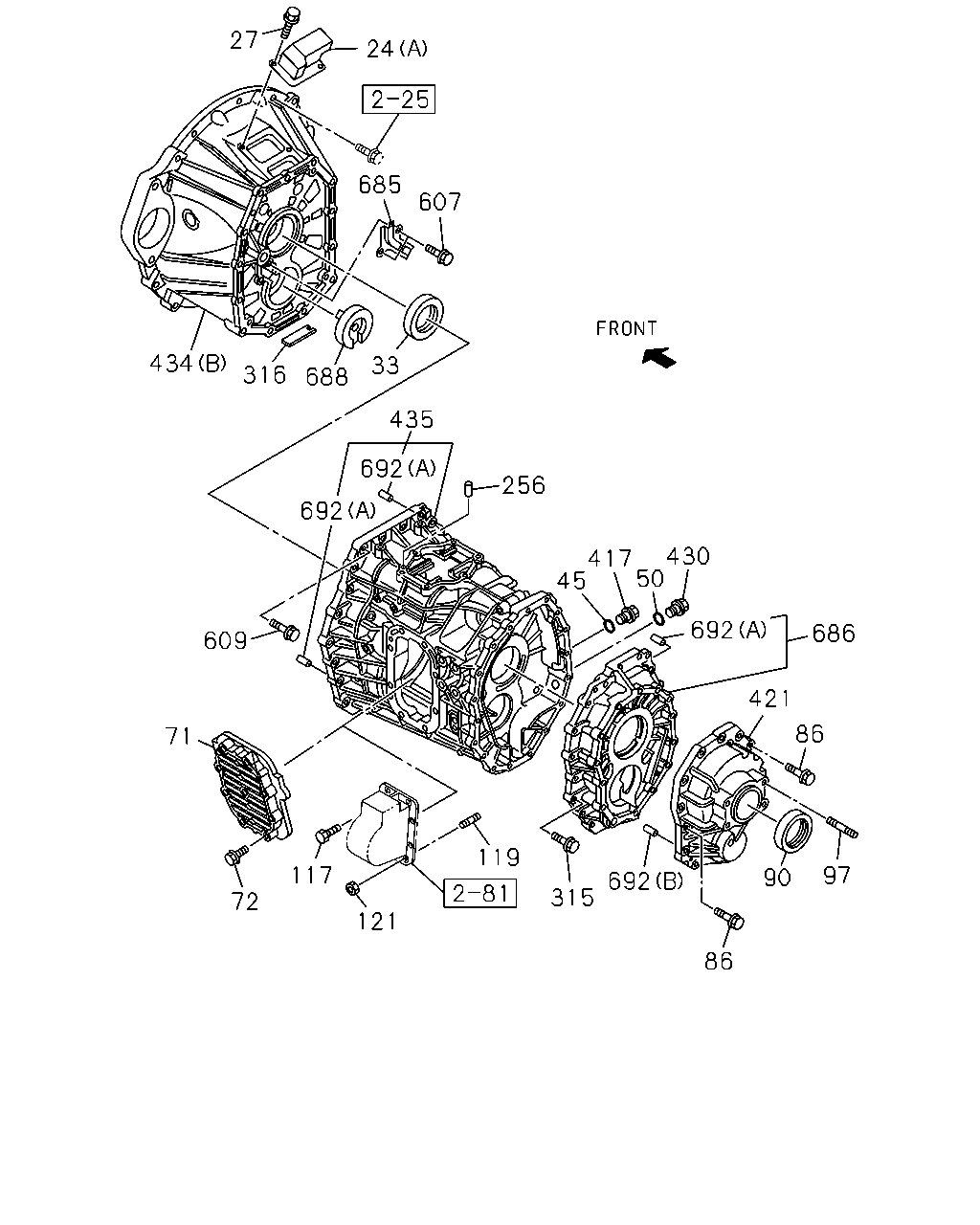

2-20 — MANUAL TRANSMISSION ASM AND CASE (#112663) — 102 parça

24 27 27 24 685 33 607 688 316 434 435 692 692 256 417 45 430 50 692 686 86 421 97 90 86 692 315 119 121 117 72 71 609 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9) (B)	8-98283-062-0	01	1	1411-
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1302-1410
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6) (A)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1302-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1302-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-318-0	01	1	1302-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. PTO CONTROL<SV6> M10X50 FLANGE	1-09044-081-0	08	1	1302-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1302-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1302-
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-1304
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1305-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1302-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1302-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1302-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1302-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-
318	GASKET; COVER 15" CLUTCH(RE9)	1-31139-023-0	01	1	1411-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1302-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1302-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1302-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU (A)	8-98004-506-2	01	1	1302-1304
434	HOUSING; CLU 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	1305-
434	HOUSING; CLU 14" CLUTCH(WF6) (B)	8-98004-507-2	01	1	1305-
435	CASE; TRANS	8-98186-449-0	01	1	1302-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1302-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1302-
685	COVER; OIL PORT	8-98018-864-1	01	1	1302-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1302-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1302-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1302-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1302-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

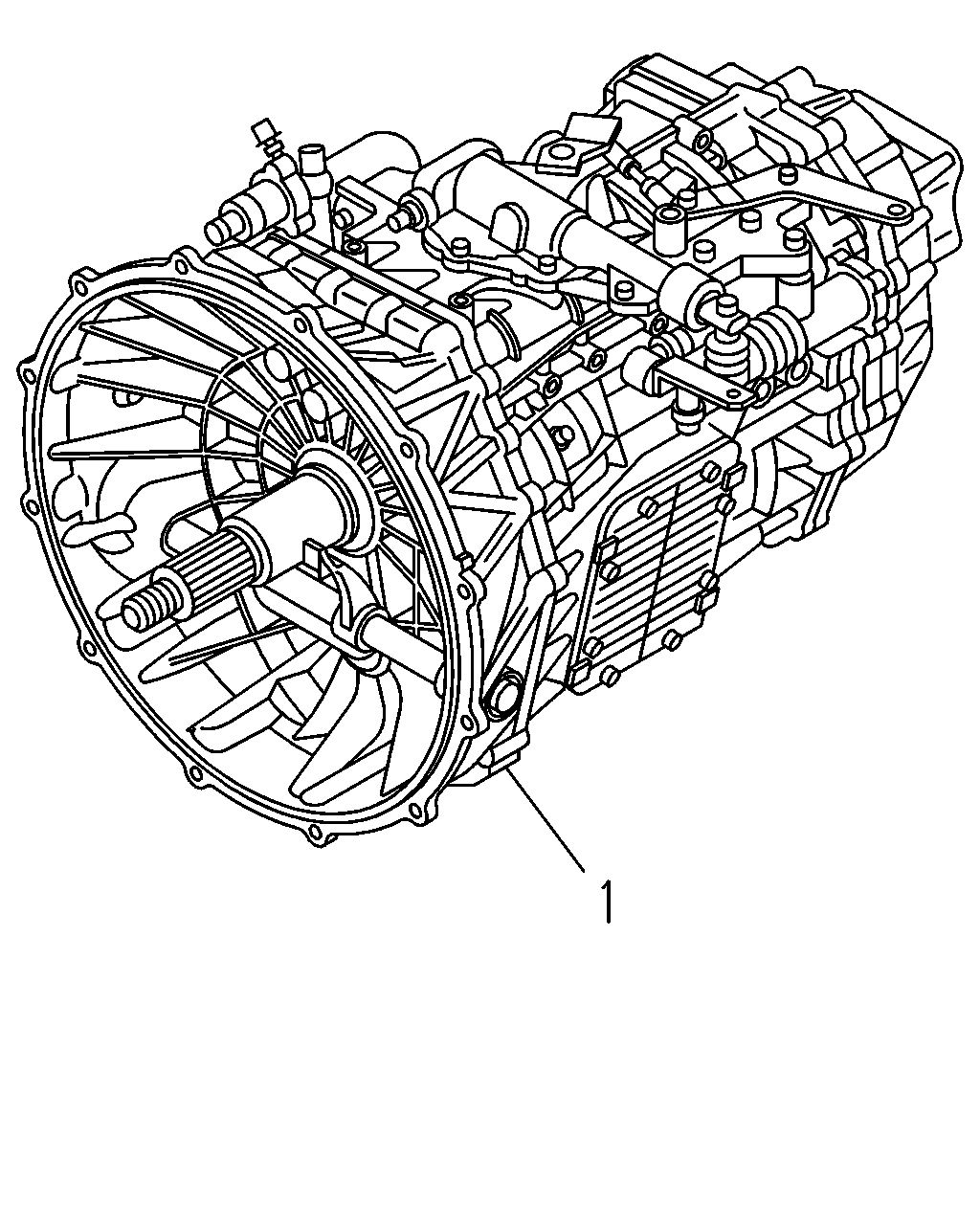

1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO GEAR=36/16(C5L) PTO CONTROL<SV6> 14" CLUTCH(WF6) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98212-129-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO GEAR=36/16(C5L) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98212-131-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 10"(B1T) 14" CLUTCH(WF6) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDEPTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFTCONTROL<WX8>	8-98212-129-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 10"(B1T) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDEPTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98212-131-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98134-518-0	01	1	1302-1304
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDEPTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98134-518-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,AS SISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1302-1304
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 15" CLUTCH(RE9) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDEPTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFTCONTROL<WX8>	8-98134-530-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-518-0	01	1	1302-1304
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-518-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1302-1304
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	8-98134-520-0	01	1	1302-1304
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	8-98134-520-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98134-520-0	01	1	1302-1304
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98134-520-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1302-1304
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1305-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1302-1304
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1305-

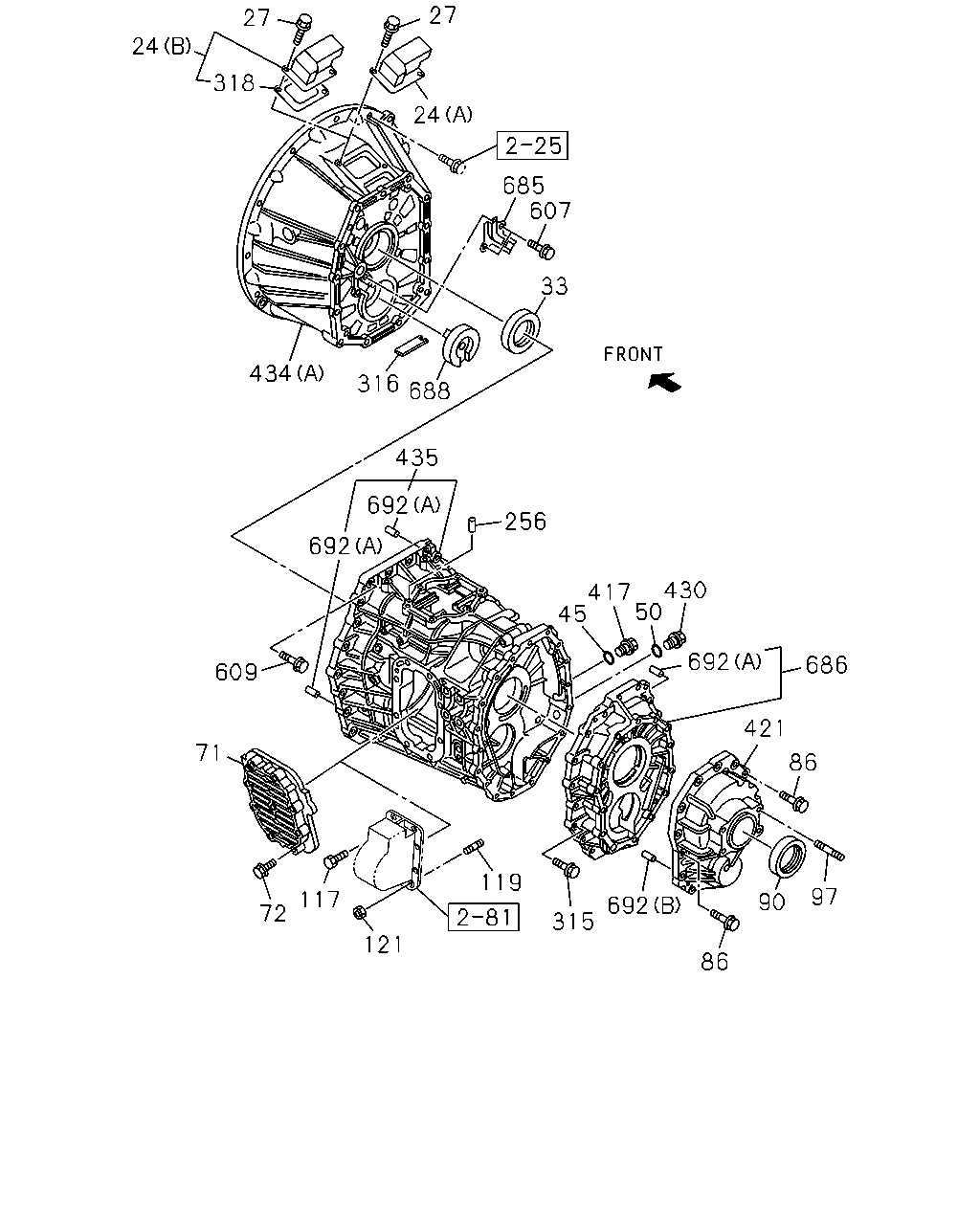

27 24 685 607 33 688 316 434 435 692 692 256 417 50 430 45 609 71 72 117 121 119 315 692 86 90 97 86 421 692 686

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9) (B)	8-98283-062-0	01	1	1411-
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1302-1410
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6) (A)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1302-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1302-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-318-0	01	1	1302-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. PTO CONTROL<SV6> M10X50 FLANGE	1-09044-081-0	08	1	1302-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1302-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1302-
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-1304
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1305-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1302-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1302-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1302-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1302-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1302-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1302-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1302-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU (A)	8-98004-506-2	01	1	1302-1304
434	HOUSING; CLU 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	1305-
434	HOUSING; CLU 14" CLUTCH(WF6) (B)	8-98004-507-2	01	1	1305-
435	CASE; TRANS	8-98186-449-0	01	1	1302-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1302-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1302-
685	COVER; OIL PORT	8-98018-864-1	01	1	1302-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1302-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1302-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1302-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1302-

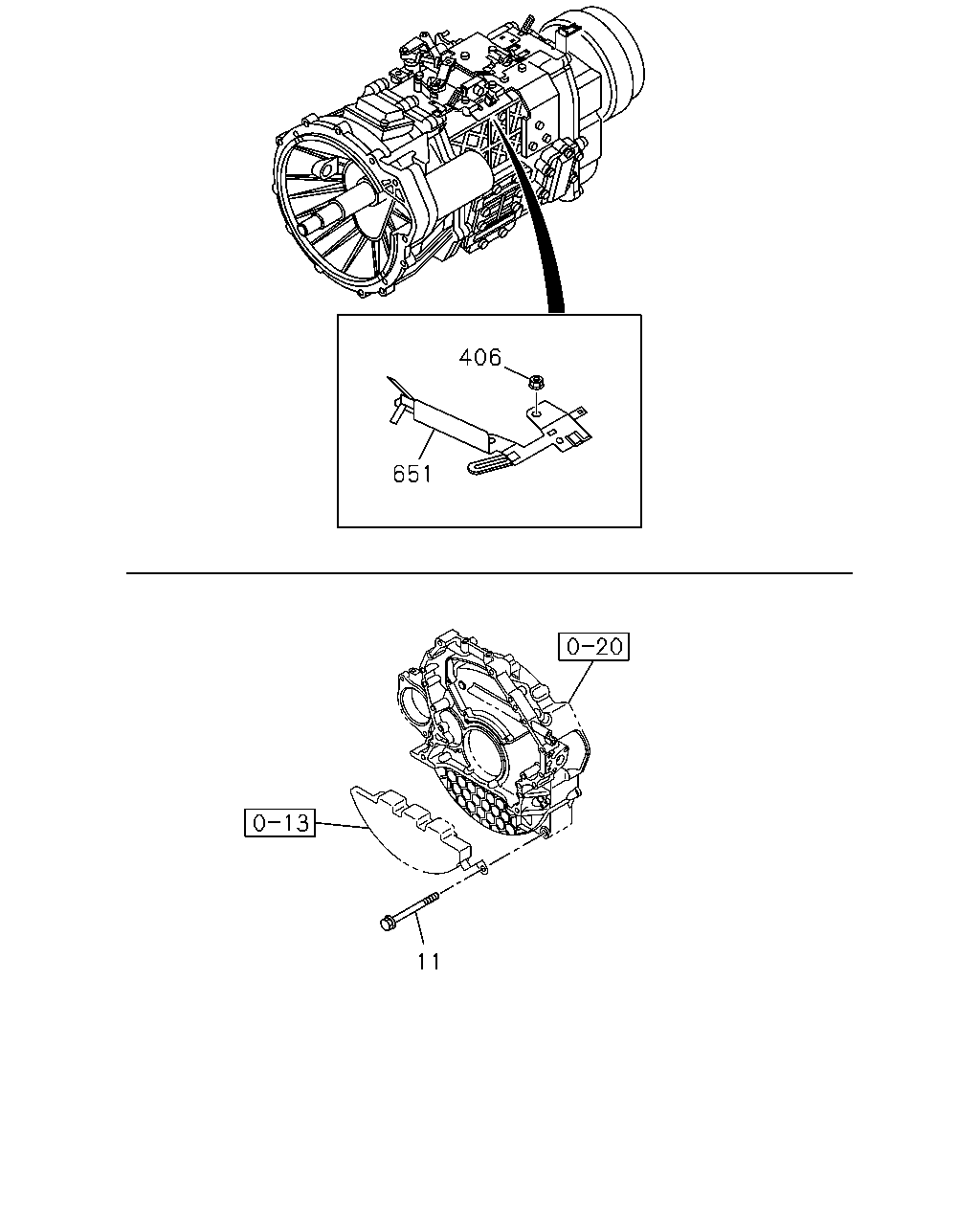

651 406 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT 4HK1-TCS ENG(RJS) M12X25 FLANGE	0-28151-225-0	01	1	1305-
406	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1305-
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS)	8-97609-800-3	01	1	1305-
