2-20 — MANUAL TRANSMISSION ASM AND CASE (#112656) — 110 parça

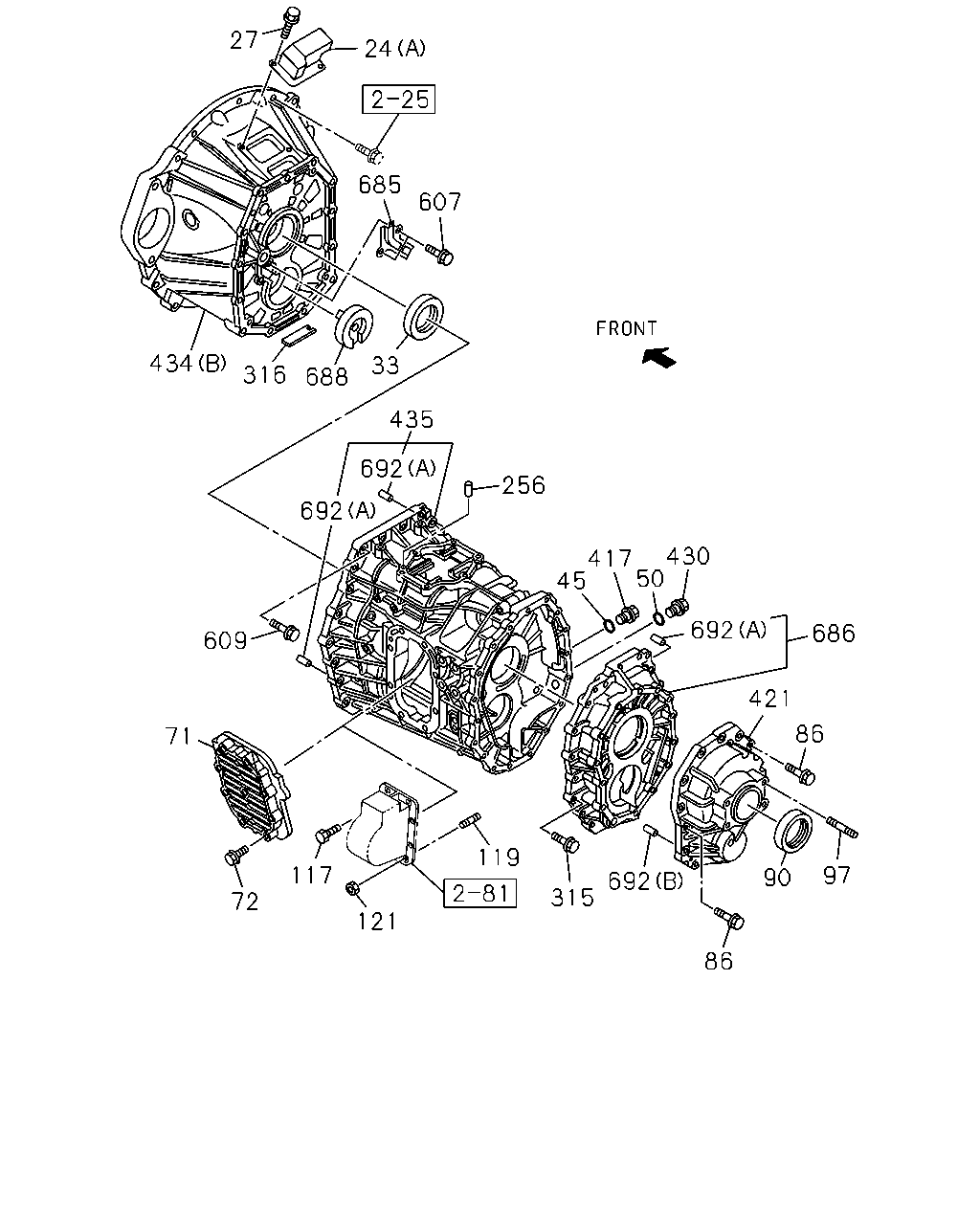

86 90 97 86 421 686 692 50 430 417 45 256 435 692 692 609 71 72 117 121 119 315 692 688 316 434 33 607 685 27 24 27 318 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9) (B)	8-98283-062-0	01	1	1411-
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6) (A)	1-31131-041-0	01	1	1302-1410
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6) (A)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG 14" CLUTCH(WF6) M8X12 FLANGE	0-28050-812-0	02	1	1302-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1302-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-318-0	01	1	1302-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1302-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1302-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1302-
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1302-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1302-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1302-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1302-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-
318	GASKET; COVER 15" CLUTCH(RE9)	1-31139-023-0	01	1	1411-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1302-
421	COVER; RR,TRANS 14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2>	8-98051-477-0	01	1	1302-
421	COVER; RR,TRANS 6HK1-TCN ENG(82L)	8-98004-790-1	01	1	1302-
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	8-98004-790-1	01	1	1302-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1302-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU 4HK1-TCS ENG(RJS) (B)	8-98004-507-2	01	1	1302-
434	HOUSING; CLU 6HK1-TCN ENG(82L) (A)	8-98004-506-2	01	1	1302-
435	CASE; TRANS	8-98186-449-0	01	1	1302-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1302-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1302-
685	COVER; OIL PORT	8-98018-864-1	01	1	1302-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1302-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1302-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1302-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1302-

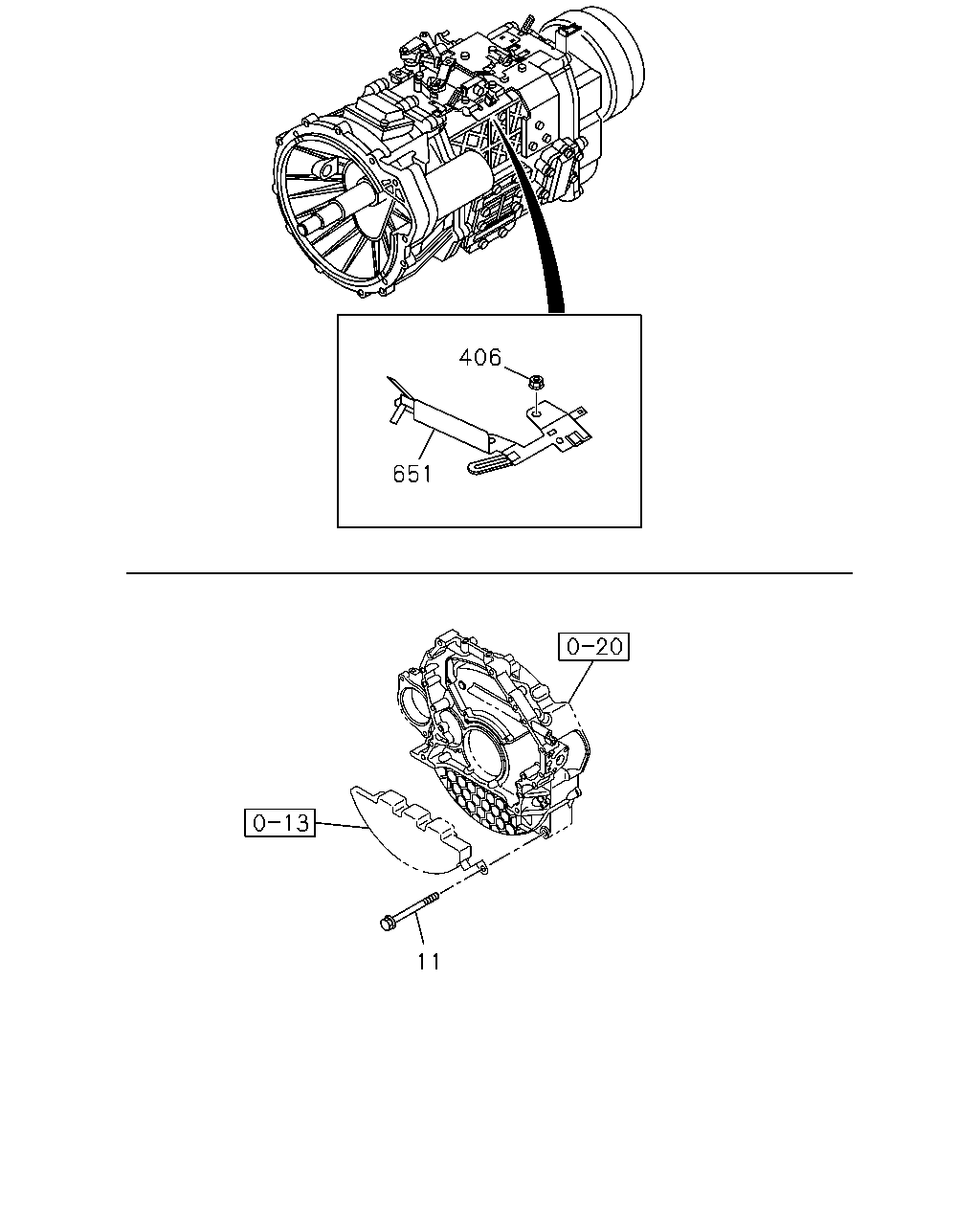

11 651 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT 4HK1-TCS ENG(RJS) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M12X25 FLANGE	0-28151-225-0	02	1	1302-
11	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M12X25 FLANGE	0-28151-225-0	01	1	1302-1308
11	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M12X25 FLANGE	0-28151-225-0	01	1	1309-
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1302-1405
406	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1406-
651	BRACKET; T/M HARNESS	8-97609-800-3	01	1	1302-1405
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS)	8-97609-800-3	01	1	1406-

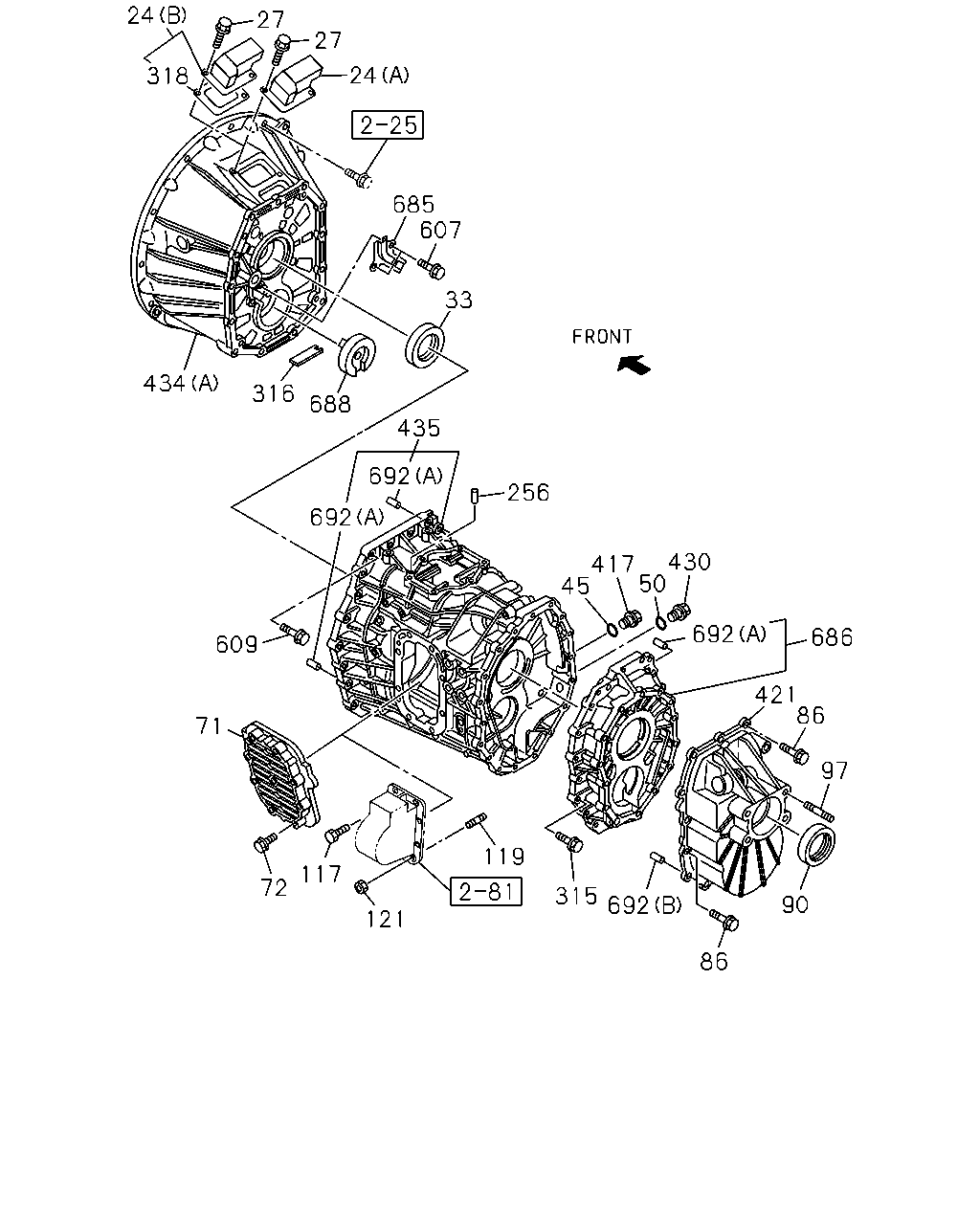

27 24 685 688 316 434 33 435 692 692 256 417 430 692 686 421 86 90 97 692 86 315 119 121 117 72 71 609 45 50 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9) (B)	8-98283-062-0	01	1	1411-
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6) (A)	1-31131-041-0	01	1	1302-1410
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6) (A)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG 14" CLUTCH(WF6) M8X12 FLANGE	0-28050-812-0	02	1	1302-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1302-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-318-0	01	1	1302-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1302-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1302-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1302-
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1302-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1302-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1302-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1302-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1302-
421	COVER; RR,TRANS 14" CLUTCH(WF6) EURO2 SPECIFICATION<NT2>	8-98051-477-0	01	1	1302-
421	COVER; RR,TRANS 6HK1-TCN ENG(82L)	8-98004-790-1	01	1	1302-
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	8-98004-790-1	01	1	1302-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1302-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU 4HK1-TCS ENG(RJS) (B)	8-98004-507-2	01	1	1302-
434	HOUSING; CLU 6HK1-TCN ENG(82L) (A)	8-98004-506-2	01	1	1302-
435	CASE; TRANS	8-98186-449-0	01	1	1302-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1302-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1302-
685	COVER; OIL PORT	8-98018-864-1	01	1	1302-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1302-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1302-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1302-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1302-

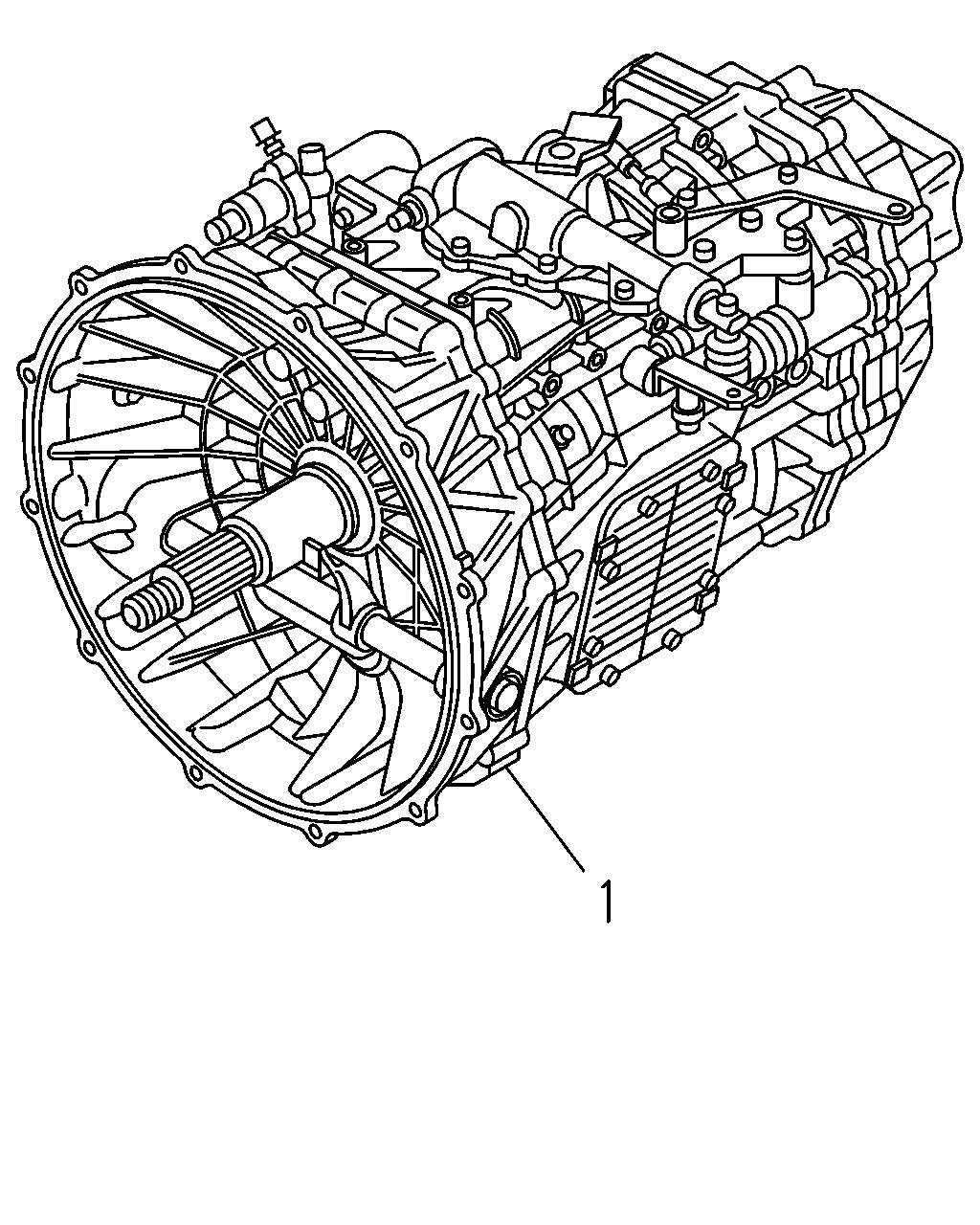

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-578-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) EURO2 SPECIFICATION<NT2> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) EURO2 SPECIFICATION<NT2> 14" CLUTCH(WF6) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<NT2>	8-98134-578-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98206-046-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98206-046-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98206-048-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98206-048-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-518-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-510-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-510-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
