Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#112651) — 135 parça

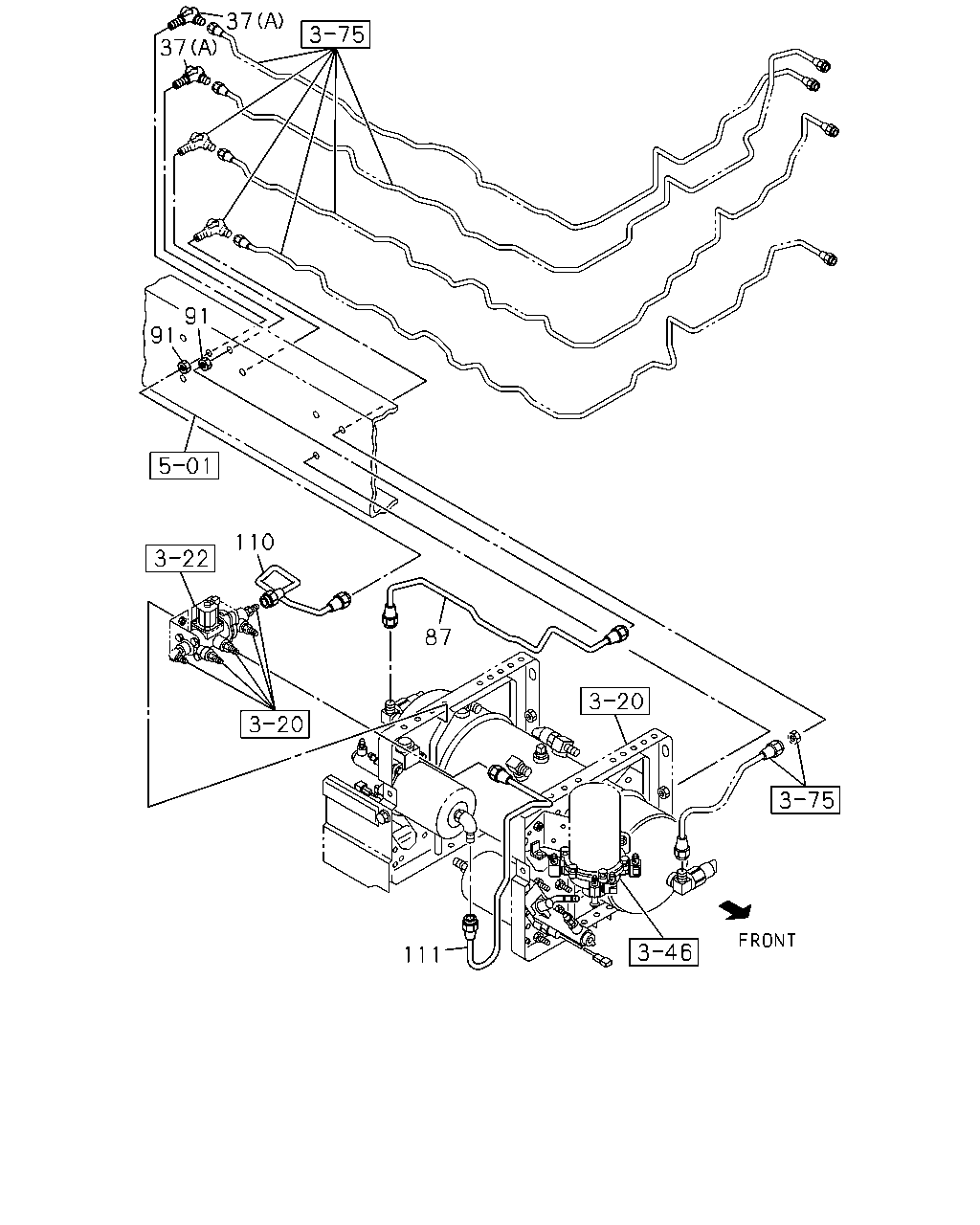

37 37 91 91 110 87 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1302-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=670 SERVICED BY L=700	1-47428-870-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=995 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=987 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1302-
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=473	8-98067-756-0	01	1	1302-
111	PIPE; AIR,VLV TO AIR MASTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1302-
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1302-
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=586 SERVICED BY L=600	1-47428-868-0	01	1	1302-
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=528 SERVICED BY L=550	1-47428-867-0	01	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	10	1	1501-
297	CLIP; BAND WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	1302-
297	CLIP; BAND WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	12	1	1302-
297	CLIP; BAND WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	13	1	1302-

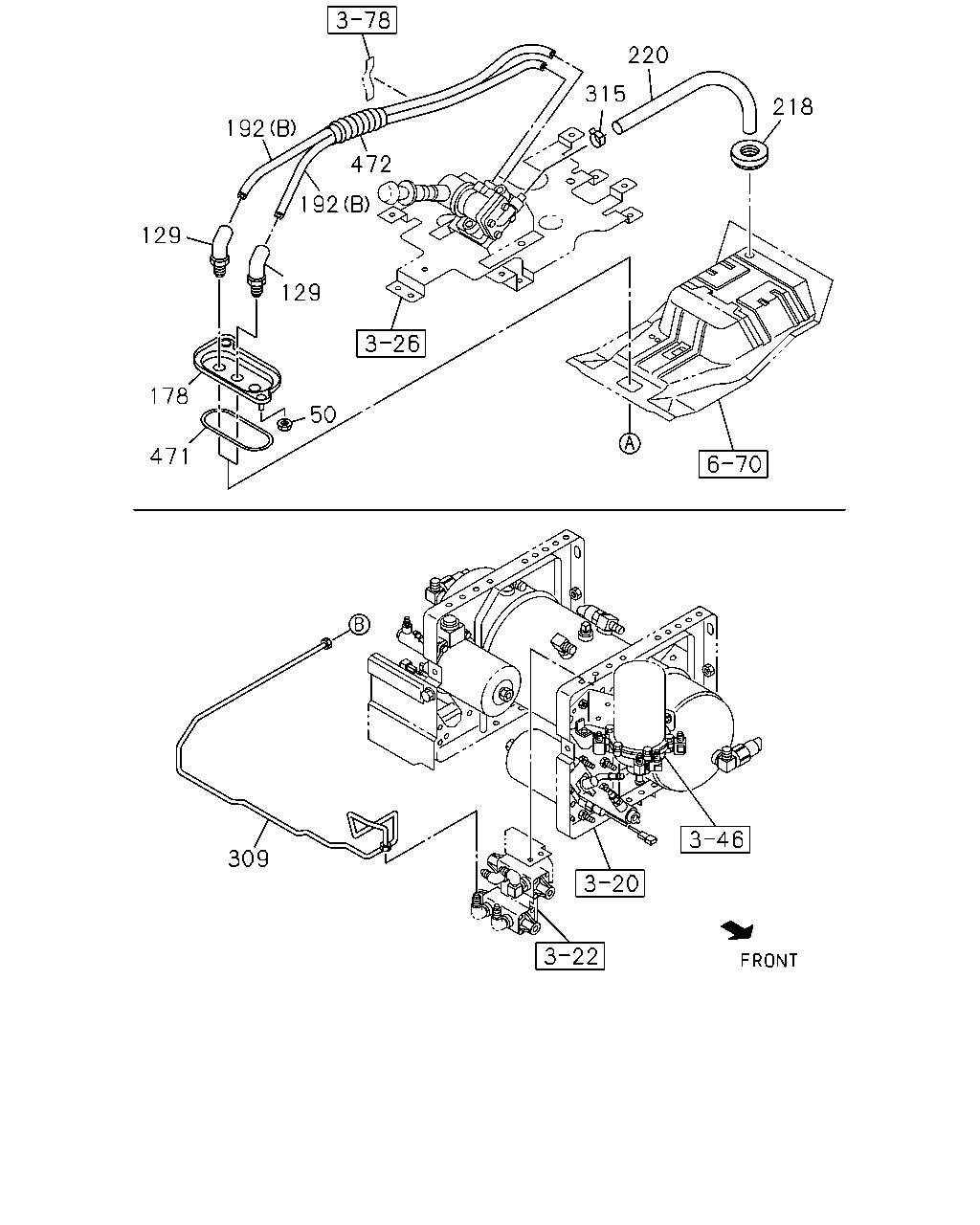

309 129 50 471 178 129 192 192 472 315 220 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1302-1305
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1302-
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-054-1	01	1	1302-
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-052-1	01	1	1302-
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1403-
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	1302-
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	10	1	1501-
297	CLIP; BAND WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	1302-
297	CLIP; BAND WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	12	1	1302-
297	CLIP; BAND WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	13	1	1302-
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1336 SERVICED BY L=1400	1-47428-878-0	01	1	1302-
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	1302-
471	SEAL; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT	1-79738-832-0	01	1	1302-1305
471	SEAL; BRKT	1-79738-832-0	01	1	1306-
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1302-

223 192 318 97 144 98 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1302-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1302-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1302-
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	1302-
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1408 SERVICED BY L=1550	1-47428-879-0	01	1	1302-
144	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=990 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
144	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=967 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
144	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1403-
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	1302-
223	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	10	1	1501-
297	CLIP; BAND WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	1302-
297	CLIP; BAND WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	12	1	1302-
297	CLIP; BAND WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	13	1	1302-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=537 SERVICED BY L=550	1-47428-867-0	01	1	1302-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=593 SERVICED BY L=600	1-47428-868-0	01	1	1302-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=1076 SERVICED BY L=1100	1-47428-875-0	01	1	1302-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=1158 SERVICED BY L=1250	1-47428-876-0	01	1	1302-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=1376 SERVICED BY L=1400	1-47428-878-0	01	1	1302-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	1302-

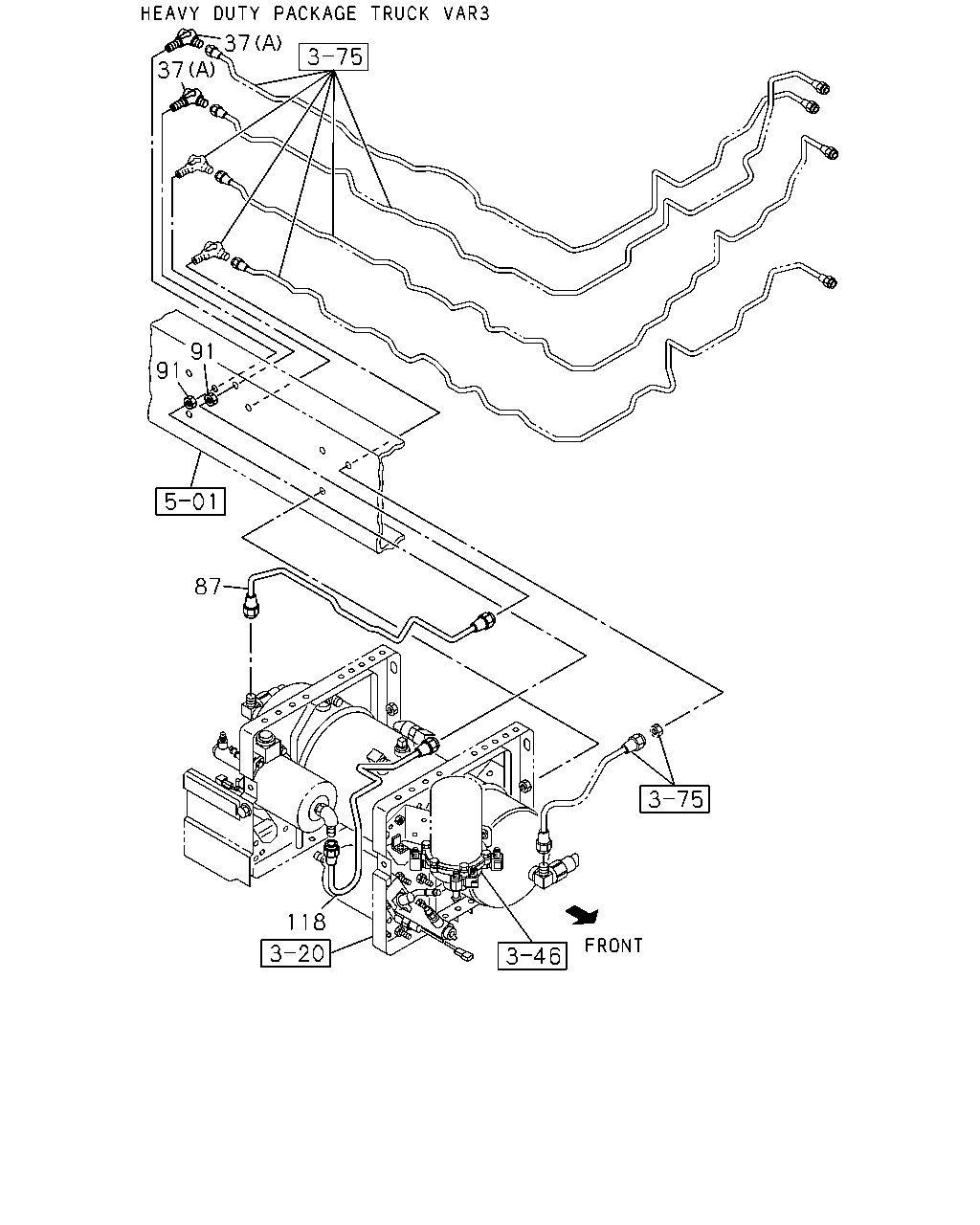

37 37 91 91 87 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1302-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=670 SERVICED BY L=700	1-47428-870-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=995 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=987 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=745 SERVICED BY L=800	1-47428-872-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) ,H.S.A SYSTEM<6EP> L=745 SERVICED BY L=800	1-47428-872-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=745 SERVICED BY L=800	1-47428-872-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=729 SERVICED BY L=730	1-47428-871-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=653 SERVICED BY L=660	1-47428-869-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=952 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	10	1	1501-
297	CLIP; BAND WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	1302-
297	CLIP; BAND WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	12	1	1302-
297	CLIP; BAND WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	13	1	1302-

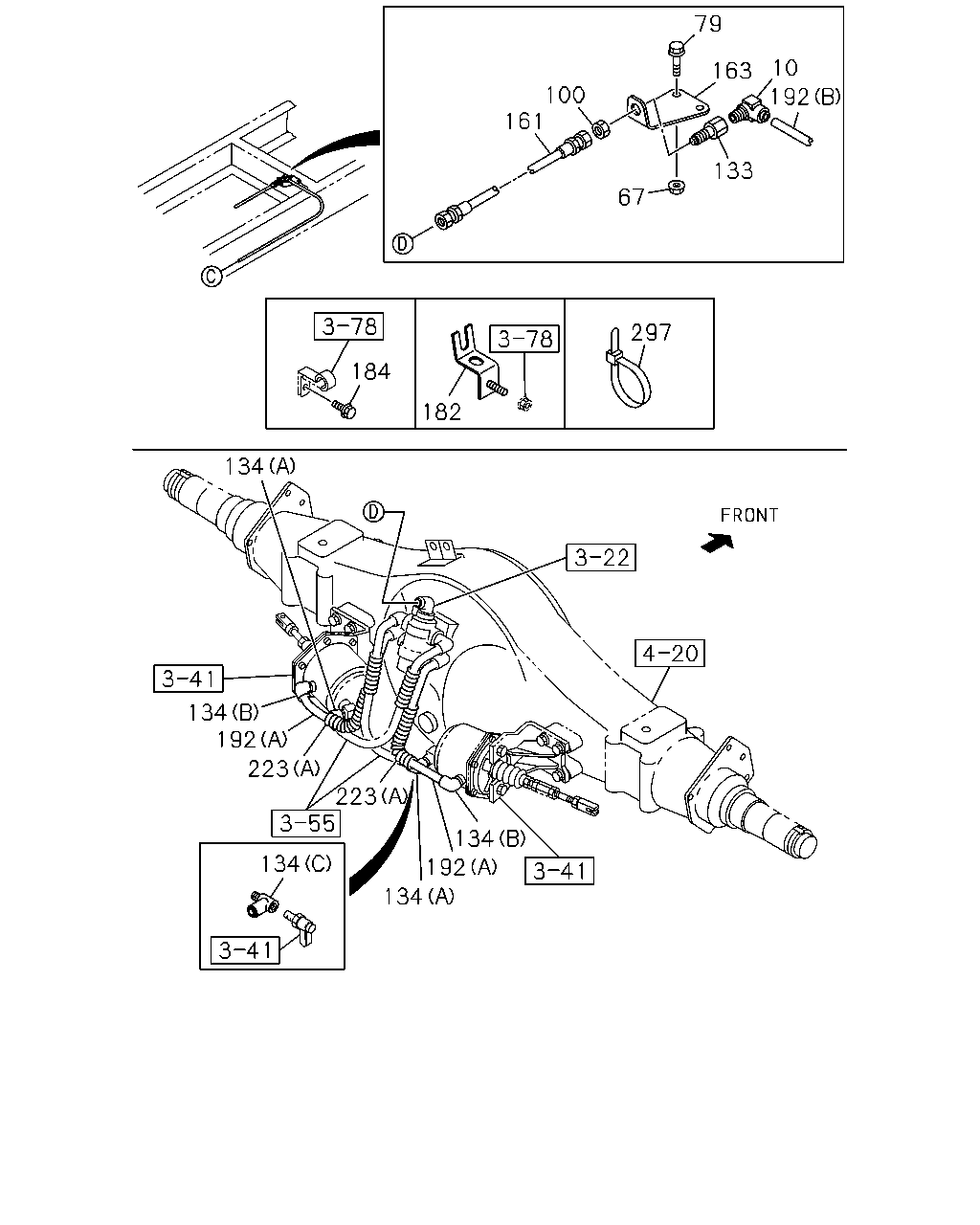

79 163 10 192 133 67 100 161 97 182 184 134 134 192 223 223 134 192 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1302-
100	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	1302-
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 & M16 STRAIGHT	8-98202-001-0	01	1	1302-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1302-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	1302-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460	1-09363-963-0	01	1	1302-
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-842-0	01	1	1302-
182	BRACKET; TUBE CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98096-272-0	01	1	1302-
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1302-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1403-
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	1302-
223	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	10	1	1501-
297	CLIP; BAND WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	1302-
297	CLIP; BAND WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	12	1	1302-
297	CLIP; BAND WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	13	1	1302-

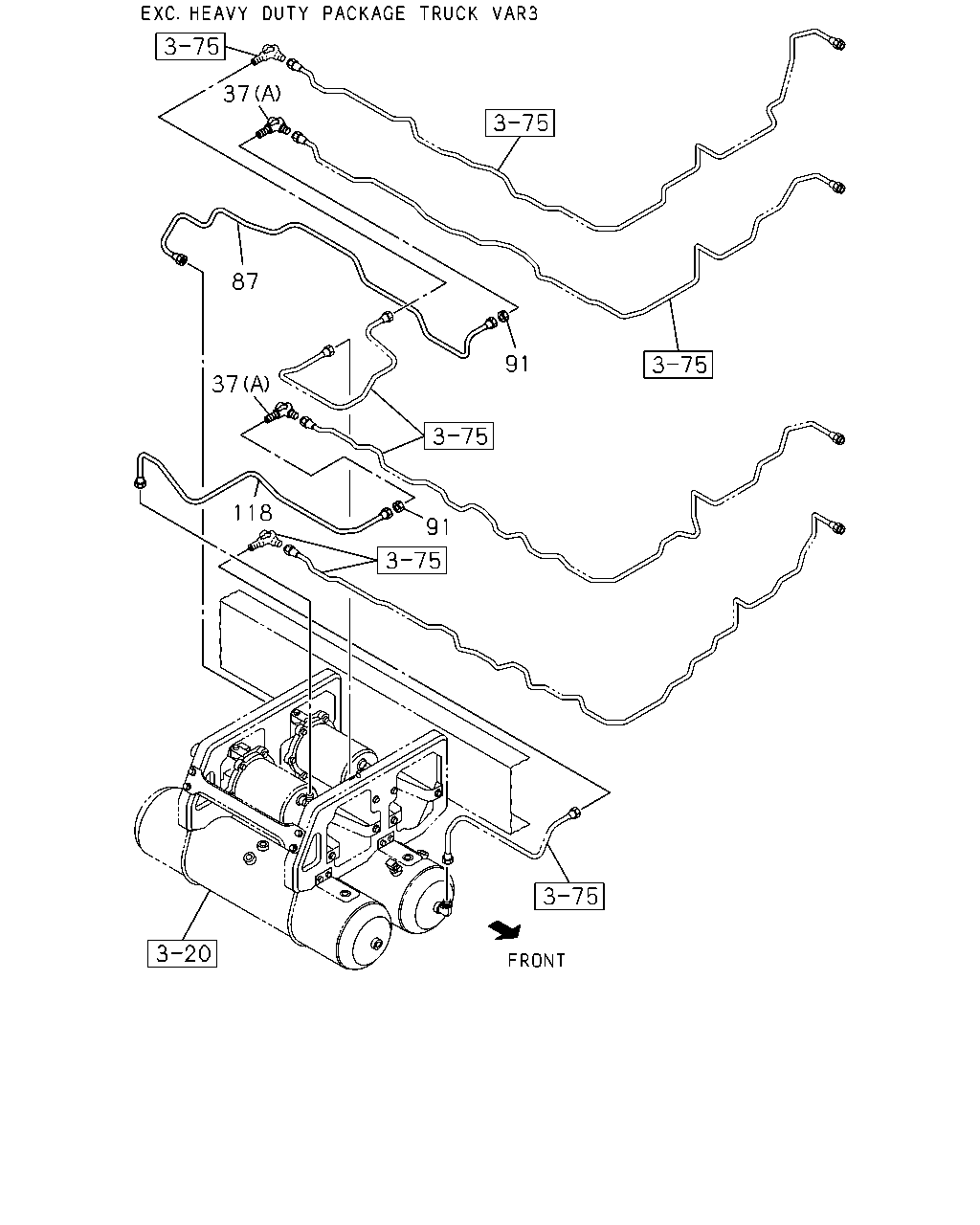

37 87 37 91 91 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1302-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=670 SERVICED BY L=700	1-47428-870-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=995 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
87	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=987 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=745 SERVICED BY L=800	1-47428-872-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) ,H.S.A SYSTEM<6EP> L=745 SERVICED BY L=800	1-47428-872-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=745 SERVICED BY L=800	1-47428-872-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=729 SERVICED BY L=730	1-47428-871-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=653 SERVICED BY L=660	1-47428-869-0	01	1	1302-
118	PIPE; AIR,UNION TO AIR MASTER 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=952 SERVICED BY L=1000	1-47428-874-0	01	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) RUSSIA EQUIPMENT(B12) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	10	1	1501-
297	CLIP; BAND WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1302-
297	CLIP; BAND WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	1302-
297	CLIP; BAND WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	12	1	1302-
297	CLIP; BAND WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	13	1	1302-
