3-70 — BRAKE PIPING; AIR,AIR MASTER (#112647) — 103 parça

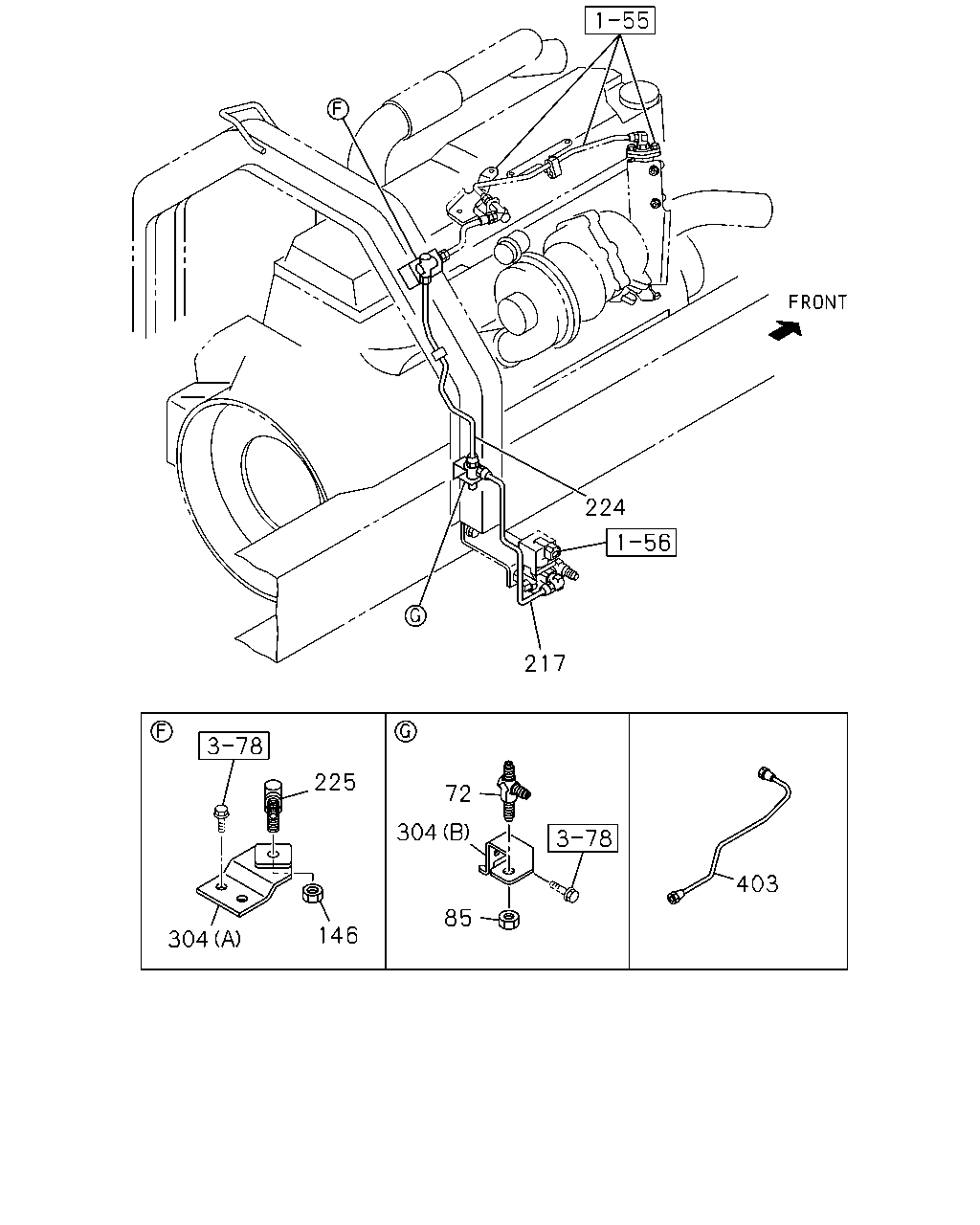

çizim 328099
224 217 403 72 304 225 146 304 85
BalonParca AdiParca NoAdetTipApplied Date
72 UNION; AIR PIPE
M12 2WAY 		1-09654-059-2 01 1 1302-
85 NUT; UNION
M12 		0-91111-512-0 01 1 1302-
146 NUT; UNION
M12 		9-09840-280-0 01 1 1302-
217 PIPE; VAC,UNION TO MAG VLV
L=319 		8-98230-345-0 01 1 1302-
224 PIPE; AIR,UNION TO FLEX HOSE
L=457 		8-98230-348-0 01 1 1302-
225 UNION; AIR PIPE
M12 ELBOW 		0-92125-006-0 01 1 1302-
304 BRACKET; UNION
(B) 		8-98211-164-1 01 1 1302-
304 BRACKET; UNION
(A) 		8-98232-278-0 01 1 1302-
403 PIPE; AIR,AIR TANK TO MAG VLV
L=1558 SERVICED BY L=1620 		1-47428-820-0 01 1 1302-

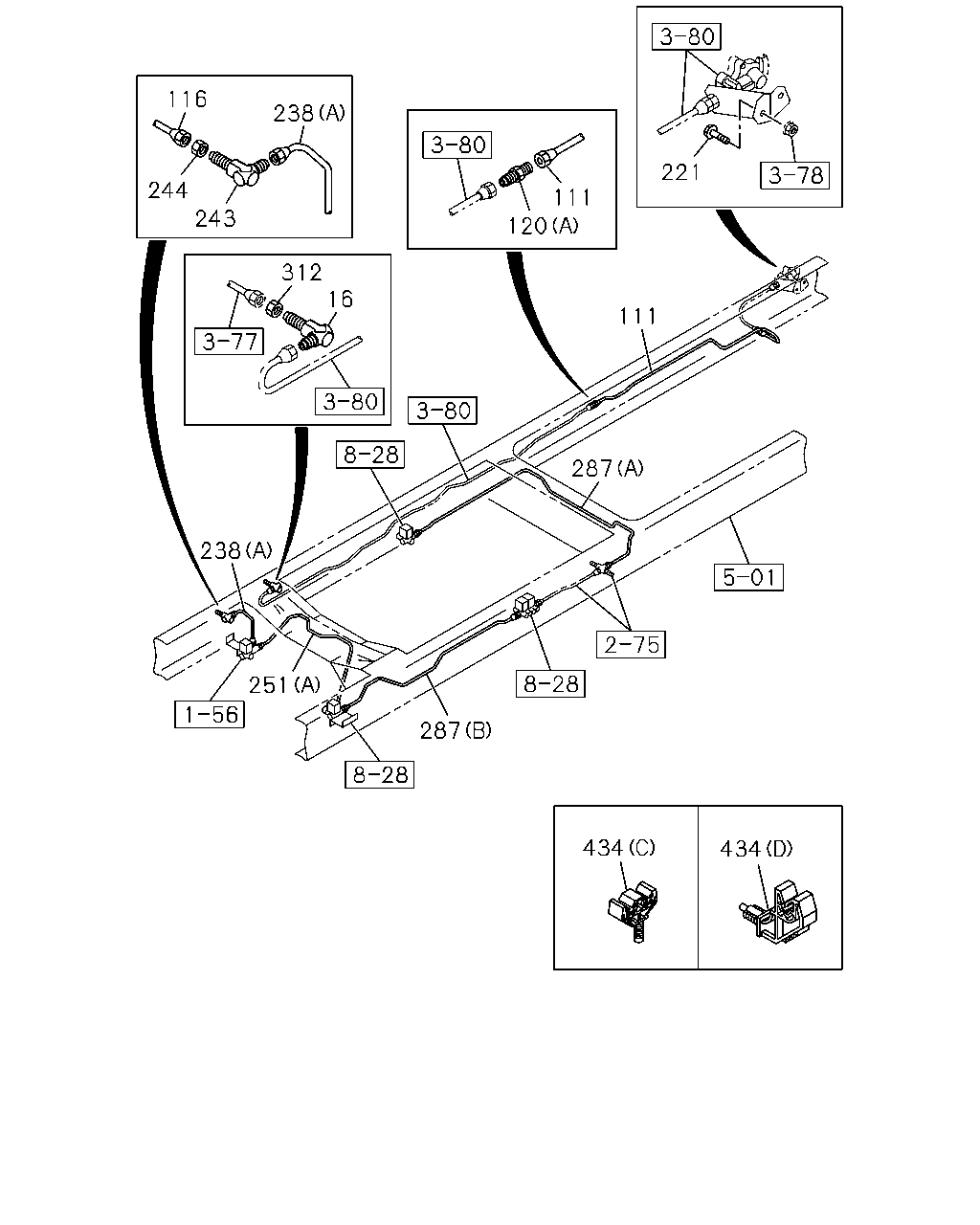

çizim 328210
116 238 244 243 111 120 221 312 16 238 287 111 251 287 434 434
BalonParca AdiParca NoAdetTipApplied Date
16 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW 		0-92135-210-0 01 1 1302-
111 PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1283 SERVICED BY L=1300 		1-47428-877-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
L=636 SERVICED BY L=650 		1-47428-810-0 01 1 1302-
120 CONNECTOR; AIR PIPE
(B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1302-
120 CONNECTOR; AIR PIPE
(C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
120 CONNECTOR; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1302-
221 BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE 		0-28651-030-0 02 1 1302-
238 PIPE; AIR,UNION TO UNION
(A) L=347 		8-98216-833-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
EXC. REARWARD INNER SINGLE TIRE<YK3> (B) L=1307 SERVICED BY L=1370 		1-47428-818-0 01 1 1302-
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1302-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
REARWARD INNER SINGLE TIRE<YK3> (A) L=1262 SERVICED BY L=1370 		1-47428-818-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3600MM(36W) (B) L=1207 SERVICED BY L=1250 		1-47428-817-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> (B) L=1138 SERVICED BY L=1200 		1-47428-816-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W) (B) L=1212 SERVICED BY L=1250 		1-47428-817-0 01 1 1302-
287 PIPE; AIR,MAG VLV
REARWARD INNER SINGLE TIRE<YK3> (B) L=1092 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
287 PIPE; AIR,MAG VLV
WHEEL BASE 4100MM(41W) (A) L=1672 SERVICED BY L=1700 		1-47428-821-0 01 1 1302-
312 NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 		0-91111-516-0 01 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 02 1 1302-
434 CLIP
WHEEL BASE 4100MM(41W) (D) ID=6.35 		1-09701-247-1 04 1 1302-
434 CLIP
WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 01 1 1302-
434 CLIP
WHEEL BASE 4200MM(42W) (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1302-

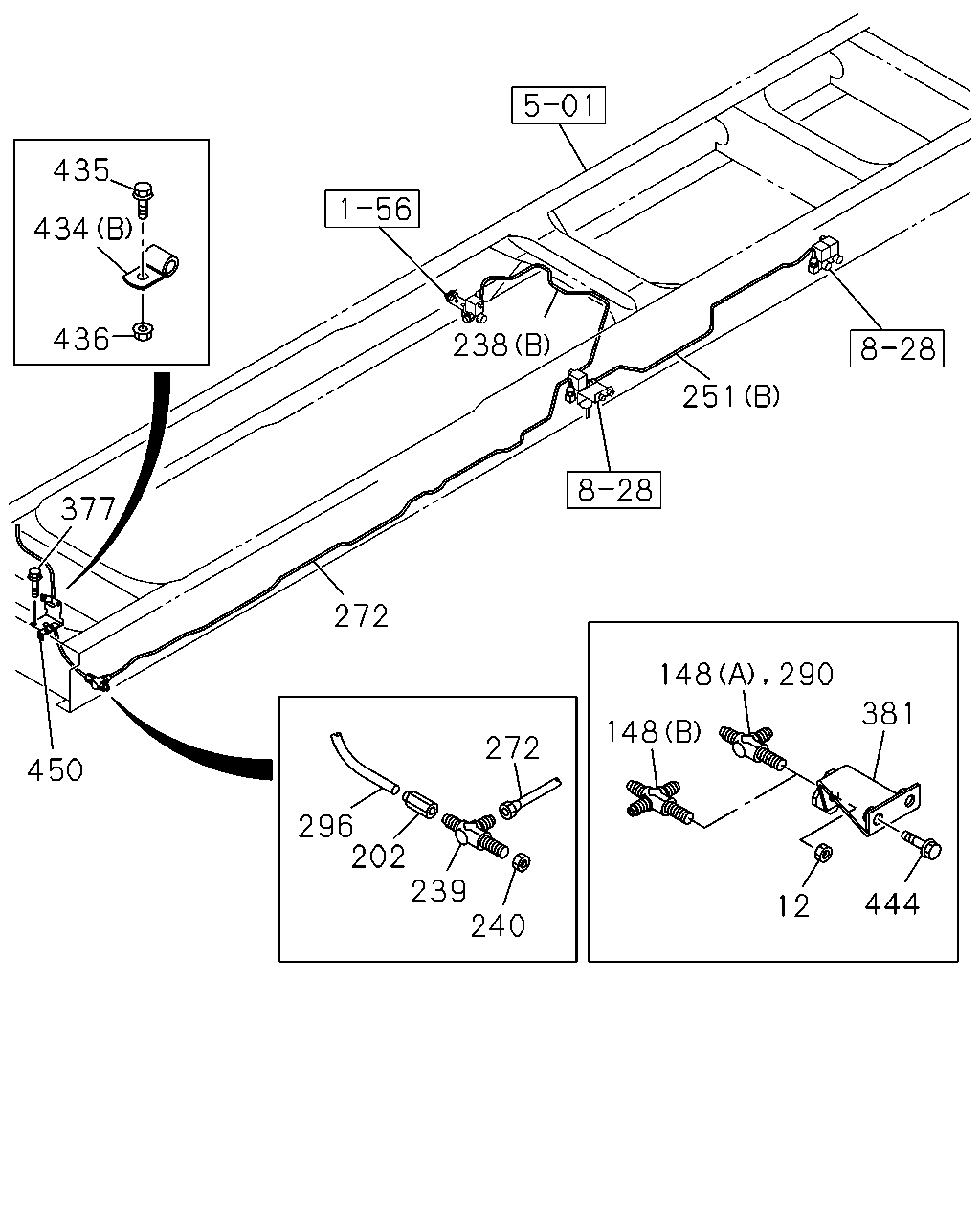

çizim 328415
435 434 436 377 272 450 238 251 272 296 202 239 240 148 148 290 381 12 444
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3> M12 		0-91111-512-0 01 1 1302-
12 NUT; UNION
M12 		0-91111-512-0 01 1 1302-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-92138-306-0 01 1 1302-
148 CONNECTOR; UNION
MANUAL TRANSMISSION<X9C> (B) M12 		0-92138-306-0 01 1 1302-
148 CONNECTOR; UNION
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3> (A) M12 2WAY 		1-09654-059-2 01 1 1302-
148 CONNECTOR; UNION
A/T<X9D> (A) M12 2WAY 		1-09654-059-2 01 1 1302-
202 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
(A) L=347 		8-98216-833-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
EXC. REARWARD INNER SINGLE TIRE<YK3> (B) L=1307 SERVICED BY L=1370 		1-47428-818-0 01 1 1302-
239 UNION; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 1302-
240 NUT; UNION,AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
REARWARD INNER SINGLE TIRE<YK3> (A) L=1262 SERVICED BY L=1370 		1-47428-818-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3600MM(36W) (B) L=1207 SERVICED BY L=1250 		1-47428-817-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> (B) L=1138 SERVICED BY L=1200 		1-47428-816-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W) (B) L=1212 SERVICED BY L=1250 		1-47428-817-0 01 1 1302-
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> L=2584 SERVICED BY L=2650 		1-47428-827-0 01 1 1302-
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=2651 SERVICED BY L=2900 		1-47428-828-0 01 1 1302-
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> L=2580 SERVICED BY L=2650 		1-47428-827-0 01 1 1302-
272 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=2646 SERVICED BY L=2650 		1-47428-827-0 01 1 1302-
290 UNION; AIR PIPE
M12 2WAY 		1-09654-059-2 01 1 1302-
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1302-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 1302-
381 BRACKET
EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3> 		8-98131-569-0 01 1 1302-
381 BRACKET 8-98131-569-0 01 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 02 1 1302-
434 CLIP
WHEEL BASE 4100MM(41W) (D) ID=6.35 		1-09701-247-1 04 1 1302-
434 CLIP
WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 01 1 1302-
434 CLIP
WHEEL BASE 4200MM(42W) (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1302-
435 BOLT; CLIP
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 1302-
444 BOLT; UNION
M10X30 FLANGE 		0-28651-030-0 02 1 1302-
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3> M10X30 FLANGE 		0-28651-030-0 02 1 1302-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> 		8-98070-479-0 01 1 1302-

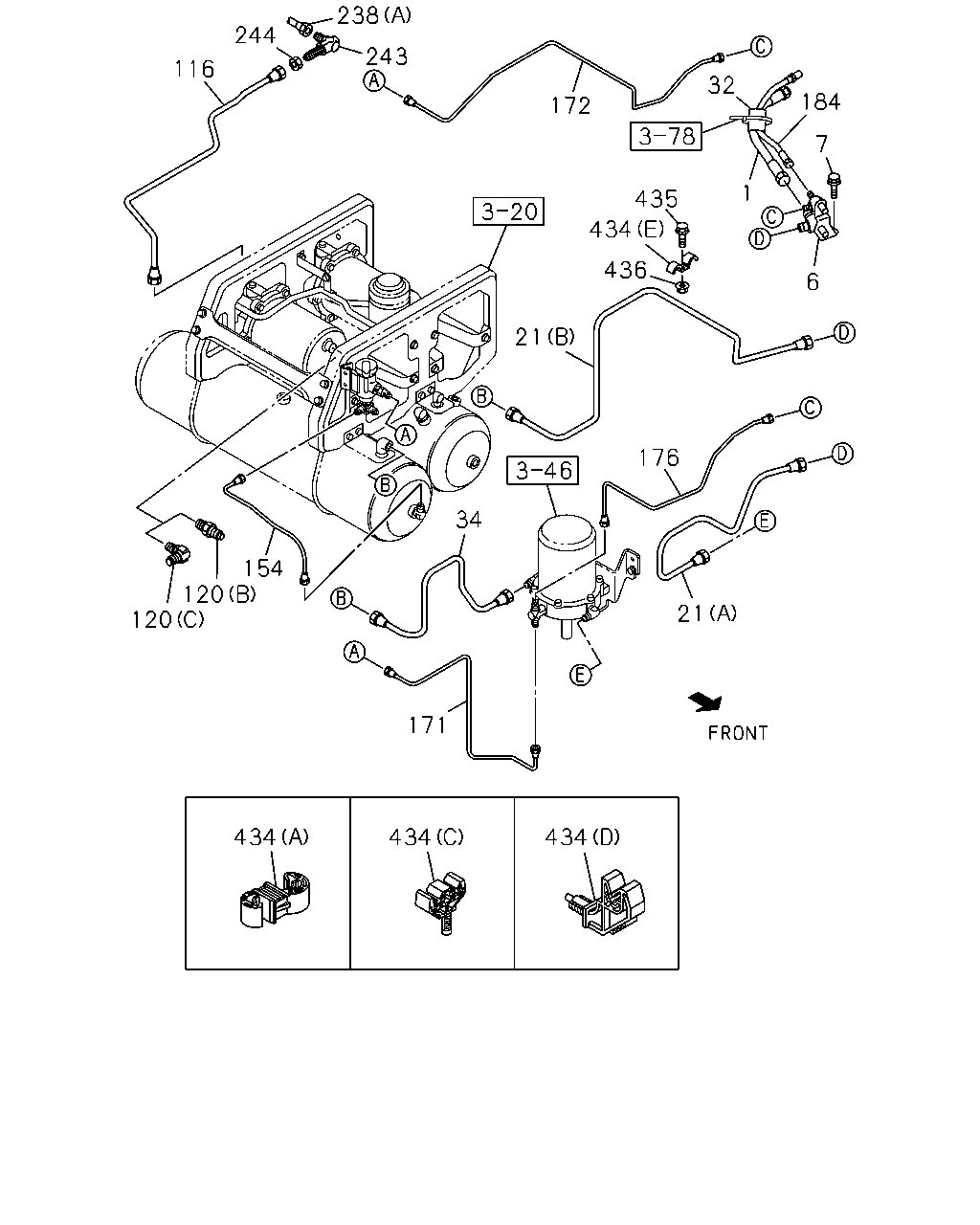

çizim 328416
238 244 243 116 172 32 184 7 435 434 6 436 21 176 34 21 171 154 120 120 434 434 434 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98140-111-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK 8-98133-392-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (A) L=747 		8-98218-225-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (B) L=1231 		8-98218-259-0 01 1 1302-
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1302-
34 PIPE; AIR
AIR DRYER<PS7> L=639 SERVICED BY L=660 		1-49115-480-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
L=636 SERVICED BY L=650 		1-47428-810-0 01 1 1302-
120 CONNECTOR; AIR PIPE
(B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1302-
120 CONNECTOR; AIR PIPE
(C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
120 CONNECTOR; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV 8-98152-813-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=762 SERVICED BY L=800 		1-47428-812-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER<PS7> 		8-98218-261-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=730 SERVICED BY L=800 		1-47428-812-0 01 1 1302-
184 HOSE; FLEX,AIR GOV
L=340 		1-09363-622-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
(A) L=347 		8-98216-833-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
EXC. REARWARD INNER SINGLE TIRE<YK3> (B) L=1307 SERVICED BY L=1370 		1-47428-818-0 01 1 1302-
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1302-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35 		1-09701-247-1 02 1 1302-
434 CLIP
WHEEL BASE 4100MM(41W) (D) ID=6.35 		1-09701-247-1 04 1 1302-
434 CLIP
WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 01 1 1302-
434 CLIP
WHEEL BASE 4200MM(42W) (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1302-
435 BOLT; CLIP
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 1302-
