Isuzu WW
▶
TRUCKS
▶
FTR
▶
11513 - FTR-RHD EURO2
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#112644) — 24 parça
◀

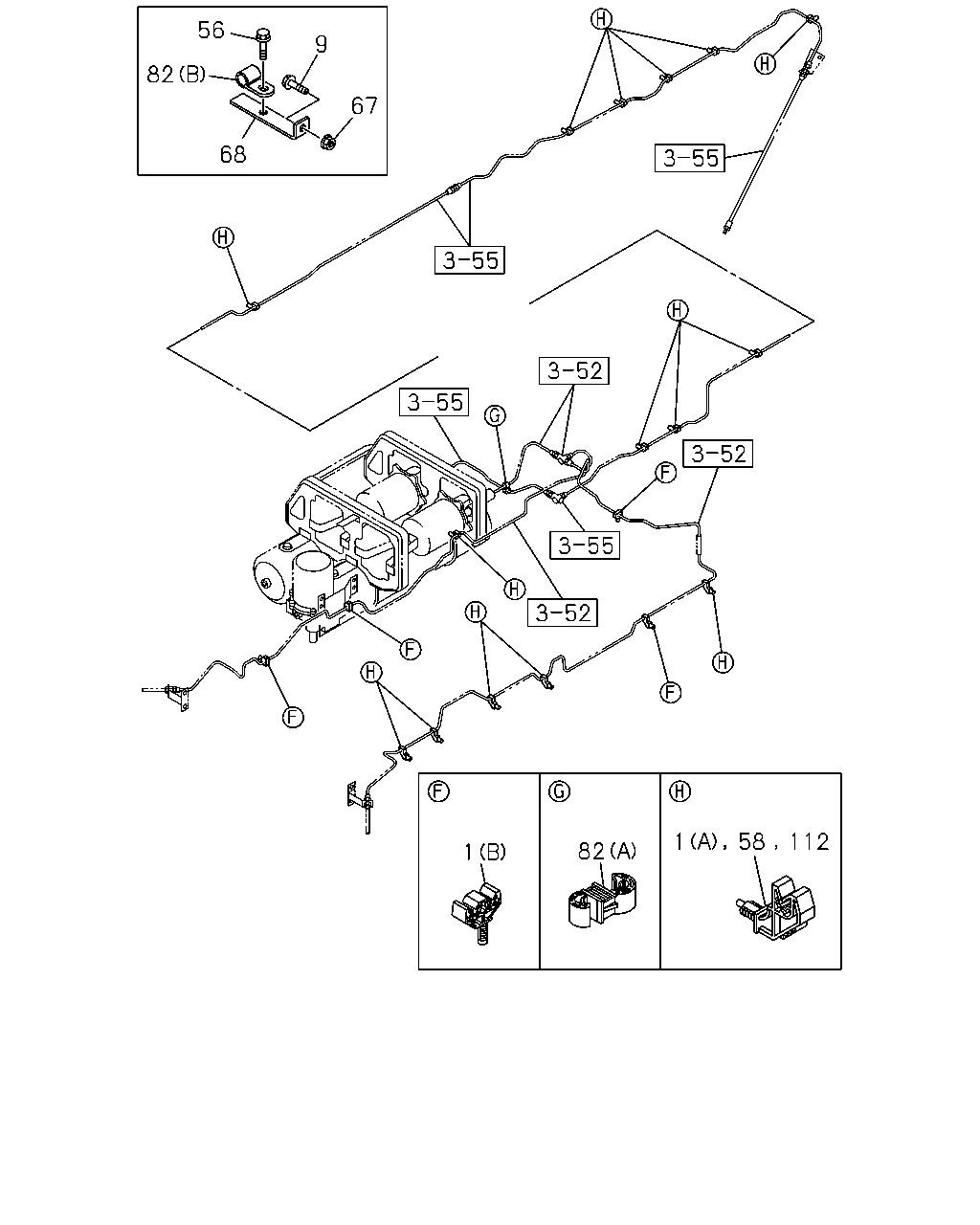

[358A] BRK SYSTEM AIR OVER HYD DUAL CIRC NO.1 (17 parça)

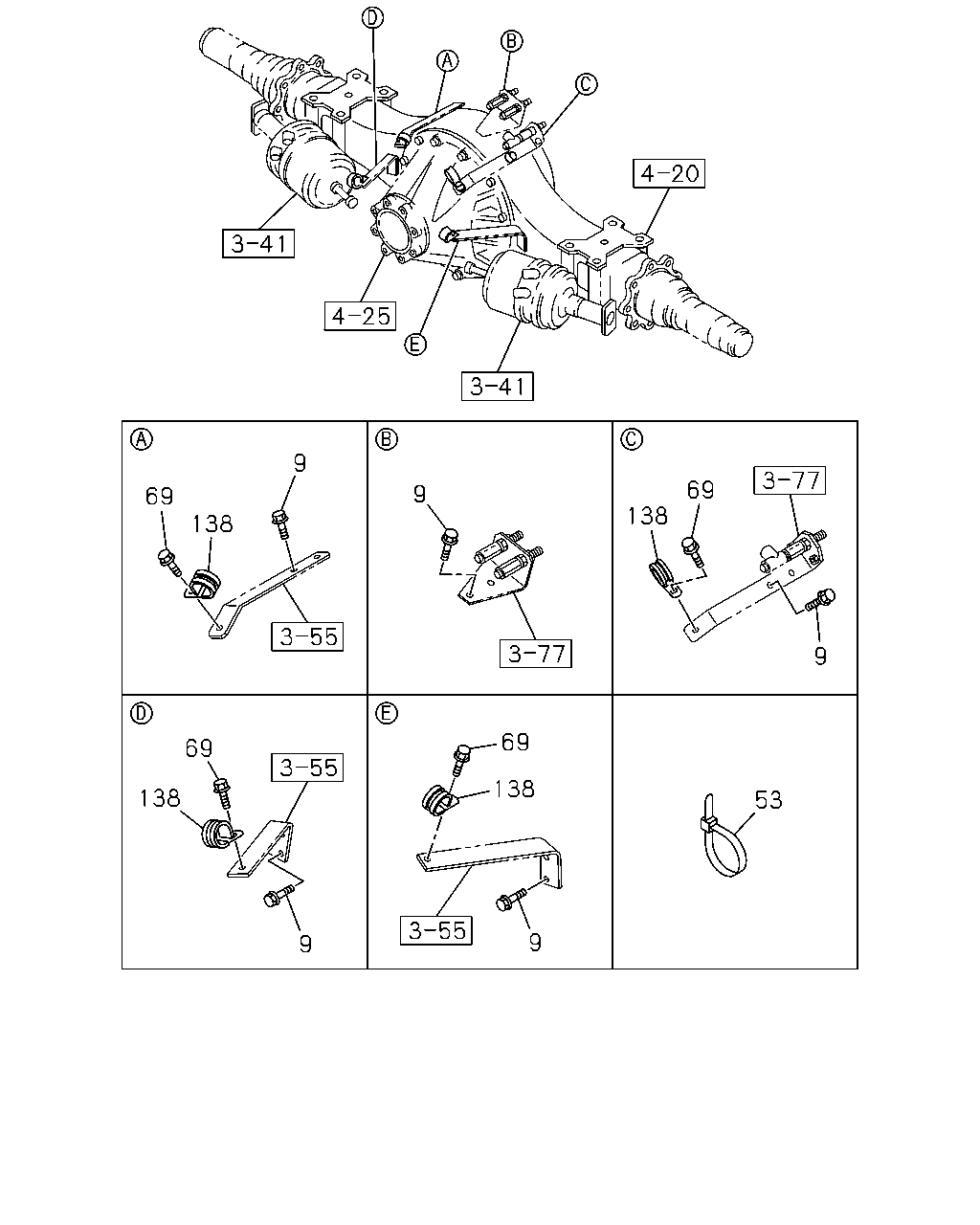

[358A] BRAKE SYSTEM FULL AIR DUAL CIRCUIT (5 parça)
[358A] BRK SYSTEM AIR OVER HYD DUAL CIRC NO.2 (2 parça)
▶
56
9
67
68
82
1
82
1
58
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
4HK1-TCS ENG(RJS) (A) ID=6.35
1-09701-247-1
04
1
1305-
1
CLIP; OIL PIPE TO BODY
4HK1-TCS ENG(RJS) (B)
8-98012-254-1
06
1
1305-
1
CLIP; OIL PIPE TO BODY
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35
1-09701-247-1
06
1
1302-
1
CLIP; OIL PIPE TO BODY
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)
8-98012-254-1
04
1
1302-
9
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE
0-28650-830-0
01
1
1302-
9
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE
0-28050-816-0
10
1
1302-
56
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE
0-28650-820-0
01
1
1302-
58
CLIP; OIL PIPE
4HK1-TCS ENG(RJS) ID=6.35
1-09701-247-1
05
1
1305-
58
CLIP; OIL PIPE
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35
1-09701-247-1
06
1
1302-
67
NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE
0-91180-108-0
01
1
1305-
68
BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
1-47475-519-0
01
1
1302-
82
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 L=16
0-95234-625-0
01
1
1302-
82
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 6.35
1-09709-273-1
01
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35
1-09701-247-1
02
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35
1-09701-247-1
03
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35
1-09701-247-1
04
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35
1-09701-247-1
05
1
1302-
138
69
9
53
69
138
9
9
138
69
138
9
69
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE
0-28650-830-0
01
1
1302-
9
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE
0-28050-816-0
10
1
1302-
53
CLIP; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250
1-09707-126-0
01
1
1302-
69
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE
0-28050-820-0
04
1
1302-
138
CLIP; TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=35 L=33
1-09700-945-0
04
1
1302-
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20
0-95234-635-0
04
1
1302-
59
BOLT; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE
0-28050-810-0
04
1
1302-
