Isuzu WW
▶
TRUCKS
▶
FRR
▶
11506 - FRR RHD EURO2 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#112642) — 15 parça
◀

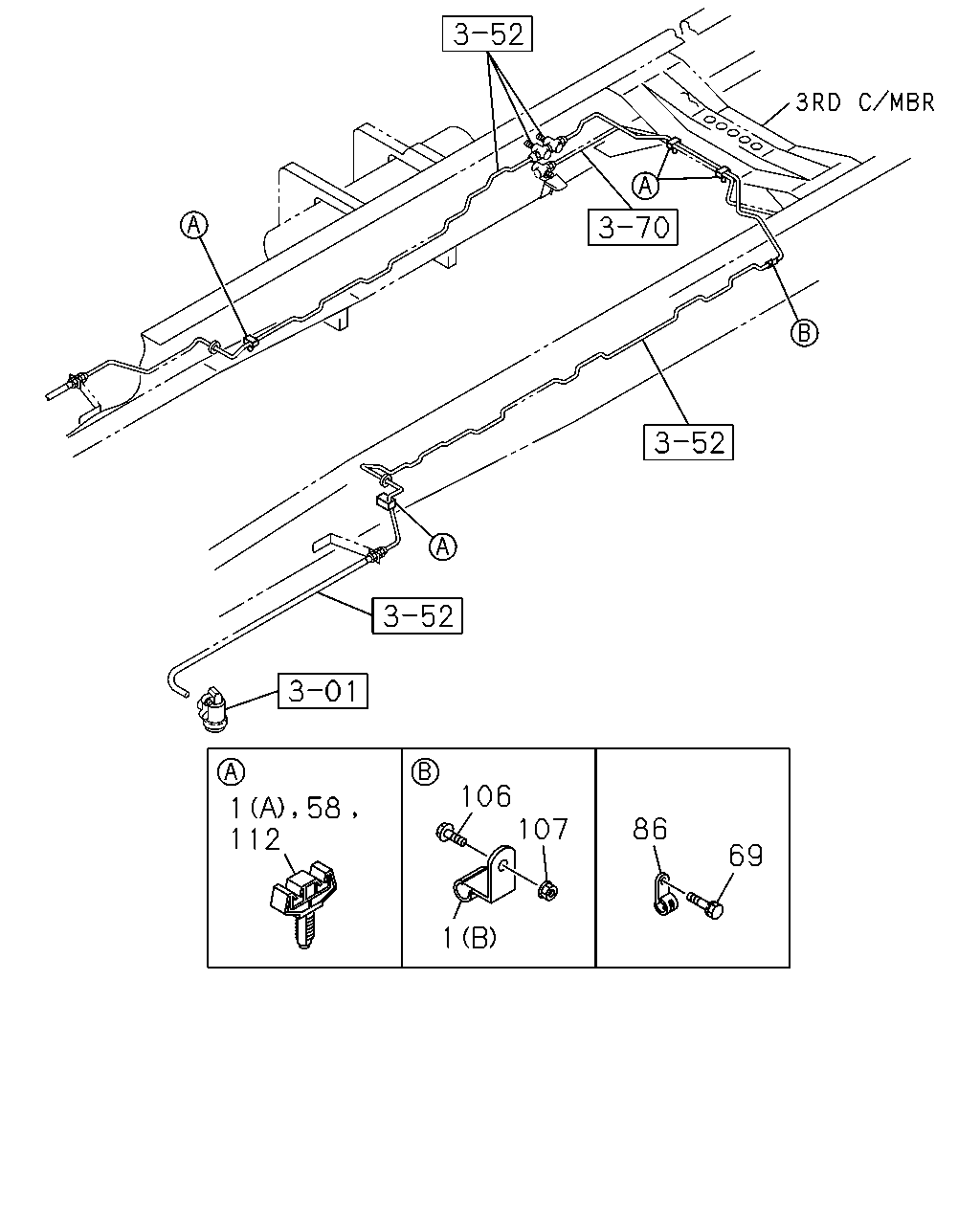

[358A] FRAME SIDE (10 parça)

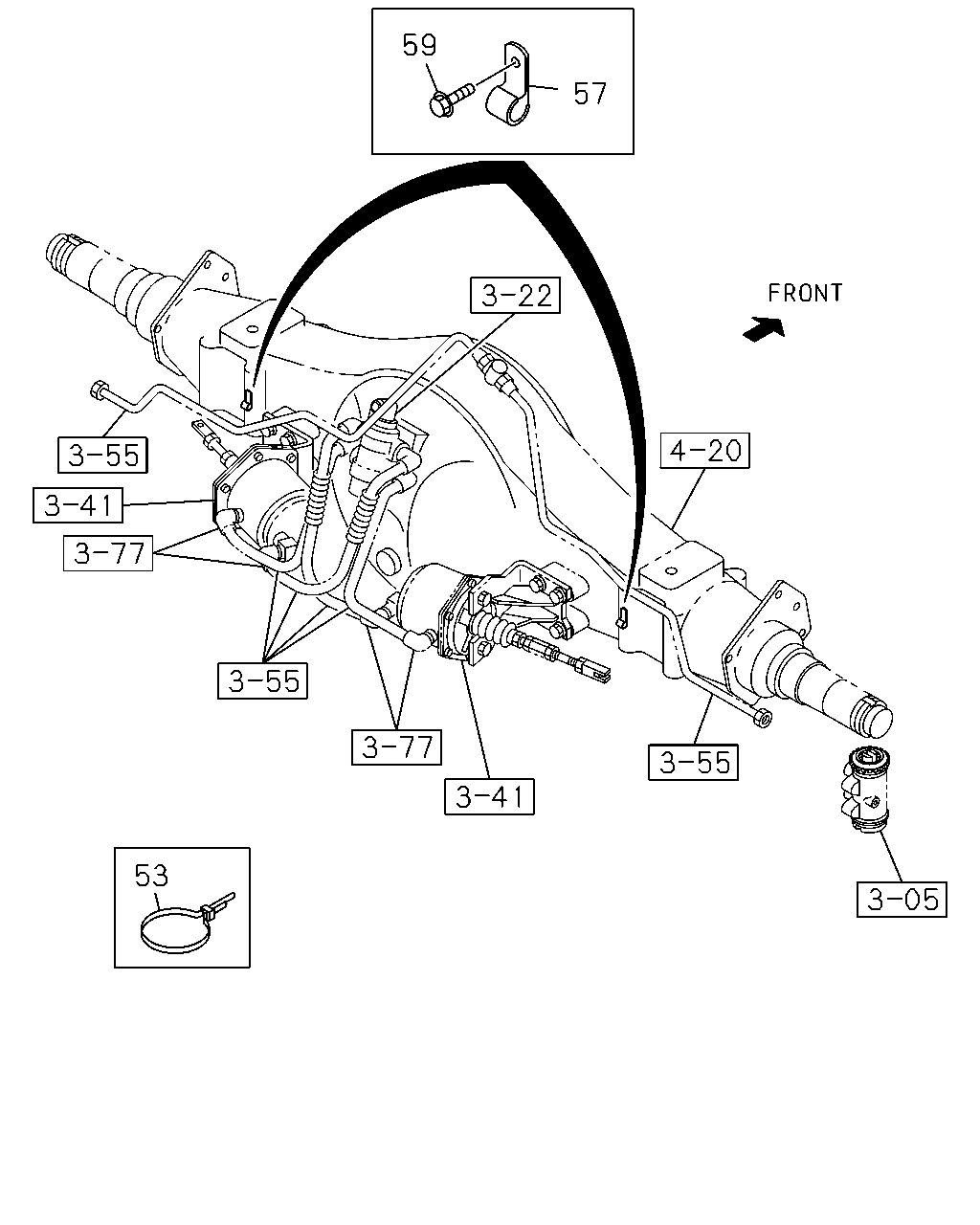

[358A] REAR AXLE SIDE (5 parça)
▶
1
58
112
106
107
1
86
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
07
1
1302-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
05
1
1302-
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1302-
69
BOLT; CLIP
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 FLANGE
0-28050-816-0
02
1
1302-
86
CLIP; OIL PIPE
EXC. BRAKE ADJUSTER MANUAL<BJR>
8-98085-372-0
02
1
1302-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
05
1
1302-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
05
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W)
8-98012-254-1
02
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 4300MM(43W)
8-98012-254-1
04
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 4800MM(48W)
8-98012-254-1
05
1
1302-
53
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250
1-09707-126-0
05
1
1302-
57
CLIP; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20
0-95234-635-0
04
1
1302-
57
CLIP; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20
0-95234-635-0
02
1
1302-
59
BOLT; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE
0-28050-810-0
04
1
1302-
59
BOLT; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE
0-28050-810-0
02
1
1302-
