3-55 — BRAKE PIPING; OIL,REAR (#112641) — 70 parça

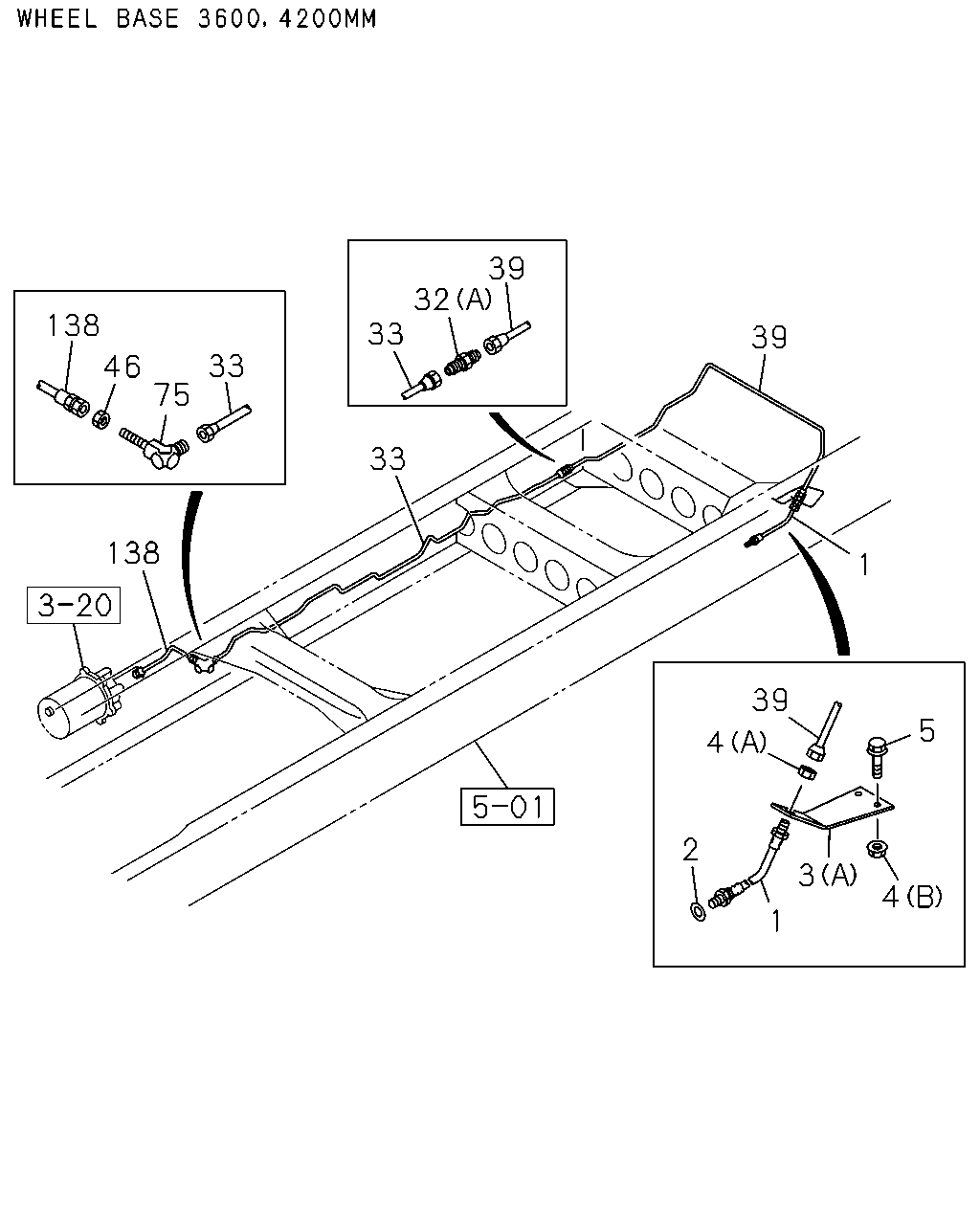

138 33 138 33 78 39 32 39 3 4 1 5 4 138 46 75 33 78 138 32 33 82 82 81 82 4 1 3 4 5 81 46 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> L=730	0-05212-730-0	01	1	1302-
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> L=770	0-05212-770-0	01	1	1302-1306
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> L=770	0-05212-770-0	01	1	1307-
1	HOSE; FLEX,RR BRK CONVERTING INTO 6X6<BCC> L=770	0-05212-770-0	01	1	1307-
3	BRACKET; FLEX HOSE,RR BRK DOUBLE TIRE REARWARD<SR6> (A)	1-47465-251-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK REARWARD INNER SINGLE TIRE<YK3> (B)	8-98146-322-0	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M8 FLANGE	0-91180-108-0	02	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M12	9-09840-280-0	01	1	1302-1306
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M12	9-09840-280-0	01	1	1307-
4	NUT; BRKT,FLEX HOSE,RR BRK CONVERTING INTO 6X6<BCC> (A) M12	9-09840-280-0	01	1	1307-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1302-
32	UNION; OIL PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 L=40	0-92113-006-0	01	1	1302-
32	UNION; OIL PIPE WHEEL BASE 4100MM(41W) (B) M12 3WAY	1-09654-137-2	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=1439	8-98111-269-1	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) L=2668 SERVICED BY L=2900	1-47428-744-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2052	8-98167-793-1	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> L=684 SERVICED BY L=700	1-47428-727-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. BRK WHL LK CONT LSPV<6PH> L=612 SERVICED BY L=650	1-47428-726-0	01	1	1302-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1302-
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1302-
78	NUT; UNION,OIL PIPE WHEEL BASE 4100MM(41W) M12	0-91111-512-0	01	1	1302-

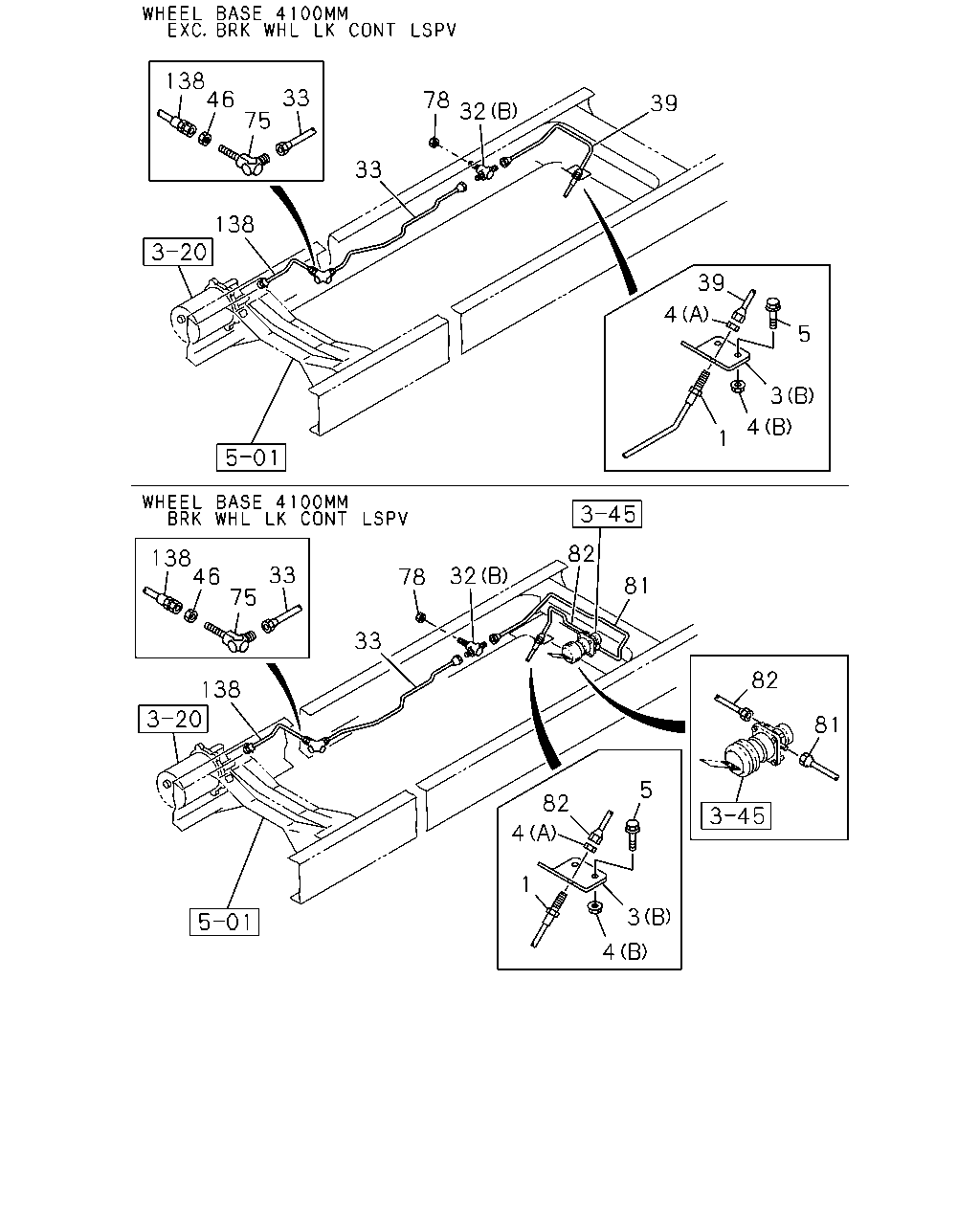

81	PIPE; OIL,UNION TO LSPV WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> L=1222 SERVICED BY L=1250	1-47428-733-0	01	1	1302-
82	PIPE; OIL,LSPV TO FLEX HOSE WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> L=366	8-98152-597-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT L=531 SERVICED BY L=550	1-47428-724-0	01	1	1302-

42 42

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

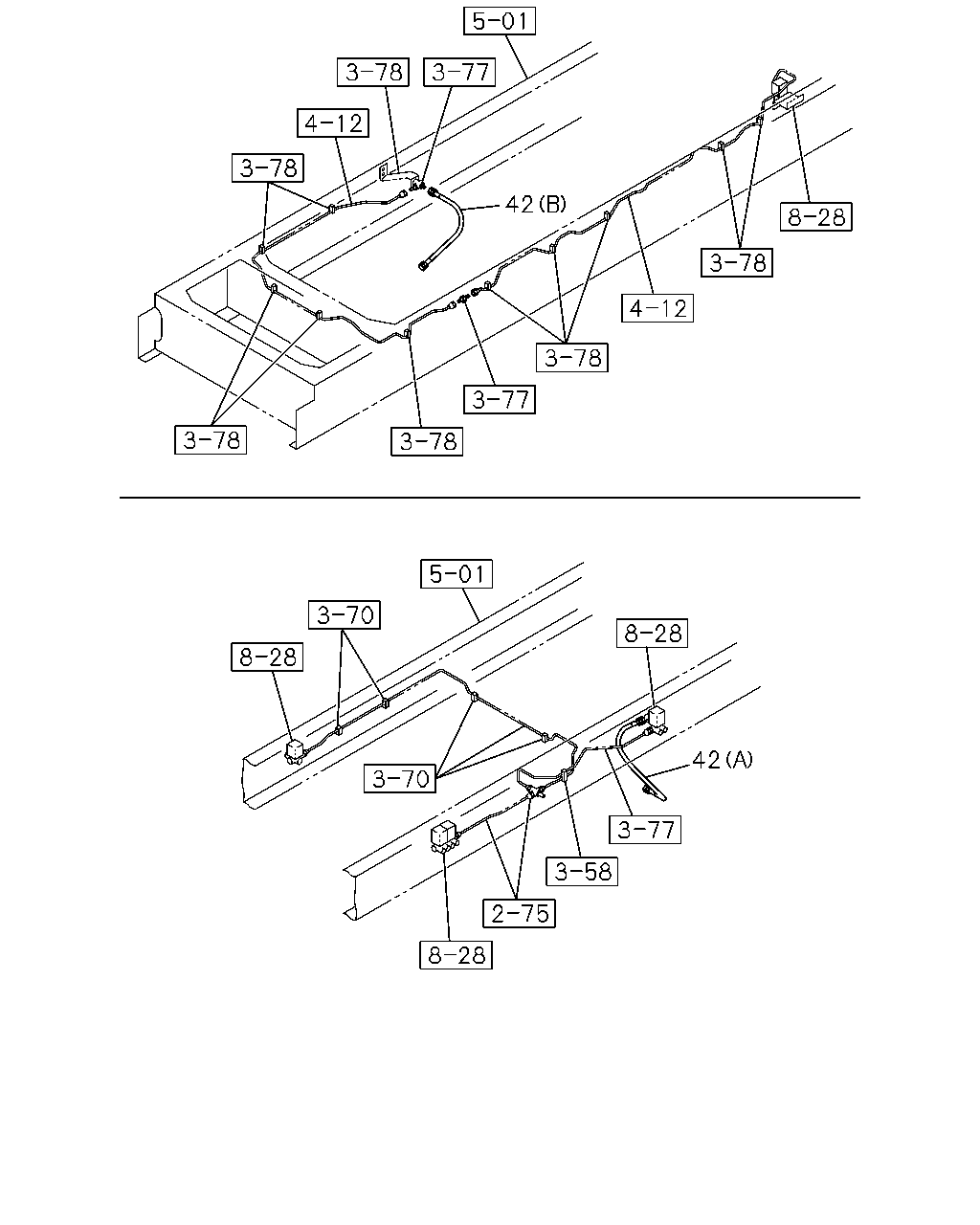

	42	HOSE; FLEX,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A)	8-98142-049-0	01	1	1302-
	42	HOSE; FLEX,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (B)	1-09363-650-0	01	1	1302-

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

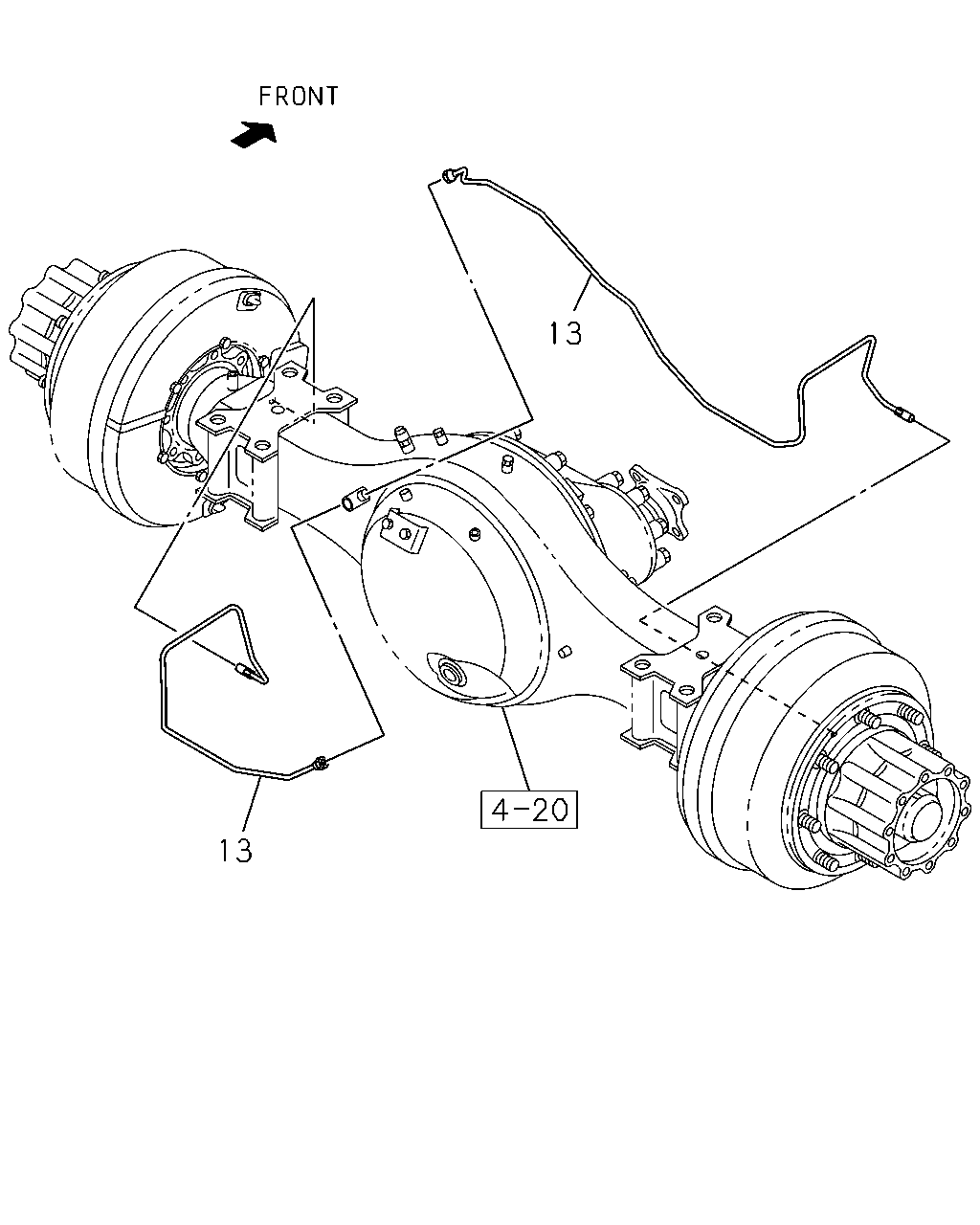

13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 14.5"(W1J) CONVERTING INTO 6X6<BCC>	8-98139-122-1	02	1	1406-1410
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 14.5"(W1J) CONVERTING INTO 6X6<BCC>	8-98139-123-1	02	1	1406-1410
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR>	1-47428-644-0	01	1	1302-
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR>	1-47428-643-0	01	1	1302-
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98134-990-0	01	1	1302-
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98134-989-0	01	1	1302-
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98139-123-1	01	1	1302-1306
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98139-123-1	01	1	1307-1401
13	PIPE; BRK,RR AXLE CONVERTING INTO 6X6<BCC>	8-98139-123-1	01	1	1307-1401
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98139-123-1	01	1	1402-1405
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G)	8-98139-123-1	01	1	1406-1410
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 14.5"(W1J) EXC. CONVERTING INTO 6X6<BCC>	8-98139-123-1	01	1	1406-1410
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98139-123-1	01	1	1411-
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98139-122-1	01	1	1302-1306
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98139-122-1	01	1	1307-1401
13	PIPE; BRK,RR AXLE CONVERTING INTO 6X6<BCC>	8-98139-122-1	01	1	1307-1401
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98139-122-1	01	1	1402-1405
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G)	8-98139-122-1	01	1	1406-1410
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 14.5"(W1J) EXC. CONVERTING INTO 6X6<BCC>	8-98139-122-1	01	1	1406-1410
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98139-122-1	01	1	1411-

138 46 75 33 33 32 39 138 33 39 39 5 4 2 3 1 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> L=730	0-05212-730-0	01	1	1302-
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> L=770	0-05212-770-0	01	1	1302-1306
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> L=770	0-05212-770-0	01	1	1307-
1	HOSE; FLEX,RR BRK CONVERTING INTO 6X6<BCC> L=770	0-05212-770-0	01	1	1307-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK DOUBLE TIRE REARWARD<SR6> (A)	1-47465-251-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK REARWARD INNER SINGLE TIRE<YK3> (B)	8-98146-322-0	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M8 FLANGE	0-91180-108-0	02	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M12	9-09840-280-0	01	1	1302-1306
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M12	9-09840-280-0	01	1	1307-
4	NUT; BRKT,FLEX HOSE,RR BRK CONVERTING INTO 6X6<BCC> (A) M12	9-09840-280-0	01	1	1307-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1302-
32	UNION; OIL PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 L=40	0-92113-006-0	01	1	1302-
32	UNION; OIL PIPE WHEEL BASE 4100MM(41W) (B) M12 3WAY	1-09654-137-2	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=1439	8-98111-269-1	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) L=2668 SERVICED BY L=2900	1-47428-744-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2052	8-98167-793-1	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> L=684 SERVICED BY L=700	1-47428-727-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. BRK WHL LK CONT LSPV<6PH> L=612 SERVICED BY L=650	1-47428-726-0	01	1	1302-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1302-
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT L=531 SERVICED BY L=550	1-47428-724-0	01	1	1302-
