3-52 — BRAKE PIPING; OIL,FRONT (#112640) — 45 parça

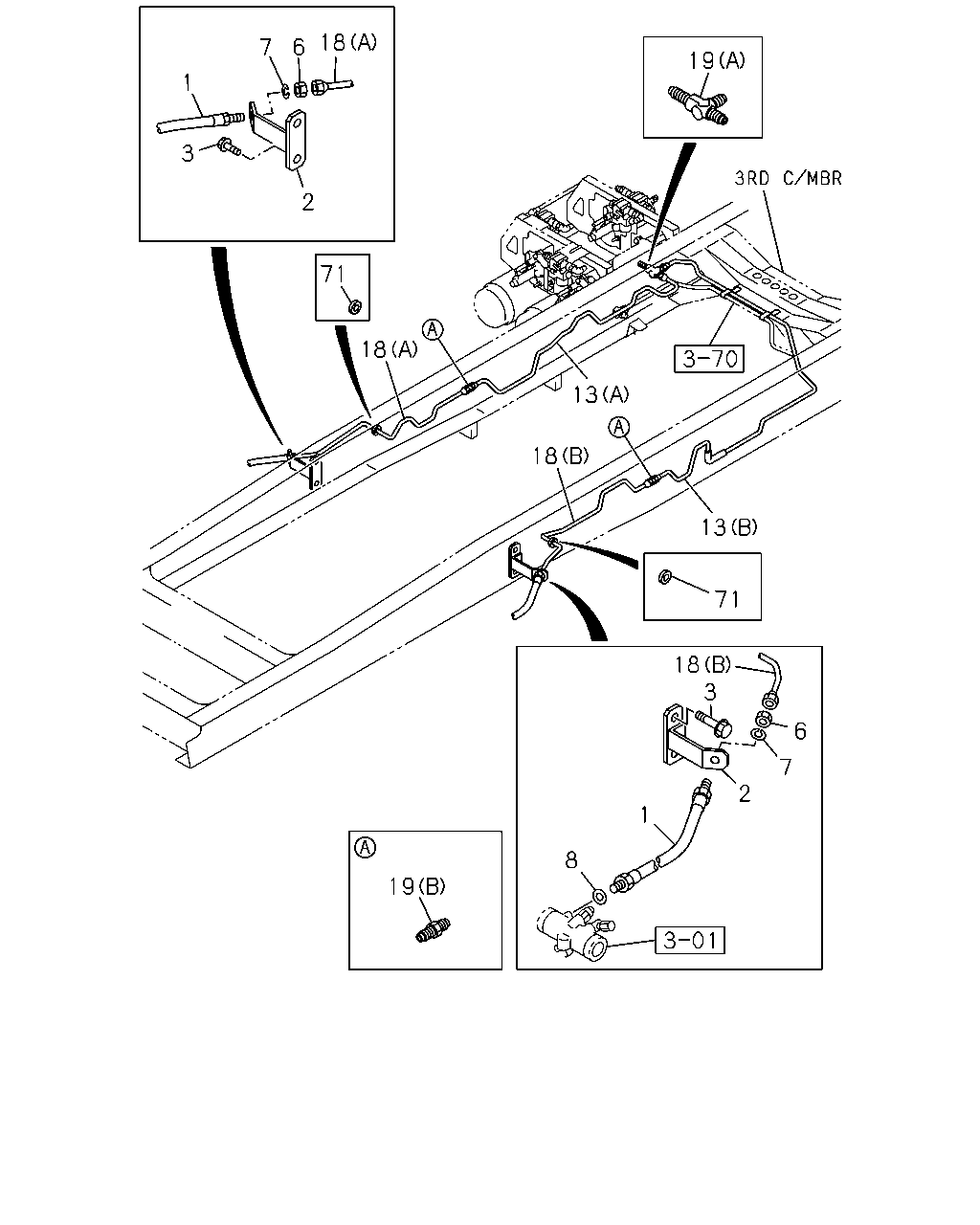

1 7 6 18 2 3 71 19 18 18 13 13 71 18 2 6 7 3 1 8 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610	0-05212-610-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS)	8-98180-131-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98177-524-0	02	1	1302-
3	BOLT; BRKT,FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	04	1	1302-
6	NUT; FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	1302-
7	WASHER; LK,FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	0-91510-512-0	02	1	1302-
8	GASKET; FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) L=1614	8-98250-242-0	01	1	1402-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (A) L=1250 SERVICED BY L=1250	1-47428-733-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (B) L=2385 SERVICED BY L=2500	1-47428-742-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1606	8-98126-034-0	01	1	1302-1401
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1606	8-98126-034-0	01	1	1402-
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=3328 SERVICED BY L=3400	1-47428-746-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (A) L=643 SERVICED BY L=650	1-47428-726-0	01	1	1302-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (B) L=737 SERVICED BY L=800	1-47428-728-0	01	1	1302-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (B) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 3WAY	0-92138-906-0	01	1	1302-
71	GROMMET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-

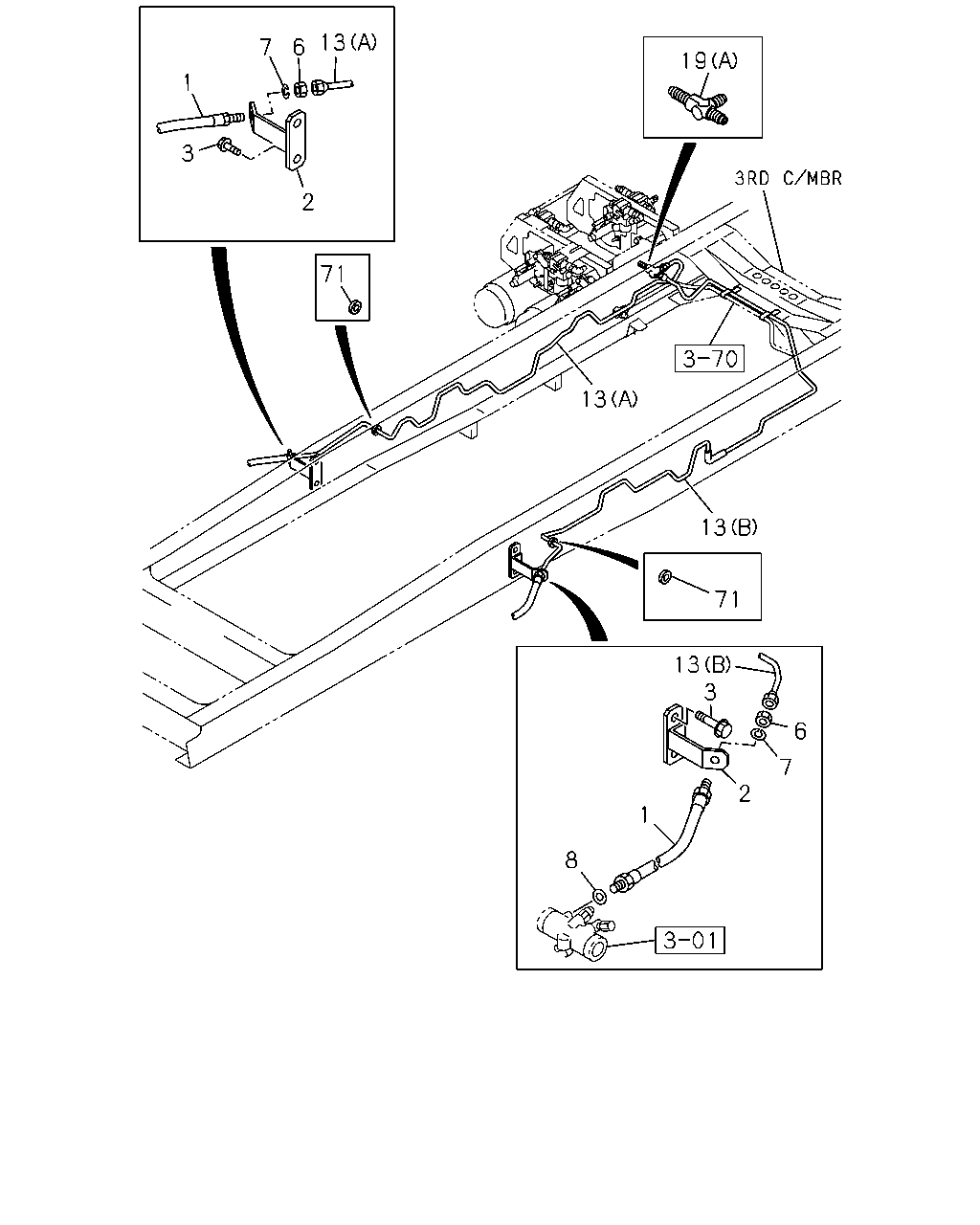

1 7 6 13 2 3 71 19 13 13 71 13 7 2 6 3 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610	0-05212-610-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS)	8-98180-131-0	02	1	1302-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98177-524-0	02	1	1302-
3	BOLT; BRKT,FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	04	1	1302-
6	NUT; FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	1302-
7	WASHER; LK,FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	0-91510-512-0	02	1	1302-
8	GASKET; FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) L=1614	8-98250-242-0	01	1	1402-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (A) L=1250 SERVICED BY L=1250	1-47428-733-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (B) L=2385 SERVICED BY L=2500	1-47428-742-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1606	8-98126-034-0	01	1	1302-1401
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1606	8-98126-034-0	01	1	1402-
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=3328 SERVICED BY L=3400	1-47428-746-0	01	1	1302-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (B) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 3WAY	0-92138-906-0	01	1	1302-
71	GROMMET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=17	9-09956-092-1	02	1	1302-

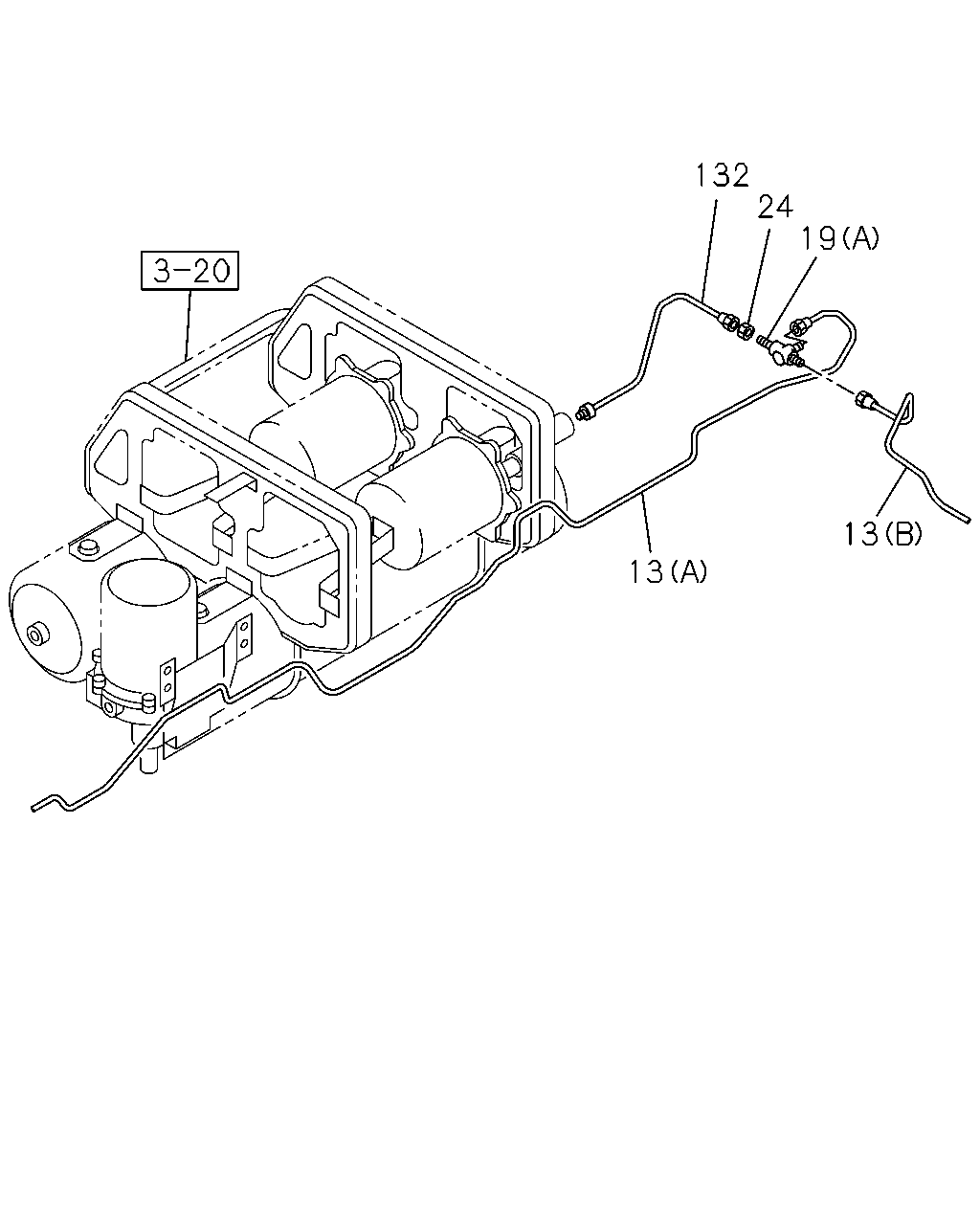

13 13 19 24 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) L=1614	8-98250-242-0	01	1	1402-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (A) L=1250 SERVICED BY L=1250	1-47428-733-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (B) L=2385 SERVICED BY L=2500	1-47428-742-0	01	1	1302-
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1606	8-98126-034-0	01	1	1302-1401
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1606	8-98126-034-0	01	1	1402-
13	PIPE; OIL,UNION TO UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=3328 SERVICED BY L=3400	1-47428-746-0	01	1	1302-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (B) M12 L=40	0-92113-006-0	02	1	1302-
19	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 3WAY	0-92138-906-0	01	1	1302-
24	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT 4HK1-TCS ENG(RJS) L=943	8-98229-713-0	01	1	1302-
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=895 SERVICED BY L=900	1-47428-729-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
