◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10866 - EXD LHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#11264) — 396 parça

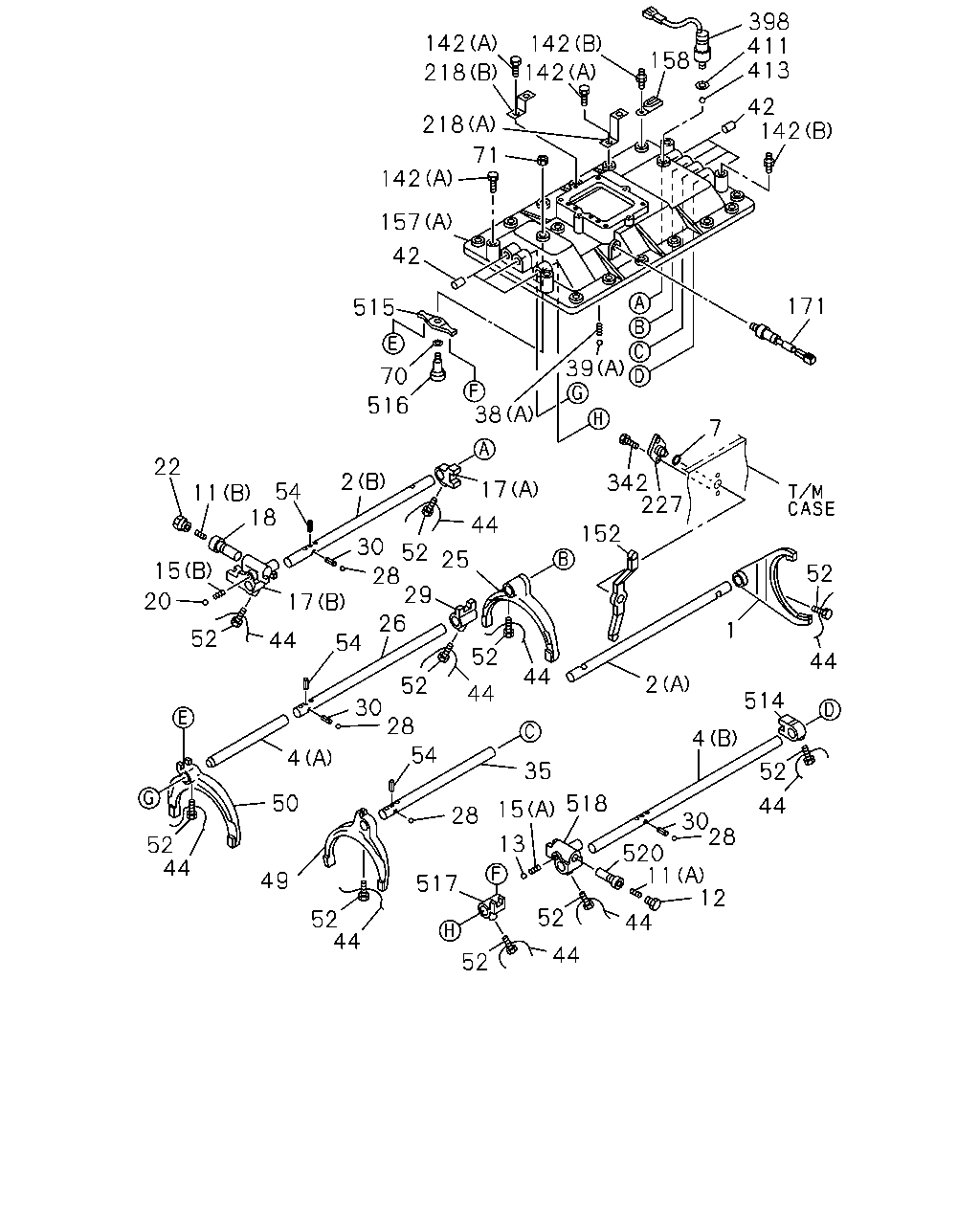

çizim 19179
398 411 413 142 142 142 158 218 42 142 218 71 142 157 42 39 171 515 70 38 516 7 22 2 342 227 17 18 44 152 30 52 28 29 26 25 15 52 20 17 1 52 44 54 52 44 44 2 52 44 514 30 28 4 54 4 35 52 50 518 44 15 28 30 28 13 52 44 520 11 12 49 517 52 52 44 44 44 52 11 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0107- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0107- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0107- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-421-1 01 1 0107- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-422-1 01 1 0107- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0107- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 0107- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0107- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0107- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0107- ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0107- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0107- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0107- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0107- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0107- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0107- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0107- ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ●
28 BALL; INTER LK 9-00097-501-0 02 1 0107- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0107-0309 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0310- ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-420-1 01 1 0107- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 0107- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 0107- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 0107- ●
38 SPRING; DETENT
(C) 		1-09580-574-0 01 1 0107- ●
38 SPRING; DETENT
(D) 		1-09580-577-0 01 1 0107-0210 ●
38 SPRING; DETENT
(D) 		1-09580-580-0 01 1 0211- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 0107- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 0107- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0107- ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0107- ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0107- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 0107- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0107- ●
50 ARM; SHIFT,6TH 1-33511-437-0 01 1 0107- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0107- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 0107- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0107- ● ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0107- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 0107-0602 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ●
142 BOLT; QUAD BOX
(D) M10X30 FLANGE 		0-28781-030-0 01 1 0107-0512 ●
142 BOLT; QUAD BOX
(D) M10X30 FLANGE 		0-28751-030-0 01 1 0601- ●
152 LEVER; RELAY,SELECT 1-33511-428-0 01 1 0107- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-532-0 01 1 0107-0107 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-534-0 01 1 0108- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0107- ●
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0107- ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0107- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0107- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-328-1 01 1 0107-0212 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-490-0 01 1 0301- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-350-0 01 1 0107- ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0107- ●
342 BOLT
M14X20 		1-09044-078-0 02 1 0107- ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0107-0602 ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0107- ●
413 BALL; BACK SW 9-00097-013-0 01 1 0107- ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 0107- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-082-0 01 1 0107- ●
516 SPINDLE; 6TH & 7TH 1-33519-012-0 01 1 0107- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-395-1 01 1 0107- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-293-2 01 1 0107- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 0107- ●

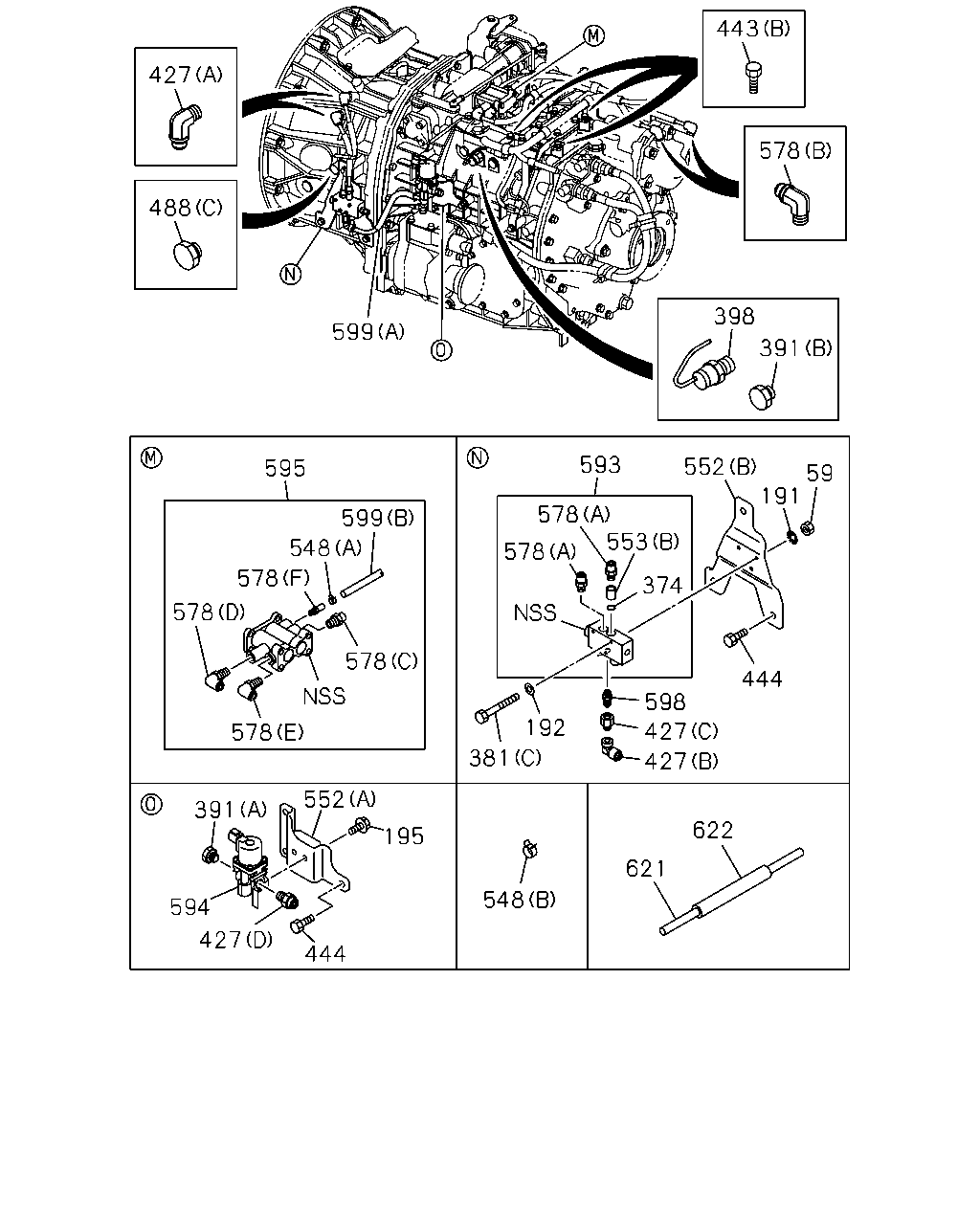

çizim 20221
443 427 578 488 398 599 391 593 552 595 59 191 578 553 599 548 578 578 374 578 578 444 598 192 427 578 381 427 552 391 622 195 621 548 594 427 444
BalonParca AdiParca NoAdetTipApplied Date A B
59 NUT 1-09440-068-0 04 1 0107- ●
191 WASHER; LK 1-09503-311-0 04 1 0107- ●
192 WASHER; PL 1-09503-310-0 04 1 0107- ●
195 BOLT
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512 ●
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-09661-390-0 01 1 0107- ●
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0107-0512 ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601- ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0107- ●
381 BOLT
(C) 		1-09044-111-0 04 1 0107- ●
391 PLUG; SW HOLE
(A) M12X9 		9-99202-312-0 01 1 0107- ●
391 PLUG; SW HOLE
(B) M14X9 		9-99202-314-0 02 1 0107- ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0107-0602 ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ●
427 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0107- ●
427 CONNECTOR; NYLON TUBE
(B) 		1-09660-924-1 01 1 0107- ●
427 CONNECTOR; NYLON TUBE
(C) 		1-09660-931-1 01 1 0107- ●
427 CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0107- ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512 ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28080-890-0 04 1 0107-0512 ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 0601- ●
444 BOLT; CLIP
M10X25 FLANGE 		0-28781-025-0 06 1 0107-0512 ●
444 BOLT; CLIP
M10X25 FLANGE 		0-28751-025-0 06 1 0601- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 0107- ●
488 PLUG; AIR CYL
(B) M14X9 		9-99202-314-0 02 1 0107- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 0107- ●
548 CLIP; HOSE
(A) 		1-33712-028-0 01 1 0107- ●
548 CLIP; HOSE
(B) ID=7.8 		8-94246-958-0 11 1 0107- ●
552 BRACKET
(A) 		1-33719-082-0 01 1 0107- ●
552 BRACKET
(B) 		1-33719-083-0 01 1 0107- ●
553 ADAPTER; AIR
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0107- ●
553 ADAPTER; AIR
(B) 		1-09661-389-0 01 1 0107- ●
578 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0107- ●
578 CONNECTOR
(A) 		1-09661-292-0 02 1 0107- ●
578 CONNECTOR
(C) 		1-33712-023-0 01 1 0107- ●
578 CONNECTOR
(D) 		1-33712-024-0 01 1 0107- ●
578 CONNECTOR
(E) 		1-33712-025-0 01 1 0107- ●
578 CONNECTOR
(F) 		1-33712-026-0 01 1 0107- ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 0107- ●
594 VALVE; MAGNETIC,AIR 1-82564-069-0 01 1 0107- ●
595 VALVE; RANGE 1-33712-008-1 01 1 0107- ●
598 UNION
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0107- ●
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 0107- ●
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 0107- ●
621 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 05 1 0107- ●
622 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 05 1 0107- ●

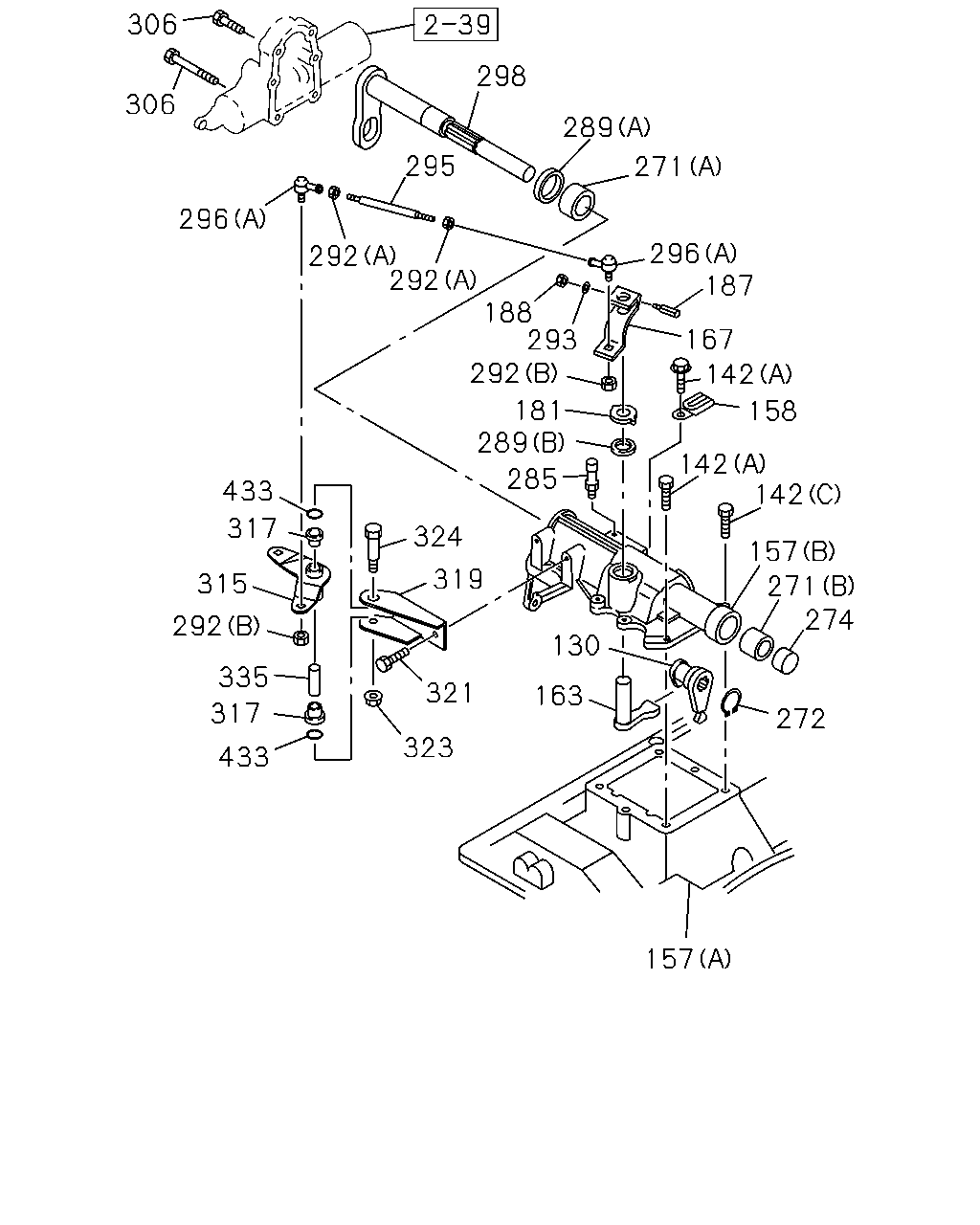

çizim 20873
306 298 306 289 295 271 296 296 187 292 292 188 293 292 167 142 181 289 158 142 142 285 433 317 324 157 319 315 271 274 292 130 335 321 163 317 272 323 433 157
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0107- ●
130 LEVER; SHIFT,INTERNAL 1-33521-183-0 01 1 0107-0210 ●
130 LEVER; SHIFT,INTERNAL 1-33521-185-0 01 1 0211-0309 ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 0310- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ●
142 BOLT; QUAD BOX
(D) M10X30 FLANGE 		0-28781-030-0 01 1 0107-0512 ●
142 BOLT; QUAD BOX
(D) M10X30 FLANGE 		0-28751-030-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-532-0 01 1 0107-0107 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-534-0 01 1 0108- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0107- ●
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0107- ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0107- ●
163 LEVER; SELECT,INTERNAL 1-33522-171-1 01 1 0107- ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0107- ●
167 LEVER; SELECT,EXTERNAL 1-33521-179-0 01 1 0107-0505 ●
167 LEVER; SELECT,EXTERNAL 1-33521-190-0 01 1 0506- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107- ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0107- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0107- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0107- ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 0107- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107- ●
274 COVER; SHAFT,QUAD BOX 1-33545-010-0 01 1 0107- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0107- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0107- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0107- ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512 ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107-0605 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0107-0507 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ●
295 ROD; LINK,RELAY LEVER 1-33652-924-0 01 1 0107- ●
296 ROD END
(A) 		1-09760-108-0 02 1 0107- ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0107-0307 ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER 1-33522-173-0 01 1 0107-0307 ●
298 SHAFT; SHIFT LEVER 1-33522-191-0 01 1 0308-0310 ●
298 SHAFT; SHIFT LEVER 1-33522-196-0 01 1 0311- ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0107-0512 ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0107-0512 ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ●
315 LEVER; SELECT 1-33651-754-0 01 1 0107- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0107- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0107- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0107- ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0107- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0107- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0107- ● ●

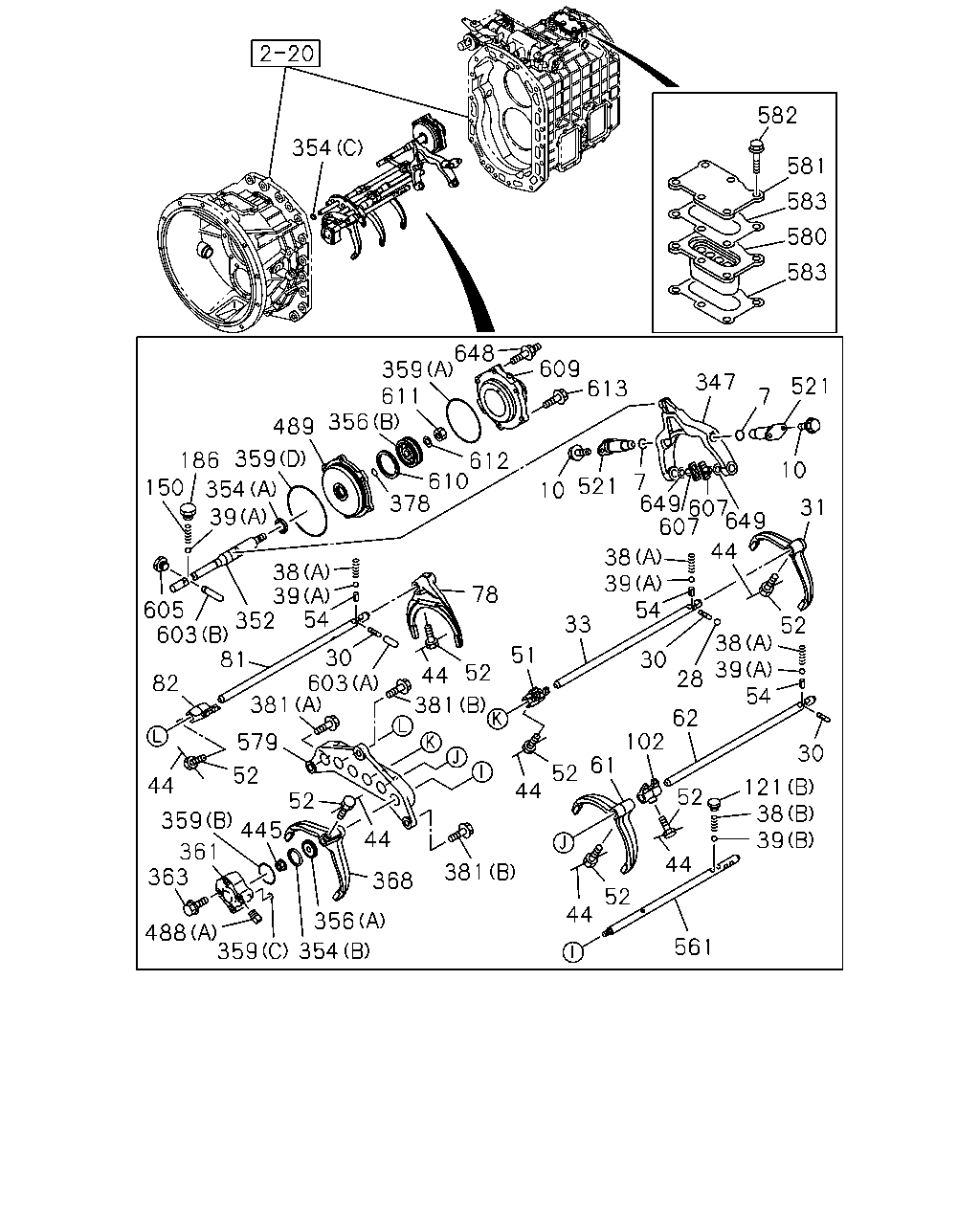

çizim 20893
583 580 583 581 582 354 648 359 611 356 489 359 186 150 354 39 38 39 54 352 603 605 82 381 81 30 603 78 378 610 612 609 521 10 347 521 7 10 31 649 607 649 7 38 39 54 38 44 52 39 54 28 30 62 30 121 38 39 44 52 102 61 52 44 381 368 356 44 52 445 361 363 488 359 52 579 44 381 52 44 33 51 607 52 44 561 354 359 613
BalonParca AdiParca NoAdetTipApplied Date A B
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0107- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 0107- ●
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28781-030-0 04 1 0107-0512 ●
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 0601- ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ●
28 BALL; INTER LK 9-00097-501-0 02 1 0107- ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 0107- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 0107- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 0107- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 0107- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 0107- ●
38 SPRING; DETENT
(C) 		1-09580-574-0 01 1 0107- ●
38 SPRING; DETENT
(D) 		1-09580-577-0 01 1 0107-0210 ●
38 SPRING; DETENT
(D) 		1-09580-580-0 01 1 0211- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 0107- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 0107- ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0107- ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0107- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 0107- ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-617-0 01 1 0107- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0107- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 0107- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0107- ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 0107- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 0107- ●
78 ARM; SHIFT,REV 1-33511-589-0 01 1 0107- ●
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 0107- ●
82 BLOCK; SHIFT,REV 1-33511-600-0 01 1 0107- ●
102 BLOCK; SHIFT,3RD & 4TH 1-33511-615-0 01 1 0107- ●
121 PLUG; DETENT SPR
(A) M14X9 		9-99202-314-0 02 1 0107- ●
121 PLUG; DETENT SPR
(B) M16X12 		9-99202-316-0 01 1 0107-0606 ●
121 PLUG; DETENT SPR
(B) M16X12 		0-92002-416-0 01 1 0607- ●
150 SPRING; DETENT BALL 1-09580-379-0 01 1 0107- ●
186 PLUG; SHIFTER ROD
M16X12 		9-99202-316-0 01 1 0107-0606 ●
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 0607- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 0107- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-461-0 01 1 0107-0304 ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 0305- ●
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 0107- ●
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 0107- ●
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 0107- ●
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 0107- ●
356 PISTON; AIR CYL
(B) 		1-33551-023-1 01 1 0107-0304 ●
356 PISTON; AIR CYL
(B) 		1-33551-024-0 01 1 0305-0408 ●
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 0409- ●
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 0107- ●
359 GASKET; AIR CYL
(B) ID=55.6 		1-09623-547-0 01 1 0107- ●
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 0107- ●
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 0107- ●
361 CYLINDER; AIR,SHIFT 1-33561-013-0 01 1 0107- ●
363 BOLT; AIR CYL
M10X60 FLANGE 		0-28181-060-0 04 1 0107-0512 ●
363 BOLT; AIR CYL
M10X60 FLANGE 		0-28151-060-0 04 1 0601- ●
368 ARM; SHIFT,SPLITTER GEAR 1-33511-588-0 01 1 0107- ●
378 GASKET; PISTON
ALSO INCLUDED IN GASKET SET(M/T). 		9-09561-218-0 01 1 0107-0304 ●
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0107-0512 ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601- ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0107- ●
381 BOLT
(C) 		1-09044-111-0 04 1 0107- ●
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91303-612-0 01 1 0107-0604 ●
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 0605- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 0107- ●
488 PLUG; AIR CYL
(B) M14X9 		9-99202-314-0 02 1 0107- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 0107- ●
489 COVER; AIR CYL 1-33569-049-1 01 1 0107-0304 ●
489 COVER; AIR CYL 1-33569-052-0 01 1 0305- ●
521 SPINDLE; 6TH 1-33519-131-0 02 1 0107- ●
561 ROD; SHIFT 1-33531-466-0 01 1 0107- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-0 01 1 0107- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 0107- ●
581 COVER; BLOCK 1-33141-056-0 01 1 0107- ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28781-035-0 06 1 0107-0404 ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28181-035-0 06 1 0405-0512 ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 0601- ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 0107- ●
603 ROD; INTER LK
(A) L=49 		1-33534-005-0 01 1 0107- ●
603 ROD; INTER LK
(B) L=77 		1-33534-010-0 01 1 0107- ●
605 PLUG; INTER LK
M18X12 		9-99202-318-0 01 1 0107-0606 ●
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 0607- ●
607 PIECE; SHIFT 1-33518-008-1 02 1 0107-0308 ●
607 PIECE; SHIFT 1-33518-010-0 02 1 0309- ●
609 BODY; AIR,CYL 1-33561-015-0 01 1 0107-0304 ●
609 BODY; AIR,CYL 1-33561-018-0 01 1 0305- ●
610 SEAL; PISTON 1-33738-054-0 01 1 0107- ●
611 NUT; SHAFT
M16 LOCK NUT 		9-09131-516-0 01 1 0107-0304 ●
611 NUT; SHAFT 8-97324-304-0 01 1 0305- ●
612 WASHER; PL
ID=17 		9-09160-516-0 01 1 0107-0304 ●
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28181-045-0 06 1 0107-0408 ●
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28181-045-0 04 1 0409-0512 ●
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 04 1 0601- ●
648 STUD; AIR CYL
M10X20,M10X45 L=75 		1-09049-015-0 02 1 0409- ●
649 SHIM; SHIFT PIECE
T=1.00 		8-94178-936-1 02 1 0304-0308 ●

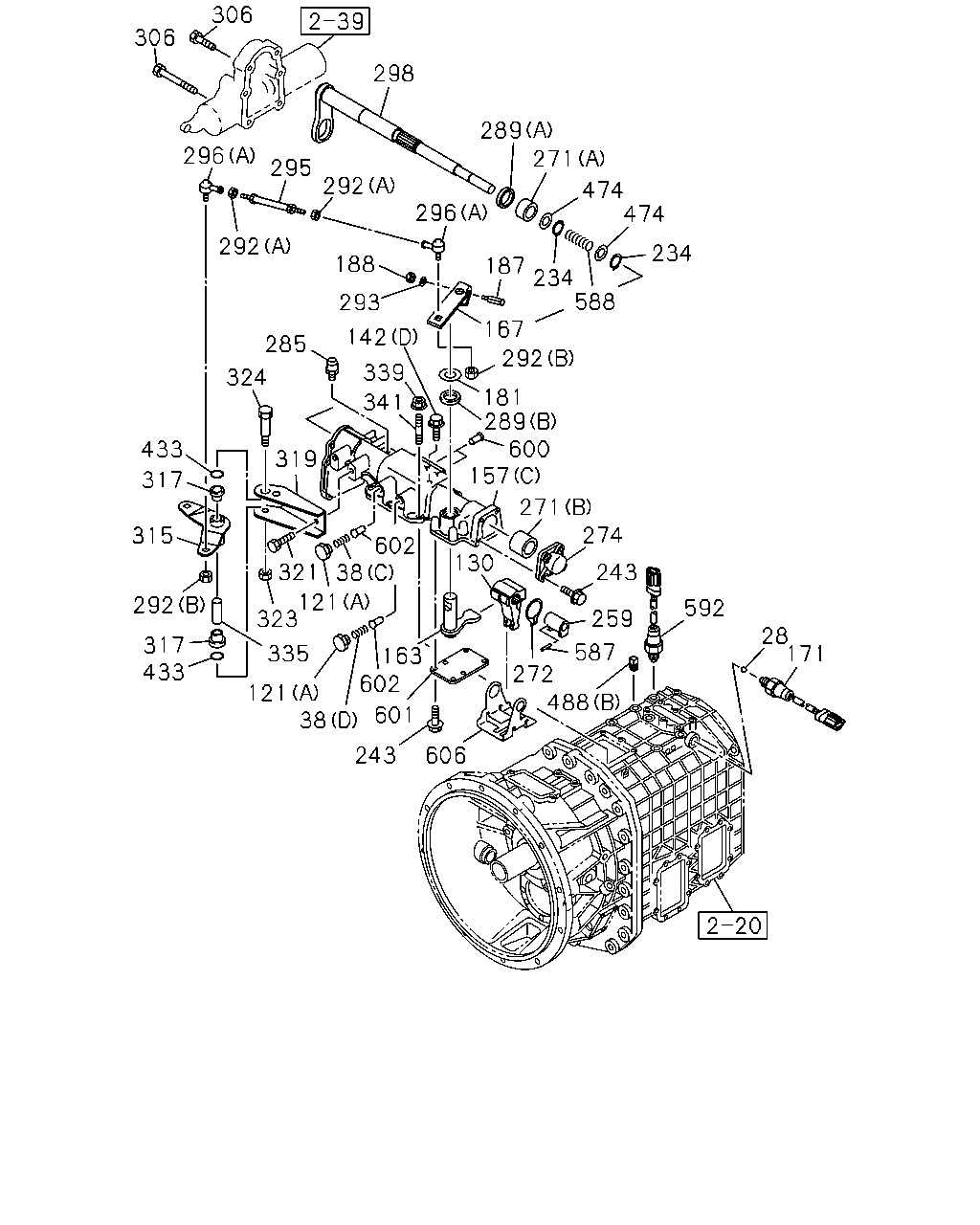

çizim 21623
306 306 298 289 296 271 295 292 474 474 296 292 234 188 187 234 588 293 167 142 285 292 339 324 181 289 600 157 341 433 319 317 602 38 271 274 130 315 321 243 121 323 292 592 259 28 171 317 433 163 602 587 335 272 121 38 488 601 243 606
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ●
28 BALL; INTER LK 9-00097-501-0 02 1 0107- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 0107- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 0107- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 0107- ●
38 SPRING; DETENT
(C) 		1-09580-574-0 01 1 0107- ●
38 SPRING; DETENT
(D) 		1-09580-577-0 01 1 0107-0210 ●
38 SPRING; DETENT
(D) 		1-09580-580-0 01 1 0211- ●
121 PLUG; DETENT SPR
(A) M14X9 		9-99202-314-0 02 1 0107- ●
121 PLUG; DETENT SPR
(B) M16X12 		9-99202-316-0 01 1 0107-0606 ●
121 PLUG; DETENT SPR
(B) M16X12 		0-92002-416-0 01 1 0607- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0107- ●
130 LEVER; SHIFT,INTERNAL 1-33521-183-0 01 1 0107-0210 ●
130 LEVER; SHIFT,INTERNAL 1-33521-185-0 01 1 0211-0309 ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 0310- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ●
142 BOLT; QUAD BOX
(D) M10X30 FLANGE 		0-28781-030-0 01 1 0107-0512 ●
142 BOLT; QUAD BOX
(D) M10X30 FLANGE 		0-28751-030-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-532-0 01 1 0107-0107 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-534-0 01 1 0108- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0107- ●
163 LEVER; SELECT,INTERNAL 1-33522-171-1 01 1 0107- ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0107- ●
167 LEVER; SELECT,EXTERNAL 1-33521-179-0 01 1 0107-0505 ●
167 LEVER; SELECT,EXTERNAL 1-33521-190-0 01 1 0506- ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107- ● ●
234 RING; SNAP
ID=14.7 		9-09180-416-0 02 1 0107-0604 ●
234 RING; SNAP
ID=14.7 		0-91800-616-0 02 1 0605- ●
243 BOLT; COVER
M8X25 FLANGE 		0-28680-825-0 06 1 0107-0107 ●
243 BOLT; COVER
M8X35 FLANGE 		0-28680-835-0 04 1 0107-0107 ●
243 BOLT; COVER
M8X35 FLANGE 		0-28680-835-0 10 1 0108-0512 ●
243 BOLT; COVER
M8X35 FLANGE 		0-28650-835-0 10 1 0601- ●
259 GUIDE; SELECT,CONT BOX 1-33519-135-0 01 1 0107- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0107- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0107- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0107- ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 0107- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107- ●
274 COVER; SHAFT,QUAD BOX 1-33545-010-0 01 1 0107- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0107- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0107- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0107- ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512 ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107-0605 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0107-0507 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ●
295 ROD; LINK,RELAY LEVER 1-33652-924-0 01 1 0107- ●
296 ROD END
(A) 		1-09760-108-0 02 1 0107- ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0107-0307 ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER 1-33522-173-0 01 1 0107-0307 ●
298 SHAFT; SHIFT LEVER 1-33522-191-0 01 1 0308-0310 ●
298 SHAFT; SHIFT LEVER 1-33522-196-0 01 1 0311- ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0107-0512 ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0107-0512 ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ●
315 LEVER; SELECT 1-33651-754-0 01 1 0107- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0107- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0107- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0107- ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0107- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0107- ● ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91150-210-0 05 1 0107-0602 ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 0603- ●
341 STUD; QUAD BOX
M10X25 L=40 		9-04411-025-0 05 1 0107-0107 ●
341 STUD; QUAD BOX
M10X35 L=50 		9-04411-035-0 05 1 0108-0604 ●
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 0605- ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0107- ● ●
474 WASHER; SPRING STOPPER 9-09160-716-0 02 1 0107- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 0107- ●
488 PLUG; AIR CYL
(B) M14X9 		9-99202-314-0 02 1 0107- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 0107- ●
587 PIN; SHIFT GUIDE 9-08160-420-0 01 1 0107- ●
588 SPRING; RETURN,QUADRANT BOX 1-09580-576-0 01 1 0107- ●
592 SWITCH; POSITION 1-82440-083-3 01 1 0107-0602 ●
592 SWITCH; POSITION 8-98042-853-0 01 1 0603- ●
600 PLUNGER; VLV 1-33263-037-0 02 1 0107- ●
601 COVER; SHAFT,SELECT 1-33545-011-0 01 1 0107- ●
602 PLUNGER; DETENT 1-33263-037-0 02 1 0107- ●
606 INHIBITOR 1-33529-116-0 01 1 0107- ●

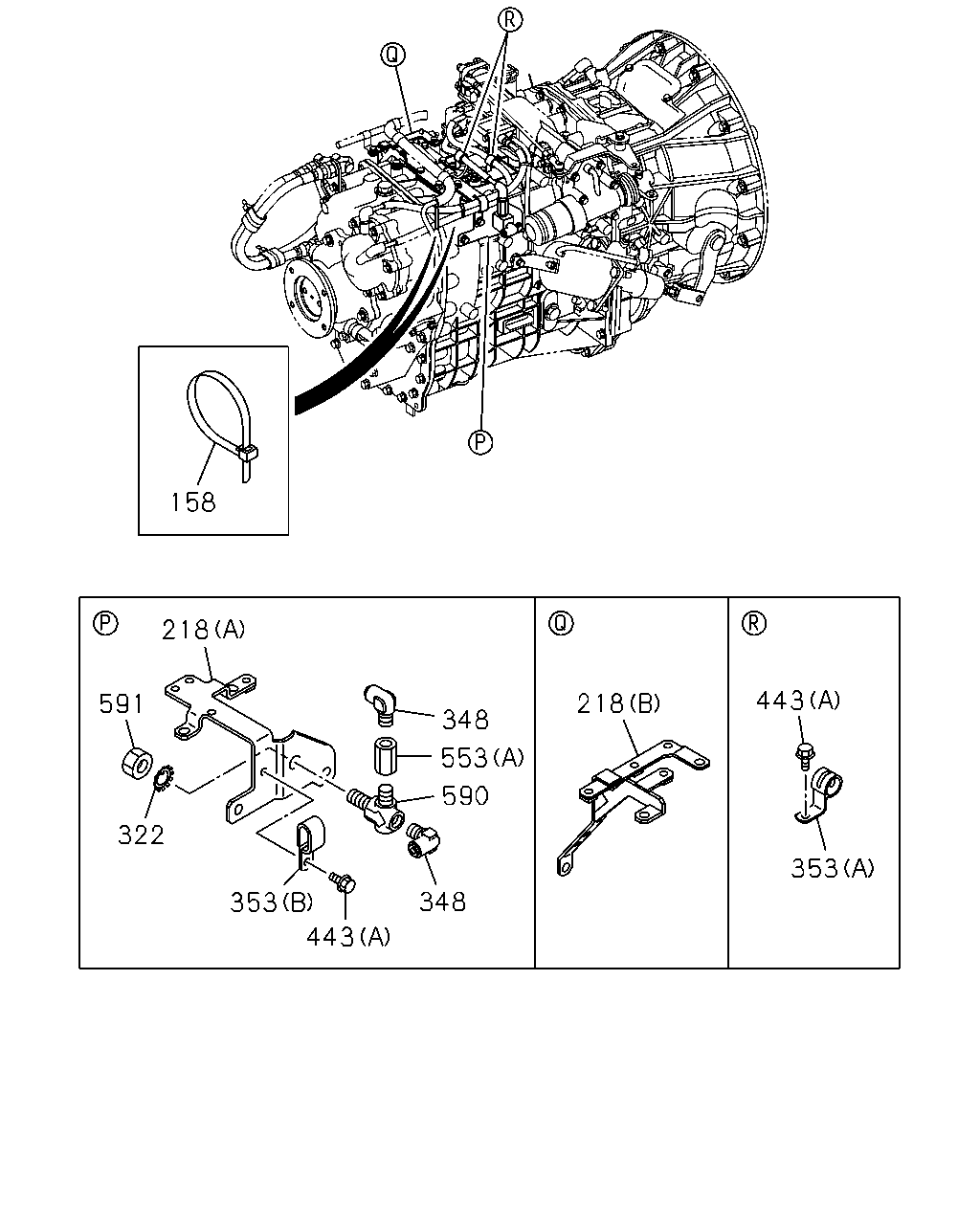

çizim 75916
158 218 443 218 591 348 553 590 322 353 348 353 443
BalonParca AdiParca NoAdetTipApplied Date A B
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0107- ●
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0107- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0107- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0107- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-328-1 01 1 0107-0212 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-490-0 01 1 0301- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-350-0 01 1 0107- ●
322 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0107-0603 ●
322 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0604- ●
348 CONNECTOR; AIR HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0107- ●
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 02 1 0107- ●
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 0107- ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512 ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28080-890-0 04 1 0107-0512 ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 0601- ●
553 ADAPTER; AIR
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0107- ●
553 ADAPTER; AIR
(B) 		1-09661-389-0 01 1 0107- ●
590 UNION; AIR
M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0107- ●
591 NUT; UNION
M16 		9-99111-516-0 01 1 0107-0512 ●
591 NUT; UNION
M16 		0-91111-516-0 01 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
