3-52 — BRAKE PIPING; OIL,FRONT (#112638) — 26 parça

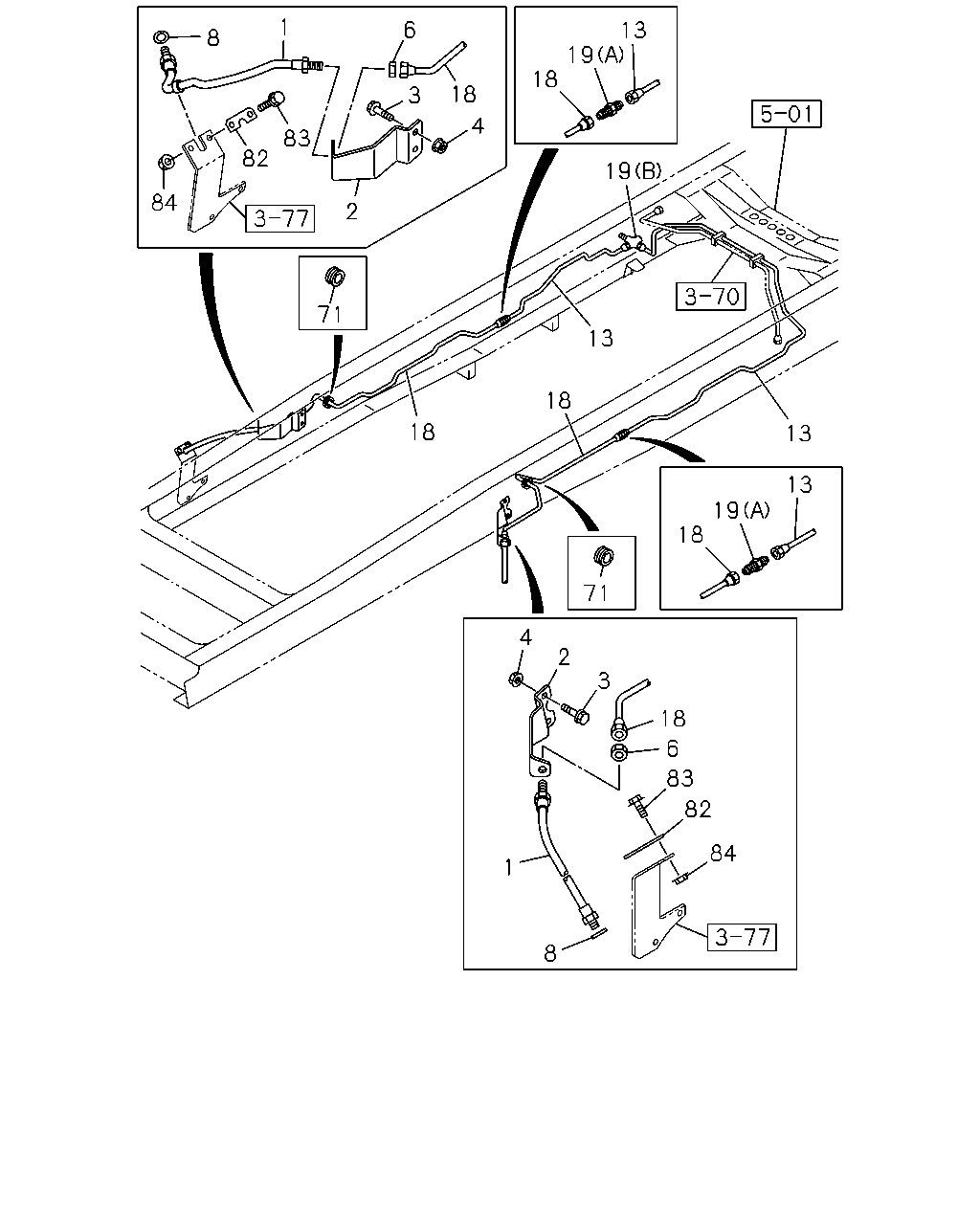

çizim 328374
8 1 6 84 82 83 3 18 4 18 19 13 19 71 71 18 19 13 13 13 18 18 4 2 3 18 6 83 82 84 1 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK 8-97623-929-0 02 1 1302- ●
1 HOSE; FLEX,FRT BRK 8-98140-781-0 02 1 1302- ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98089-851-0 01 1 1302- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98113-700-0 01 1 1302- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1302- ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 1302- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 1302- ● ●
13 PIPE; OIL,UNION TO UNION
L=1759 SERVICED BY L=1820 		1-47428-738-0 01 1 1302- ●
13 PIPE; OIL,UNION TO UNION
L=1116 		8-98111-276-0 01 1 1302- ● ●
13 PIPE; OIL,UNION TO UNION
L=1751 SERVICED BY L=1820 		1-47428-738-0 01 1 1302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=958 SERVICED BY L=1000 		1-47428-730-0 01 1 1302- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=567 SERVICED BY L=600 		1-47428-725-0 01 1 1302- ● ●
19 UNION; OIL PIPE
(A) M12 L=40 		0-92113-006-0 02 1 1302- ● ●
19 UNION; OIL PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 1302- ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1302- ● ●
82 PLATE; FLEX HOSE 1-47476-241-1 02 1 1302- ● ●
83 BOLT; PLATE
M8X20 FLANGE 		0-28650-820-0 04 1 1302- ● ●
84 NUT; PLATE
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●

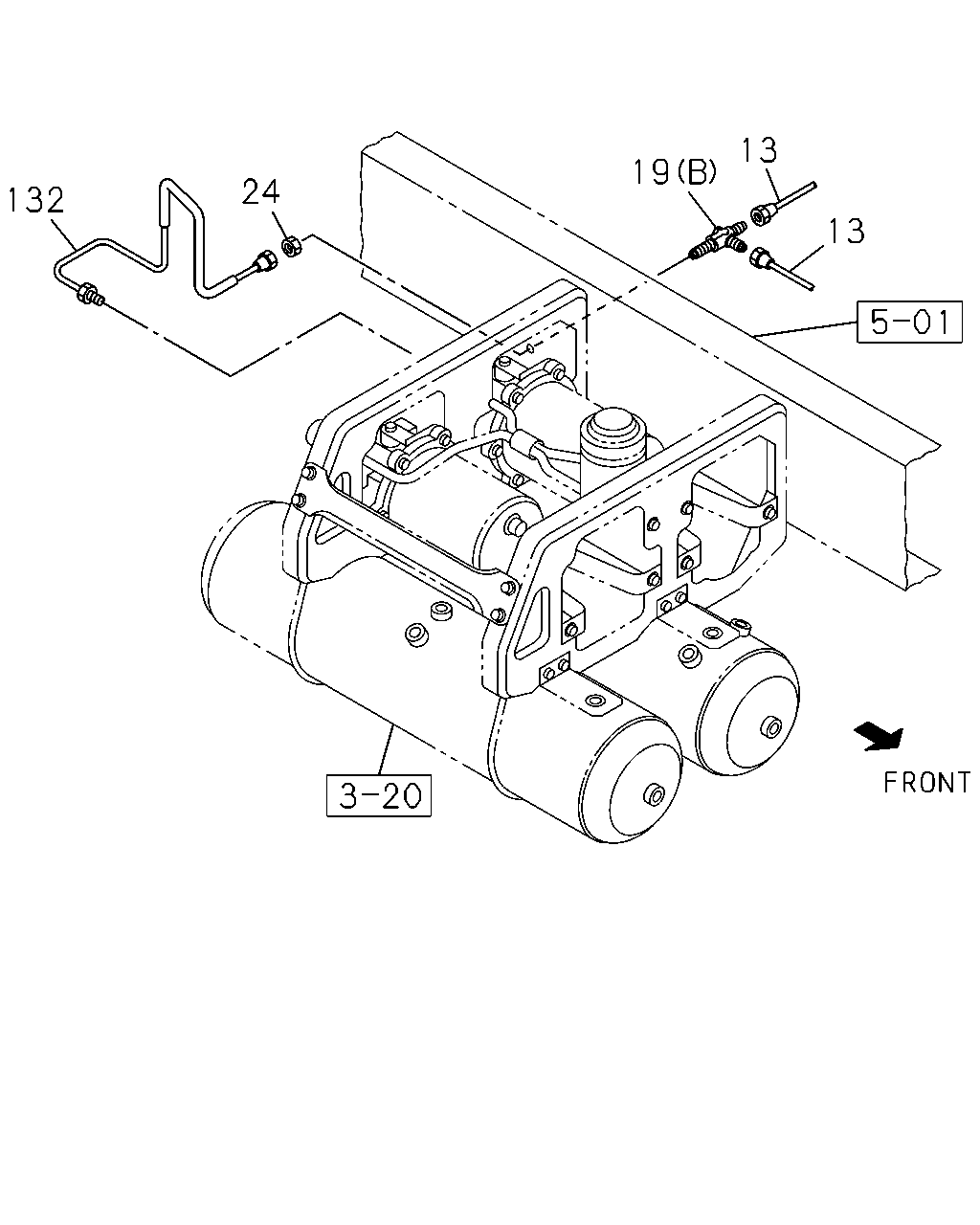

çizim 331698
132 24 19 13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
L=1759 SERVICED BY L=1820 		1-47428-738-0 01 1 1302- ●
13 PIPE; OIL,UNION TO UNION
L=1116 		8-98111-276-0 01 1 1302- ● ●
13 PIPE; OIL,UNION TO UNION
L=1751 SERVICED BY L=1820 		1-47428-738-0 01 1 1302- ●
19 UNION; OIL PIPE
(A) M12 L=40 		0-92113-006-0 02 1 1302- ● ●
19 UNION; OIL PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 1302- ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1302- ● ●
132 PIPE; OIL,BRK,HYD UNIT
L=511 		8-98217-253-0 01 1 1302- ● ●
