Isuzu WW
▶
TRUCKS
▶
FRR
▶
11507 - FRR RHD EURO2/4 SPACECAB
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#112637) — 18 parça
◀

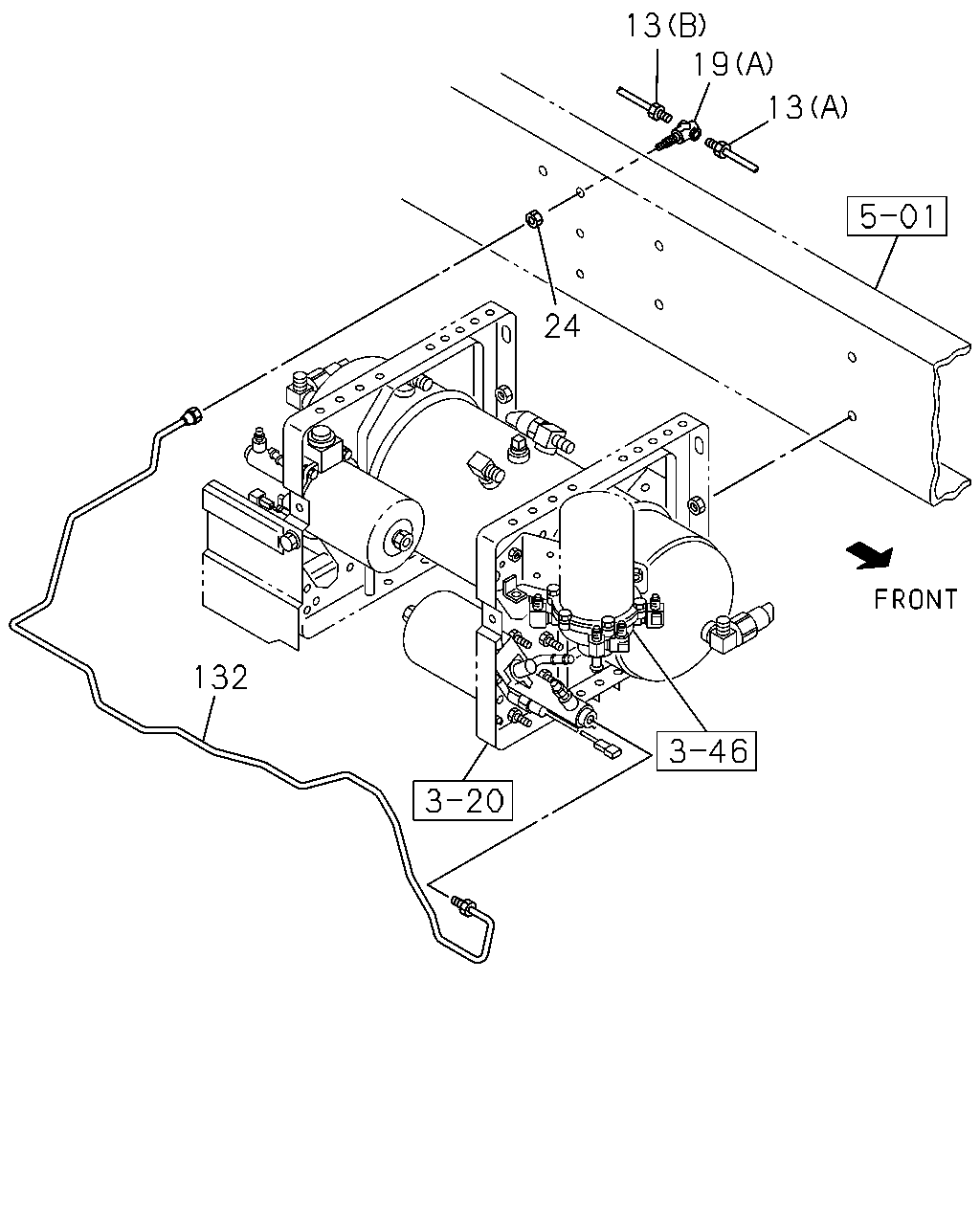

[352A] AIR TANK SIDE (6 parça)

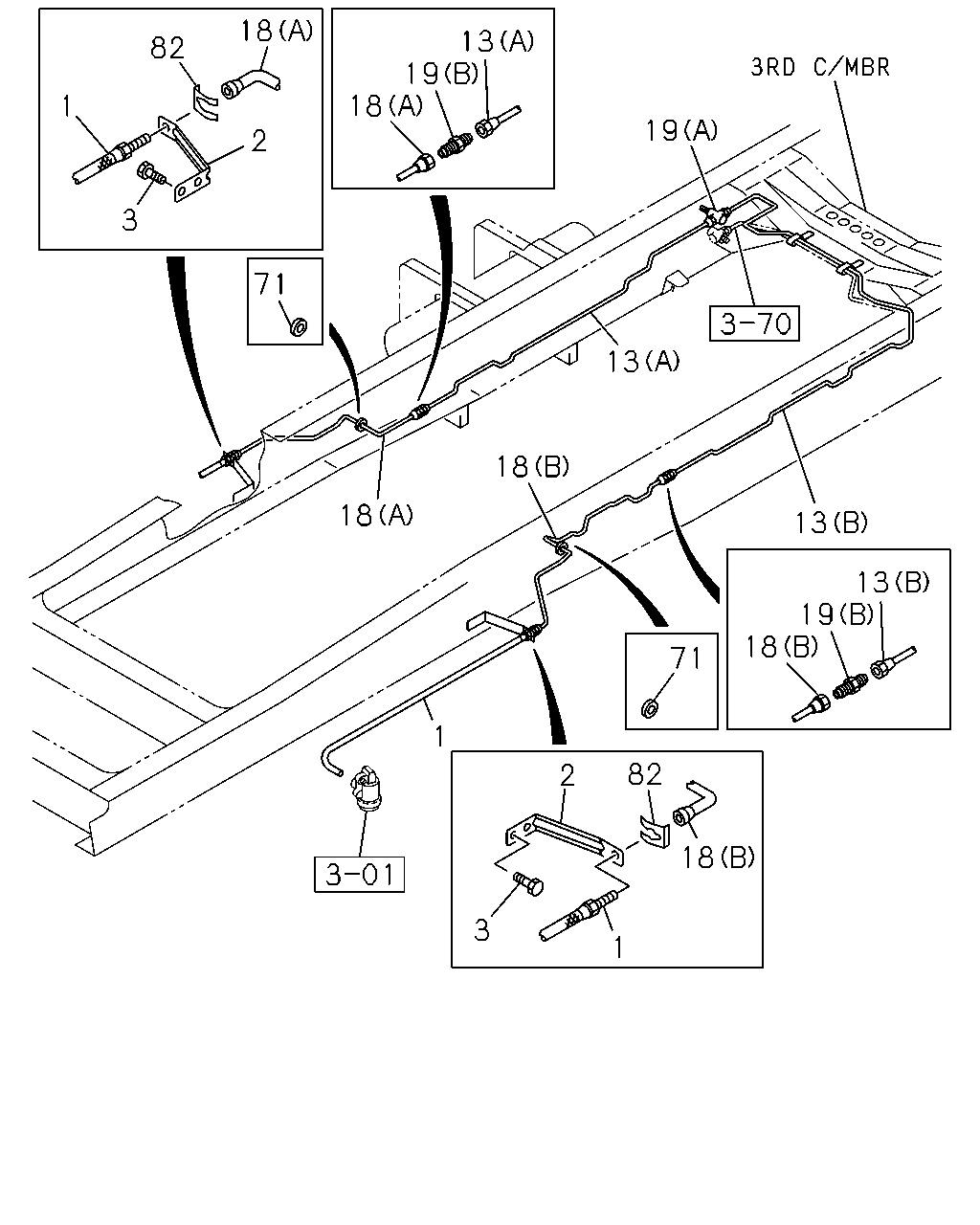

[352A] FRAME SIDE (12 parça)
▶
13
13
19
132
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; OIL,UNION TO UNION
(B) LH LINE L=1891
8-98113-684-0
01
1
1302-
13
PIPE; OIL,UNION TO UNION
(A) RH LINE L=967
8-98067-417-0
01
1
1302-
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
1302-
19
UNION; OIL PIPE
(A)
8-98113-738-0
01
1
1302-
24
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
01
1
1302-
132
PIPE; OIL,BRK,HYD UNIT
L=1505
8-98213-211-0
01
1
1302-
1
82
18
2
3
18
19
13
71
19
13
18
18
71
13
1
2
82
18
1
3
13
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> L=480
8-98172-789-0
02
1
1302-
1
HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=660
8-98232-626-0
02
1
1302-
2
BRACKET; FLEX HOSE,FRT BRK
8-98011-946-1
02
1
1302-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
1302-
13
PIPE; OIL,UNION TO UNION
(B) LH LINE L=1891
8-98113-684-0
01
1
1302-
13
PIPE; OIL,UNION TO UNION
(A) RH LINE L=967
8-98067-417-0
01
1
1302-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=1016
8-98065-376-0
01
1
1302-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=567
8-98067-426-0
01
1
1302-
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
1302-
19
UNION; OIL PIPE
(A)
8-98113-738-0
01
1
1302-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1302-
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
1302-
