3-41 — REAR BRAKE POWER CHAMBER (#112632) — 35 parça

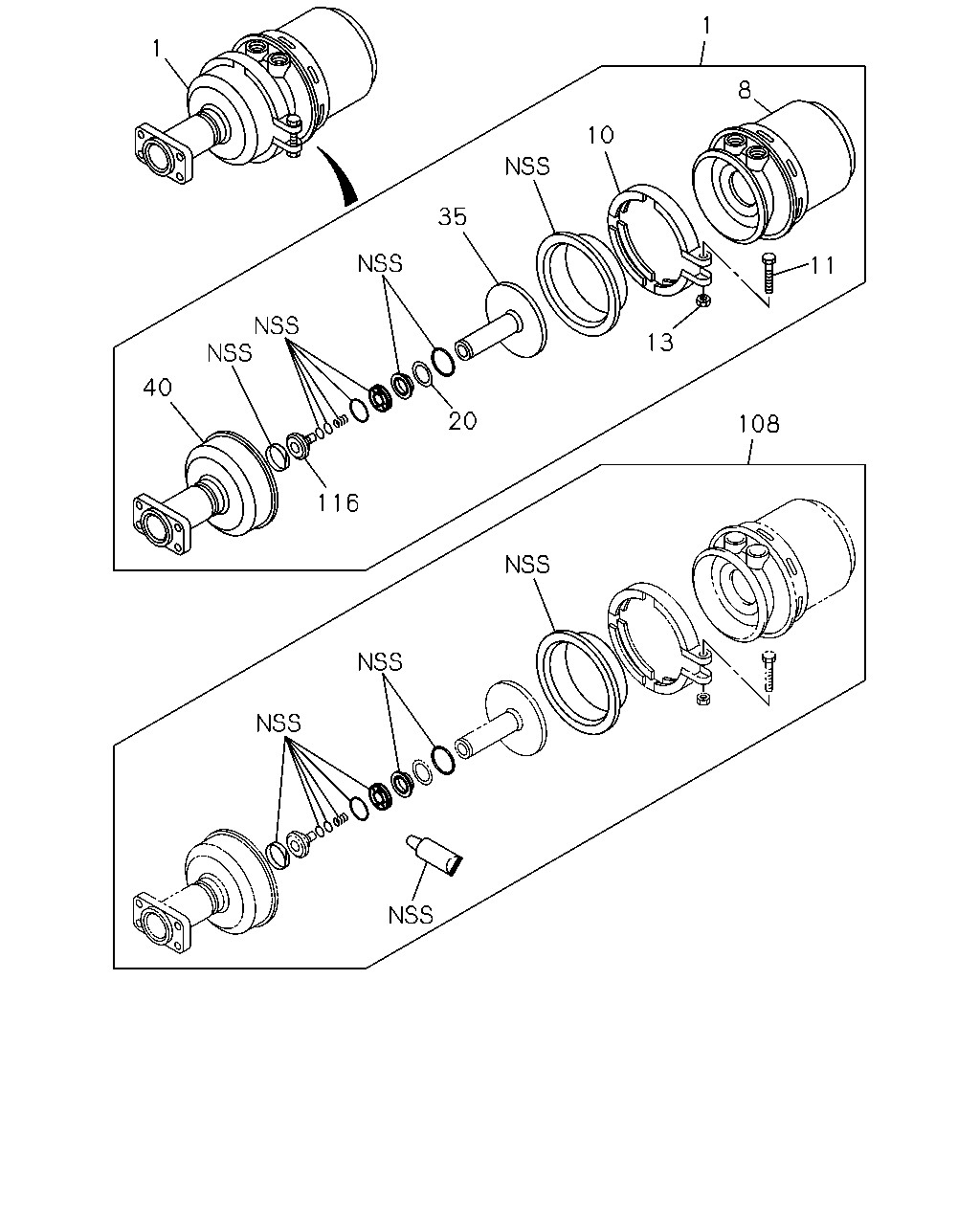

1 1 8 10 11 13 20 35 40 116 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 16.5"(W5V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98236-220-0	01	1	1312-1405
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 16.5"(W5V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98236-221-0	01	1	1312-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-48250-877-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-877-4	01	1	1406-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-48250-878-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-878-4	01	1	1406-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-173-1	01	1	1302-1405
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-173-2	01	1	1406-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-174-1	01	1	1302-1405
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-174-2	01	1	1406-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-231-0	02	1	1302-
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-232-0	02	1	1302-
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-233-0	02	1	1302-
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-236-0	02	1	1302-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-253-0	02	1	1302-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-179-0	01	1	1302-1405
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-179-0	01	1	1406-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-180-0	01	1	1302-1405
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-180-0	01	1	1406-
108	REPAIR KIT; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-407-1	02	1	1302-
116	GUIDE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-237-0	02	1	1302-

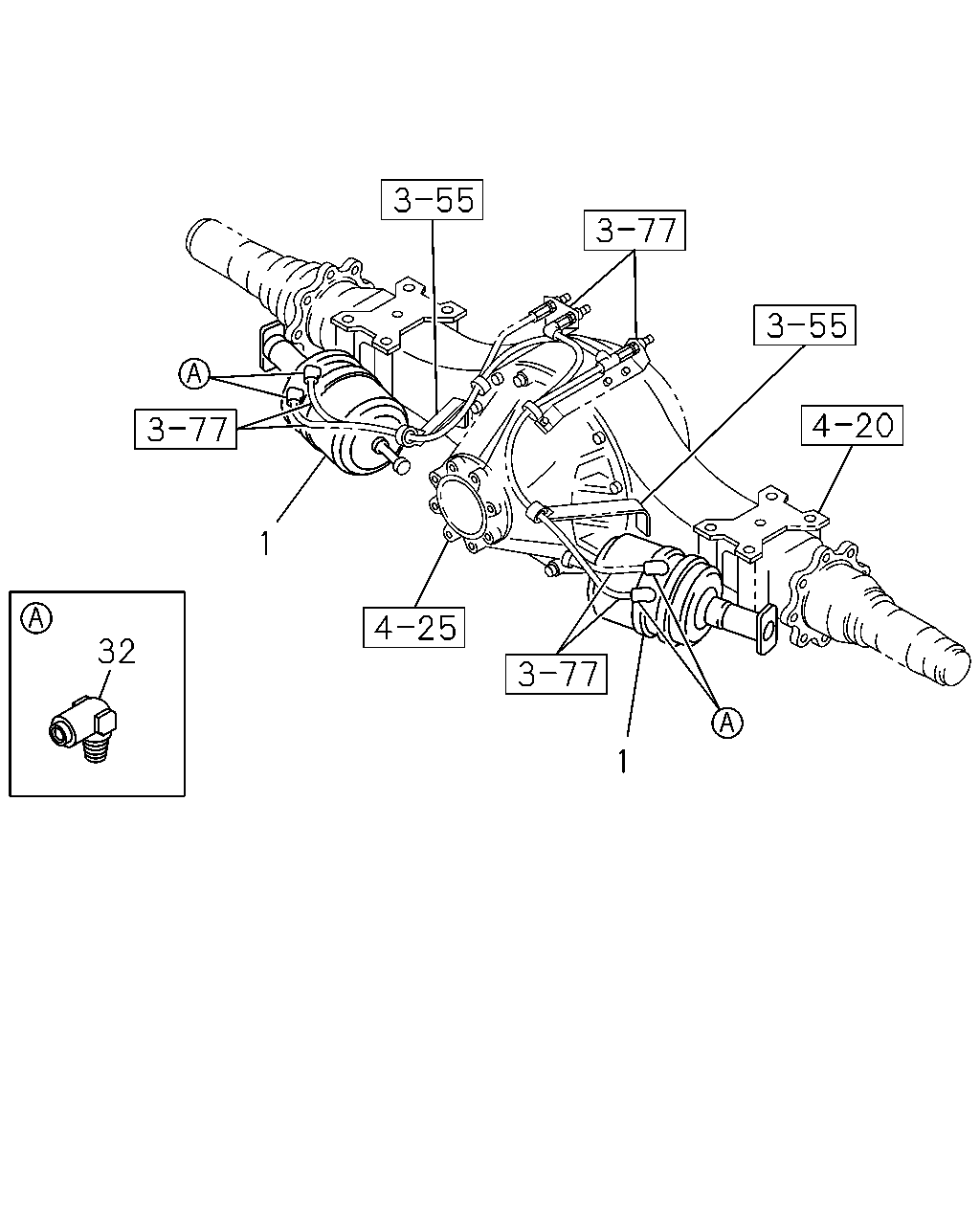

1 1 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 16.5"(W5V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98236-220-0	01	1	1312-1405
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 16.5"(W5V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98236-221-0	01	1	1312-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-48250-877-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-877-4	01	1	1406-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-48250-878-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-878-4	01	1	1406-
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1302-

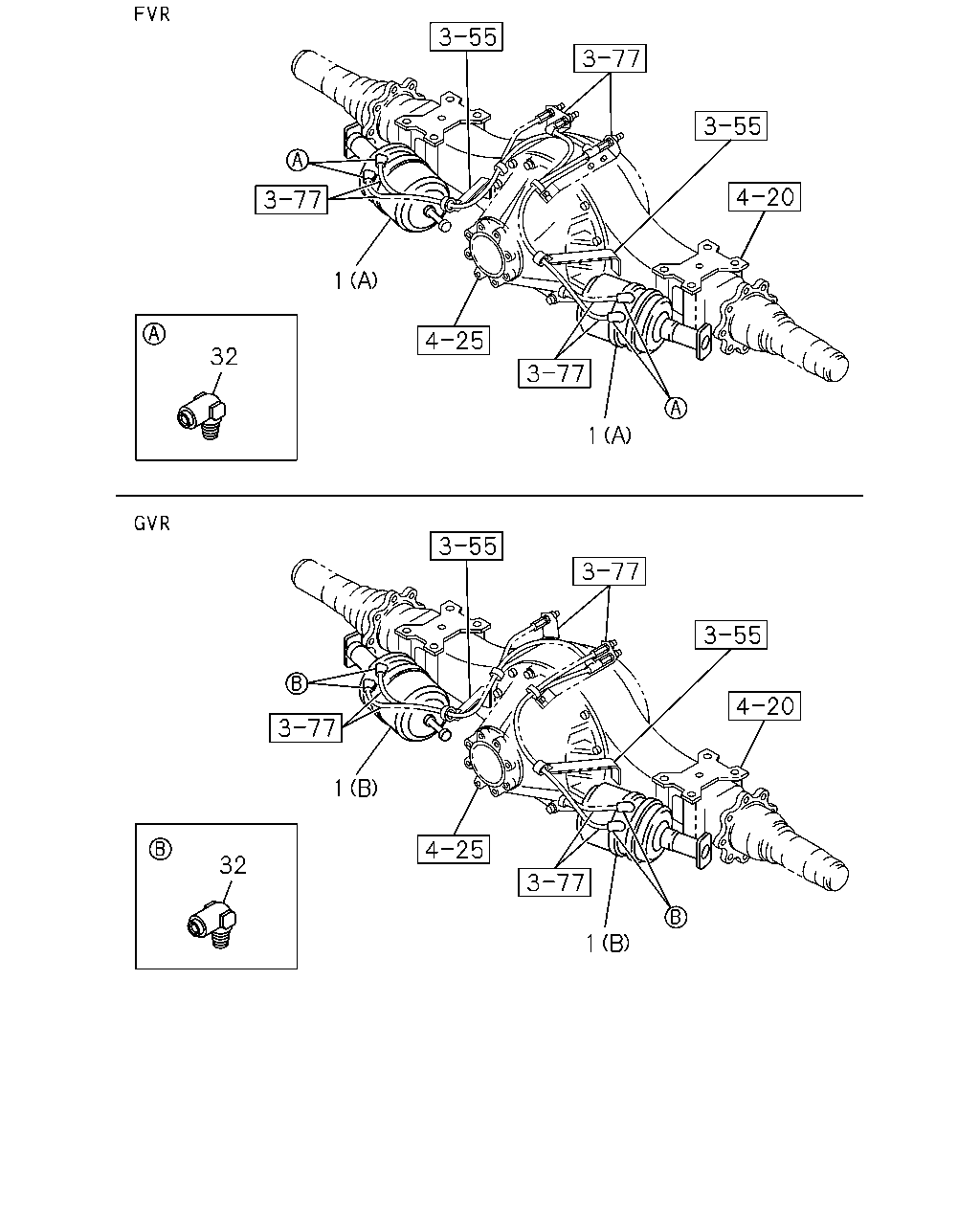

1 32 1 1 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 16.5"(W5V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98236-220-0	01	1	1312-1405
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 16.5"(W5V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98236-221-0	01	1	1312-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-48250-877-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-877-4	01	1	1406-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-48250-878-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-878-4	01	1	1406-
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1302-
