3-41 — REAR BRAKE POWER CHAMBER (#112630) — 52 parça

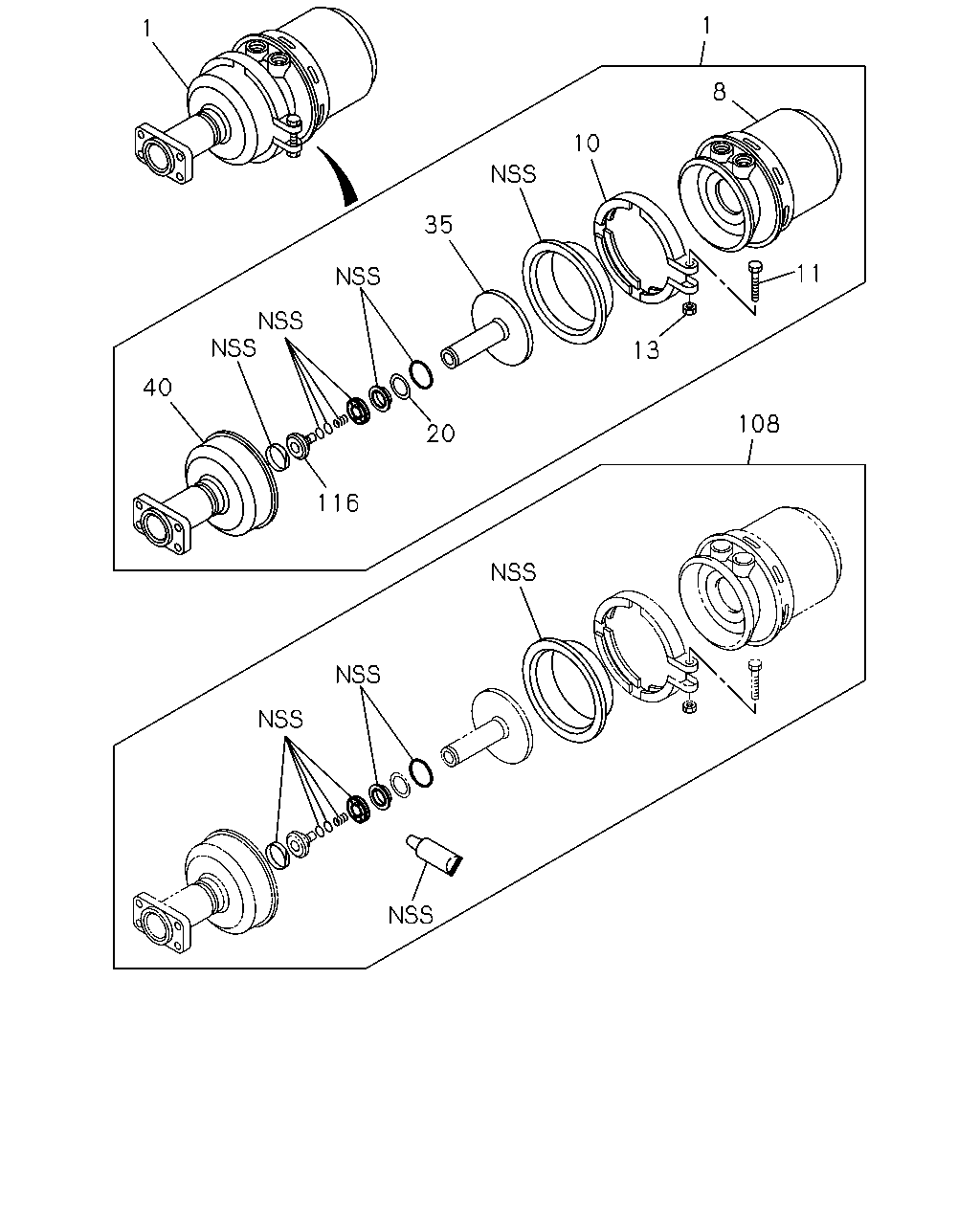

1 1 8 10 35 40 116 20 13 11 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>	8-98236-220-0	01	1	1406-1409
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98236-220-0	01	1	1410-1512
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98236-220-0	01	1	1601-
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>	8-98236-221-0	01	1	1406-1409
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98236-221-0	01	1	1410-1512
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98236-221-0	01	1	1601-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-877-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>	1-48250-877-4	01	1	1406-1409
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	1-48250-877-4	01	1	1410-1505
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	1-48250-877-4	01	1	1506-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-878-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>	1-48250-878-4	01	1	1406-1409
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	1-48250-878-4	01	1	1410-1505
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	1-48250-878-4	01	1	1506-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-173-2	01	1	1302-1505
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-173-2	01	1	1506-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-174-2	01	1	1302-1505
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-174-2	01	1	1506-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-231-0	02	1	1302-
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-232-0	02	1	1302-
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-233-0	02	1	1302-
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-236-0	02	1	1302-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-253-0	02	1	1302-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-179-0	01	1	1302-1505
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-179-0	01	1	1506-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-180-0	01	1	1302-1505
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-180-0	01	1	1506-
108	REPAIR KIT; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-407-1	02	1	1302-
116	GUIDE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-237-0	02	1	1302-

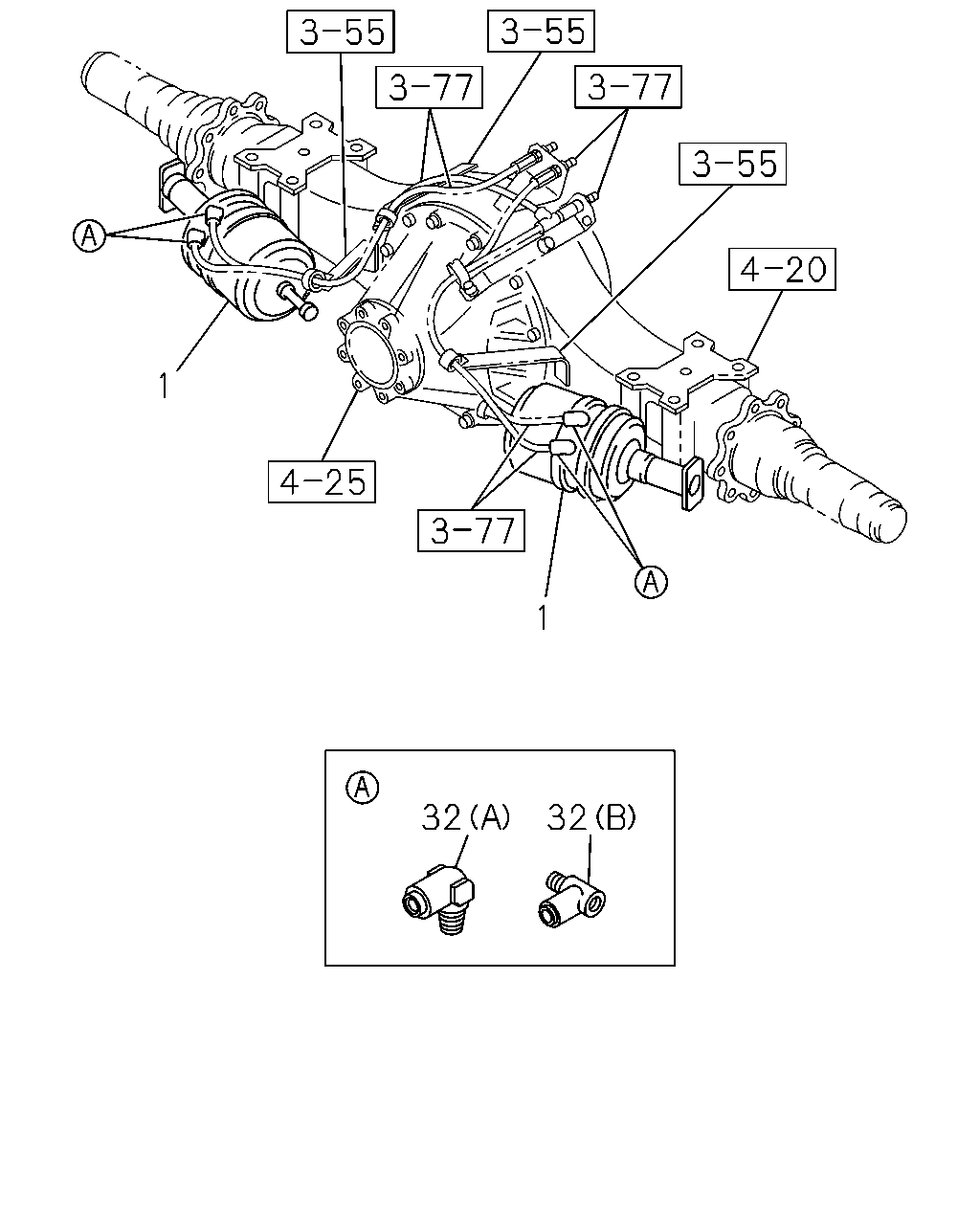

32 32 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>	8-98236-220-0	01	1	1406-1409
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98236-220-0	01	1	1410-1512
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98236-220-0	01	1	1601-
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>	8-98236-221-0	01	1	1406-1409
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98236-221-0	01	1	1410-1512
1	CHAMBER ASM; SPRING VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98236-221-0	01	1	1601-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-877-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>	1-48250-877-4	01	1	1406-1409
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	1-48250-877-4	01	1	1410-1505
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	1-48250-877-4	01	1	1506-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-878-4	01	1	1302-1405
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>	1-48250-878-4	01	1	1406-1409
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	1-48250-878-4	01	1	1410-1505
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	1-48250-878-4	01	1	1506-
32	CONNECTOR; SPR CHAMBER BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1402-
32	CONNECTOR; SPR CHAMBER BRAKE REGULATION ECE(TDV) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	1402-
32	CONNECTOR; SPR CHAMBER ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-1405
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) EXC. VIN MODEL YEAR 2014<VZE> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1406-
32	CONNECTOR; SPR CHAMBER ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1302-1405
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) EXC. VIN MODEL YEAR 2014<VZE> (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1406-
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1302-1405
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2014<VZE> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1406-1409
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1410-
