Isuzu WW
▶
TRUCKS
▶
FVR
▶
11518 - FVR/GVR LHD EURO2/3/4/5
▶
3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶

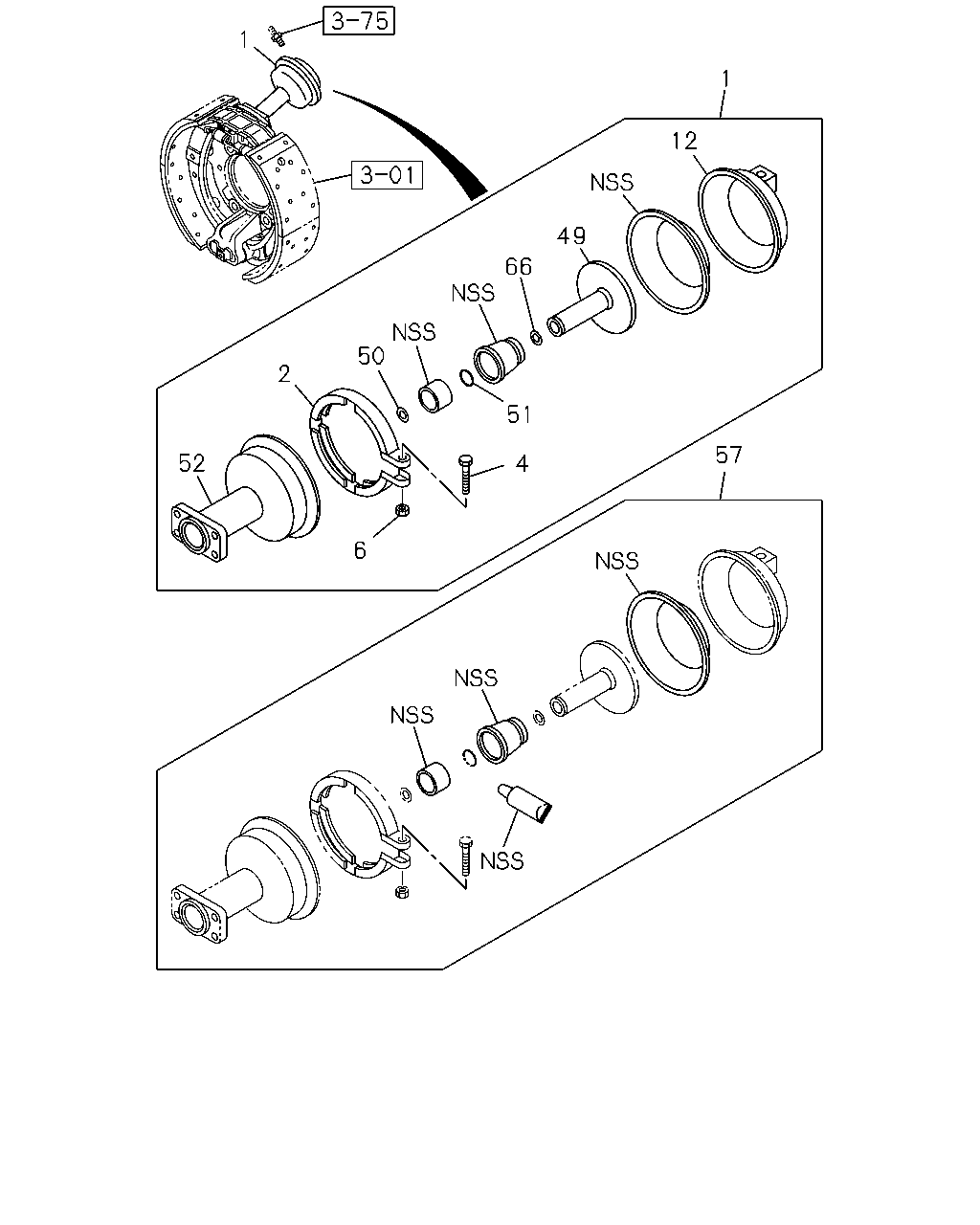

3-40 — FRONT BRAKE POWER CHAMBER
(#112627) — 24 parça
Tümü
A - FGR6MV
B - GGR6MV
1
12
49
66
50
2
52
6
4
51
57
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
8-98145-680-1
02
1
1302-
●
1
CHAMBER ASM; POWER,FRT BRK
8-98145-680-1
02
1
1302-
●
2
RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
1-48269-256-0
02
1
1302-
●
2
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1302-
●
4
BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
1-48269-257-0
02
1
1302-
●
4
BOLT; CLAMP RING
1-48269-257-0
02
1
1302-
●
6
NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
1-48269-147-0
02
1
1302-
●
6
NUT; CLAMP RING
1-48269-147-0
02
1
1302-
●
12
COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
1-48251-103-0
02
1
1302-
●
12
COVER ASM; LWR,SPR CHAMBER
1-48251-103-0
02
1
1302-
●
49
ROD; PUSH,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
8-98146-969-1
02
1
1302-
●
49
ROD; PUSH,SPR CHAMBER
8-98146-969-1
02
1
1302-
●
50
GUIDE; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
8-98146-963-1
02
1
1302-
●
50
GUIDE; SPR CHAMBER
8-98146-963-1
02
1
1302-
●
51
RING; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
8-98146-966-0
02
1
1302-
●
51
RING; SPR CHAMBER
8-98146-966-0
02
1
1302-
●
52
HOUSING; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
1-48251-195-1
02
1
1302-1403
●
52
HOUSING; SPR CHAMBER
1-48251-195-1
02
1
1302-1403
●
52
HOUSING; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
8-98248-793-0
02
1
1404-
●
52
HOUSING; SPR CHAMBER
8-98248-793-0
02
1
1404-
●
57
REPAIR KIT; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
8-98146-978-0
02
1
1302-
●
57
REPAIR KIT; SPR CHAMBER
8-98146-978-0
02
1
1302-
●
66
SHIM
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
8-98146-965-0
AR
1
1302-
●
66
SHIM
8-98146-965-0
AR
1
1302-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
