Isuzu WW
▶
TRUCKS
▶
FTR
▶
11513 - FTR-RHD EURO2
▶
3 - Brakes, Brake System
▶

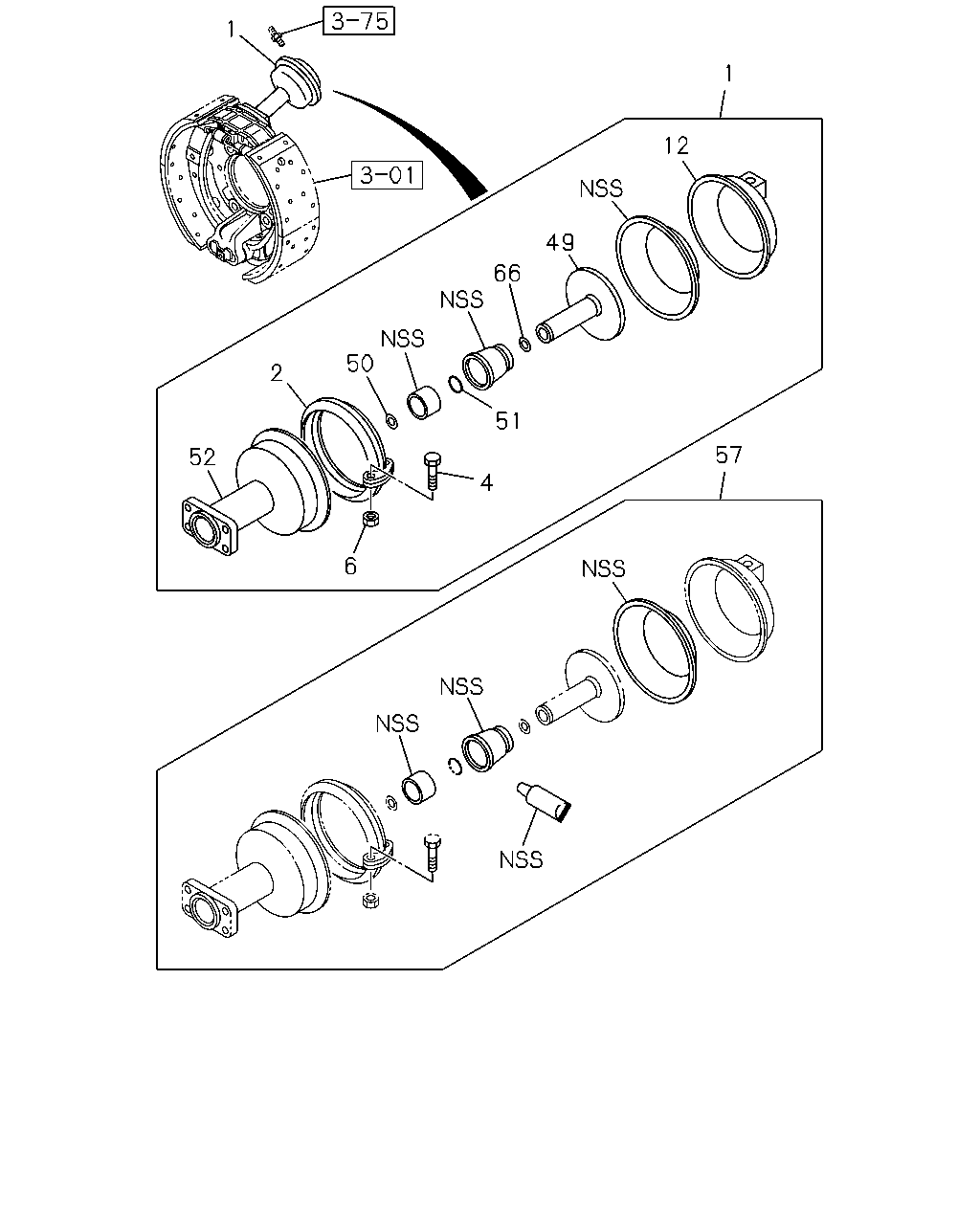

3-40 - FRONT BRAKE POWER CHAMBER
▶
3-40 — FRONT BRAKE POWER CHAMBER
(#112626) — 12 parça
1
1
12
49
66
50
2
52
51
4
6
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98145-680-1
02
1
1302-
2
RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48269-256-0
02
1
1302-
4
BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48269-257-0
02
1
1302-
6
NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48269-147-0
02
1
1302-
12
COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48251-103-0
02
1
1302-
49
ROD; PUSH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-969-1
02
1
1302-
50
GUIDE; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-963-1
02
1
1302-
51
RING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-966-0
02
1
1302-
52
HOUSING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48251-195-1
02
1
1302-1403
52
HOUSING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98248-793-0
02
1
1404-
57
REPAIR KIT; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-978-0
02
1
1302-
66
SHIM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-965-0
AR
1
1302-
