◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11512 - FTR(LHD) ▶ 3 - Brakes, Brake System ▶ 3-25 - BRAKE LOCK CONTROL ▶
3-25 — BRAKE LOCK CONTROL (#112617) — 11 parça

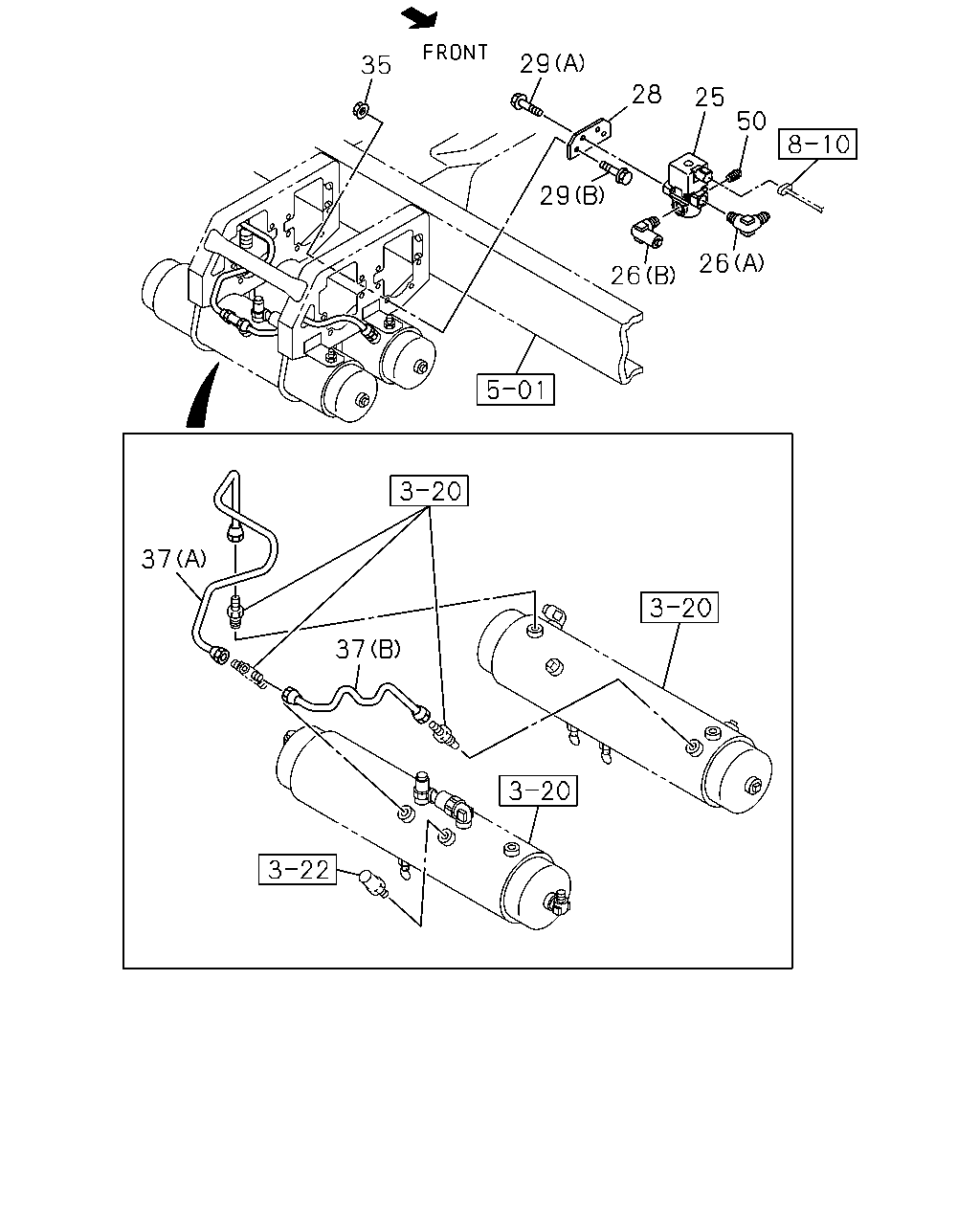

çizim 327961
35 29 28 25 29 50 26 26 37 37
BalonParca AdiParca NoAdetTipApplied Date
25 VALVE; CONT,BRK LOCK
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> 		1-82563-871-2 01 1 1302-
26 UNION; CONT VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
26 UNION; CONT VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1302-
28 BRACKET; CONT VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> 		8-98189-813-0 01 1 1302-1405
28 BRACKET; CONT VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> 		8-98273-321-0 01 1 1406-
29 BOLT; BRKT,CONT VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
29 BOLT; BRKT,CONT VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (B) M10X25 FLANGE 		0-28651-025-0 02 1 1302-
35 NUT; BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-210-0 02 1 1302-
37 PIPE; AIR,CHECK VLV TO DBL CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-98178-585-0 01 1 1302-
37 PIPE; AIR,CHECK VLV TO DBL CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98197-586-0 01 1 1302-
50 PLUG
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> PT1/4 		9-99204-513-0 01 1 1302-
