Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#112616) — 311 parça

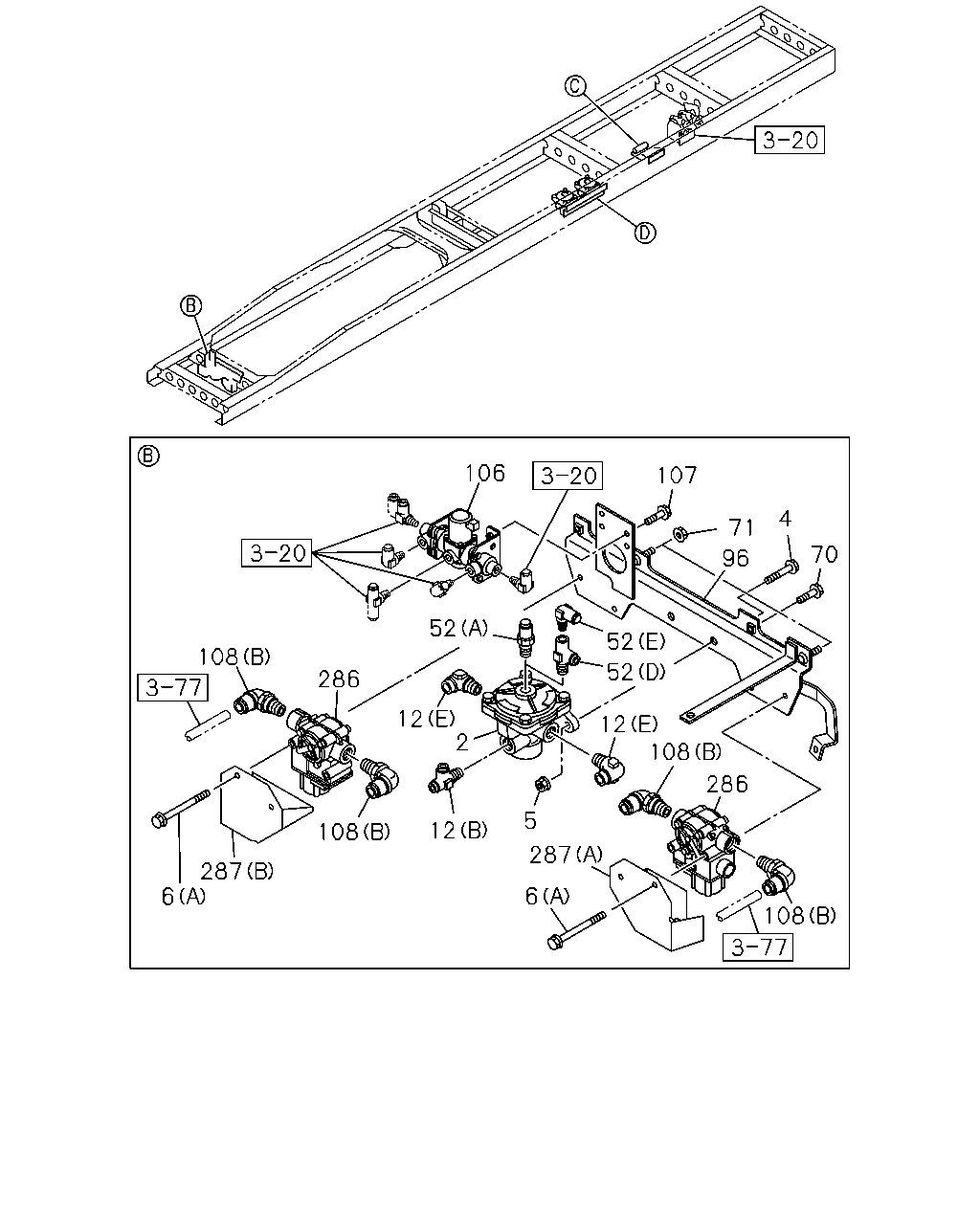

106 107 71 4 96 70 52 52 52 286 108 108 287 6 12 5 287 6 2 12 12 108 286 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	1302-
2	VALVE; RELAY	1-48210-875-0	02	1	1302-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1302-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1302-
5	NUT M10 FLANGE	0-91180-210-0	04	1	1302-
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (A) M8X80 FLANGE	0-28050-880-0	04	1	1302-1410
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (A) M8X85	1-09044-074-0	04	1	1411-
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
12	CONNECTOR; RELAY VLV (B)	1-09661-207-0	01	1	1302-
12	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1302-
52	CONNECTOR; RELAY VLV (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1302-
52	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (B) DIN9 & RC3/8 ELBOW	8-98203-578-0	01	1	1302-
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1302-
70	BOLT; AIR VLV M8X25 FLANGE	0-28650-825-0	02	1	1302-
71	NUT; AIR VLV M8 FLANGE	0-91180-108-0	02	1	1302-
96	BRACKET ANTI LOCK BRAKE<JE5>	8-98273-968-0	01	1	1411-
96	BRACKET	8-98094-851-2	01	1	1302-1410
96	BRACKET EXC. ANTI LOCK BRAKE<JE5>	8-98094-851-2	01	1	1411-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1302-
107	BOLT; VLV H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1302-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1302-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (C) PT3/8 ELBOW	1-09660-696-0	01	1	1302-1505
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1302-1505
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1302-1505
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1506-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (C) PT3/8 ELBOW	1-09660-696-0	01	1	1506-
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1506-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-1505
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-1505
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-1505
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1506-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1506-
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1506-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (F) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (F) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (G) DIN13X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5>	1-48240-115-0	02	1	1302-1410
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5>	8-98215-454-0	02	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (A)	1-47479-611-1	01	1	1302-1410
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-98273-493-0	01	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-98073-401-0	01	1	1302-1410
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (A)	8-98273-494-0	01	1	1411-

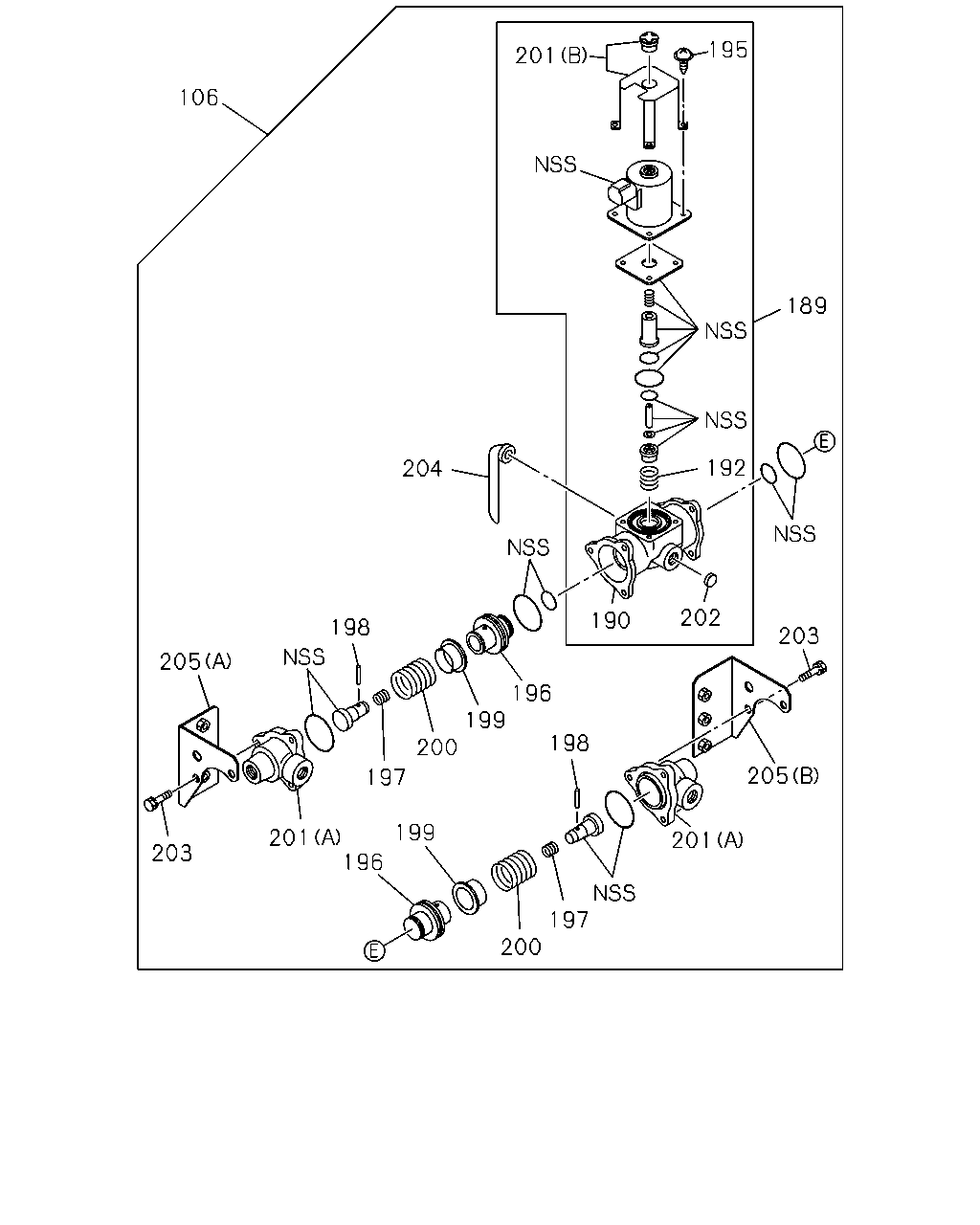

201 195 189 192 203 202 190 204 198 106 205 203 201 197 199 198 196 200 196 199 200 201 197 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1302-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1302-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1302-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1302-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1302-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1302-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1302-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1302-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1302-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1302-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1302-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1302-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1302-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1302-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1302-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1302-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1302-

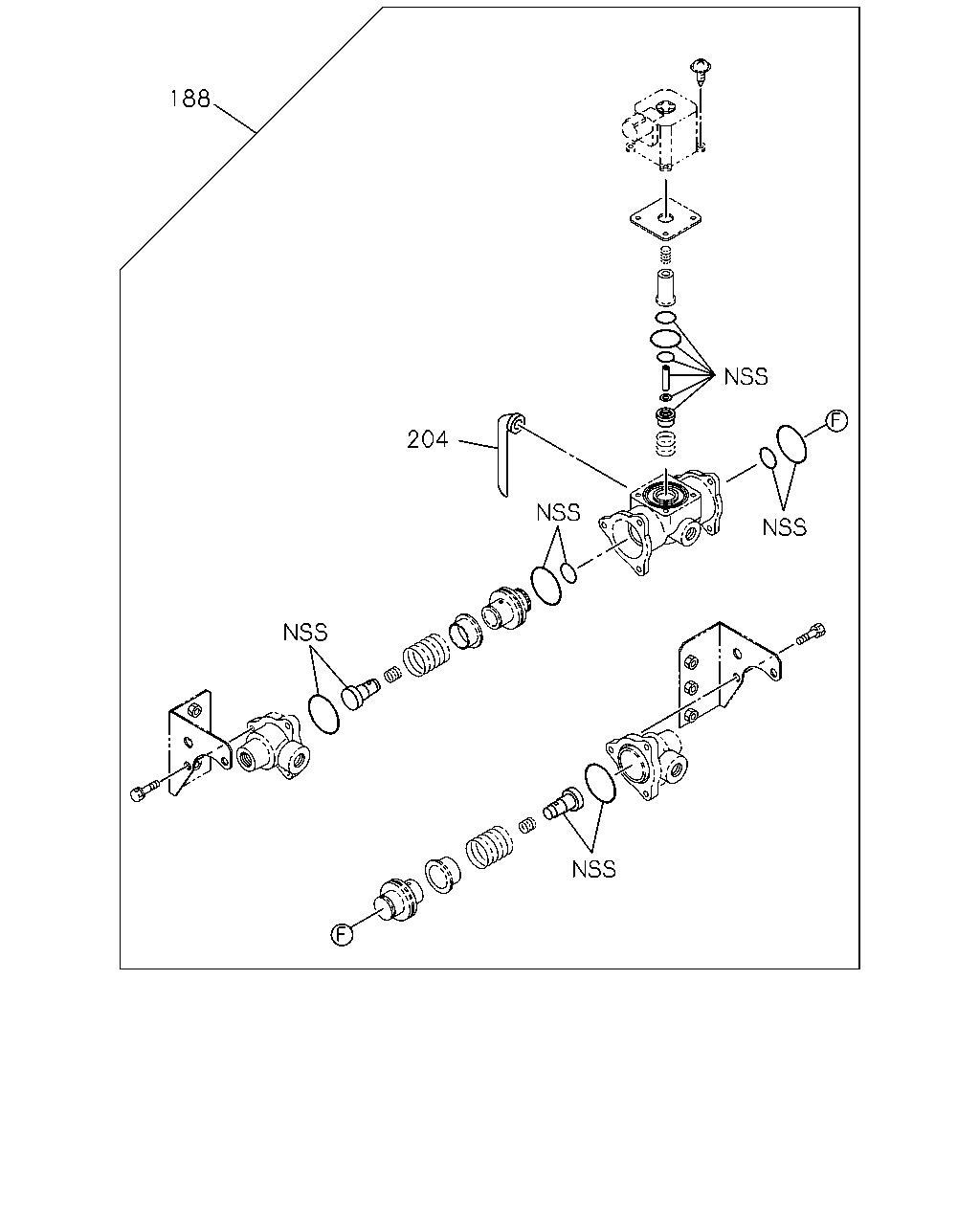

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1302-
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1302-

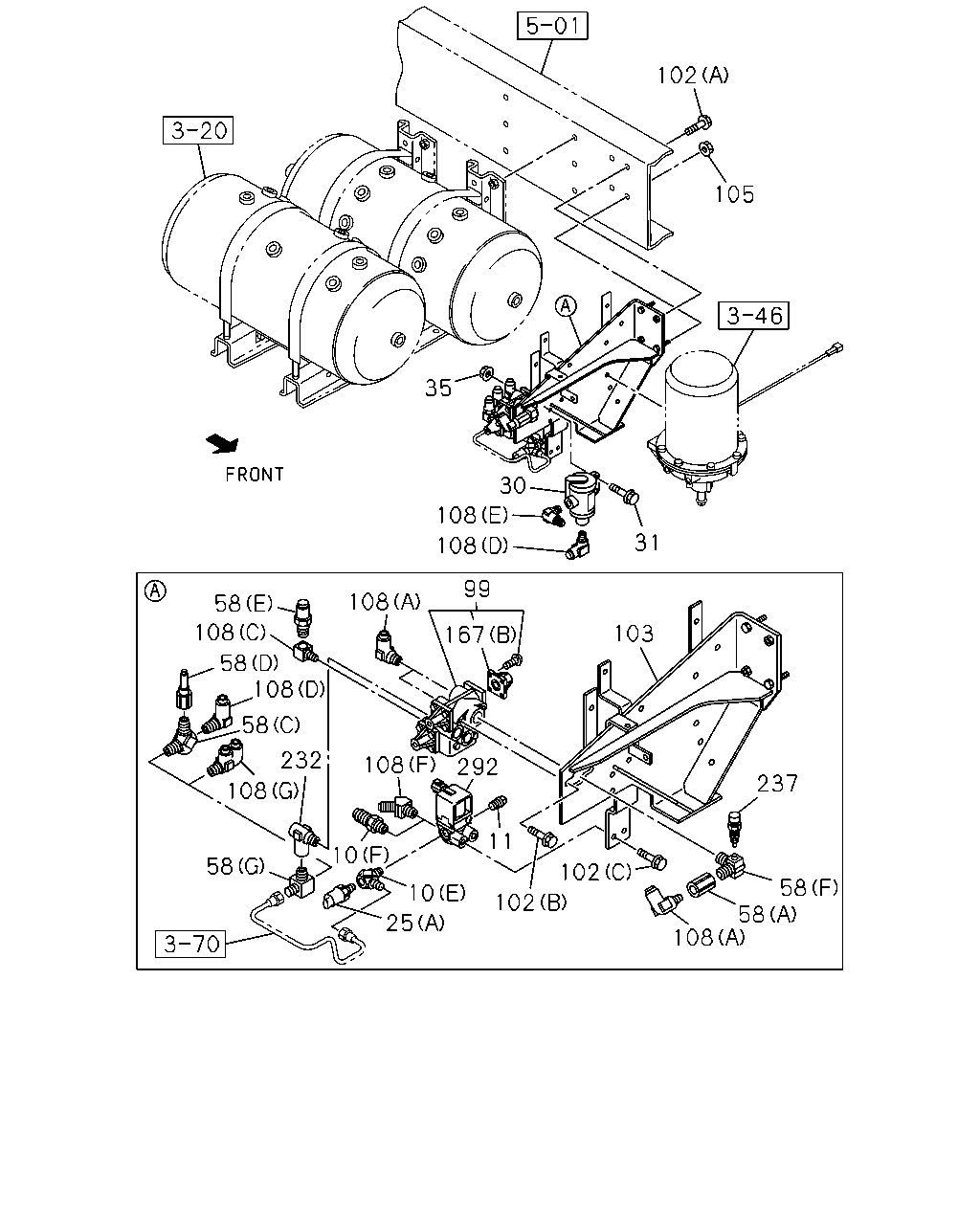

102 105 35 30 31 108 99 108 108 58 108 58 108 58 108 232 108 167 103 237 58 58 108 102 102 10 25 58 10 292 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR (D) PT1/4 2WAY	1-09660-693-0	01	1	1302-
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
10	CONNECTOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1302-
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1302-
10	CONNECTOR FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1505
10	CONNECTOR FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1505
10	CONNECTOR ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1505
10	CONNECTOR ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1506-
10	CONNECTOR FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1506-
10	CONNECTOR TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1506-
10	CONNECTOR TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
11	PLUG FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> PT1/4	9-99204-513-0	01	1	1302-1505
11	PLUG FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) PT1/4	9-99204-513-0	01	1	1302-1505
11	PLUG ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) PT1/4	9-99204-513-0	01	1	1302-1505
11	PLUG ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) PT1/4	9-99204-513-0	01	1	1506-
11	PLUG FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> PT1/4	9-99204-513-0	01	1	1506-
11	PLUG TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) PT1/4	9-99204-513-0	01	1	1506-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1302-
25	SWITCH; PRESSURE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) STAMP 5.5	8-97609-249-0	01	1	1302-1505
25	SWITCH; PRESSURE FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5	8-97609-249-0	01	1	1302-1505
25	SWITCH; PRESSURE ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5	8-97609-249-0	01	1	1302-1505
25	SWITCH; PRESSURE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) STAMP 5.5	8-97609-249-0	01	1	1506-
25	SWITCH; PRESSURE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) STAMP 5.5	8-97609-249-0	01	1	1506-
25	SWITCH; PRESSURE TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5	8-97609-249-0	01	1	1506-
30	GOVERNOR; AIR CONT TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1302-
31	BOLT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	02	1	1302-
35	NUT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1302-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-1505
58	ADAPTER FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1506-
58	ADAPTER TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-1505
58	ADAPTER FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1506-
58	ADAPTER TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98031-238-0	01	1	1302-1505
58	ADAPTER FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F)	8-98031-238-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (F)	8-98031-238-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (F)	8-98031-238-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98031-238-0	01	1	1506-
58	ADAPTER TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F)	8-98031-238-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98148-475-0	01	1	1302-1505
58	ADAPTER FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (G)	8-98148-475-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (G)	8-98148-475-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (G)	8-98148-475-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98148-475-0	01	1	1506-
58	ADAPTER TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (G)	8-98148-475-0	01	1	1506-
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-
99	VALVE; PROTECTION FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>	1-48110-294-3	01	1	1302-
99	VALVE; PROTECTION FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-2	01	1	1302-1505
99	VALVE; PROTECTION ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-2	01	1	1302-1505
99	VALVE; PROTECTION ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	1-48110-288-3	01	1	1506-
99	VALVE; PROTECTION TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-3	01	1	1506-
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
102	BOLT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505
102	BOLT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505
102	BOLT; PROTECTION VALVE ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505
102	BOLT; PROTECTION VALVE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-
102	BOLT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-
102	BOLT; PROTECTION VALVE TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-
102	BOLT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505
102	BOLT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505
102	BOLT; PROTECTION VALVE ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505
102	BOLT; PROTECTION VALVE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (C) M8X20 FLANGE	0-28650-820-0	02	1	1506-
102	BOLT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X20 FLANGE	0-28650-820-0	02	1	1506-
102	BOLT; PROTECTION VALVE TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) M8X20 FLANGE	0-28650-820-0	02	1	1506-
103	BRACKET; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>	8-98226-215-0	01	1	1302-
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	8-98226-215-0	01	1	1302-
103	BRACKET; PROTECTION VALVE TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	8-98173-454-0	01	1	1302-
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	1302-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1302-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (C) PT3/8 ELBOW	1-09660-696-0	01	1	1302-1505
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1302-1505
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1302-1505
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1506-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (C) PT3/8 ELBOW	1-09660-696-0	01	1	1506-
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1506-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-1505
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-1505
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-1505
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1506-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1506-
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1506-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (F) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (F) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (G) DIN13X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-
167	COVER; VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48119-625-0	04	1	1302-1505
167	COVER; VALVE FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1302-1505
167	COVER; VALVE ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1302-1505
167	COVER; VALVE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1506-1506
167	COVER; VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48119-625-0	04	1	1506-1506
167	COVER; VALVE TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1506-1506
167	COVER; VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48119-625-0	04	1	1507-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1302-
167	COVER; VALVE (A)	1-48219-070-0	02	1	1302-
232	VALVE; CHECK FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1302-1505
232	VALVE; CHECK FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1302-1505
232	VALVE; CHECK ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1302-1505
232	VALVE; CHECK ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1506-
232	VALVE; CHECK FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1506-
232	VALVE; CHECK TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1506-
237	VALVE; SAFETY	1-48320-012-2	01	1	1302-
292	VALVE ASM; MAGNETIC FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>	1-82563-871-2	01	1	1302-1505
292	VALVE ASM; MAGNETIC FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	1-82563-871-2	01	1	1302-1505
292	VALVE ASM; MAGNETIC ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU)	1-82563-871-2	01	1	1302-1505
292	VALVE ASM; MAGNETIC ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	1-82563-871-2	01	1	1506-
292	VALVE ASM; MAGNETIC FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>	1-82563-871-2	01	1	1506-
292	VALVE ASM; MAGNETIC TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	1-82563-871-2	01	1	1506-

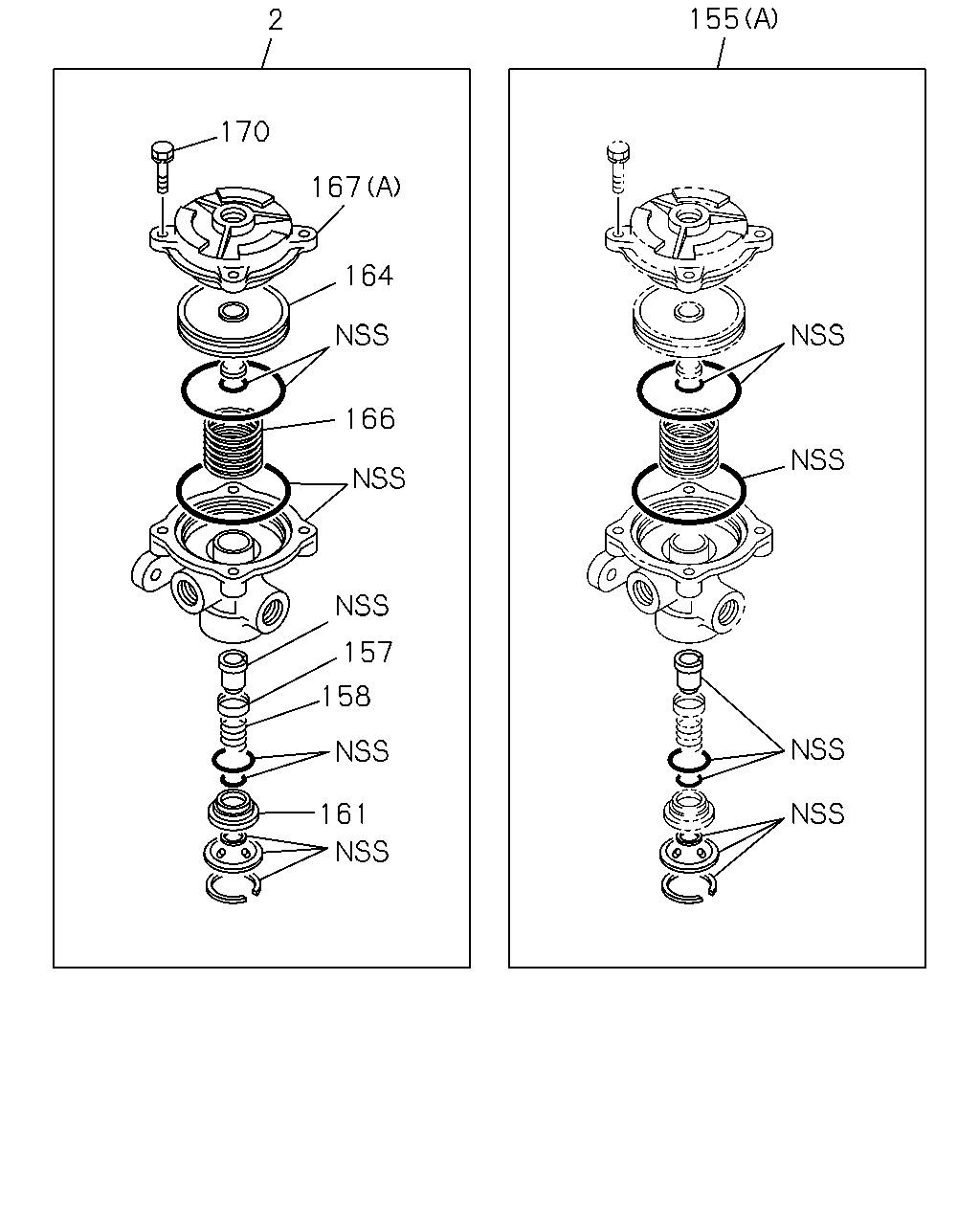

2 170 167 164 166 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	1302-
2	VALVE; RELAY	1-48210-875-0	02	1	1302-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	1302-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1302-
157	RETAINER; VALVE	1-48213-002-0	01	1	1302-
157	RETAINER; VALVE	1-48213-002-0	02	1	1302-
158	SPRING; VALVE	1-47819-089-0	01	1	1302-
158	SPRING; VALVE	1-47819-089-0	02	1	1302-
161	GUIDE; VALVE	1-48129-014-0	01	1	1302-
161	GUIDE; VALVE	1-48129-014-0	02	1	1302-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1302-
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	1302-
166	SPRING; PISTON	1-47819-090-0	01	1	1302-
166	SPRING; PISTON	1-47819-090-0	02	1	1302-
167	COVER; VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48119-625-0	04	1	1302-1505
167	COVER; VALVE FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1302-1505
167	COVER; VALVE ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1302-1505
167	COVER; VALVE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1506-1506
167	COVER; VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48119-625-0	04	1	1506-1506
167	COVER; VALVE TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1506-1506
167	COVER; VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48119-625-0	04	1	1507-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1302-
167	COVER; VALVE (A)	1-48219-070-0	02	1	1302-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1302-
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	1302-

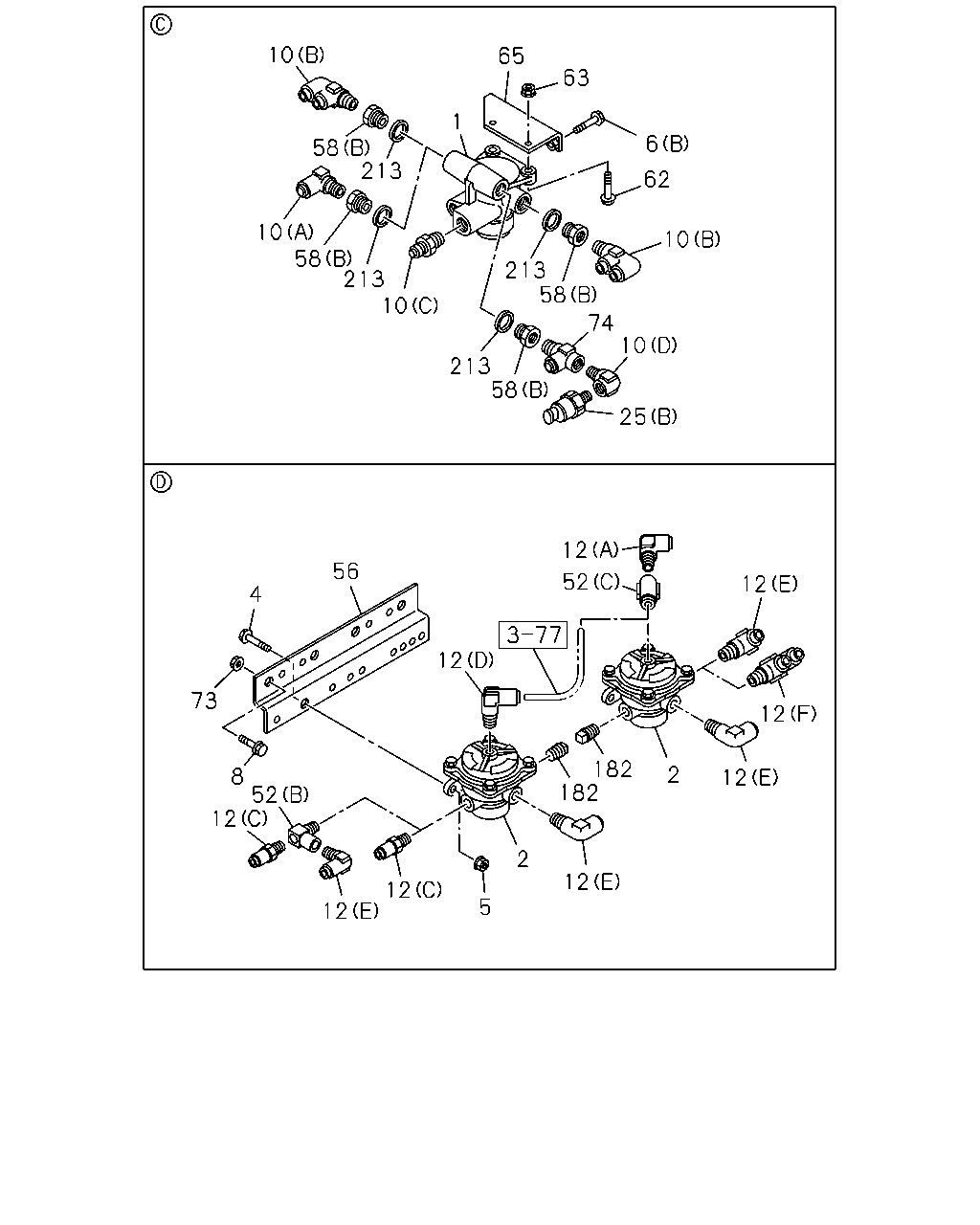

10 58 10 58 213 10 213 58 25 10 74 58 213 10 62 6 63 65 213 4 56 73 8 52 12 12 12 5 2 12 182 182 2 12 12 12 12 52 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1302-
2	VALVE; RELAY	1-48210-875-0	01	1	1302-
2	VALVE; RELAY	1-48210-875-0	02	1	1302-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1302-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1302-
5	NUT M10 FLANGE	0-91180-210-0	04	1	1302-
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (A) M8X80 FLANGE	0-28050-880-0	04	1	1302-1410
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (A) M8X85	1-09044-074-0	04	1	1411-
8	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	1302-
10	CONNECTOR (D) PT1/4 2WAY	1-09660-693-0	01	1	1302-
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
10	CONNECTOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1302-
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1302-
10	CONNECTOR FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1505
10	CONNECTOR FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1505
10	CONNECTOR ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1505
10	CONNECTOR ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1506-
10	CONNECTOR FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1506-
10	CONNECTOR TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1506-
10	CONNECTOR TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
12	CONNECTOR; RELAY VLV (B)	1-09661-207-0	01	1	1302-
12	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1302-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1302-
25	SWITCH; PRESSURE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) STAMP 5.5	8-97609-249-0	01	1	1302-1505
25	SWITCH; PRESSURE FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5	8-97609-249-0	01	1	1302-1505
25	SWITCH; PRESSURE ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5	8-97609-249-0	01	1	1302-1505
25	SWITCH; PRESSURE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) STAMP 5.5	8-97609-249-0	01	1	1506-
25	SWITCH; PRESSURE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) STAMP 5.5	8-97609-249-0	01	1	1506-
25	SWITCH; PRESSURE TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) STAMP 5.5	8-97609-249-0	01	1	1506-
52	CONNECTOR; RELAY VLV (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1302-
52	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (B) DIN9 & RC3/8 ELBOW	8-98203-578-0	01	1	1302-
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1302-
56	BRACKET; RELAY VLV	1-47479-937-0	01	1	1302-
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1302-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-1505
58	ADAPTER FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1506-
58	ADAPTER TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-1505
58	ADAPTER FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1506-
58	ADAPTER TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98031-238-0	01	1	1302-1505
58	ADAPTER FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F)	8-98031-238-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (F)	8-98031-238-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (F)	8-98031-238-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98031-238-0	01	1	1506-
58	ADAPTER TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F)	8-98031-238-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98148-475-0	01	1	1302-1505
58	ADAPTER FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (G)	8-98148-475-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (G)	8-98148-475-0	01	1	1302-1505
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (G)	8-98148-475-0	01	1	1506-
58	ADAPTER FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98148-475-0	01	1	1506-
58	ADAPTER TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (G)	8-98148-475-0	01	1	1506-
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
58	ADAPTER ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1302-
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	1302-
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1302-
73	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1302-
74	CONNECTOR; 3WAY DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	1302-
182	PLUG; RELAY VLV PT3/8	9-09204-517-0	02	1	1302-
213	GASKET ID=22.5	9-09571-422-0	04	1	1302-

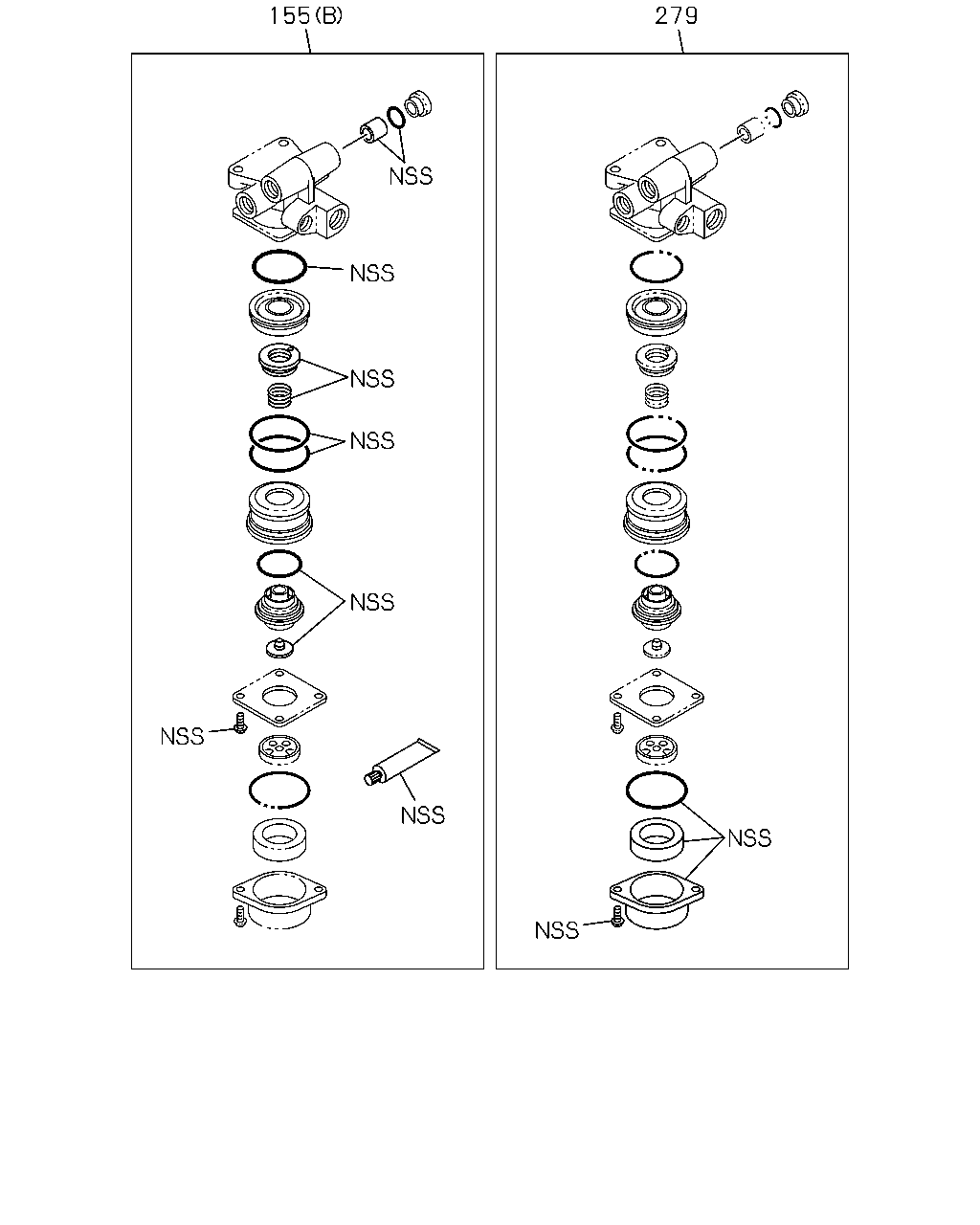

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	1302-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1302-
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1302-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV TURBO - CONVENTIONAL<Q5T>	1-85576-467-0	01	1	1302-

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	REPAIR KIT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>	1-85576-451-1	01	1	1302-1505
241	REPAIR KIT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	1-85576-451-1	01	1	1302-1505
241	REPAIR KIT; PROTECTION VALVE ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU)	1-85576-451-1	01	1	1302-1505
241	REPAIR KIT; PROTECTION VALVE ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	1-85576-451-1	01	1	1506-1506
241	REPAIR KIT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>	1-85576-451-1	01	1	1506-1506
241	REPAIR KIT; PROTECTION VALVE TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	1-85576-451-1	01	1	1506-1506
241	REPAIR KIT; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>	1-85576-451-2	01	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
