Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#112614) — 152 parça

10 213 58 10 62 134 6 63 65 1 213 58 10 10 25 74 58 213 58 213 12 4 56 73 8 12 2 12 12 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-354-1	01	1	1302-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1302-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1302-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
6	BOLT; VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28650-835-0	02	1	1302-
8	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT1/4 2WAY	1-09660-693-0	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1302-
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 5.5	8-97609-249-0	01	1	1302-
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1302-
56	BRACKET; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98126-366-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98148-475-0	01	1	1302-
62	BOLT; BRKT FIX 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1302-
63	NUT; BRKT FIX 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1302-
65	BRACKET; RELAY VLV RR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47471-032-0	01	1	1302-
73	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
74	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	1302-
134	PLUG; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	1-09661-502-0	01	1	1302-
213	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09571-422-0	04	1	1302-

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1302-
279	REPAIR KIT; SILENCER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-409-0	01	1	1302-

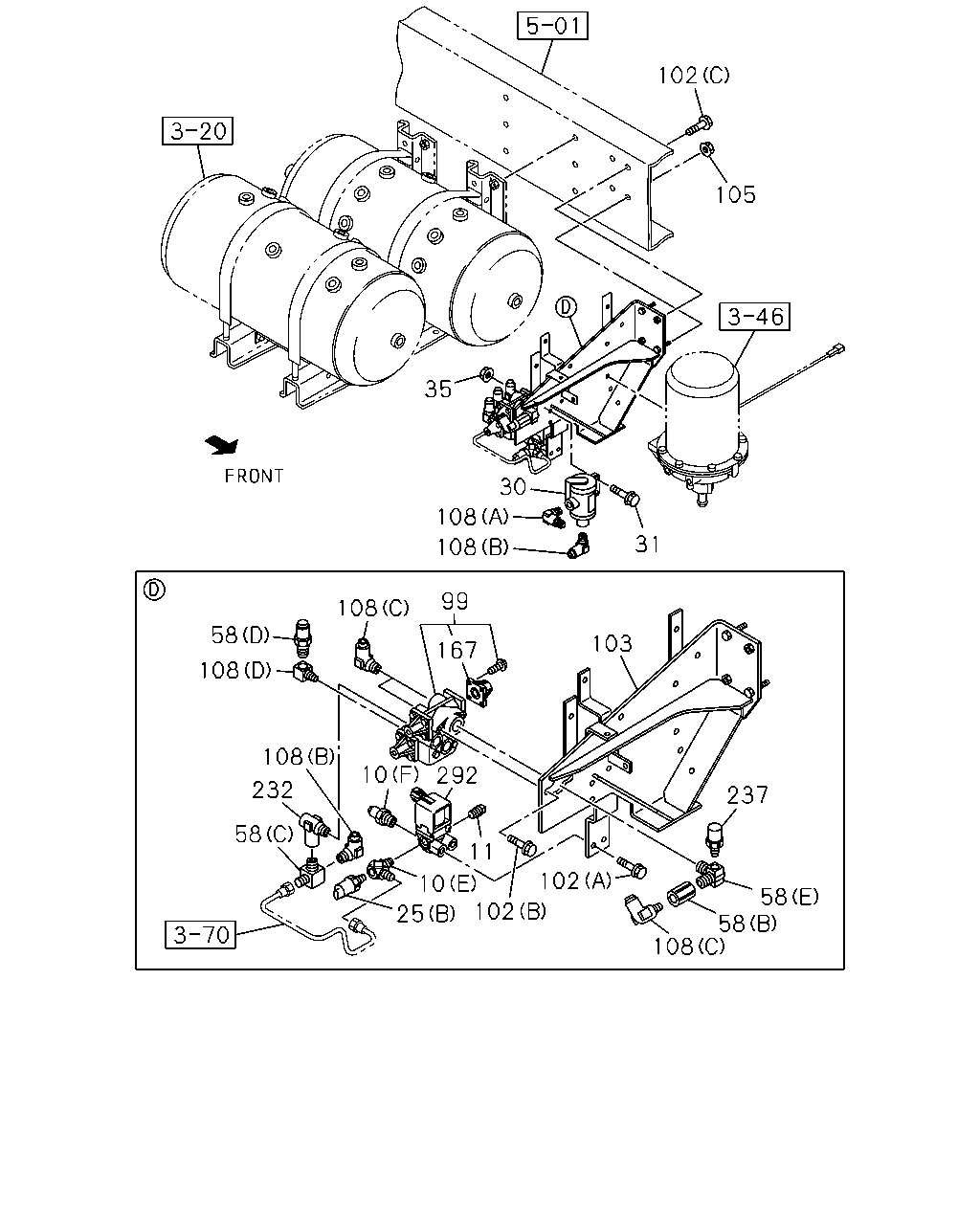

102 105 31 35 30 108 108 103 237 58 58 108 102 102 10 25 292 10 167 99 108 58 108 108 232 58 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT1/4 2WAY	1-09660-693-0	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
11	PLUG 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4	9-99204-513-0	01	1	1302-
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 5.5	8-97609-249-0	01	1	1302-
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1302-
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L)	1-48350-093-2	01	1	1302-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1302-
35	NUT; GOV TO FRAME 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98148-475-0	01	1	1302-
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-288-3	01	1	1302-
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M10X35 FLANGE	0-28651-035-0	02	1	1302-
103	BRACKET; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98173-454-0	01	1	1302-
105	NUT; BRKT,VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48119-625-0	04	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1302-
232	VALVE; CHECK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1302-
237	VALVE; SAFETY	1-48320-012-2	01	1	1302-
292	VALVE ASM; MAGNETIC 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82563-871-2	01	1	1302-

106 201 195 189 192 202 203 190 204 198 205 203 201 197 196 200 196 199 198 199 200 201 205 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1302-
189	VALVE ASM; SOLENOID,HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1302-
190	BODY; SOLENOID VLV,HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1302-
192	SPRING; SOLENOID VLV,HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1302-
195	SCREW; SOLENOID VLV,HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1302-
196	PISTON; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1302-
197	SPRING; INNER,HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1302-
198	PIN; STRAIGHT,HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1302-
199	RETAINER; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1302-
200	SPRING; OUTER,HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1302-
201	COVER; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1302-
201	COVER; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1302-
202	FILTER; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1302-
203	SCREW; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1302-
204	PIPE ASM; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1302-
205	BRACKET; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1302-
205	BRACKET; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1302-

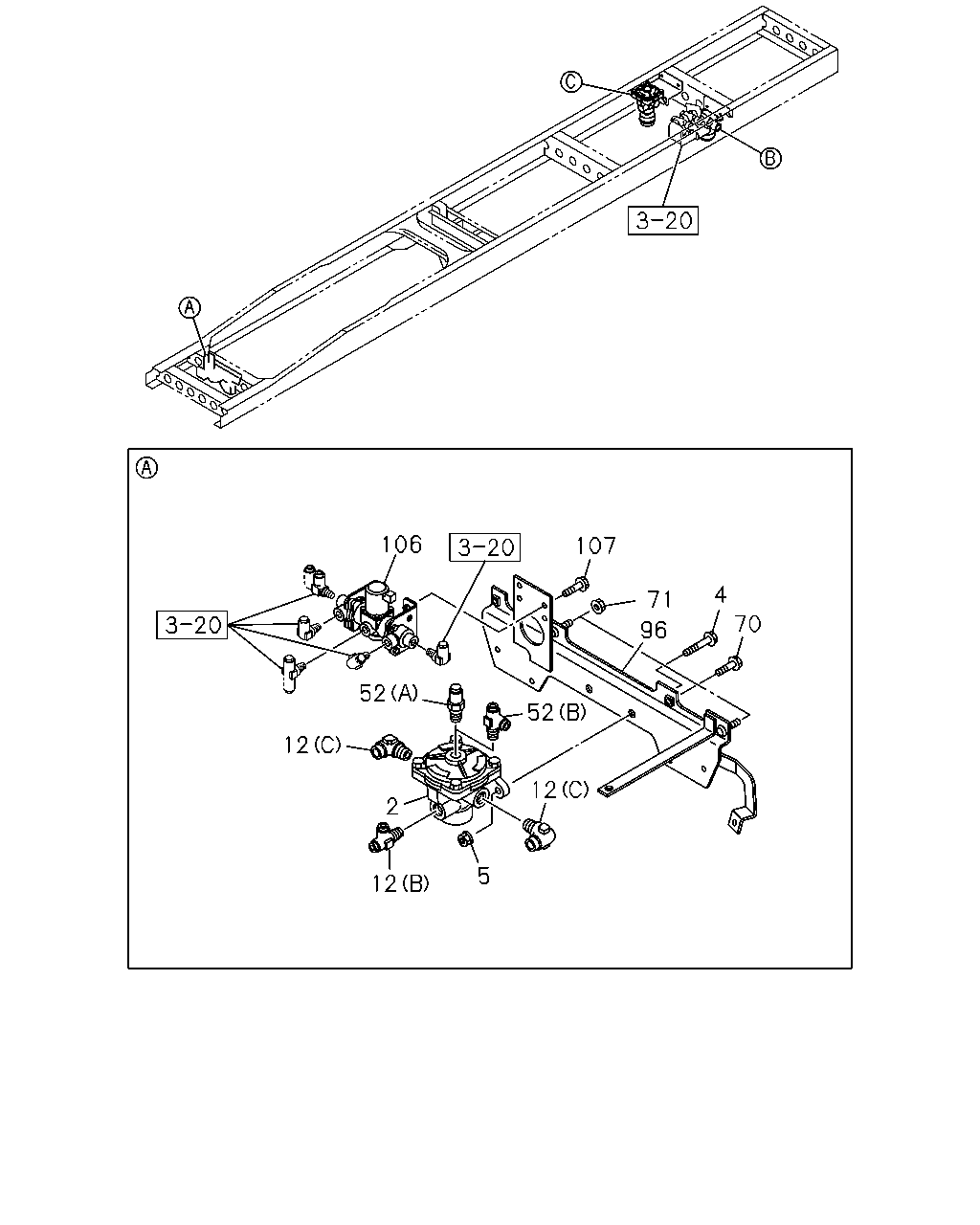

106 107 71 96 70 4 52 12 5 12 52 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1302-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1302-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1302-
52	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
52	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1302-
70	BOLT; AIR VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
71	NUT; AIR VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1302-
96	BRACKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98074-613-3	01	1	1302-
106	VALVE; HSA 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1302-
107	BOLT; VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1302-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L)	1-85576-467-0	01	1	1302-

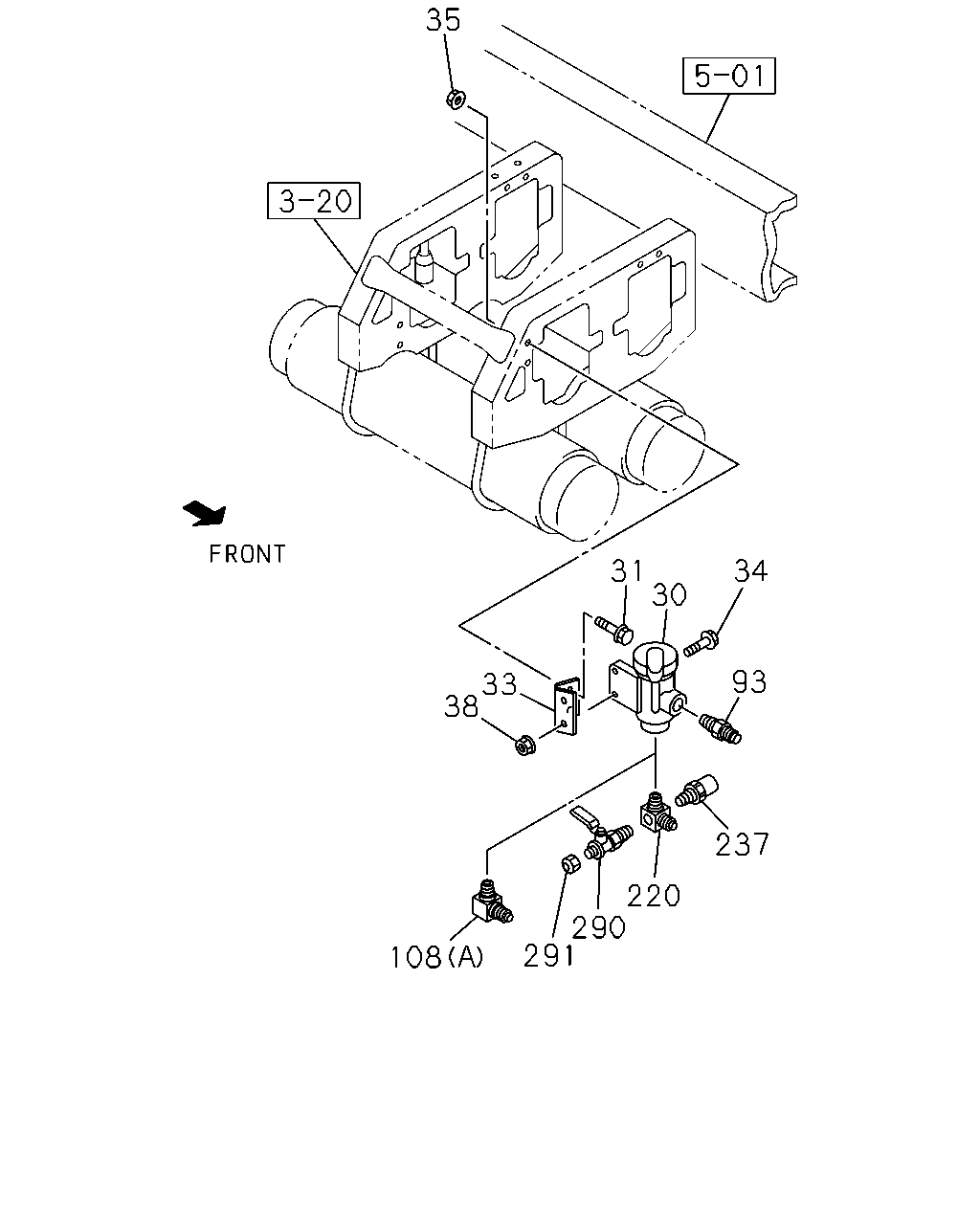

35 38 31 30 33 34 93 237 220 290 291 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L)	1-48350-093-2	01	1	1302-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-459-1	01	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1302-
35	NUT; GOV TO FRAME 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1302-
237	VALVE; SAFETY	1-48320-012-2	01	1	1302-
290	COCK; AIR,INFLATOR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-
291	CAP; AIR COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-

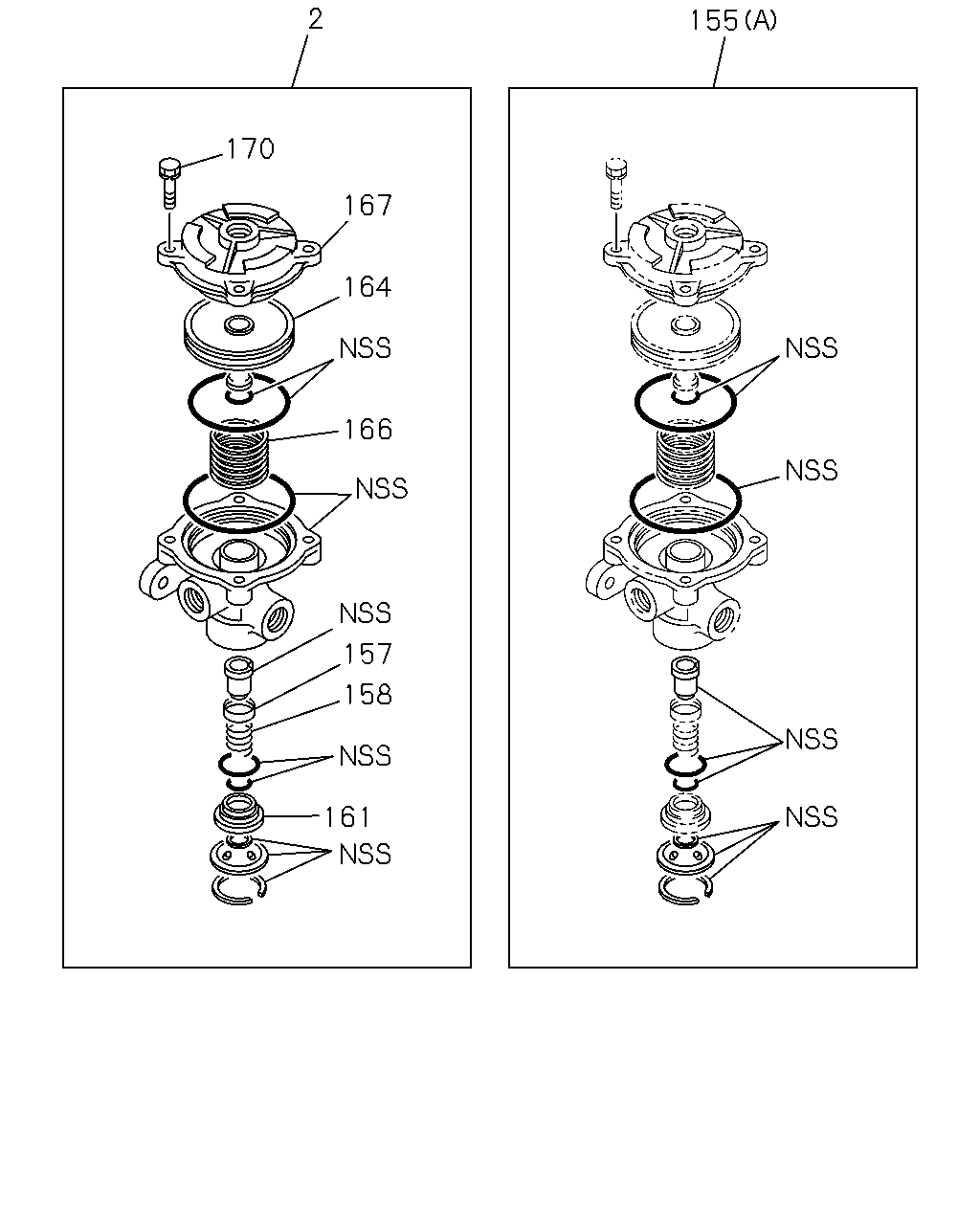

2 170 164 167 166 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1302-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1302-
157	RETAINER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1302-
157	RETAINER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1302-
158	SPRING; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1302-
158	SPRING; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1302-
161	GUIDE; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1302-
161	GUIDE; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1302-
164	PISTON; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1302-
164	PISTON; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1302-
166	SPRING; PISTON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1302-
166	SPRING; PISTON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48119-625-0	04	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1302-
170	SCREW; COVER TO BODY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1302-
170	SCREW; COVER TO BODY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1302-

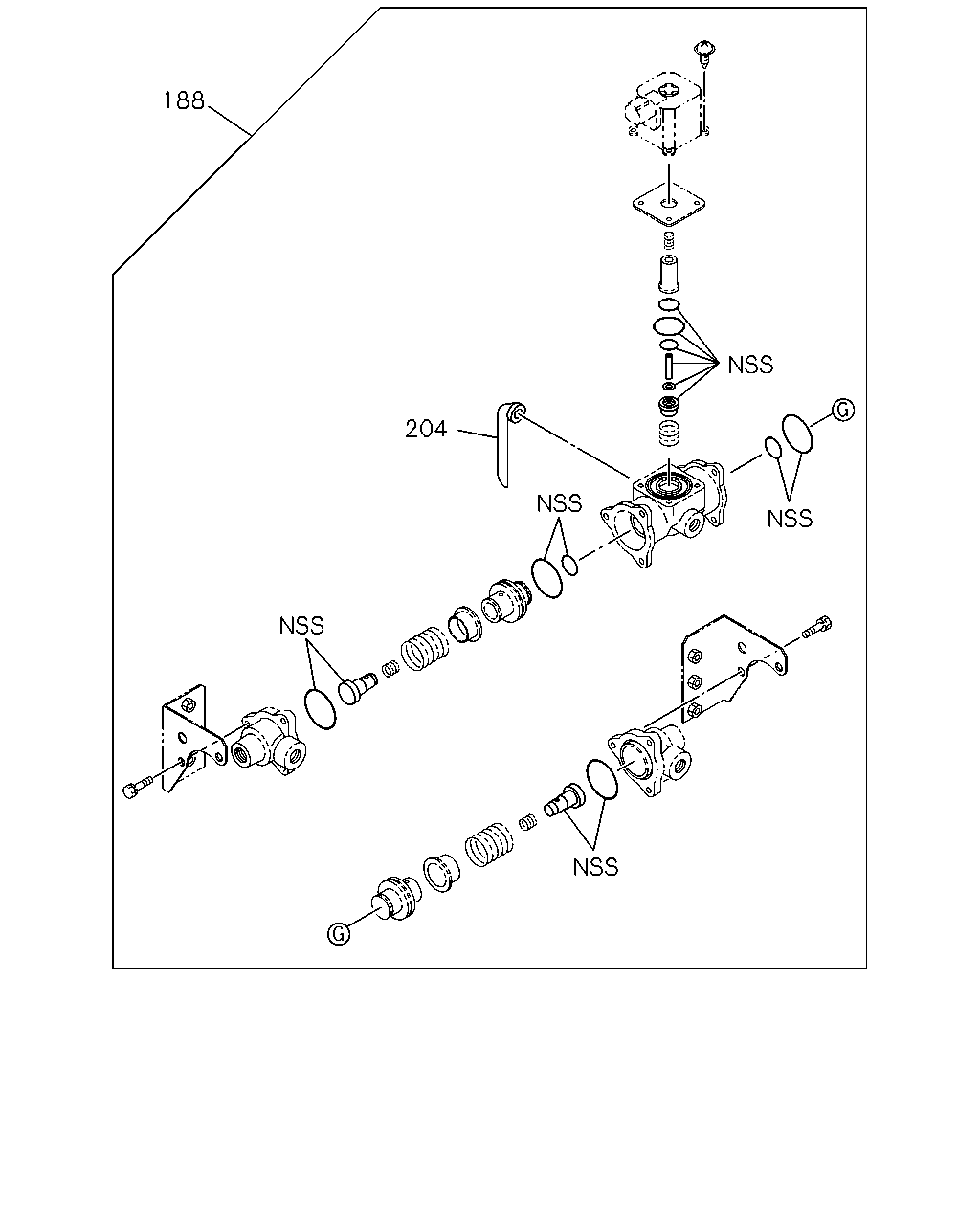

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1302-
	204	PIPE ASM; HSA VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1302-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-451-2	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
