Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#112613) — 116 parça

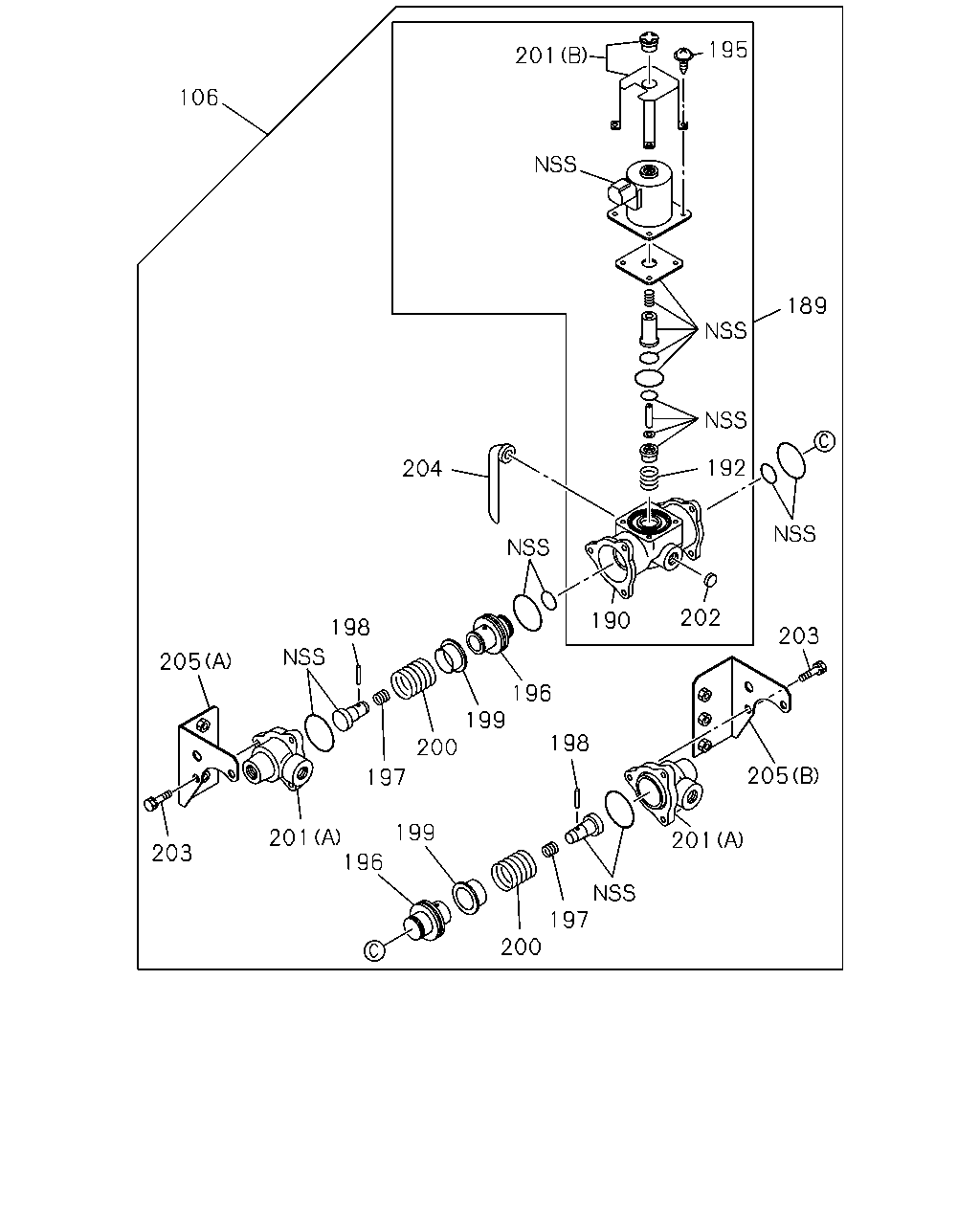

106 201 195 189 192 204 202 190 203 205 201 197 200 199 196 198 196 199 200 197 201 203 205 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12)	1-46362-123-1	01	1	1302-
106	VALVE; HSA H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46362-147-1	01	1	1302-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12)	1-46366-247-0	01	1	1302-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-253-0	01	1	1302-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12)	1-46366-234-0	01	1	1302-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-192-0	01	1	1302-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-181-0	01	1	1302-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-191-0	04	1	1302-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12)	1-46366-232-0	02	1	1302-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-251-0	02	1	1302-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-161-0	02	1	1302-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-122-0	02	1	1302-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-121-0	02	1	1302-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-120-0	02	1	1302-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-46366-118-1	02	1	1302-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-46366-241-0	01	1	1302-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-117-1	02	1	1302-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-116-1	06	1	1302-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-194-0	01	1	1302-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-46366-149-0	01	1	1302-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-46366-150-0	01	1	1302-

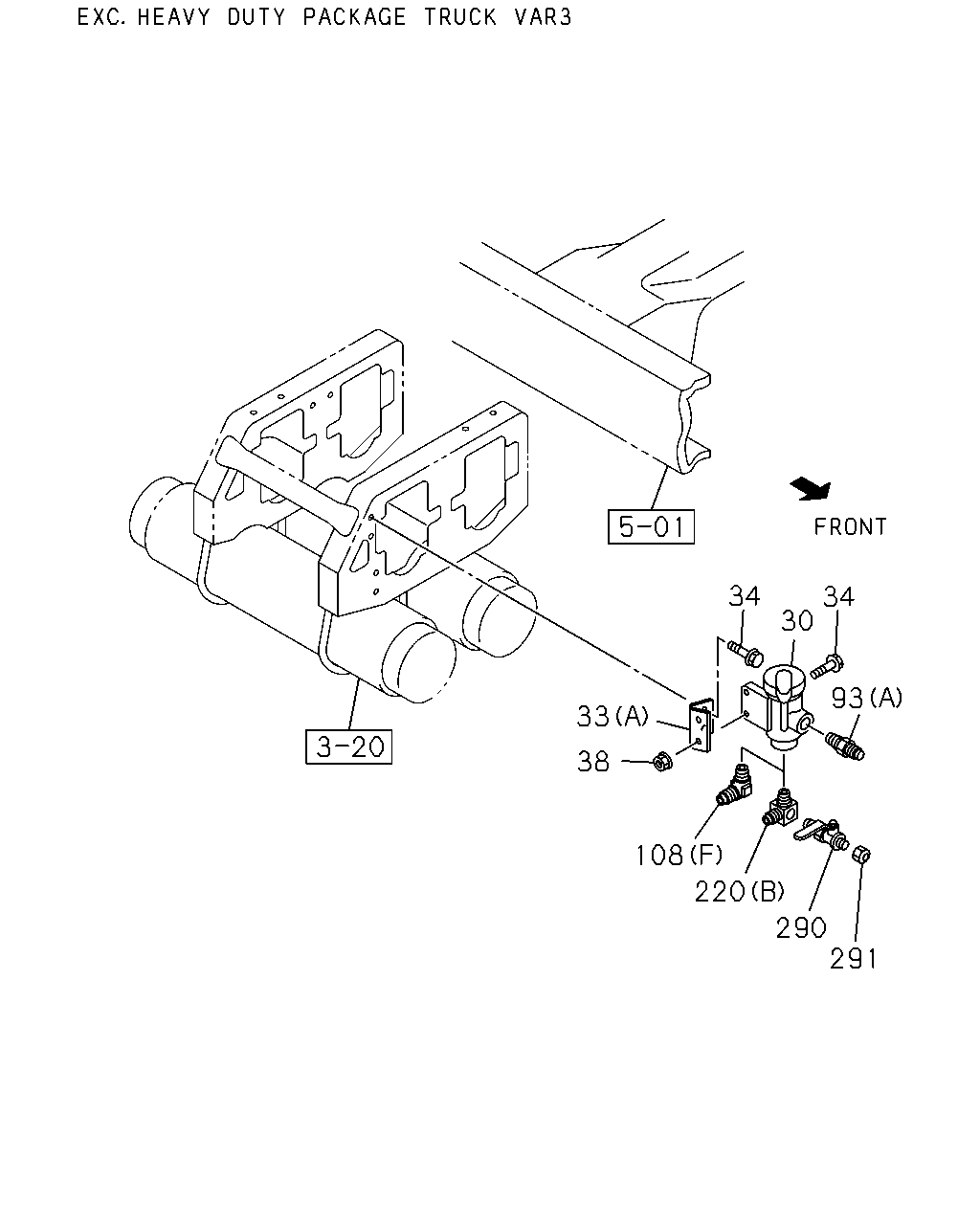

34 93 34 30 33 38 108 220 290 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98120-459-1	01	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C)	8-98035-011-0	01	1	1302-1311
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1302-1311
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1312-
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1302-
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1302-
290	COCK; AIR,INFLATOR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	1302-
291	CAP; AIR COCK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	1302-

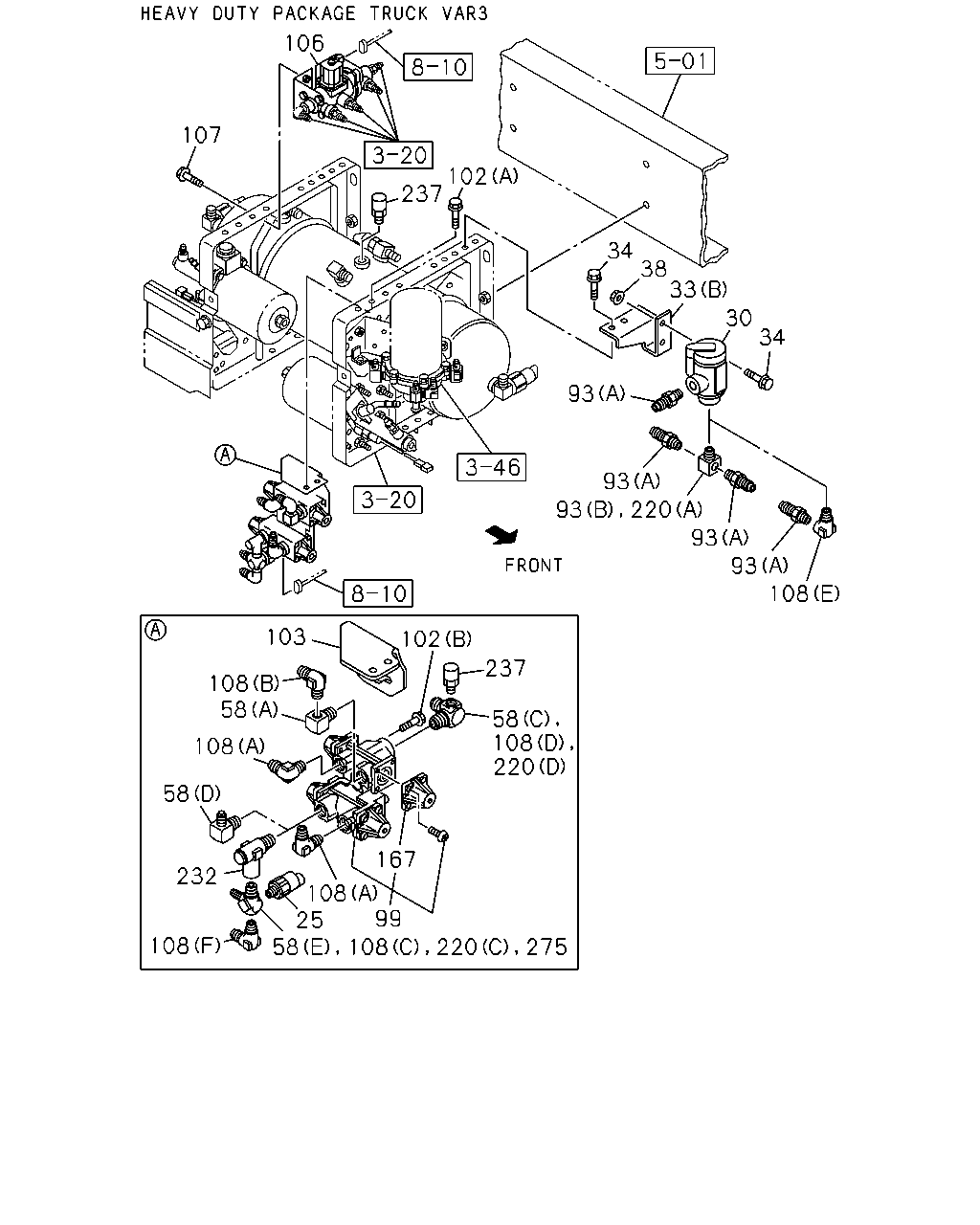

34 30 33 38 34 93 93 93 220 93 93 108 107 106 237 102 103 108 58 108 58 232 108 108 237 102 58 108 220 167 25 58 99 108 220 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1302-
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98120-459-1	01	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (E)	8-98035-011-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> (D) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-48110-290-3	01	1	1302-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV)	1-48110-288-3	01	1	1302-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
102	BOLT; PROTECTION VALVE BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98162-113-1	01	1	1302-1311
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98221-293-0	01	1	1312-
106	VALVE; HSA H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12)	1-46362-123-1	01	1	1302-
106	VALVE; HSA H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46362-147-1	01	1	1302-
107	BOLT; VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	03	1	1302-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C)	8-98035-011-0	01	1	1302-1311
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1302-1311
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	04	1	1302-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1312-
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1302-
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1302-
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1302-
237	VALVE; SAFETY	1-48320-012-2	01	1	1302-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	8-98035-011-0	01	1	1312-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-85576-467-0	01	1	1302-

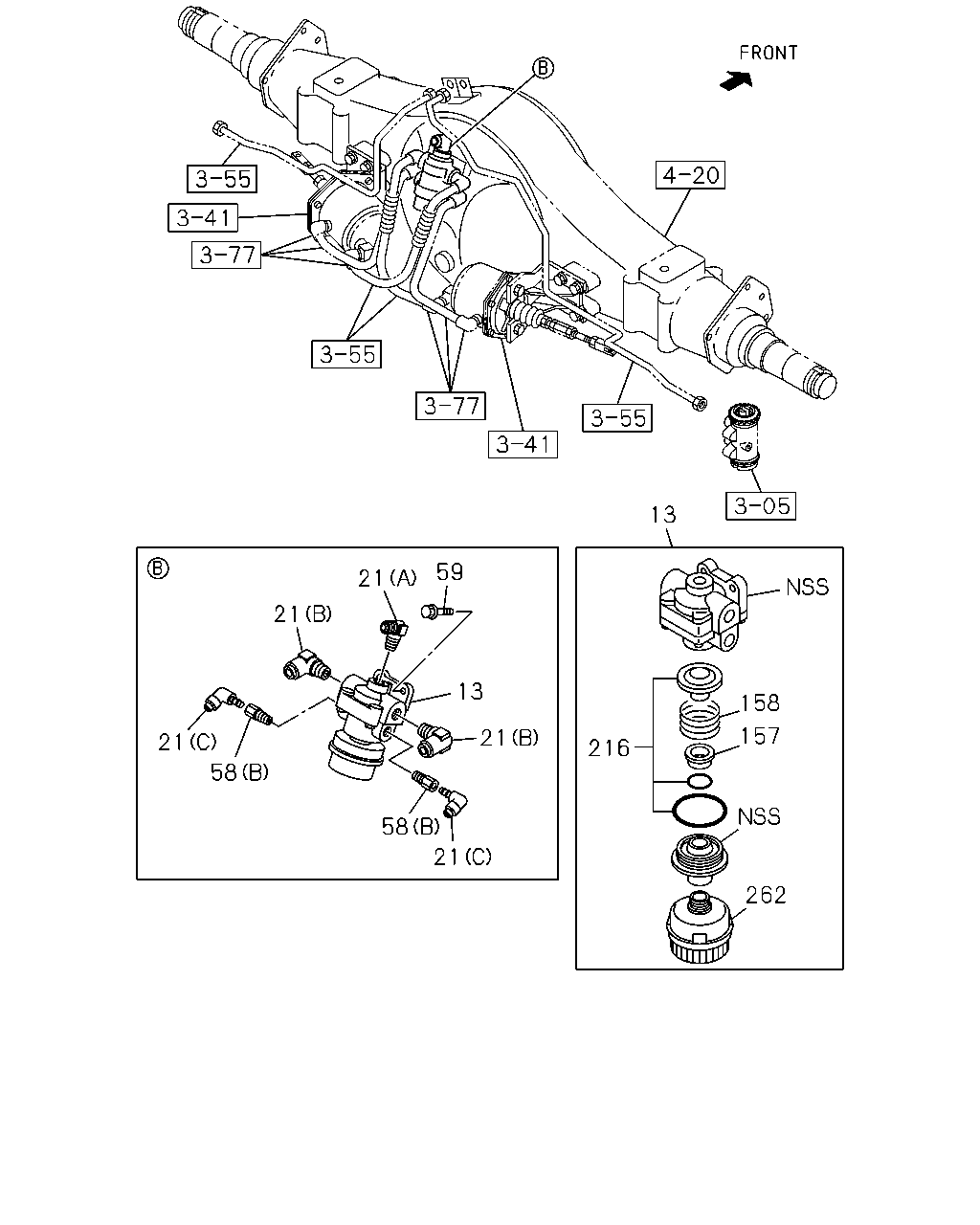

262 216 157 158 13 59 21 21 21 58 13 21 58 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-48410-781-2	01	1	1302-
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV)	1-48410-783-0	01	1	1302-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR	1-09661-816-0	02	1	1302-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (E)	8-98035-011-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> (D) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1302-
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28050-820-0	02	1	1302-
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-48419-036-0	01	1	1302-
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	9-48419-003-0	01	1	1302-
216	REPAIR KIT; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-85579-062-0	01	1	1302-
262	SILENCER; RELAY VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-48219-149-0	01	1	1302-

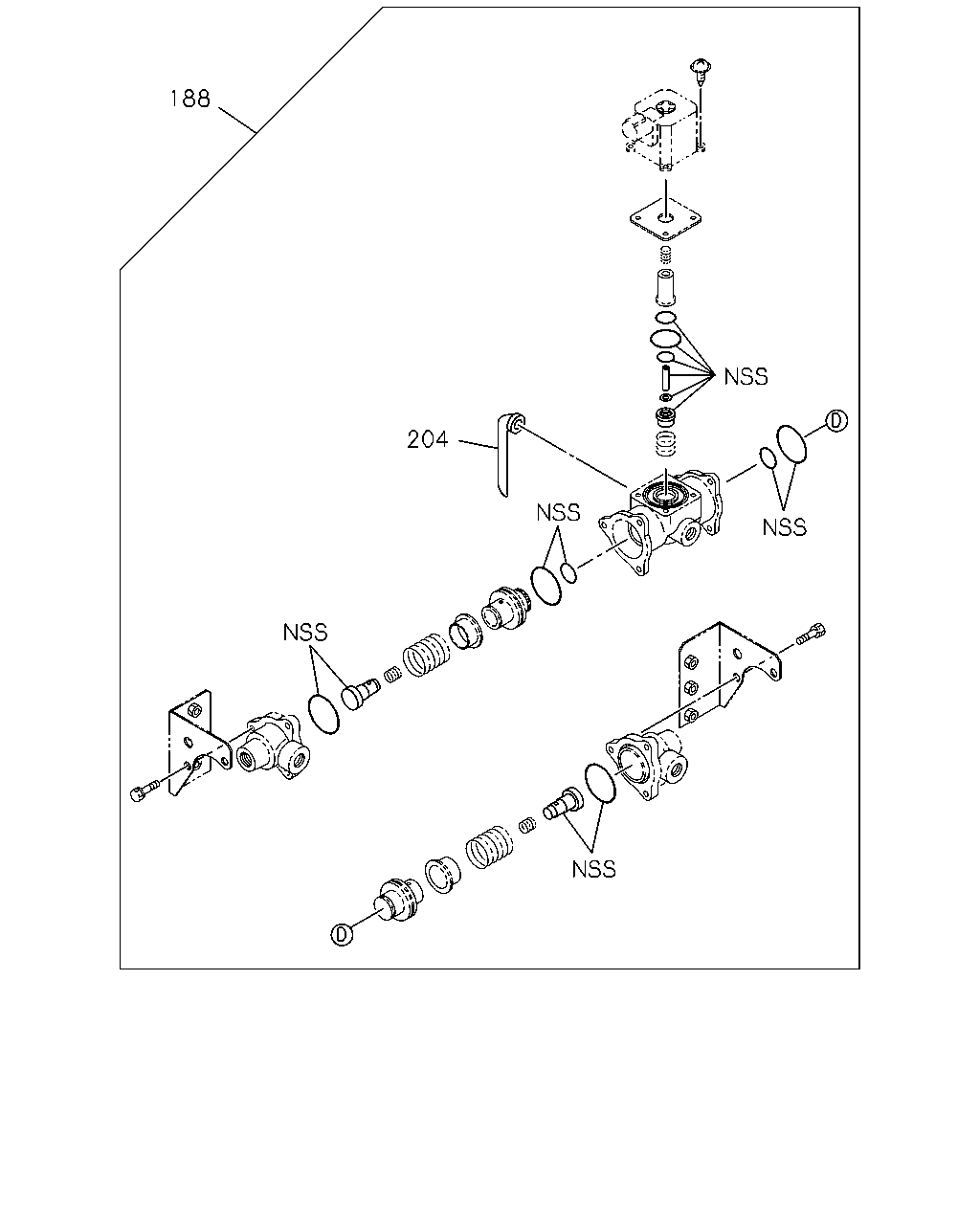

188 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12)	1-85576-304-1	01	1	1302-
188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-469-1	01	1	1302-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-194-0	01	1	1302-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-451-2	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
